Aluminum Gearbox & Transmission Housing Machining Project
Single-facility delivery featuring A356-T6 aluminum precision investment casting and multi-axis CNC machining—eliminating subsurface porosity defects and solving complex fixture datum alignment challenges.
Ensures flawless 5-axis fixture alignment and tight mating surfaces.
Eliminates internal porosity for high-pressure fluid containment.
Key Engineering Parameters & Technical Specifications
Every aluminum gearbox machining project at VastCasting is governed by strict metallurgical standards and verified dimensional tolerances. The technical metrics below detail our baseline capabilities for A356 T6 casting housing components, precision transmission housings, and custom drive enclosure assemblies.
Casting dimensions and post-machining features strictly adhere to international tolerances for high-precision housings.
Metallurgical options tailored to strength-to-weight demands, thermal performance, and surface finishing requirements.
High-capacity work envelope accommodating large-format transmission housings and multi-face gearbox components in single setups.
Pneumatic pressure-drop testing guarantees complete sealing integrity and zero gear oil seepage prior to final shipment.
Achieving tight aluminum gearbox tolerance across serial production runs requires complete control from initial melt to final inspection. VastCasting integrates investment casting and precision CNC machining under one roof, eliminating vendor fragmentation, communication lag, and quality disputes between separate foundries and machine shops. This unified manufacturing pipeline ensures a fully traceable, single-source quality chain for every A356 T6 casting housing we produce.
Metallurgy & Heat Treatment
| Parameter | Specification |
|---|---|
| Primary Alloy | A356.0-T6 (Solution Heat Treated + Artificially Aged) |
| Secondary Alloys | A380 (Die Cast), 6061-T6 (Billet / Machined Wrought) |
| Tensile Strength (A356-T6) | ≥ 262 MPa (38 ksi minimum) |
| Yield Strength (A356-T6) | ≥ 207 MPa (30 ksi minimum) |
| Elongation | ≥ 6% (engineered for high dynamic toughness and wall ductility) |
| Heat Treatment Standard | ASTM B108 / AMS 2770 compliant T6 tempering cycle |
| Casting Process | Precision Investment Casting (Lost-Wax) & Low-Pressure Die Casting |
| Casting Tolerance Class | CT4–CT6 compliant with ISO 8062-3 |
A356.0-T6 remains the premier alloy choice for heavy-duty automotive gearbox housing applications due to its exceptional strength-to-weight ratio, fluid castability, and high fatigue resistance. Beyond aluminum, we also specialize in superalloy high-temp castings for extreme thermal and operating environments. Our controlled T6 heat treatment process—combining solution annealing with artificial aging—refines the internal grain microstructure, ensuring maximum mechanical strength and elongation under severe drivetrain stresses.
Machining Tolerances & Quality Standards
| Parameter | Specification |
|---|---|
| Dimensional Tolerance | ISO 2768-mK (fine geometric and linear tolerances) |
| Bearing Bore Coaxiality | ≤ 0.012 mm (100% CMM verified per production lot) |
| Positional Tolerance | ≤ 0.015 mm across multi-axis hole patterns and mounting faces |
| Surface Roughness (Seal Faces) | Ra ≤ 0.8 µm (micro-finish for leak-proof gasketing) |
| Machining Fleet | 4-axis & 5-axis Horizontal CNC Machining Centers |
| Leak Test Protocol | < 0.5 cc/min @ 2 bar (automated pneumatic pressure-drop) |
| NDT Inspection | 100% X-Ray radiograph sampling on raw castings (ASTM E505) |
| Dimensional Verification | Full CMM layout report and chemical cert with every shipment |
Utilizing advanced 4-axis and 5-axis horizontal CNC machining centers enables complete single-setup finishing for bearing bores, seal faces, and mounting flanges. By machining all primary reference geometry in one clamping, we eliminate re-fixturing errors that typically compromise positional accuracy, ensuring every aluminum gearbox tolerance specification is met reliably.

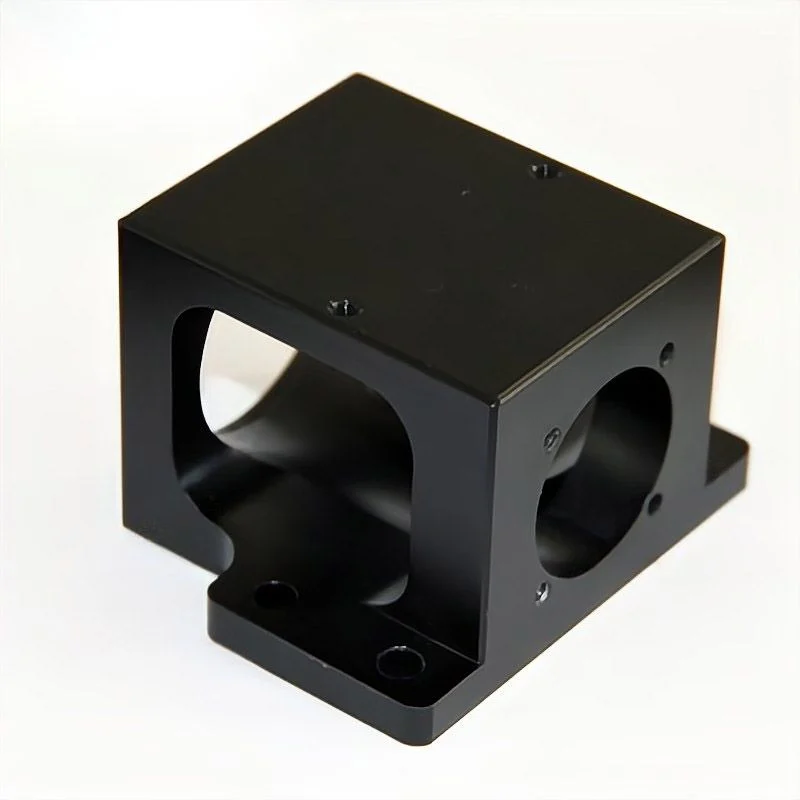

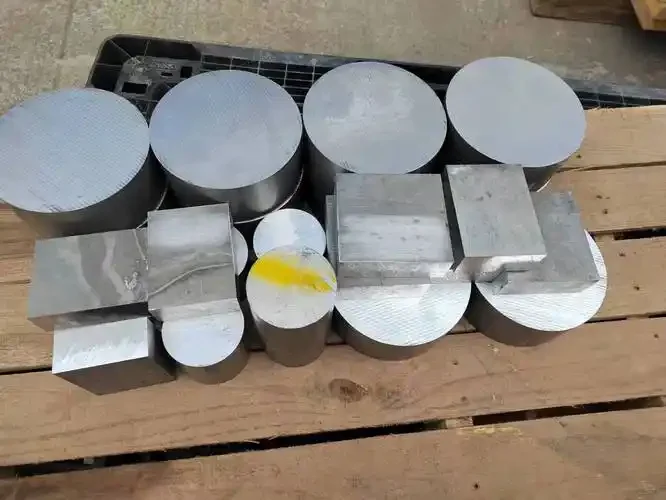

Material Selection Rationale
A356.0-T6 provides the ideal synergy of castability, post-machining structural strength, and corrosion resistance. Precise control over iron content and silicon modification yields a refined microstructure that prevents fatigue propagation under high torque loads.
- A356.0-T6 — Primary alloy for structural transmission housings requiring superior elongation.
- A380 — Optimal for high-volume die-cast enclosures with intricate, thin-walled rib structures.
- 6061-T6 — Premium billet option for low-volume prototypes, reinforced brackets, and adapter plates.

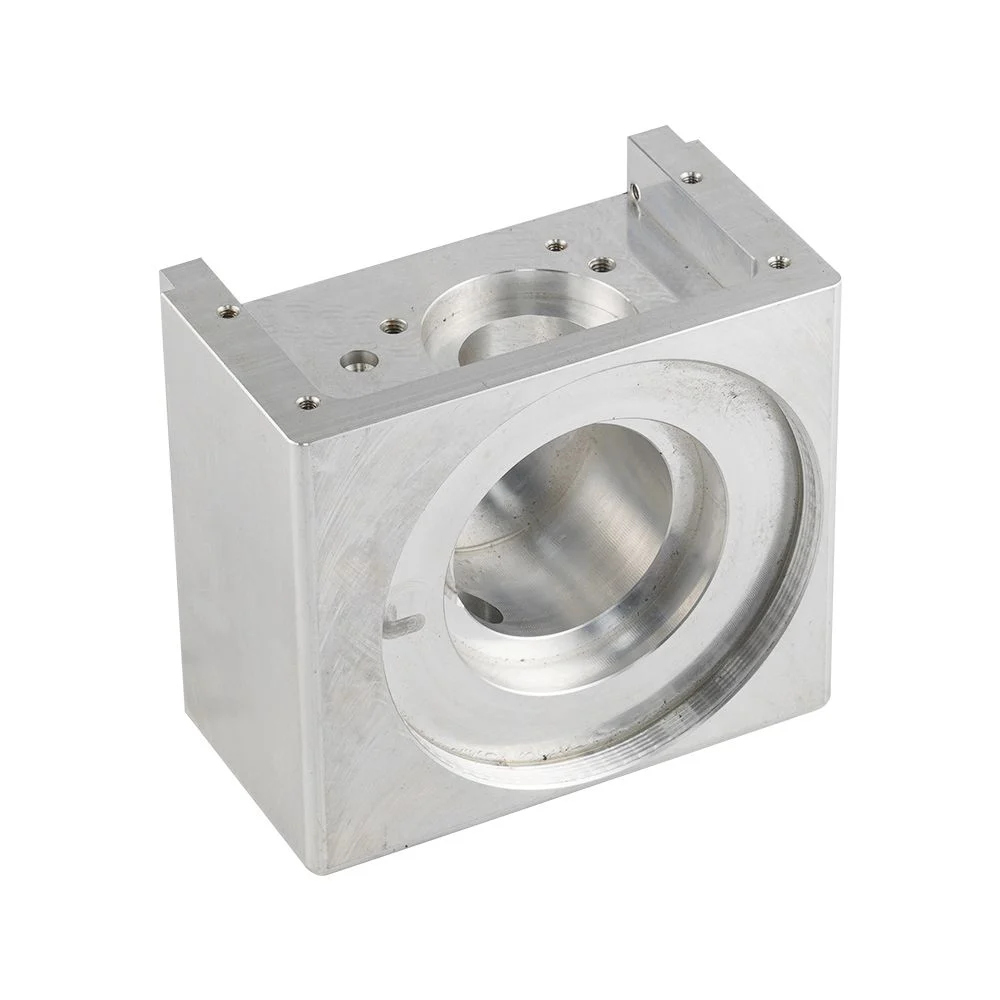

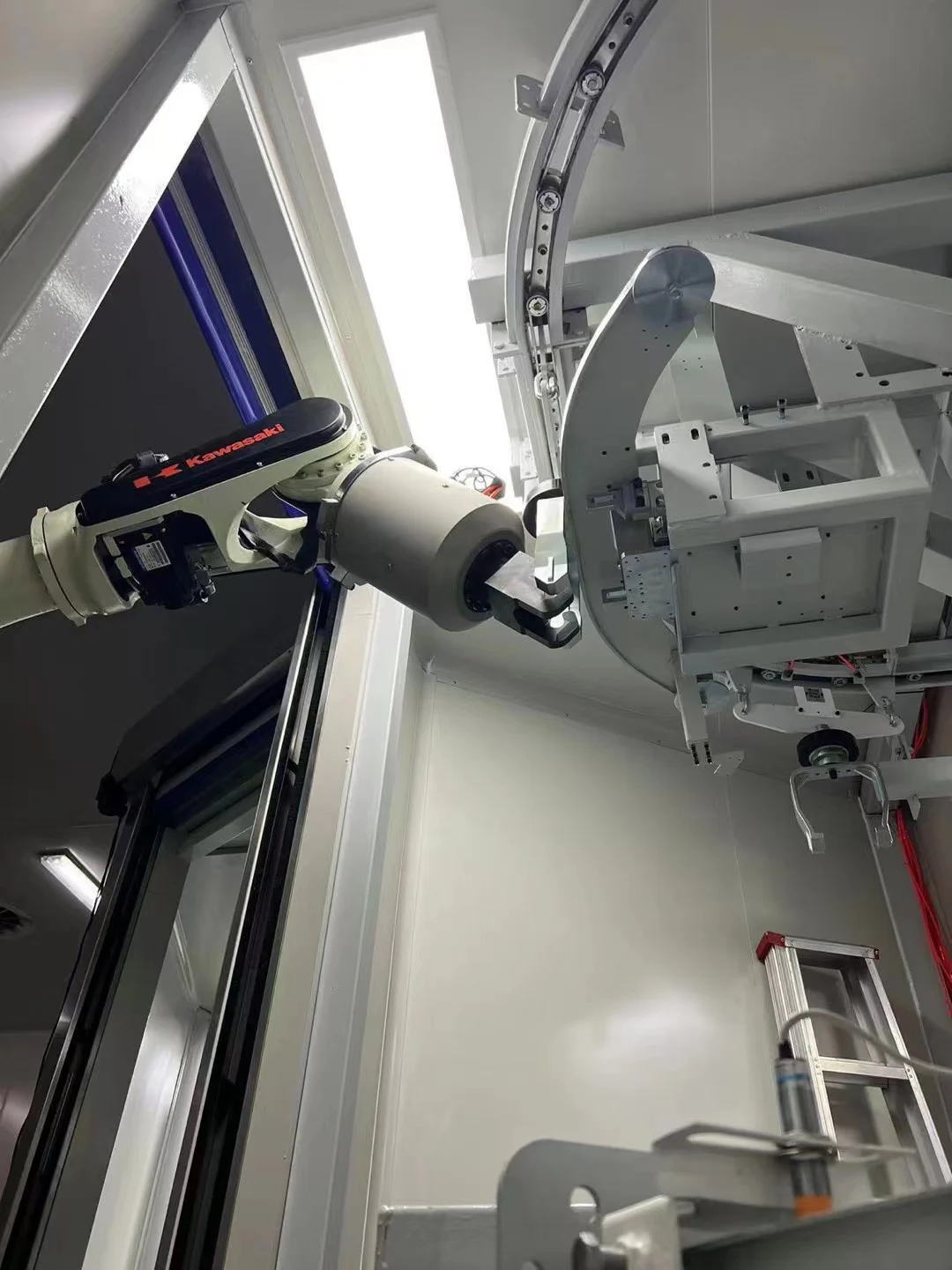

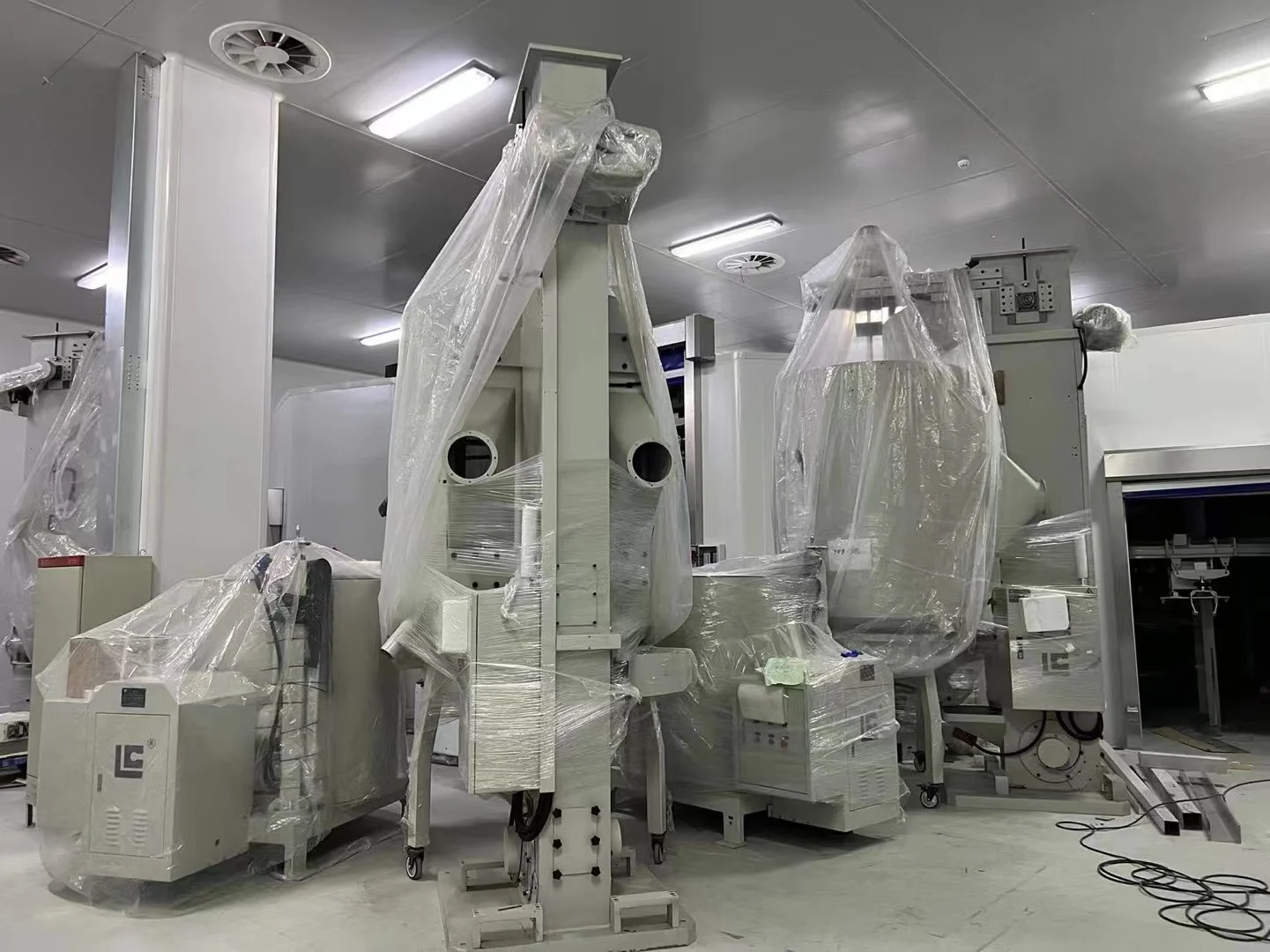

CNC Machining Process
High-precision 4-axis and 5-axis horizontal CNC centers process all functional features—bearing bores, internal passages, bolt circles, and gasket surfaces—in a single workholding setup. This minimizes total indicator reading (TIR) variation and guarantees bearing bore coaxiality within 0.012 mm.
- Single-setup multi-face milling and boring to eliminate datum misalignment.

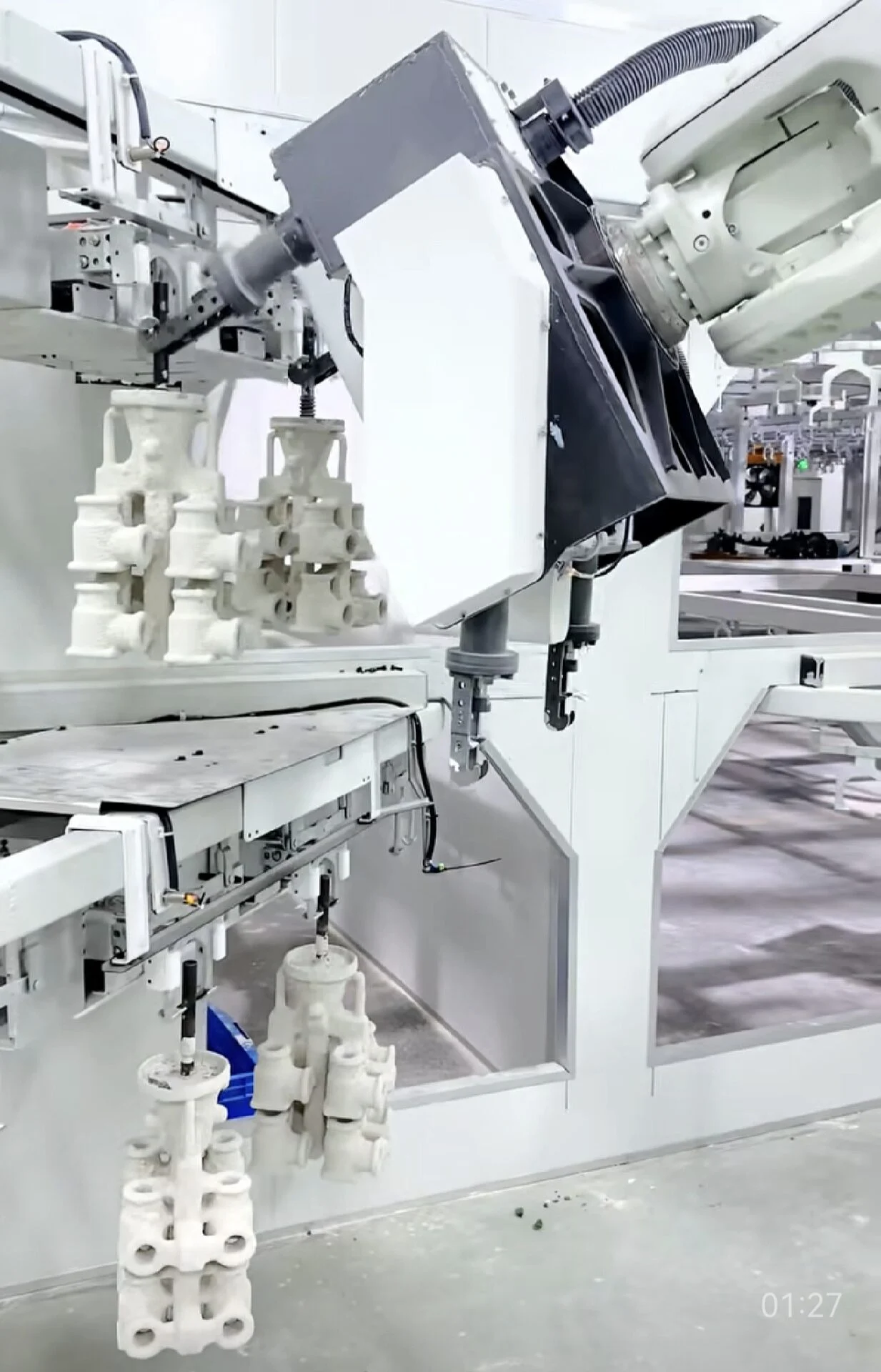

- Custom hydraulic and pneumatic clamping fixtures engineered specifically for each housing design, including precision fluid handling components like valve body fittings.
- 3D laser-scan stock matching to optimize machining allowances and datum alignment.
Surface Finishing Options
Post-machining surface treatments are tailored to operating conditions, fluid exposure, and environmental endurance requirements. Every post-process step is executed in-house or strictly managed under our unified QA system.
- Type II / Type III Anodizing — Robust corrosion and wear resistance for demanding underbody environments.
- Shot & Bead Blasting — Surface stress relief providing a clean, non-directional matte finish.
- Ultrasonic Solvent Degreasing — Deep cleaning to flush particulates from internal oil channels and threads.
Why Integrated Casting and Machining Delivers Superior Gearbox Tolerances
When raw casting and CNC machining are split between independent suppliers, tolerance stack-up and quality disputes frequently arise. Foundries optimize for casting yield and gating, while machine shops optimize for tool life and cycle speed. Neither vendor assumes end-to-end accountability for the final component's dimensional precision, leaving OEM procurement teams to manage expensive delays and non-conformance claims.
VastCasting eliminates these supply chain risks by uniting foundry engineering and precision machining under a single operational roof. During initial DFM reviews, our casting engineers and CNC programmers collaborate to define optimal machining allowances, zero-point datum schemes, and fixture contact zones before cutting any tooling. This ensures raw casting stock is specifically optimized for automated CNC machining rather than treated as a generic blank.
This integrated manufacturing workflow is essential for meeting strict aluminum gearbox tolerance criteria. Key features—such as bearing bore coaxiality within ≤ 0.012 mm and positional tolerances within ≤ 0.015 mm—can only be guaranteed when rough casting datums seamlessly align with downstream machining setups. Our 5-axis horizontal machining fleet processes housings up to 800 mm × 600 mm × 400 mm with exceptional repeatable accuracy.
- Integrated DFM aligns raw casting geometry with CNC fixture datums before tooling production.
- Single-source manufacturer accountability eliminates supplier handoff errors and lead-time delays.
- Optical emission spectrometry and CMM inspection verify material chemistry and dimensional accuracy on every production lot.
- Advanced leak testing and porosity controls prevent gear oil seepage in severe automotive applications.
Overcoming Thin-Wall Gearbox Deformation & Fixture Datum Positioning
Manufacturing precision aluminum gearbox housings requires seamless synchronization between foundry metallurgy and post-cast CNC machining. Thin-wall structures, intricate internal oil galleries, and multi-axis alignment specs create steep distortion and datum-mismatch risks. VastCasting solves these structural challenges through single-source casting plus CNC integration—delivering fully machined, porosity-free transmission housings under unified engineering accountability.

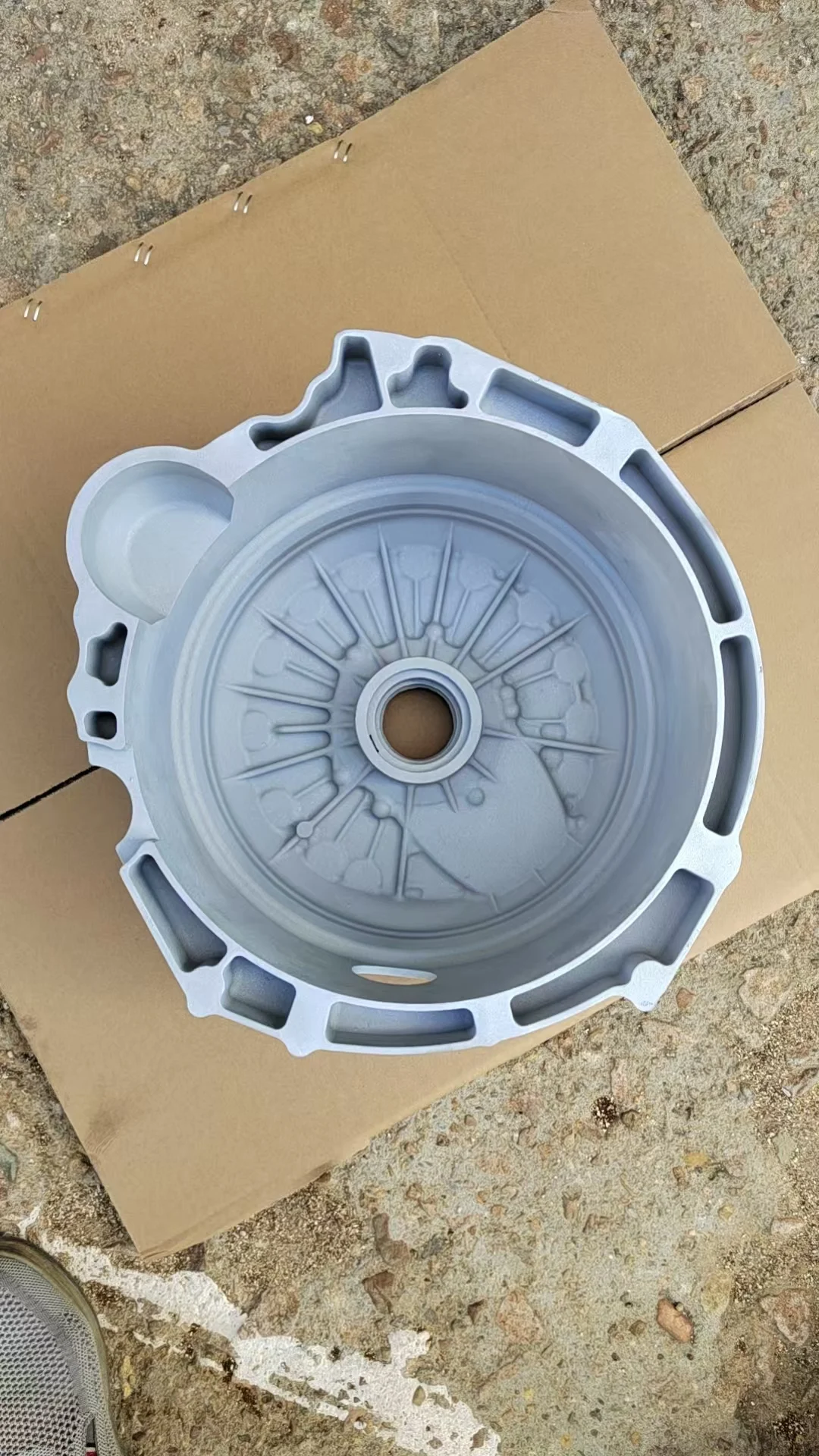

Raw Investment Casting Stage
Every high-integrity aluminum gearbox housing project begins with raw blank casting using high-purity A356.0-T6 alloy. Beyond aluminum components, our manufacturing expertise extends to advanced foundry solutions like stainless steel castings and superalloy high-temp castings for extreme environment applications. VastCasting controls molten metal degassing, mold thermal gradients, and directional solidification to eliminate internal shrinkage porosity—the root cause of high-pressure fluid leaks and structural wall failures.
- Alloy: A356.0-T6 aluminum alloy, solution heat treated for high fatigue strength, impact toughness, and elongation ≥ 6%.
- Casting Tolerance: CT4–CT6 per ISO 8062, ensuring uniform wall thickness and optimal machining stock distribution across complex geometries.
- 100% Radiographic Testing: Comprehensive X-ray NDT screening to verify sub-surface structural integrity before parts enter the CNC machining line.
- 3D Laser Scanning: Complete raw blank scanning maps volumetric stock allowances and establishes accurate Datum A alignment references prior to cutting.
Controlling casting quality upstream is crucial for porosity-free machining. By eliminating sub-surface inclusions and voids at the foundry stage, subsequent CNC milling and boring operations expose pristine metal on critical sealing surfaces and bearing bores—ensuring zero oil leakage in automotive aftermarket and industrial transmission applications.
Rigorous Full-Process QC: From NDT Raw Inspection to CMM Verification
Overseas buyers in high-performance automotive aftermarket and industrial equipment sectors demand uncompromised structural integrity and precise dimensional tolerances. At VastCasting, every aluminum gearbox machining project undergoes an end-to-end quality validation protocol. By unifying investment casting and downstream CNC machining within a single facility, our integrated workflow eliminates subsurface porosity defects, guarantees strict geometric dimensioning and tolerancing (GD&T) compliance, and delivers verified, leak-free transmission housings.
X-Ray NDT Screening for Subsurface Integrity
Raw A356 T6 casting housing units undergo 100% non-destructive evaluation (NDT) via real-time industrial X-ray radiography. This critical pre-screening detects subsurface shrinkage, micro-porosity, and inclusions before secondary machining occurs, ensuring critical sealing faces remain completely defect-free.
- Porosity free machining: Guarantees clean internal structures for precision milling
- Density validation: Prevents fluid seepage across thin-wall housing zones
- Defect pre-screening: Stops defective raw castings prior to multi-axis CNC operations
CMM Dimensional Metrology & Precision Alignment
Automated gearbox CMM inspection routines verify spatial alignment across complex multi-axis housing geometries. Our climate-controlled metrology lab checks bearing bore coaxiality down to 0.012 mm and confirms true position tolerances across all critical mounting bolt patterns.
- Bearing bore coaxiality: Held strictly to 0.012 mm precision
- Positional tolerance: Verified to 0.015 mm true position
- Automated coordinate inspection: Ensures strict batch-to-batch consistency
Pneumatic Pressure-Drop & Leak Testing
Every fully machined gearbox housing is subjected to dedicated pneumatic pressure-drop testing. By subjecting internal oil galleries and mating flanges to 2 bar pneumatic pressure, we eliminate gear oil seepage risks post-assembly for automotive and industrial gearboxes, including specialized valve body fittings.
- Leakage benchmark: Under 0.5 cc per min at 2 bar
- Pressure decay testing: 100% batch test coverage prior to shipment
- Custom sealing plates: Multi-cavity isolation capability for complex oil passages
Advanced Metallurgical Analysis & Porosity Control
Achieving reliable porosity free machining in cast aluminum housings requires strict metallurgical control at the molten metal stage. VastCasting maintains in-house optical emission spectrometers to verify chemical composition before pouring every batch of A356.0 aluminum alloy. Beyond standard aluminum, our quality standards extend across all production lines, including superalloy high temp castings.
Combined with rotary degassing and ceramic foam melt filtration, our foundry process eliminates trapped hydrogen gas and non-metallic inclusions. When secondary 5-axis CNC machining removes skin layers to form precision bearing bores, the underlying aluminum housing remains dense, uniform, and completely leak-tight.
Sample Quality Documentation
Review actual production documentation including 3D CMM layout data, material spectrometer analysis, and pressure-drop leak test certifications.
Download Sample Inspection Report PDFFull-Process Inspection Benchmark Matrix
| Inspection Stage | Testing Equipment | Target Specification | Quality Standard Complied |
|---|---|---|---|
| Raw Alloy Composition | Optical Emission Spectrometer | Si 6.5 to 7.5 percent, Mg 0.25 to 0.45 percent | ASTM B26 A356.0 Standard |
| Casting Density NDT | Digital X-Ray Radiography System | Zero Level 3 gas holes or shrinkage in critical zones | ASTM E155 Reference Radiographs |
| Dimensional Geometry | Zeiss 3D CNC Coordinate Measuring Machine | Bore Coaxiality 0.012 mm, Position 0.015 mm | ISO 2768-mK / ASME Y14.5 GD&T |
| Airtightness Sealing | Differential Pressure Decay Tester | Under 0.5 cc per min drop at 2.0 bar air pressure | 100 Percent Batch Leak Acceptance |
Application Domains for Custom Aluminum Gearbox Housings
VastCasting manufactures precision aluminum components ranging from specialized aftermarket transmission housing units to heavy industrial actuator enclosures. Discover our full range of products and learn how our single-source investment casting and 5-axis CNC machining meet demanding structural and dimensional requirements across diverse OEM sectors.

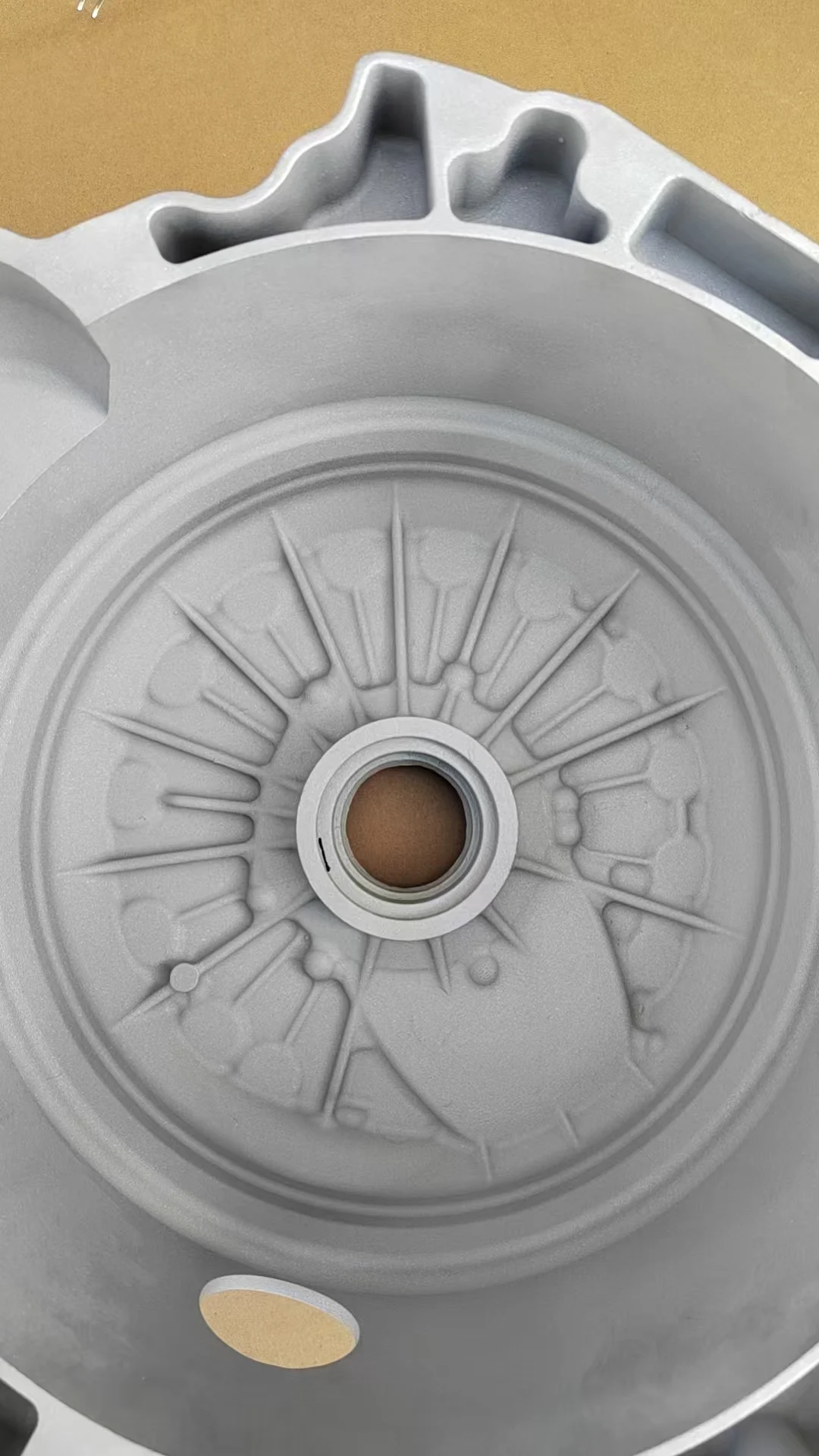

High-Performance Transmission Upgrades
Engineered aftermarket transmission housing assemblies built to handle extreme torque loads, severe vibration, and high thermal stress in tuner applications.

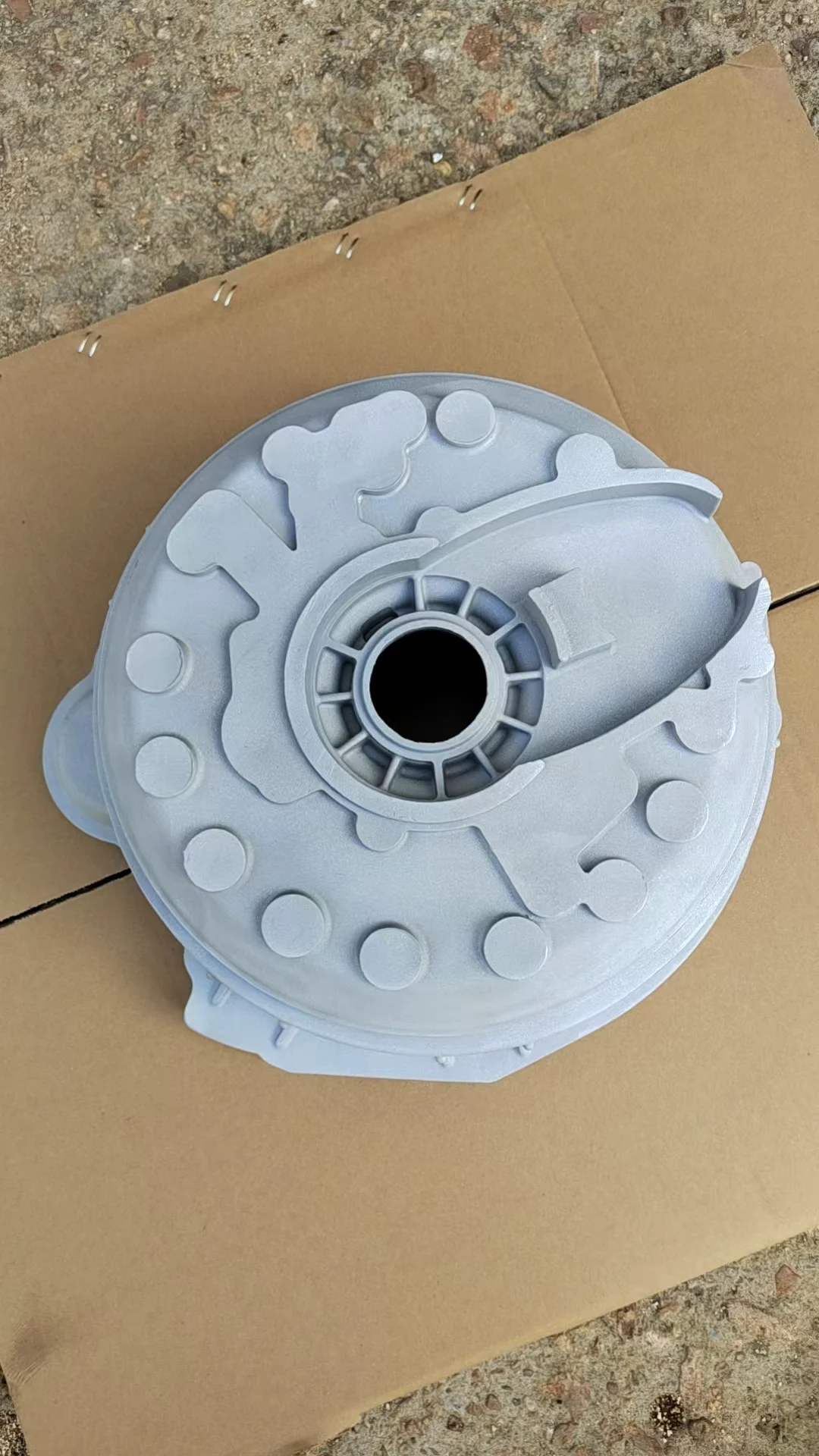

EV Reducer & Motor Integrated Housings
Precision automotive gearbox housing units featuring complex internal liquid-cooling passages and leak-free sealing surfaces for electric drivelines.

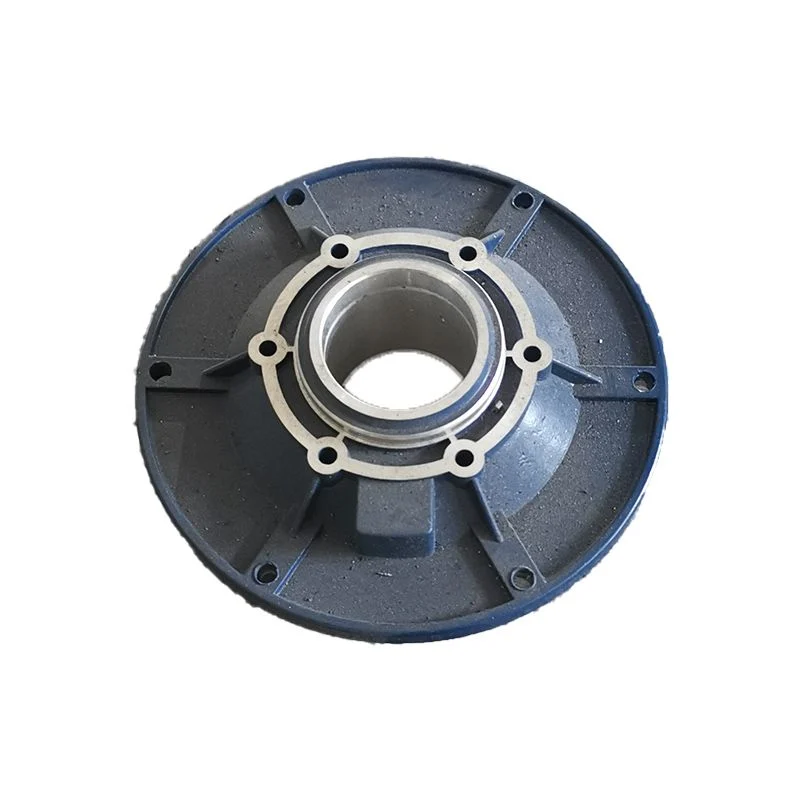

Heavy-Duty Valve Actuator Gearboxes
Robust cast aluminum gear enclosures designed for motor-driven valve actuators operating alongside valve-body-fittings in aggressive outdoor and chemical processing environments.

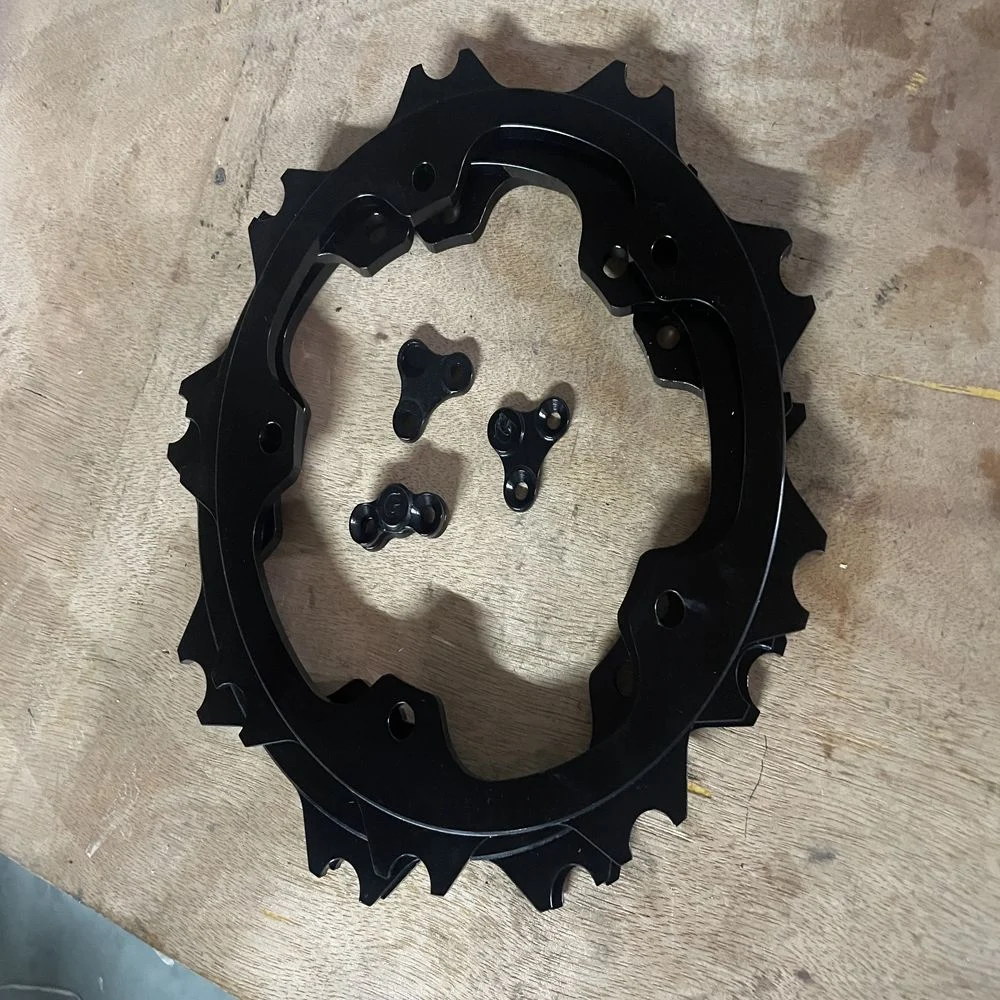

Custom Racing Drivetrain Components
Ultra-lightweight gear housings engineered for race-proven structural rigidity, rapid thermal dissipation, and reduced rotational inertia.
Need Custom Gearbox Housings Machined to Your Exact Specifications?
Our engineering team provides comprehensive DFM analysis, custom fixture design, and precision CNC finishing for custom alloy and stainless-steel-castings used in performance automotive and heavy industrial gearboxes worldwide.
Explore Related VastCasting Manufacturing Capabilities & Product Lines
Cross-reference our integrated casting and precision machining solutions engineered for demanding global applications. Discover our complete range of specialized products.

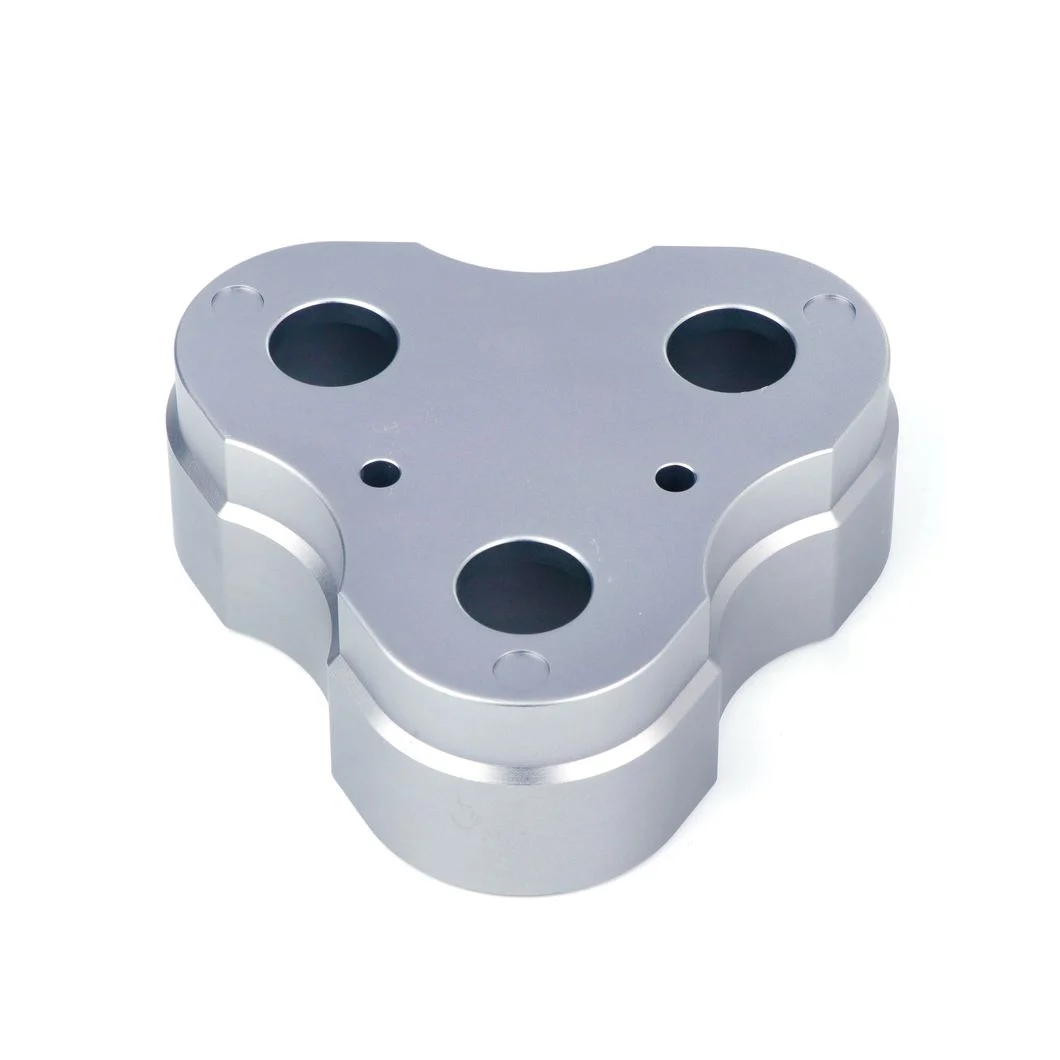

Gearbox & Exhaust
