Petrochemical Equipment Parts – Precision Investment & CNC Castings

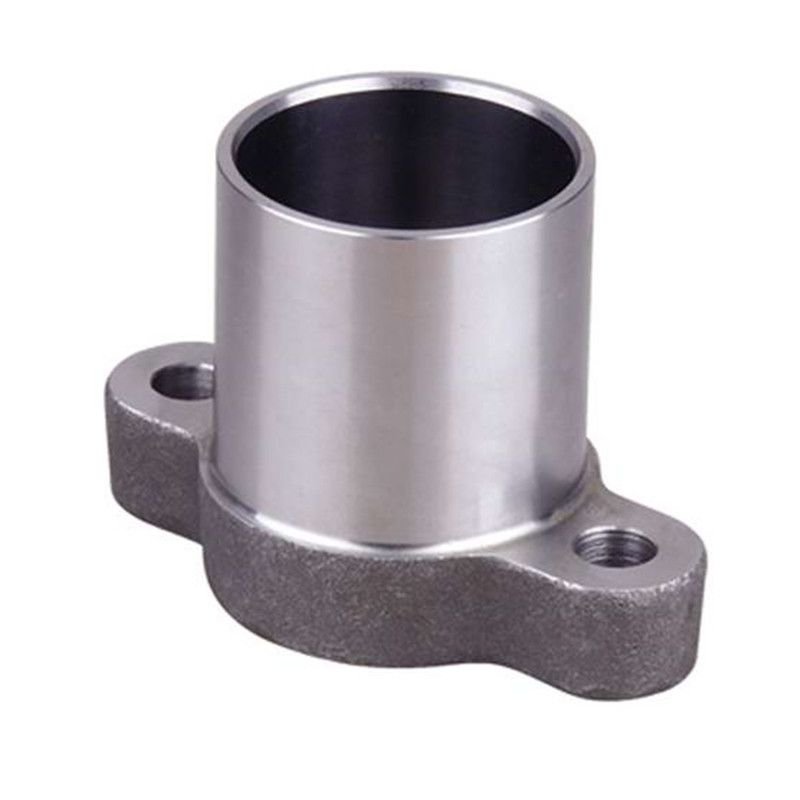

VastCasting specializes in duplex and corrosion-resistant stainless steel castings engineered for demanding petrochemical systems. We provide turnkey delivery—from silica sol investment cast blanks to tight-tolerance CNC machining—for fluid control equipment, high-pressure pumps, and chemical process units.
ASTM A351 and A995 alloys including 2205 & 2507 for aggressive chloride service.
Integrated casting and precision finishing under one roof to avoid vendor friction.
100% spectro-analysis material certification and full NDT flaw detection per batch.

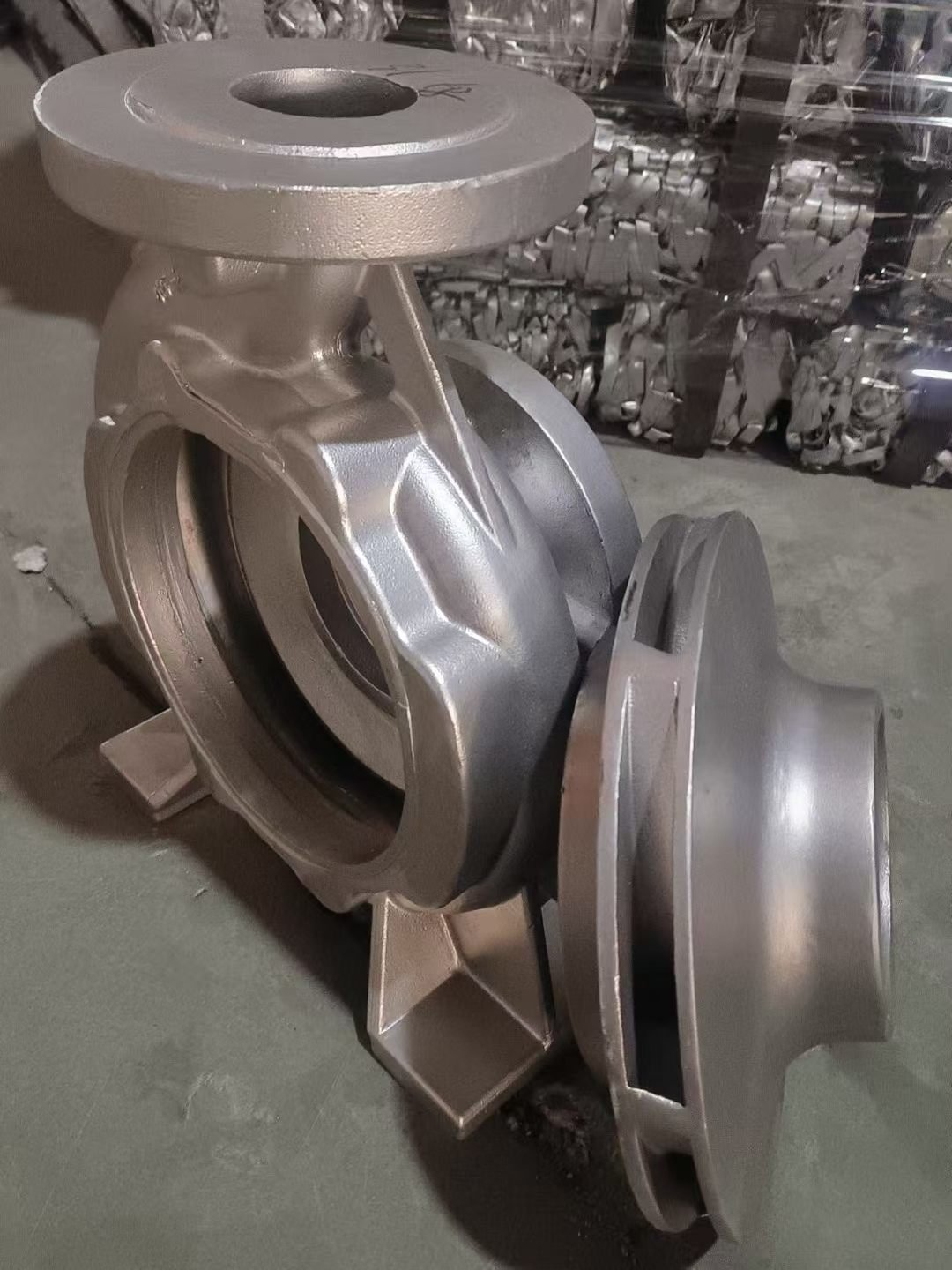

Precision CNC finished pump casing and valve component for critical process control.
Petrochemical Equipment Parts
Browse live product listings in this category. Request a quote with your drawings for OEM casting and CNC machining.
Try removing one or more filters.
High-Performance Castings for Aggressive Petrochemical Media
Operating in severe chemical processing and refining environments requires metal components engineered for zero-defect reliability and high-level corrosion defense. VastCasting manufactures high-precision investment castings tailored to withstand aggressive fluids, elevated pressures, and severe thermal stresses across industrial processing equipment. Explore our full range of products to find specialized casting solutions for your industrial needs.

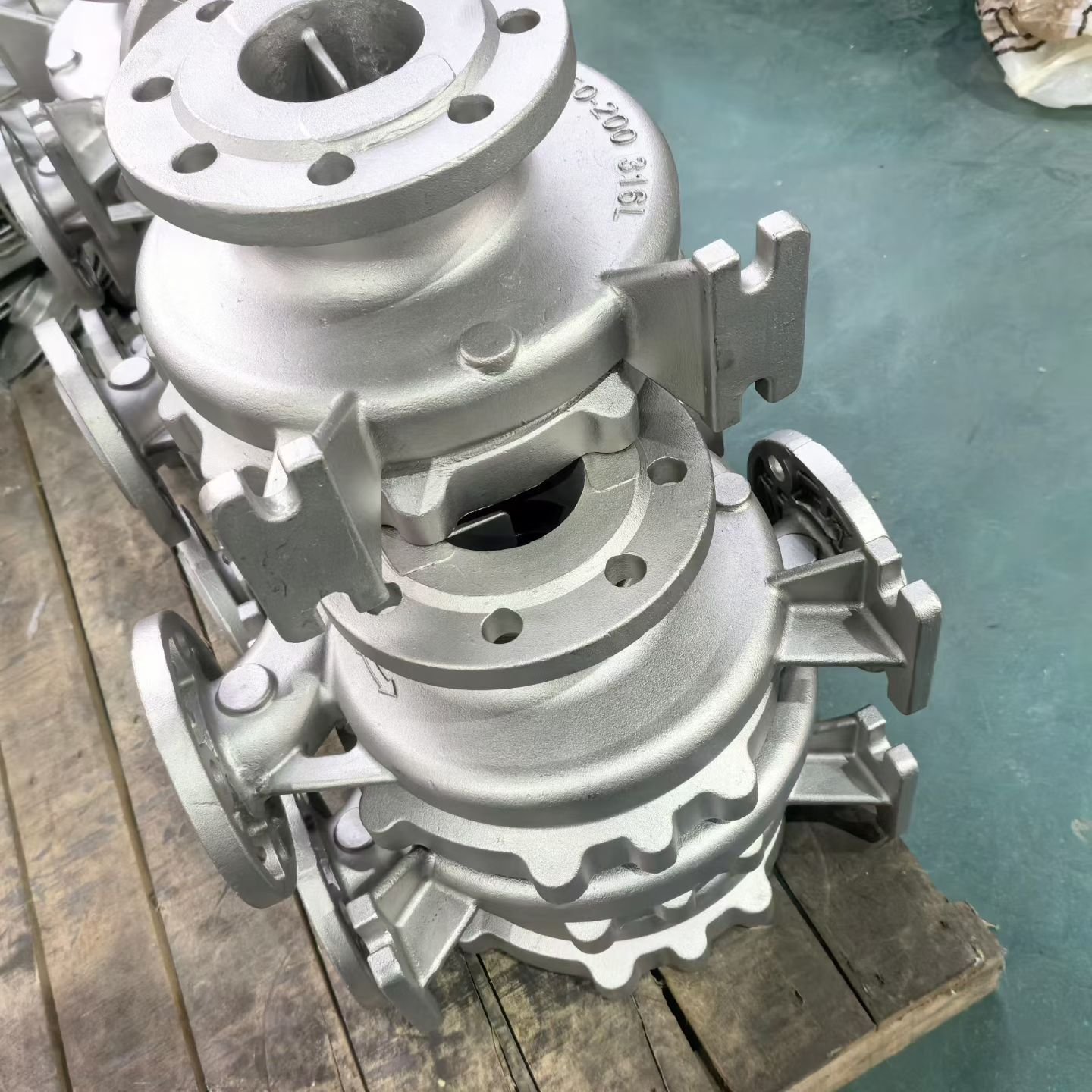

Valve Bodies and Fluid Control Parts
Industrial fluid management systems rely on durable valve bodies for aggressive media, including volatile organic solvents, acids, and high-chloride solutions. We manufacture specialized knife-gate valves, control valves, and high-durability valve body fittings with precision-machined sealing faces and stem holes to prevent leak paths under extreme operating conditions.
- Precision-machined sealing surfaces for leak-free shutoff
- Optimized for knife-gate, control, and multiport valves
- Duplex stainless steel and high-nickel alloy formulations

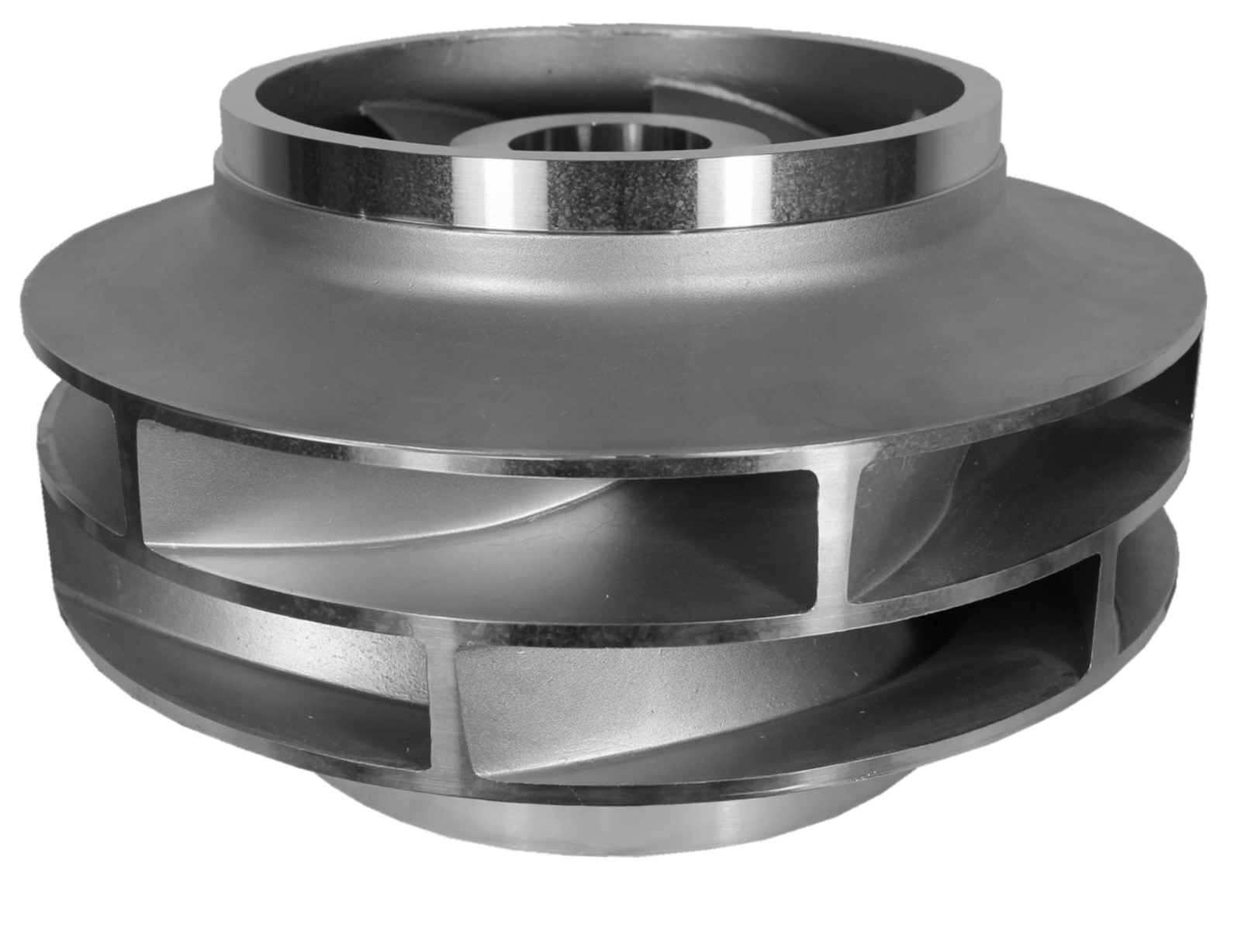

Pump Casings and Impeller Castings
Rotary and centrifugal fluid transfer systems demand balanced internal geometry to withstand erosion, impact, and cavitation. Our pump casings and impellers (available in open, semi-open, and closed designs) deliver long-term mechanical durability in chemical circulation pumps and high-pressure transfer applications under high-velocity flow rates.
- Hydrodynamically smooth internal flow channels
- Dynamically balanced open and closed impeller castings
- High resistance to slurry erosion and cavitation pitting

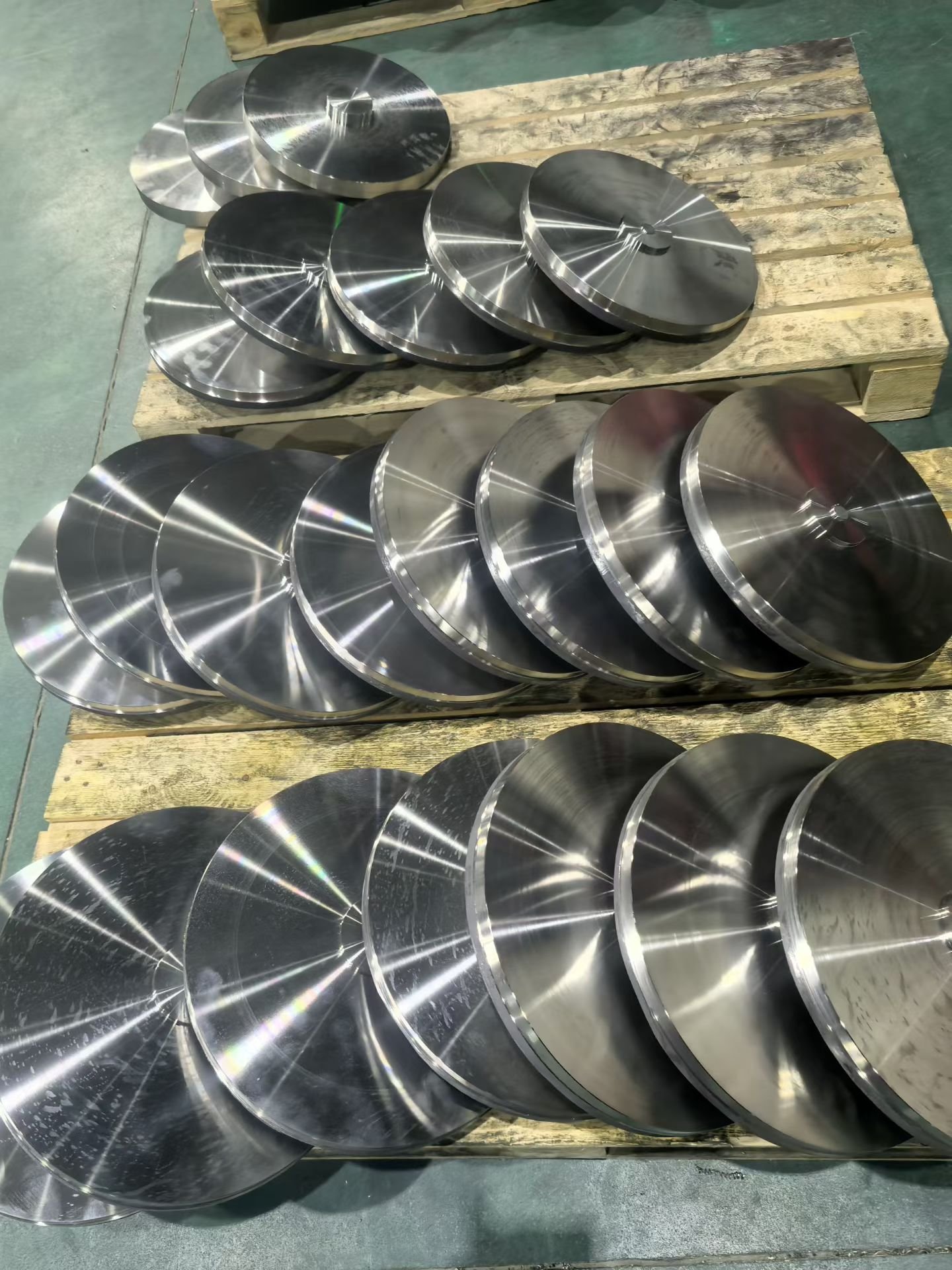

Pressure Housings and Instrument Accessories
Critical petrochemical infrastructure requires pressure-containing housings designed for structural integrity under cyclic thermal loads and intense internal pressure. We deliver high-integrity pressure housings, Y-strainers, heavy-duty pipe flanges, and custom OEM structural parts manufactured to exacting international engineering standards.
- Pressure-containing housings engineered for severe cyclic duty
- Integrated strainers and flanges with tight dimensional tolerances
- Full material traceability with 100% PMI and NDT compliance
Turnkey Manufacturing Advantage for Complex Petrochemical Parts
VastCasting relies on a mature lost-wax investment casting process to provide high dimensional accuracy raw blanks and finished products for complex cavities, thin-walled structures, and demanding chemical processing components. By combining silica sol precision casting with in-house CNC machining, we eliminate multi-vendor quality disputes and guarantee exact geometric tolerances across all mechanical sealing faces.
Every batch of corrosion-resistant stainless steel castings undergoes strict metallurgical inspection, including Positive Material Identification (PMI) spectral analysis and non-destructive testing (NDT), to comply with international petrochemical operating standards.
Material Selection Guide: A351 / A995 Grades & PREN Ratings
Selecting the proper metallurgy for severe chemical environments requires rigorous material science. VastCasting manufactures corrosion-resistant stainless steel castings strictly compliant with ASTM standards. From austenitic stainless steel for moderate media to duplex steel for high-chloride process loops, our metallurgists provide actionable guidance to ensure maximum component longevity and structural reliability.
ASTM Material Specifications and Guidance
Comparative chemical performance and targeted petrochemical applications
| Material Category | ASTM Grade | PREN Value | Key Characteristics | Suitable Media |
|---|---|---|---|---|
| Austenitic Stainless | ASTM A351 CF8 (304) CF8M (316) / CF3M (316L) | 18.0 to 25.0 | General corrosion protection, high ductility, excellent weldability, highly cost effective. | Organic acids, weak solvent solutions, general petrochemical utility lines. |
| Duplex Stainless | ASTM A995 4A 2205 / CD3MN | ≥ 34.0 | High mechanical strength, exceptional resistance to chloride pitting and stress corrosion cracking. | High chlorine, brackish water, sour gas refining, organic acid mixtures. |
| Super Duplex Stainless | ASTM A995 5A / 6A 2507 / CE3MN | ≥ 42.0 | Ultra high yield strength, supreme protection against localized crevice corrosion and erosion. | Severe marine environments, concentrated acid streams, high pressure chemical transfer. |
Alloy Performance Highlights
Select a material category below to inspect specialized physical traits and chemical resistance guidelines.
ASTM A351 CF8, CF8M, and CF3M Austenitic Alloys
Austenitic stainless steel castings provide outstanding overall corrosion protection against organic compounds, mild acids, and general industrial solvents.
- 316L or CF3M Low Carbon: Prevents intergranular corrosion after welding or heat treatment.
- High Cryogenic Toughness: Maintains ductility and impact toughness at sub-zero temperatures.
- Economic Choice: Ideal balance of structural integrity and component cost for standard fluid lines.
PREN Chloride Guidance & Formula
The Pitting Resistance Equivalent Number quantifies alloy resistance to localized pitting in chloride-bearing environments. VastCasting calculates and verifies chemical ratios for every heat batch:
Note: For severe petrochemical equipment parts, a minimum PREN value of 34 is recommended to eliminate premature stress corrosion cracking risk. For high-temperature conditions beyond standard stainless grades, explore our specialized superalloy high temp castings.
Non-Destructive Testing and PMI Inspection Standards
To ensure every corrosion-resistant stainless casting meets strict petrochemical engineering demands, VastCasting performs comprehensive quality assurance directly in-house. We strictly melt according to ASTM standards and issue material nodularization and spectral PMI test reports for each production batch of industrial valve body fittings and custom components.
Spectral PMI Material Analysis
100% Positive Material Identification using optical emission spectrometers confirms alloy chemistry, chromium, molybdenum, and nickel ratios before and after casting.
Liquid Penetrant Testing (PT)
Comprehensive surface inspection checks for micro-cracks, pinholes, and surface porosity across critical sealing faces, valve seats, and flange grooves.
Ultrasonic Volumetric Testing (UT)
Non-destructive ultrasonic testing verifies internal structural soundness, detecting subsurface shrinkage, voids, and inclusion faults in heavy-wall pressure housings.
Hydrostatic and Tightness Tests
Pressure testing according to API 598 and ASME requirements guarantees zero shell leakage and pressure integrity for valve bodies and pump casings prior to dispatch.
Proven Performance in Extreme Chemical and Refinery Environments
VastCasting manufactures high-integrity, corrosion-resistant stainless steel castings engineered to withstand aggressive media, severe cyclic thermal pressure, and hyper-corrosive chemicals in critical petrochemical process equipment worldwide.
Critical Media Compatibility
Hydrocracking · Olefin Processing · Acid Gas Treatment

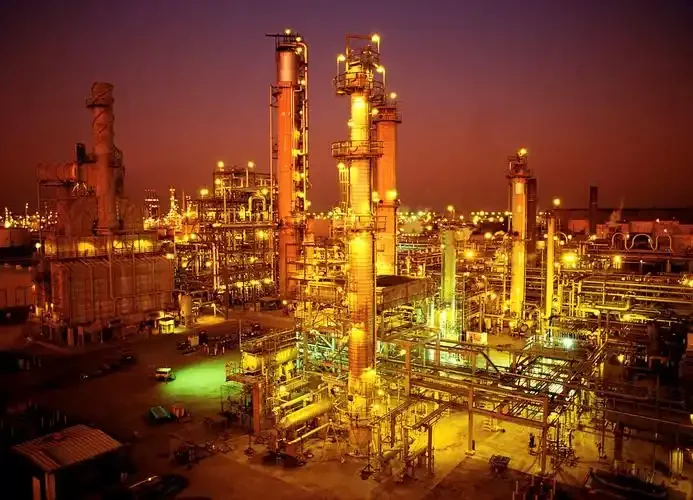

Refinery and Petrochemical Processing Applications
Modern oil refineries and chemical synthesis plants require zero-tolerance component reliability when handling aggressive media with high-sulfur compounds, wet hydrogen sulfide (H₂S), organic solvents, and concentrated chlorides. VastCasting engineers specialized investment castings built specifically to eliminate structural vulnerabilities and material degradation in continuous-duty petrochemical process equipment.

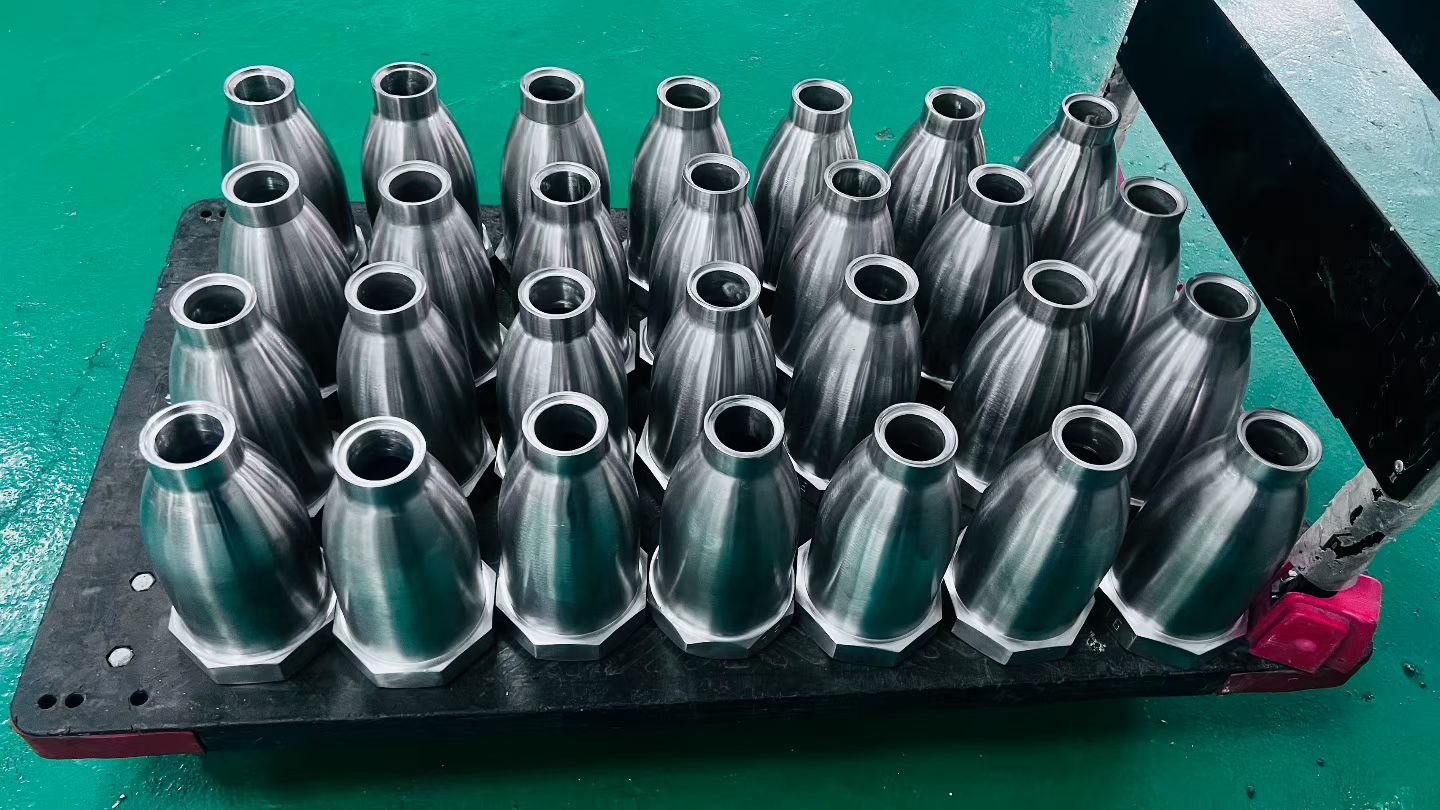

Focusing on fluid control infrastructure, our foundry routinely manufactures heavy-duty knife-gate valve casting assemblies, control valve bodies, high-pressure strainers, and manifold blocks. Utilizing silica sol investment casting, we eliminate internal shrinkage porosity and ensure precise grain boundaries, shielding components against sulfide stress cracking (SSC) and intergranular corrosion. Explore our full range of valve body fittings for demanding flow control environments.
- Zero-Leakage Sealing: Precision-machined seating faces engineered for knife-gate valve casting bodies and severe-service fluid control loops.
- Acid Gas Resistance: Optimized alloy chemistry verified through 100% PMI material analysis to withstand severe sour gas exposure without cracking.
- Full Non-Destructive Testing: Every critical petrochemical component undergoes 100% PMI material analysis with optional PT, UT, or hydrostatic pressure testing.
Duplex Steel Pressure Relief Valve Case Study
A leading international fluid control OEM experienced recurrent field failures in pressure relief valves operating within high-salinity offshore petrochemical platforms. Standard 316L stainless steel valve castings suffered severe localized pitting and chloride stress corrosion cracking, resulting in hazardous pressure fluctuations and frequent operational downtime.
Operating Challenge
Work hardening during post-cast machining and internal micro-porosity caused seat leakage under high-chloride marine service conditions.
VastCasting Solution
Transitioned to Duplex Steel 2205 (ASTM A995 4A) with single-factory investment casting and in-house precision CNC seat machining.
By unifying raw blank casting and CNC finishing inside a single facility, VastCasting solved the classic duplex steel work-hardening issue through optimized cutting speeds and customized tooling parameters. Our engineering team redesigned the gating system to eliminate shrinkage porosity, delivering a flaw-free duplex steel valve body casting with ultra-tight tolerance seating surfaces.
Key Performance Results
Turnkey Manufacturing
Raw Blank Investment Casting to CNC Finished Sealing Face
Seamless Quality Control from Molten Metal to Finished Part

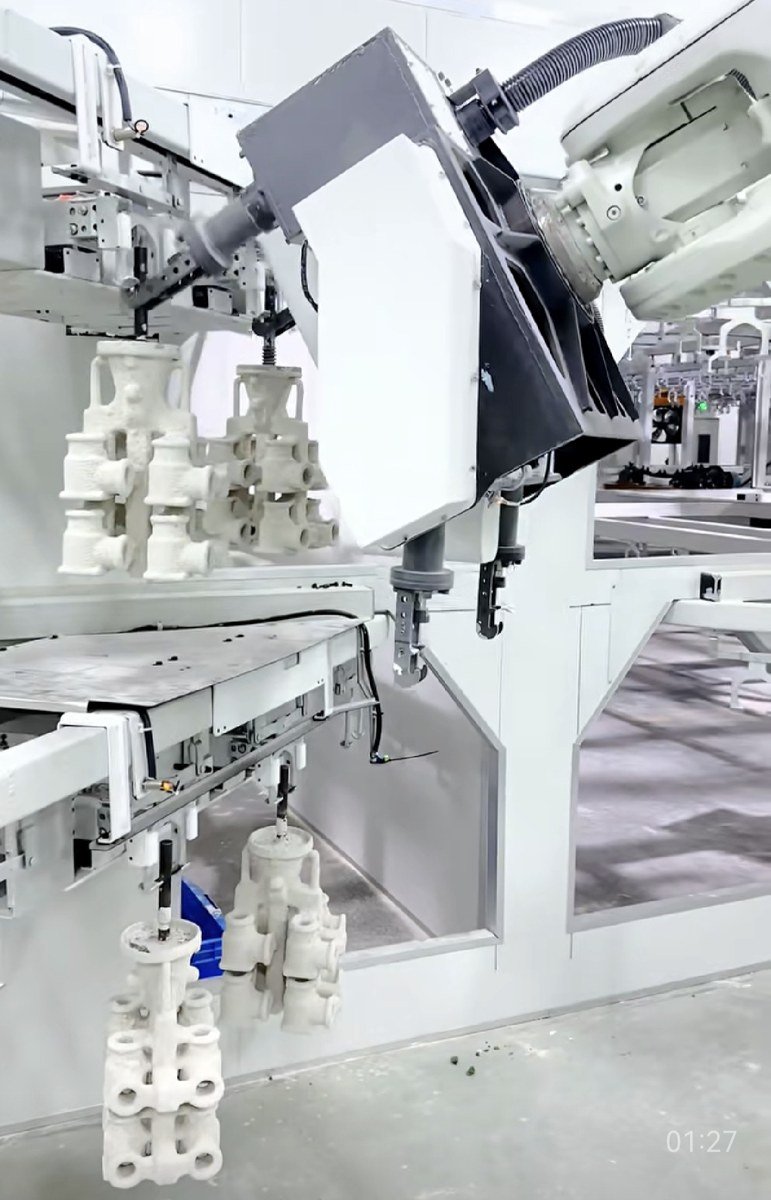

VastCasting combines investment casting and precision CNC machining in a single, dedicated facility. By maintaining full operational control under one roof, we deliver turnkey manufacturing solutions that eliminate third-party disputes, lower production risks, and ensure absolute quality across our full range of industrial products for petrochemical equipment.
Lost-Wax Investment Casting
High-precision silica sol process for superior stainless steel castings. Produces smooth surface finishes (Ra 3.2–6.3 μm) and complex internal flow passages with strict dimensional accuracy.
In-House Precision Machining
Same-facility multi-axis machining for critical valve body fittings, seats, flanges, threads, and CNC finished sealing faces. Guarantees precise positional alignment and zero-leakage sealing integrity.
Rigorous NDT & Chemical PMI
100% spectral PMI alloy verification on every melt batch. Comprehensive NDT testing options including liquid penetrant (PT), ultrasonic (UT), X-ray, and hydrostatic testing upon request.
CMM Inspection & Direct Delivery
Complete coordinate measuring machine (CMM) inspection, ultrasonic cleaning, and anti-rust packaging. Delivered directly to customer assembly lines ready for instant integration.
Single-Source Accountability Guaranteed by VastCasting
Splitting casting and machining across separate suppliers creates quality friction, tolerance disputes, and project delays. VastCasting eliminates these risks by owning the complete workflow—delivering turnkey manufacturing with absolute accountability.
Single point of responsibility without inter-vendor disputes
100% heat batch traceability from raw alloy to finished part
Shorter lead times for critical industrial OEM component orders
Ready-to-assemble components delivered direct to production lines
Frequently Asked Questions About Petrochemical Castings
Find authoritative technical guidance on alloy selection, corrosion resistance standards, non-destructive testing protocols, and single-source investment casting plus CNC machining capabilities for high-pressure, severe-service fluid control equipment across our wide range of custom industrial products.
How do I choose between 316L stainless steel and duplex steel for petrochemical equipment parts?
Selecting the right alloy grade for custom petrochemical casting projects depends on operating temperatures, chloride concentration, chemical acidity, and mechanical pressure requirements:
- 316L Stainless Steel (ASTM A351 CF3M): Best suited for general chemical processing, weak organic acid handling, and low-chloride fluid environments. It provides excellent intergranular corrosion resistance, ease of fabrication, and high cost-efficiency as part of our specialized stainless steel castings line.
- Duplex 2205 (ASTM A995 Grade 4A / CD3MN): Recommended for severe-service applications involving high chloride media, sour gas lines, and marine environments. Featuring a Pitting Resistance Equivalent Number (PREN) ≥ 34, duplex steel selection offers double the yield strength of 316L and high immunity to stress corrosion cracking (SCC).
- Super Duplex 2507 (ASTM A995 Grade 5A/6A): Engineered for extreme refinery processes, hydrocracking, and hot concentrated chloride environments with a PREN ≥ 42, delivering ultimate pitting and crevice corrosion resistance. For extreme elevated temperature processes, consider our superalloy high temp castings.
VastCasting's engineering team provides material consultation based on your exact media specifications to prevent premature equipment failure while optimizing component life cycle costs.
Does VastCasting provide EN 10204 3.1 material certificates and NDT inspection reports?
Yes. Every batch of corrosion-resistant stainless castings manufactured by VastCasting is shipped with an official EN 10204 3.1 material certificate tied directly to melt heat numbers for 100% raw material traceability.
Our standard quality documentation and non-destructive testing (NDT) package includes:
- PMI & Chemical Analysis Spectrographic Positive Material Identification verifying chemical composition against ASTM A351 / A995 standards.
- Mechanical Properties Test Tensile, yield, elongation, hardness, and Charpy impact toughness testing at ambient or low temperatures.
- NDT Flaw Detection Liquid Penetrant Testing (PT), Ultrasonic Testing (UT), or Radiographic Examination (X-ray) based on specifications.
- Pressure Integrity Testing 100% hydrostatic and pneumatic pressure testing to guarantee leak-free performance for valve bodies and casings.
Can VastCasting supply investment casting blanks as well as fully CNC-machined finished parts?
Absolutely. VastCasting delivers true turnkey manufacturing, supplying everything from raw silica sol investment casting blanks to high-precision, CNC-finished components ready for immediate assembly.
By housing lost-wax casting operations and multi-axis CNC machining under one roof, we eliminate supplier handoff friction, reduce overall lead times, and maintain undivided single-source accountability. We handle critical machining tolerances for valve sealing faces, raised-face flanges, internal threads, stem bores, and impeller dynamic balancing.
What Design for Manufacturability (DFM) support do you offer for custom drawings?
Our technical engineering team provides complimentary Design for Manufacturability (DFM) reviews for all 2D drawings and 3D CAD models (STEP, IGS, DWG formats).
We analyze wall thickness transitions, internal flow runner geometry, draft angles, machining allowances, and riser placement. This proactive evaluation prevents casting defects like shrinkage porosity and cold shuts, optimizes tool path efficiency during CNC finishing, and helps lower overall unit production costs for complex pump bodies and valve housings.
What are the standard production lead times and minimum order quantities (MOQ)?
VastCasting accommodates flexible batch requirements, supporting low-volume production runs for specialized replacement parts as well as scheduled high-volume OEM manufacturing contracts.
Standard tooling fabrication and initial sample inspection reports (ISIR) typically take 15 to 25 business days. Full-scale production cycles require approximately 30 to 40 days, encompassing investment casting, solution annealing heat treatment, precision CNC machining, NDT inspection, and seaworthy export packaging.
Quality Assurance Protocols
Every petrochemical casting manufactured by VastCasting undergoes rigorous spectrographic verification, NDT flaw detection, and CMM dimensional checks to ensure zero-defect reliability in severe-service conditions.
Engineering Technical Support
Need assistance selecting duplex steel grades or requesting a DFM review for your custom engineering drawings?
Email: sales@vastcasting.com
Phone: +86 13345064499
Ready to Upgrade Your Petrochemical Equipment Reliability?
Submit your 2D/3D drawings and alloy specifications today. Our engineering team will deliver a thorough corrosion-resistance evaluation and competitive quote within 24 hours for custom stainless steel castings.
VastCasting, operating out of Headquarters — DongyingNo. 183 West 3rd Road, Nanli Group Compound, Dongying District, Dongying City, Shandong Province, ChinaProduction Base — Kashgar, XinjiangNo. C1-2-2, Beishan Road, Northern Industrial Park, XPCC Zone, Kashgar Economic Development Zone, Kashgar Prefecture, Xinjiang, China, supplies premium stainless steel and duplex steel components—from critical valve body fittings to specialized industrial parts—to global petrochemical OEMs.
Request a casting quote today. Fast Technical DFM and complete NDA compliance.
