Austenitic Stainless Steel Investment Casting & Precision CNC Machining
Silica Sol Precision Casting & In-House CNC Machining for Global Valve, Fluid Control, and Machinery OEMs
Eliminate multi-vendor delays, quality disputes, and tolerance mismatches. VastCasting delivers seamless single-facility execution—taking your 304, 316, and 316L (CF8/CF8M/CF3M) components from raw silica sol investment casting to finished high-precision CNC parts. Explore our high-performance stainless-steel-castings engineered to meet demanding industrial specifications.
Request an Instant RFQ
Upload your CAD drawings for a comprehensive DFM review and competitive quote within 12 hours.
Certified Alloy Compliance
ASTM A351 (CF8/CF8M/CF3M) compliant with full chemical and mechanical mill test reports.
100% Integrated Manufacturing
Single-source foundry and CNC machining facility eliminating dimensional misalignments.
Engineered for OEM Duty
Tailored for high-pressure valve bodies, food-grade machinery, and petrochemical components.
Austenitic Grade Selection Guide: Chemistry, Corrosion & Cost Metrics
Selecting the ideal austenitic alloy for high-precision stainless steel castings requires balancing elemental chemistry, corrosion resistance, weldability, and raw material economics. While wrought designations such as 304, 316, and 316L are standard in engineering specifications, investment cast components strictly adhere to cast equivalent standards under ASTM A351 (specifically CF8, CF8M, and CF3M). Understanding these structural and chemical distinctions is essential for preventing premature equipment failure in demanding chemical, valve, and fluid handling applications.
The primary metallurgical differences lie in molybdenum content and carbon control. Molybdenum provides vital protection against chloride-induced pitting and crevice corrosion, while ultra-low carbon formulations prevent chromium carbide precipitation along grain boundaries during severe welding operations. At VastCasting, our in-house optical emission spectrometers (OES) verify every heat lot prior to pouring, guaranteeing 100% elemental compliance with ASTM A351 specifications.
Every melt at VastCasting undergoes direct-reading spectrometric analysis. We certify precise chemical balances for Cr, Ni, Mo, C, and trace elements, providing EN 10204 3.1 material certificates for complete heat traceability.
304 / CF8 Alloy Profile
Cost Index: Baseline ($)CF8 is the standard investment cast equivalent of wrought 304 stainless steel, containing 18% chromium and 8% nickel. It serves as the most cost-effective benchmark alloy for general fluid control, commercial valve bodies, and sanitary food machinery components. It delivers robust mechanical strength, excellent surface polishability, and reliable resistance to atmospheric oxidation and organic chemicals.
Lacks molybdenum, making it vulnerable to pitting in high-chloride or marine environments. Highly recommended for non-saline aqueous media and food processing equipment.
Metallurgy Comparison Matrix
Standard Compliance: ASTM A351 / ASME SA351| Property / Criteria | CF8 (Wrought 304) $ Baseline | CF8M (Wrought 316) $$ Mid (+20%) | CF3M (Wrought 316L) $$$ Premium (+25%) |
|---|---|---|---|
| Cast Grade (ASTM A351) | CF8 | CF8M | CF3M |
| Wrought Equivalent | AISI 304 / EN 1.4301 | AISI 316 / EN 1.4401 | AISI 316L / EN 1.4404 |
| Cr-Ni-Mo Elemental Balance ASTM chemical limits | Cr: 18.0 - 21.0% Ni: 8.0 - 11.0% Mo: — C: ≤ 0.08% | Cr: 18.0 - 21.0% Ni: 9.0 - 12.0% Mo: 2.0 - 3.0% C: ≤ 0.08% | Cr: 17.0 - 21.0% Ni: 9.0 - 13.0% Mo: 2.0 - 3.0% C: ≤ 0.03% (Ultra-Low) |
| Pitting Corrosion (PREN) Resistance in chloride media | Moderate (~18 - 20) | High (~23 - 25) | Superior (~23 - 25) |
| Intergranular Corrosion Post-weld performance | Susceptible to sensitization in weld heat-affected zones without post-weld solution annealing. | Requires solution heat treatment after heavy welding to re-dissolve chromium carbides. | Immune to Sensitization: Ultra-low carbon prevents intergranular decay in welded joints. |
| Relative Cost Index | $ Baseline | $$ (+20% to +25%) | $$$ (+25% to +30%) |
| Primary OEM Industry | Food processing machinery, dairy equipment, commercial fittings, water treatment. | Chemical processing valves, marine pumps, pharmaceutical manifolds. | Heavy petrochemical equipment, offshore oil/gas valve bodies, welded pressure lines. |
Why Specify CF3M (316L) for Heavy Welded Valve Assemblies?
When standard austenitic alloys such as CF8M (316) are exposed to temperatures between 800°F and 1600°F (425°C–870°C) during welding, carbon combines with chromium along grain boundaries to form chromium carbides. This depletes the localized chromium content below the 10.5% threshold required for passivity—initiating rapid intergranular corrosion. By capping carbon at C ≤ 0.03% in CF3M, carbide precipitation is eliminated, allowing field-welded valve bodies and heavy petrochemical equipment parts to maintain corrosion integrity without secondary heat treatment.

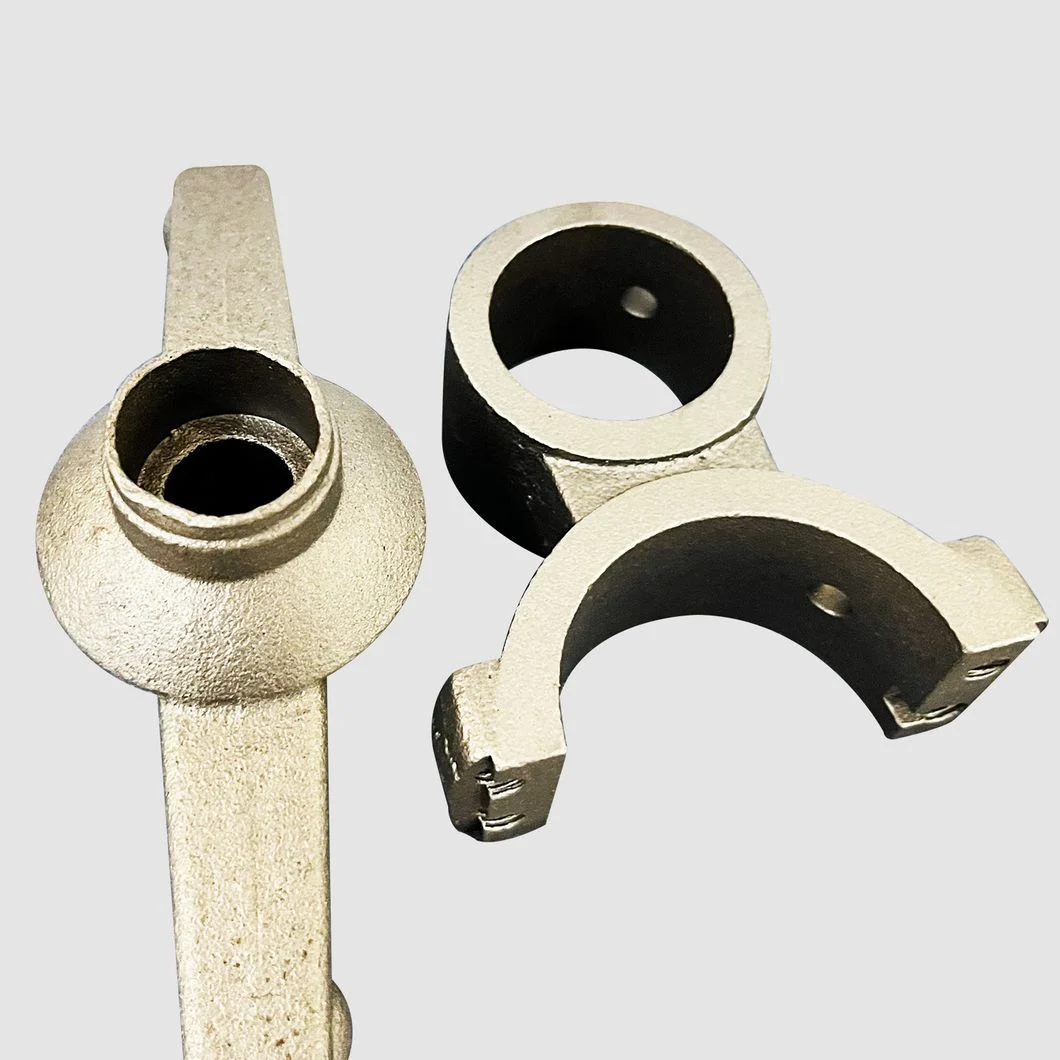

304 (CF8) Stainless Steel Investment Casting for Food & General Industry
High-precision 304 (CF8) silica sol investment casting paired with in-house CNC machining. VastCasting delivers exceptional surface finishes, tight dimensional tolerances, and certified sanitary compliance for global fluid control and equipment OEMs across our full range of stainless steel castings.
304 / CF8 Material Advantage & Metallurgical Superiority
Grade 304 (cast equivalent ASTM A351 CF8) is the foundational 18/8 chromium-nickel austenitic alloy specified for commercial hardware, sanitary processing, and general industrial equipment. Utilizing advanced silica sol investment casting technology, VastCasting manufactures near-net-shape CF8 castings featuring remarkably smooth internal flow passages, uniform wall thicknesses, and high structural density.
For sanitary food processing machinery and industrial fluid handling applications, 304 stainless steel balances superior atmospheric oxidation resistance with high cost efficiency. Its high ductility allows for deep mechanical polishing or electropolishing, creating hygienic mirror surface finishes that comply with strict sanitary standards and eliminate bacterial trap sites in processing lines.
At VastCasting, every batch of CF8 casting undergoes direct-reading spectrometer elemental verification to ensure full compliance with ASTM A351 chemistry. Standard solution annealing heat treatment restores a pure austenitic single-phase structure, maximizing corrosion resistance and ensuring defect-free, pressure-tight performance across high-cycle operations.
304 (CF8) Precision Casting Applications & Component Solutions
Custom-engineered OEM castings built to tight tolerances for food processing, piping systems, and fluid management.
Food Machinery Components
Precision 304 stainless investment casting for food machinery components including sanitary pump impellers, mixer blades, sanitary valve bodies, tri-clamp couplings, and structural equipment brackets. Formulated to resist organic acids and support thorough clean-in-place (CIP) sanitation protocols.
General Valve Bodies & Pipe Fittings
Precision CF8 casting for threaded commercial pipe fittings, 2-way and 3-way valve body fittings, butterfly valve discs, check valves, and industrial flanges. Dense silica sol casting eliminates micro-porosity for flawless NPT and BSP thread machining.
Fluid Control Components
OEM fluid distribution manifolds, liquid flow meter bodies, sensor housings, and pump enclosures. Engineered to maintain high structural integrity under continuous working pressure while ensuring smooth, turbulence-free hydrodynamic flow paths.
Single-Facility Investment Casting & CNC Machining
VastCasting manufactures 304 (CF8) components in-house from wax pattern creation to final CNC threading, eliminating multi-vendor delays and guaranteeing 100% material traceability.

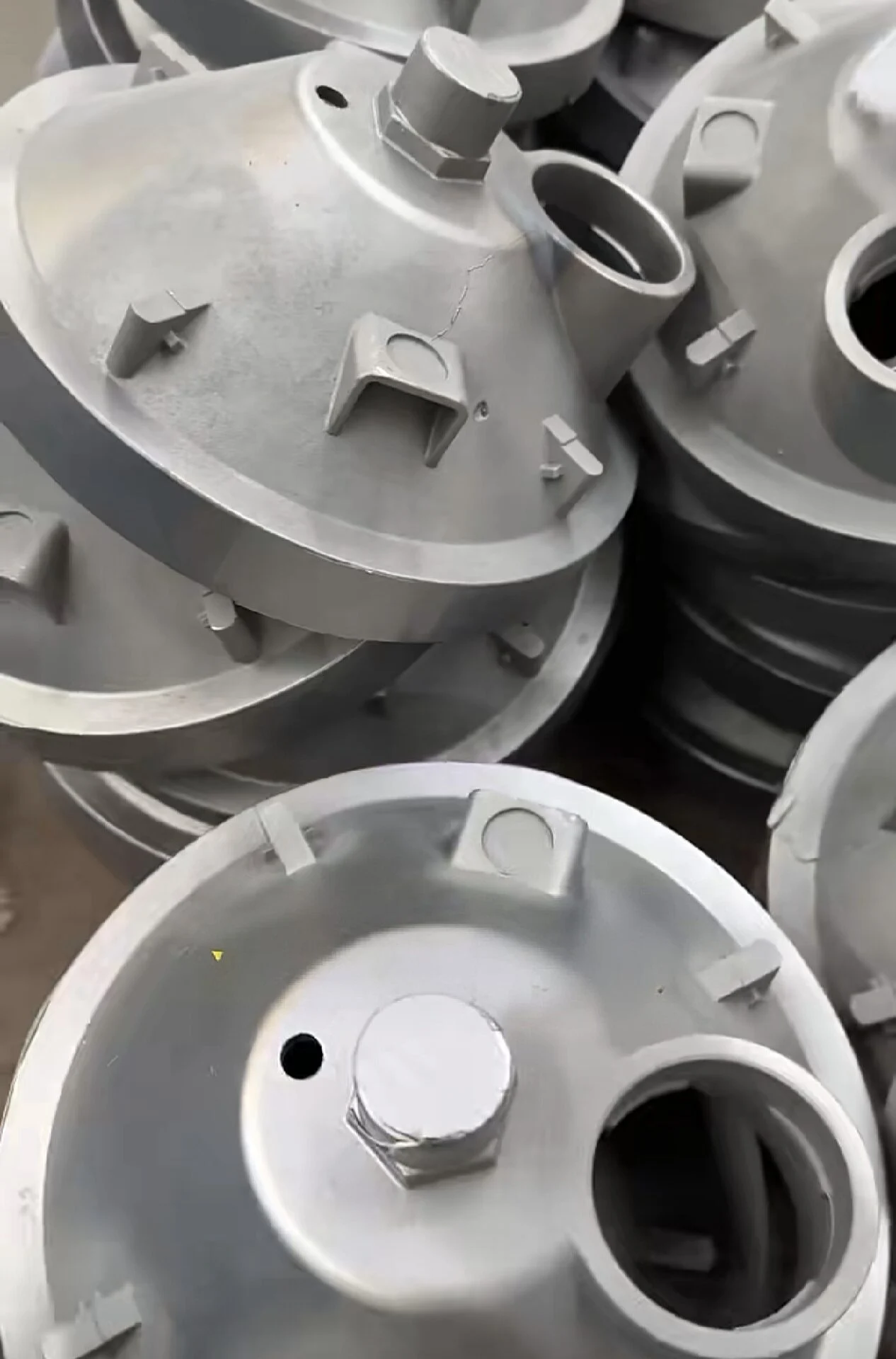

316 / 316L (CF8M / CF3M) Casting for Valve Bodies & Petrochemical Duty
Austenitic grades 316 (CF8M) and 316L (CF3M) represent the benchmark for severe industrial fluid control, chemical refining, and marine environments. At VastCasting, we combine fine silica sol investment casting technology with in-house precision CNC machining to manufacture high-density, defect-free pressure castings across our premium range of stainless steel castings. Incorporating 2.0% to 3.0% Molybdenum into the chromium-nickel matrix provides superior corrosion resistance, defending components against aggressive chloride pitting, organic acids, and industrial solvents.
For welded valve structures and severe process equipment, controlling intergranular degradation is vital. Our low-carbon CF3M valve casting process maintains carbon levels below 0.03%, virtually eliminating chromium carbide precipitation during field welding. This optimized austenitic steel weldability eliminates intergranular cracking risks without demanding post-weld solution heat treatment. Combined with our shrinkage-free silica sol molding process, every 316L valve body casting achieves zero internal porosity to comfortably withstand demanding pressure duties.
Zero Wall Porosity
Silica sol process guarantees pressure-tight casting integrity.
Unified Manufacturing
Casting and CNC machining executed under one roof in Dongying.
High-Pressure 316L Valve Castings
100% Spectrometer verified chemistry & precision multi-axis CNC tolerance control.
Targeted Components & Industrial Applications
Our specialized 316 / 316L casting production lines serve global OEMs requiring absolute reliability in aggressive fluid environments.
Pressure Relief & Air Vent Valve Bodies
Precision silica sol investment casting delivers smooth internal flow channels and zero-porosity pressure chambers essential for pressure relief valves, air vents, and high-performance valve-body-fittings operating in critical gas or liquid networks.
Petrochemical Equipment Parts
Engineered to resist organic acids, marine brine, and chemical solvents, our custom petrochemical-equipment-parts include heavy-duty pump casings, ANSI flanges, impeller housings, and fluid mixing components.
Severe Fluid Control Systems
Custom severe-duty valve assemblies, multi-port manifolds, and inline strainers machined for critical fluid control systems ensure perfect alignment, smooth actuation, and zero eccentricity in automated process lines.
100% Non-Destructive & Pressure Tested
Every 316/316L casting lot undergoes exhaustive inspection at our Dongying testing lab prior to shipment.
End-to-End Austenitic Casting Process & Quality Control Architecture
Manufacturing defect-free austenitic stainless steel casting parts demands complete control over metallurgy, geometry, and post-processing. At VastCasting in Dongying, Shandong, we integrate silica sol investment casting, high-temperature solution heat treatment, precision multi-axis CNC machining, and rigorous NDT inspection inside one dedicated facility for our custom stainless steel castings. By managing the full investment casting process in-house, we eliminate third-party delays, guarantee superior austenitic steel weldability and maximum corrosion resistance, and ensure full compliance with ASTM A351 (CF8, CF8M, CF3M) chemical and mechanical standards.
Precision Tooling & Silica Sol Casting
Utilizing high-grade aluminum tooling and automated wax injection, our advanced silica sol investment casting process forms intricate internal geometries, smooth fluid passages, and thin walls with zero sand inclusion or gas porosity.
- Surface Finish: Ra 3.2 – Ra 6.3 μm
- Tolerance: ISO 8062 CT4 – CT6
Solution Heat Treatment (Annealing)
As-cast blanks undergo rapid water-quenched solution annealing at 1050°C–1150°C. For extreme temperature and severe fluid environments, explore our superalloy high-temp castings to ensure maximum alloy stability.
- Corrosion Resistance: Restores full intergranular defense
- Austenitic Steel Weldability: Prevents weld-zone sensitization
In-House Precision CNC Machining
Cast blanks transfer directly to our machine shop. Turning, multi-axis milling, boring, and precision threading are completed in-house to guarantee tight tolerances and prevent inter-vendor quality disputes.
- CNC Tolerance: Down to ±0.01 mm
- Concentricity: Absolute coaxial alignment on seats
Comprehensive Quality Inspection
Every melt heat is sampled with direct-reading OES spectrometers. Finished valve bodies and machined castings undergo 3D CMM inspection, dye penetrant testing, and 100% pressure verification.
- Pressure Test: 100% Pneumatic & Hydrostatic
- Certification: EN 10204 3.1 MTR full traceability
Rigorous Inspection Matrix & Heat Traceability
Maintaining optimal corrosion resistance and mechanical performance across all austenitic stainless steel casting grades (304, 316, 316L, CF8, CF8M, CF3M) requires uncompromised Quality Assurance. VastCasting engraves unique heat numbers on every casting, ensuring seamless raw material and testing traceability from the furnace pour through to final customer delivery.
Optical emission spectrometry verifies Cr, Ni, Mo, and C contents before furnace tapping to guarantee exact ASTM A351 grade compliance.
Automated 3D CMM probing verifies critical machined dimensions, position tolerances, and face flatness on precision components.
100% leak testing for pressure-containing valve body fittings, pump casings, and industrial components prevents sub-surface wall seepage.
Microstructural etching verifies single-phase austenitic matrix formation and total elimination of detrimental grain-boundary carbides.
Material Certificate EN 10204 3.1 Standard
Every shipment leaving VastCasting is delivered with a comprehensive Mill Test Report (MTR) detailing chemical heat analysis, mechanical tensile values, hardness readings, solution heat-treatment logs, and pressure test certifications.
Single-Source Turnkey Manufacturing Accountability
By unifying silica sol investment casting, solution annealing, precision CNC machining, and NDT testing within our Dongying facility, VastCasting guarantees total quality control, flawless fit, and reliable delivery for global OEMs.
Ready to Manufacture Your Austenitic Stainless Steel Components?
As a trusted OEM supplier of stainless steel castings and industrial valve body fittings, VastCasting delivers high-precision investment casting and CNC machining solutions engineered for global performance.
Comprehensive Engineering & Production Support
Submit Engineering Drawings
Upload your CAD models or 2D technical specifications to receive a formal commercial proposal, metallurgy evaluation, and production timeline within 24 hours. We also engineer specialized petrochemical equipment parts.
