Precision Investment Casting & CNC Machining Equipment List
VastCasting operates an end-to-end manufacturing facility with self-owned equipment—integrating automated wax pattern injection, climate-controlled shell lines, vacuum induction melting, 5-axis CNC machining, and CMM inspection to deliver high-quality custom products.
VastCasting Production Fleet
Integrated machinery capacity & dimensional envelopes
Core Precision Investment Casting Equipment
In investment casting raw blank production, VastCasting operates automated shell lines and temperature-controlled melting equipment to ensure dense internal structures. Our comprehensive facility equipment enables a seamless workflow from wax pattern formation to high-purity alloy melting and uniform thermal processing for overseas engineering audits.
Automated Wax & Shell Production

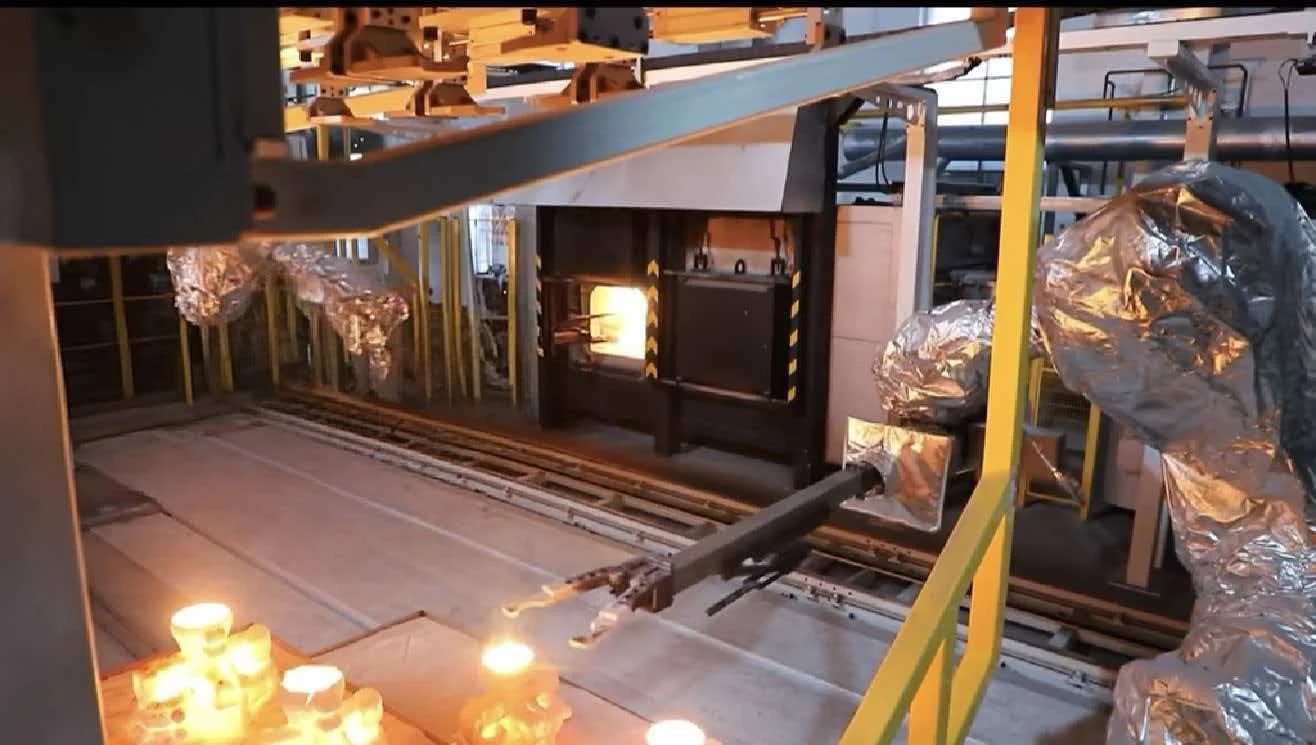

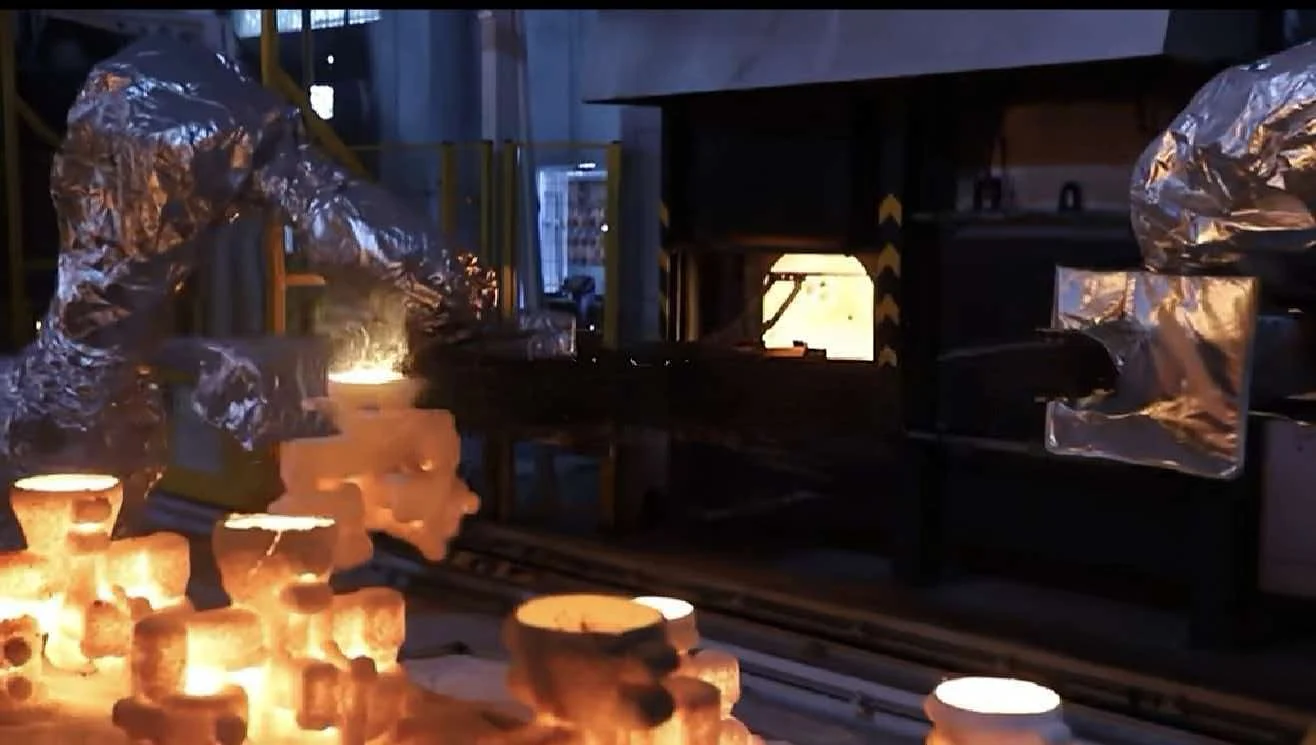

Utilizing high-precision dual-station wax injectors and robotic automated shell-making cells, our mold production process reduces dimensional tolerances, maintains slurry consistency, and stabilizes ceramic shell strength across all production runs for industrial components, including specialized valve body fittings.
Melting & Thermal Processing

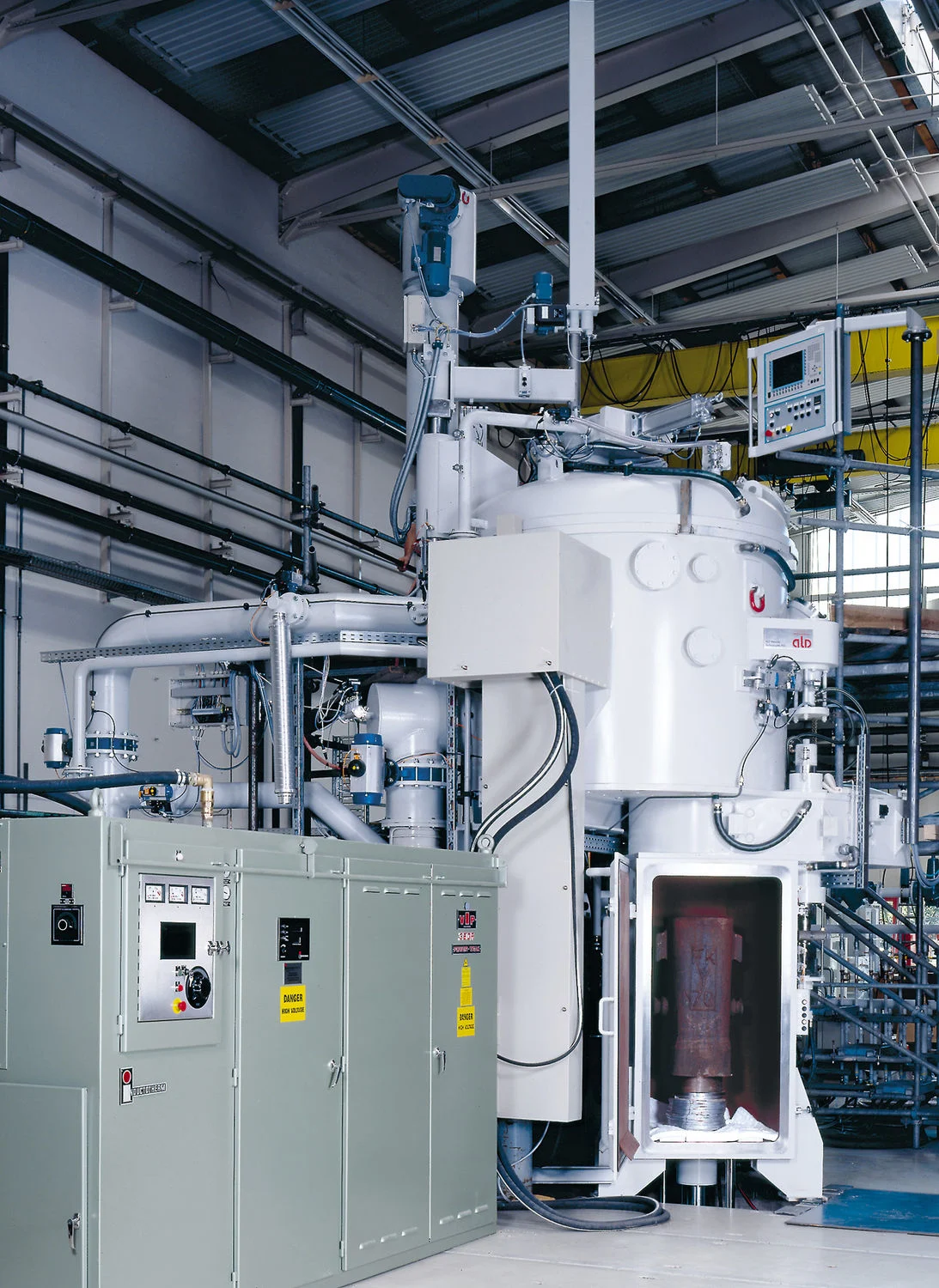

Engineered with medium-frequency induction melting furnaces and advanced vacuum induction melting (VIM) furnaces, our system delivers exact alloy stoichiometry, minimizes porosity, and guarantees uniform microstructure through controlled heat treatment for high-spec superalloy high temp castings.
Equipment Specifications Directory
Full precision casting line technical parameter matrix for engineering audit verification.
| Equipment Name | Process Stage | Specification / Model | Max Envelope Capacity | Automation Level |
|---|---|---|---|---|
| Automatic Dual-Station Wax Injector Machine | Wax Injection | WX-200T Dual-Station | 500 × 500 × 400 mm | Fully Automatic PLC |
| Semi-Automatic Wax Injector | Wax Injection | WX-100S Single-Station | 350 × 350 × 300 mm | Semi-Automatic |
| Robotic Automated Shell Making Line | Shell Building | ARM-600 6-Axis Robotic | 1,200 × 1,200 × 1,000 mm | Fully Automated Robotic |
| Automated Hanging Conveyor Drying Line | Shell Drying | HCL-800 Continuous | 800 m Line Length / 5,000 Molds | Automated Conveyor System |
| Medium Frequency Induction Furnace | Melting & Pouring | MFF-1500 Steel Shell | 1,500 kg / Melt Batch | Temp-Controlled Semi-Auto |
| Vacuum Induction Melting Furnace (VIM) | Purity Melting | VIM-500 Precision Vacuum | 500 kg Chamber Capacity | Computer Controlled Vacuum |
| Continuous Box Heat Treatment Furnace | Heat Treatment | HTF-2000 Continuous | 2,000 × 1,500 × 1,200 mm | Automated Programmed PID |
Testing & Inspection Notice: For detailed material analysis, metallurgical lab testing, and non-destructive testing equipment, please review our Testing Facilities page.
Precision CNC Machining & Post-Processing Capabilities
VastCasting processes investment castings from raw blanks to finished components under one roof. By eliminating third-party machining subcontracts, we remove quality disputes, shorten lead times, and guarantee tight dimensional control for global valve body fittings and automotive partners.
In-House Precision Milling & High-Capacity Lathes
Partnering with precision machining China specialists ensures a seamless transition from raw casting to finished part. We combine state-of-the-art CNC milling machine tools, heavy-duty CNC lathe capacity, and precision finishing to meet strict engineering specifications across our range of products.
-
Micro-Level Machining Precision
Achieve tight tolerances and repeatability down to ±0.005mm on critical seating faces, threads, and bore geometries.
-
Multi-Axis Setup & Large Envelopes
Utilize advanced 3-axis, 4-axis, and 5-axis CNC machining envelope setups to process complex contours in single setups.
-
Special Material Cutting Support
Tailored post-machining feeds and speeds for high-performance stainless steel castings including 304, 316, 316L, duplex steel, superalloys, and aluminum extrusions.
Repeatability Standard

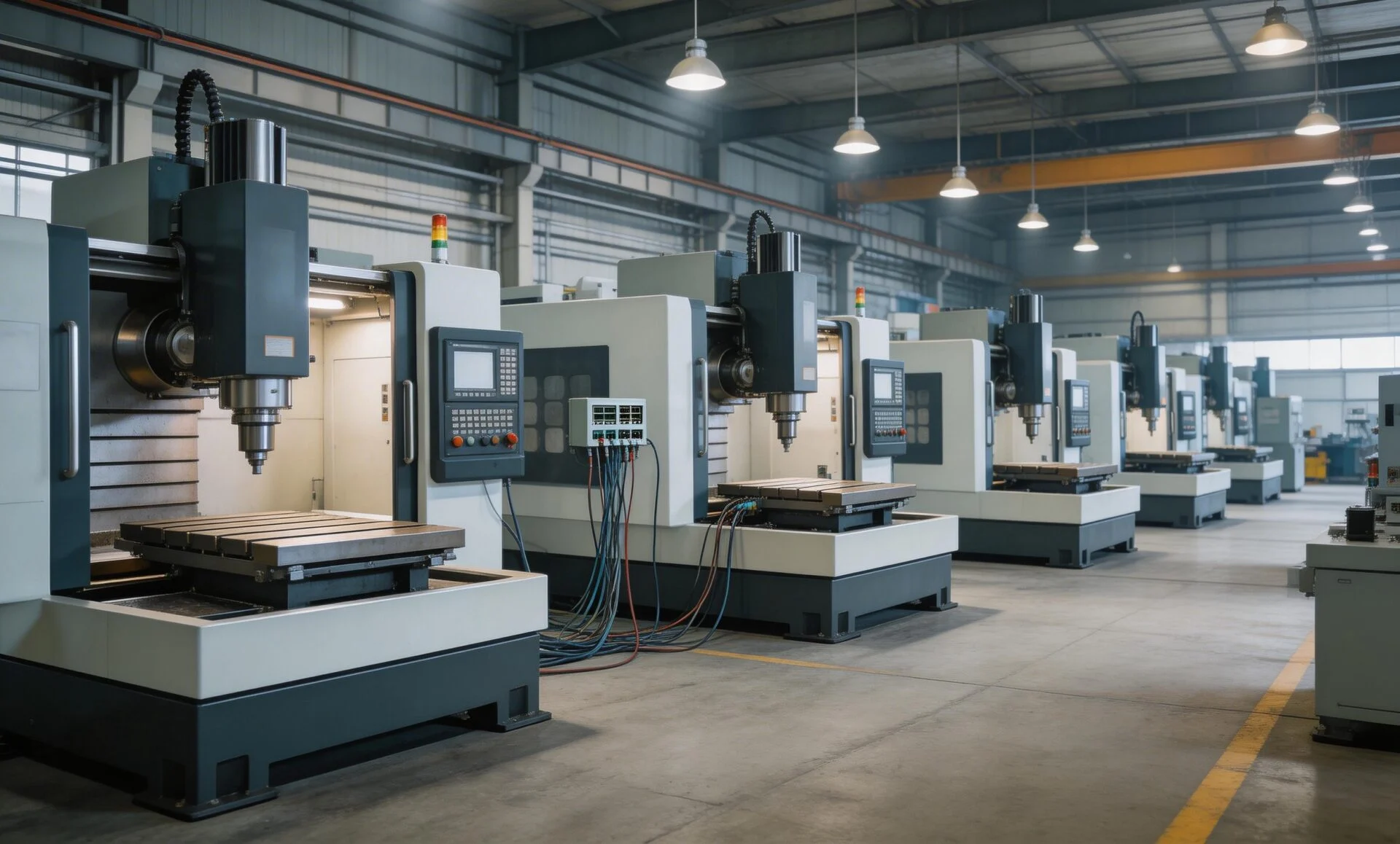

Advanced multi-axis CNC machine floor powering turnkey valve and automotive production.
Core Equipment Classification & Envelope Specifications
Full specification overview for our vertical, horizontal, wire EDM, and CNC turning equipment.
| Equipment Type | Travel Machining Envelope (XYZ Axes) | Spindle Speed | Repeatability | Target Machining Units |
|---|---|---|---|---|
| 5-Axis CNC Machining Envelope Center | 1,050 × 900 × 600 mm | 18,000 RPM | ±0.005 mm | Complex valve bodies, impellers & superalloy blades |
| 4-Axis Horizontal Machining Center | 1,200 × 1,000 × 800 mm | 12,000 RPM | ±0.008 mm | Multi-sided casting blocks & pump housings |
| Vertical 3-Axis CNC Machining Center | 1,600 × 800 × 700 mm | 10,000 RPM | ±0.008 mm | Aluminum extrusions, plates & cast aluminum parts |

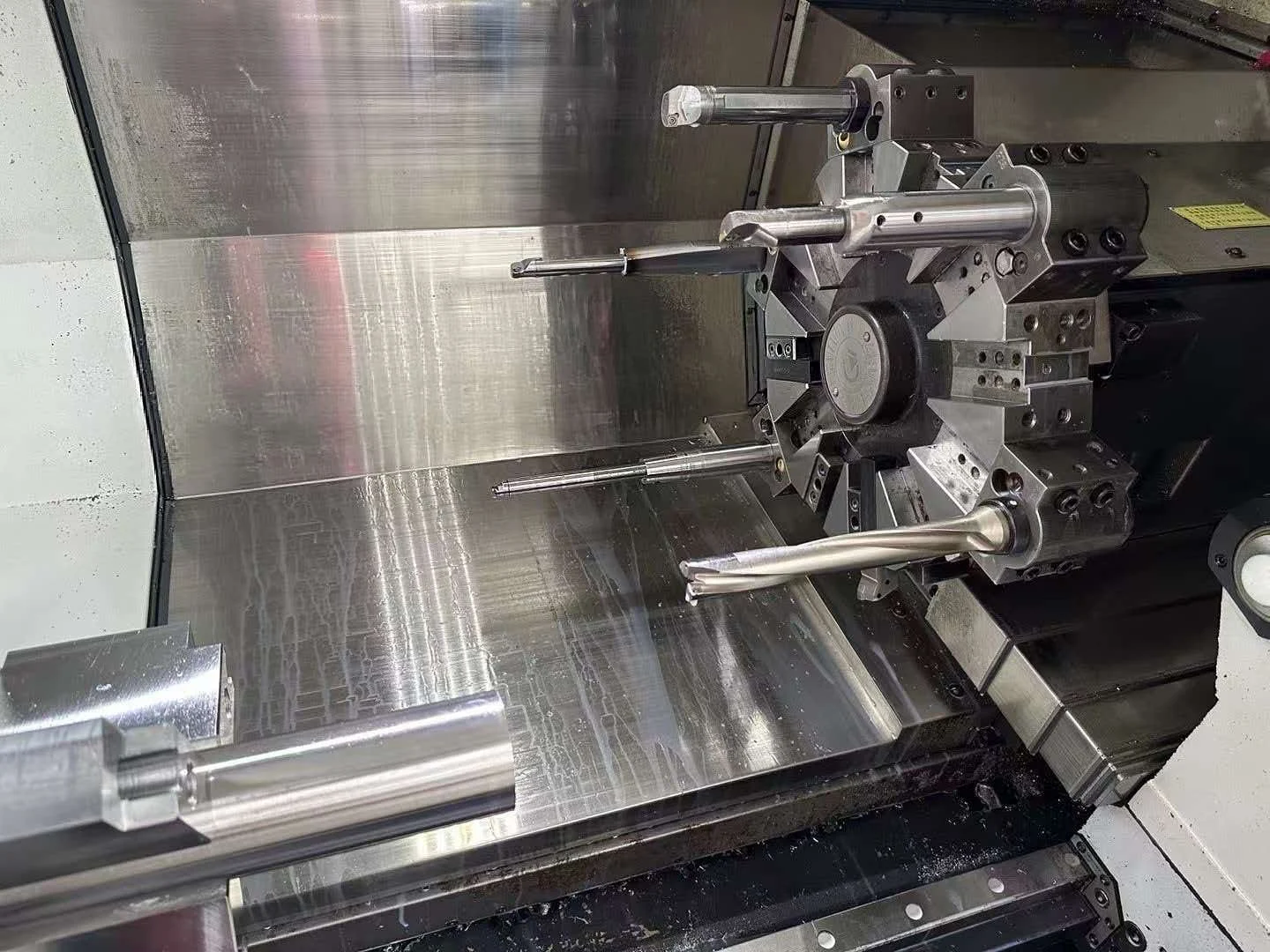

| High-Precision CNC Lathes | Ø500 × 1,200 mm | 4,500 RPM | ±0.005 mm | Shafts, cylindrical valve stems & automotive flanges |
| Wire EDM & High-Precision Grinders | 600 × 400 × 350 mm | N/A | ±0.003 mm | Keyways, tight slots & hardened superalloys |
Special Alloy & Material Machining Support
Shop-Floor Inspection & Quality Verification
VastCasting integrates high-precision metrology directly into the production line, ensuring every investment-cast blank and CNC-machined component meets strict dimensional and metallurgical tolerances.
In-Line Workshop Inspection Equipment
Coordinate Measuring Machine (CMM)
High-precision CMM measuring delivers sub-micron dimensional verification for complex internal casting geometries and machined features.
Direct-Reading Optical Spectrometer
In-house spectrometer analysis verifies precise chemical compositions before each pour, guaranteeing exact alloy grade integrity.
Surface Roughness Profilometers
Digital roughness testers measure critical sealing faces, flange surfaces, and machined steps to comply with tight Ra specs.
Valve Pressure & Leak Test Benches
Dedicated pneumatic and hydrostatic test benches conduct rigorous valve body fittings pressure testing to ensure structural soundness and zero leakage.
Advanced Laboratory & NDT Testing
For comprehensive metallurgical examination, certified physical/chemical testing, and non-destructive evaluations, explore our full testing infrastructure.
- Ultrasonic (UT) & Radiographic (RT) Inspection
- Magnetic Particle (MT) & Liquid Penetrant (PT)
- Metallographic Microstructure Analysis
- Full Tensile, Hardness & Mechanical Property Testing
Production Capacity & Machining Envelope Specs
Quickly evaluate VastCasting's investment casting size limits, CNC machining boundaries, and monthly throughput to verify drawing compatibility before submitting an RFQ for custom OEM products.
Max Single Casting Weight
150 kg
Investment casting capacity engineered for heavy-duty valve bodies and complex structural housings.
Max CNC Machining Envelope
1,500 mm
Precision 5-axis CNC envelope reaching up to 1,500 × 1,200 × 800 mm for large components.
Monthly Output Capacity
600 Tons
Scalable China precision foundry capacity for high-volume raw blanks and finished CNC parts.
System Certifications
ISO / IATF
Fully certified under ISO 9001 and IATF 16949 standards for global OEM manufacturing compliance.
Production Limits by Material Grade
Pre-RFQ Screening Matrix| Material Classification | Max Casting Weight | Max Overall Dimension | Typical Component Applications |
|---|---|---|---|

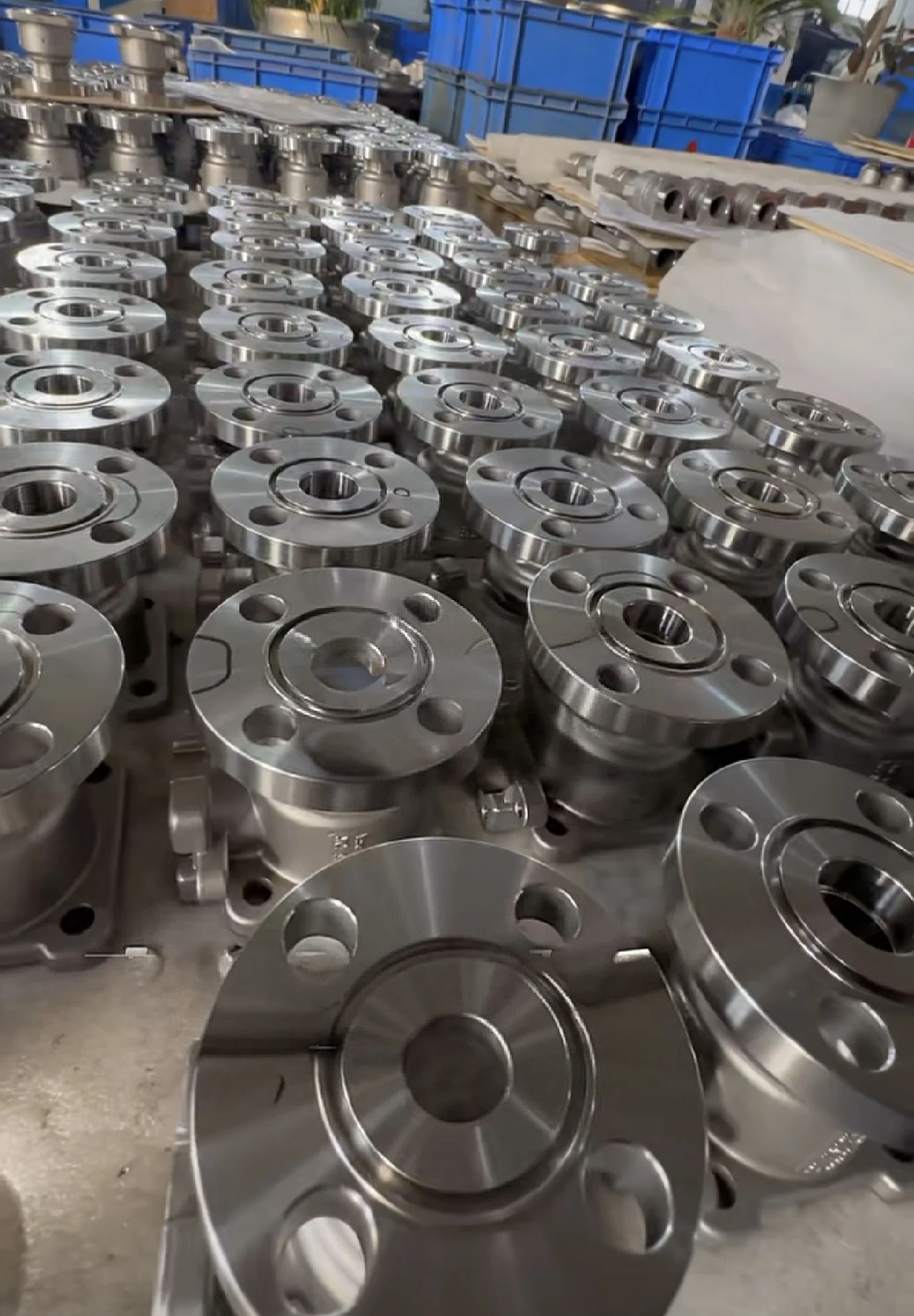

| Stainless Steel Castings 304, 316/316L, 17-4PH, 15-5PH | 120 kg | 1,200 × 800 × 600 mm | Pressure relief valve body fittings, pump impellers, flange housings, fluid manifolds |
| Duplex & Super Duplex 2205 (F51), 2507 (F53), SD2507 | 150 kg | 1,000 × 750 × 500 mm | Marine exhaust valves, chemical processing bodies, offshore pipeline fittings |
| High-Temp Superalloys Inconel 718/625, Hastelloy C276, Monel | 80 kg | 600 × 500 × 400 mm | Turbine blades, hot-section gas nozzles, aerospace combustion hardware |
| Cast & Wrought Aluminum A356, A380, 6061-T6, 7075 | 45 kg | 1,500 × 1,200 × 800 mm | Transmission housings, automotive brackets, lightweight heat sinks, enclosures |
Versatile Production Capabilities
VastCasting supports projects ranging from miniature precision components to large-scale industrial valve housings, offering flexible batch sizing and full turn-key manufacturing.
Verify Your Drawing Against Our Equipment Envelope
Upload your STEP, IGS, or 2D PDF drawings today. The VastCasting engineering team will review equipment envelope compatibility, assess DFM requirements, and deliver a comprehensive quotation within 24 hours. Whether you need custom stainless steel castings or high-performance superalloy high-temp castings, we ensure complete manufacturing support.
-
Investment Casting & Precision CNC
-
Guaranteed 24-Hour RFQ Turnaround
-
STEP, IGS & 2D PDF CAD Support
-
In-House DFM Engineering Review
Request Technical RFQ
Submit your project specifications to receive a complete DFM evaluation and quote based on our actual machine capacity for precision industrial components, including valve body fittings.
