ASTM A351 & 304 316L Duplex Stainless Steel Castings
VastCasting delivers turnkey metal components from silica sol investment casting to precision CNC-machined sealing faces, threads, and critical datum points for global OEM valve body fittings, pump, and equipment builders.
Precision Benchmarks
Turnkey Specs304, 316L, Duplex
Heat-lot availability
CT4 to CT6
ISO 8062 precision class
Ra 1.6 µm
Sealing surface finish
100% PMI
Leak & NDT verification
Single-Factory Accountability Integrated casting and machining under one roof eliminates sub-contracting disputes and project delays.
Stainless Steel Castings
Browse live product listings in this category. Request a quote with your drawings for OEM casting and CNC machining.
304 Stainless Steel Investment Casting Custom Parts
304 stainless steel investment casting for CF-8 precision parts with corrosion resistance, tight tolerances, and custom finishing.
Stainless Steel Casting Lines & Specialized Applications
Navigate directly to specialized sub-categories for precision investment-cast blanks and in-house CNC machined stainless steel components engineered for demanding industrial operations across our comprehensive line of products.
Extensive Tooling Libraries & Custom CNC Fixtures
VastCasting maintains modular tooling libraries and dedicated CNC fixtures across valve, food processing, and petrochemical verticals—eliminating split-vendor friction and accelerating lead times.
Valve Body Fittings
Covers pressure relief valves, air vent valves, ball and butterfly valve bodies, bonnets, and inline pipe fittings engineered for leak-free sealing.
- Pressure relief & air vent valve bodies
- Ball, butterfly, and bonnet casting lines
- Precision-machined inline pipe fittings
Food Machinery Components
Focuses on sanitary 304 and 316L stainless steel pump housings, mounting brackets, fluid connectors, and high-polish hygienic equipment parts.
- Sanitary 304 and 316L grade alloys
- High-polish hygienic surface finishes (Ra ≤ 0.8μm)
- Pump housings, brackets, and fluid connectors

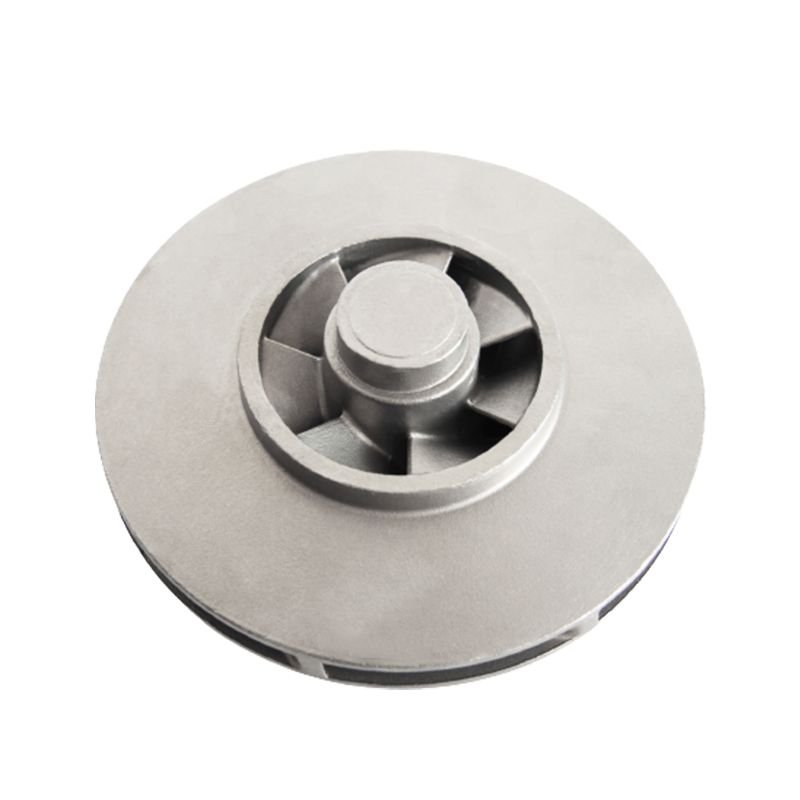

Petrochemical Equipment Parts
Highlights corrosion-resistant duplex and super duplex pump and valve casings, impellers, and critical fluid-handling components.
- Corrosion-resistant 2205 & 2507 duplex steel
- Heavy-duty pump casings & valve bodies
- High-efficiency impellers & dynamic flow parts
Melt heat numbers paired with certified spectral PMI chemical analysis reports.
In-house precision machining eliminates supplier disputes over tolerances.
Direct navigation to specialized product lines and fast RFQ evaluation.
Material Grades and Specification Matrix
VastCasting provides engineering buyers and procurement teams with complete metallurgical transparency and technical precision. Every melt heat at VastCasting undergoes direct-reading spectrometer PMI analysis to guarantee full compliance with ASTM A351 and ASTM A995 standards, ensuring that raw investment castings and CNC-machined components meet exact drawing callouts for chemical composition, tensile strength, and corrosion resistance.
Need Custom Material Certification
All stainless steel castings are shipped with EN 10204 3.1 Material Test Reports including full chemical breakdown, mechanical testing, and heat treatment verification records.
Austenitic Stainless Steel Grades
Austenitic stainless steel castings manufactured via silica sol investment casting offer exceptional toughness, non-magnetic characteristics in the annealed condition, and broad resistance to atmospheric corrosion and aggressive chemical media.
| Grade | UNS / Wrought | Composition Highlights | Tensile / Yield | Primary Applications |
|---|---|---|---|---|
| ASTM A351 CF8 | J92600 (304) | 18 to 21% Cr, 8 to 11% Ni | ≥ 485 MPa / ≥ 205 MPa | General fluid handling, architectural, valve body fittings |
| ASTM A351 CF8M | J92900 (316) | 18 to 21% Cr, 9 to 12% Ni, 2 to 3% Mo | ≥ 485 MPa / ≥ 205 MPa | Marine components, chemical valves, pump impellers |
| ASTM A351 CF3M | J92800 (316L) | Low Carbon (C ≤ 0.03%), 2 to 3% Mo | ≥ 485 MPa / ≥ 205 MPa | food machinery components, sanitary fittings, pharmaceutical |
Key Engineering Advantages
- · Intergranular Resistance: Low-carbon CF3M prevents carbide precipitation during welding.
- · Hygienic Polish Capability: Ideal for high-polish food processing and pharmaceutical surface finishes.
- · Cryogenic Toughness: Retains high impact strength at sub-zero operating temperatures.
- · Pressure Performance: Excellent ductility and structural integrity for pressure-containing housings.
Metallurgical Verification and Non-Destructive Testing
Every melt heat at VastCasting undergoes direct-reading spectrometer PMI analysis to guarantee full compliance with ASTM A351 and ASTM A995 standards. To support critical valve, pump, and petrochemical installations, we provide a complete suite of non-destructive testing options prior to shipment.
PMI Heat Analysis
Direct-reading optical emission spectrometry verifying elemental percentages before pouring.
NDT Defect Audits
Liquid Penetrant Testing (PT), Radiographic Testing (RT), and Ultrasonic Testing (UT) capabilities.
Leakage Verification
100% air-under-water and hydrostatic pressure testing for valve and pump enclosures.
CMM Metrology
Coordinate measuring machine inspection reports for tight-tolerance machined datums.
OEM & Custom Stainless Steel Components: Full Geometry Scope
When standard off-the-shelf components fall short of your fluid dynamics, pressure ratings, or dimensional constraints, VastCasting delivers custom investment casting and precision CNC machining tailored to your exact engineering specifications. From intricate multi-vane pump impellers to heavy-duty pressure-containing enclosures, our foundry produces complex stainless steel castings designed for demanding operational environments across chemical, energy, and industrial fluid handling sectors.

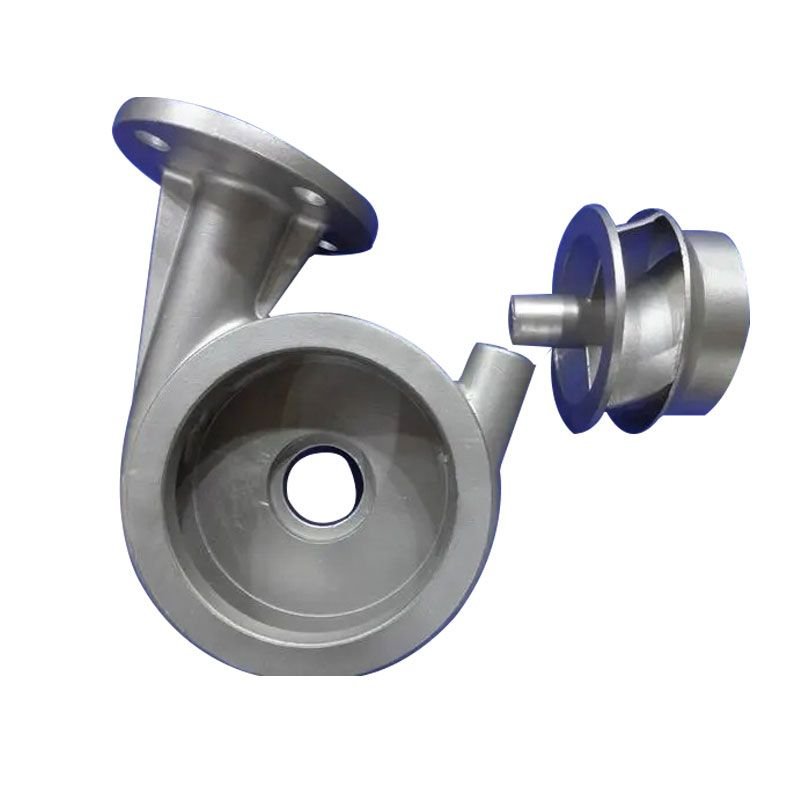

Pump Housings & Impellers
We engineer and cast high-efficiency fluid handling geometries optimized for maximum hydraulic throughput, cavitation resistance, and extended service life in corrosive media.
- Closed, semi-open, and open pump housings and impellers with dynamic balancing options
- Centrifugal pump casings, split-case volutes, and multi-stage diffuser housings
- Precision castings in 304, 316L, Duplex 2205, and Super Duplex 2507 alloys
ISO 1940 Dynamic Balancing and Hydrostatic Pressure Testing
Hydraulic Valve Bodies & Blocks
Engineered for high-pressure containment, our hydraulic valve body casting process ensures dense internal microstructures free of shrinkage porosity and subsurface defects.
- High-pressure hydraulic valve bodies and blocks with complex internal flow channels
- Directional control valve housings, integrated manifold blocks, and cartridge cavities
- In-house CNC finish boring, precision seat machining, and spool bore honing
Tested Up to 350 Bar Air-Under-Water Leak Integrity

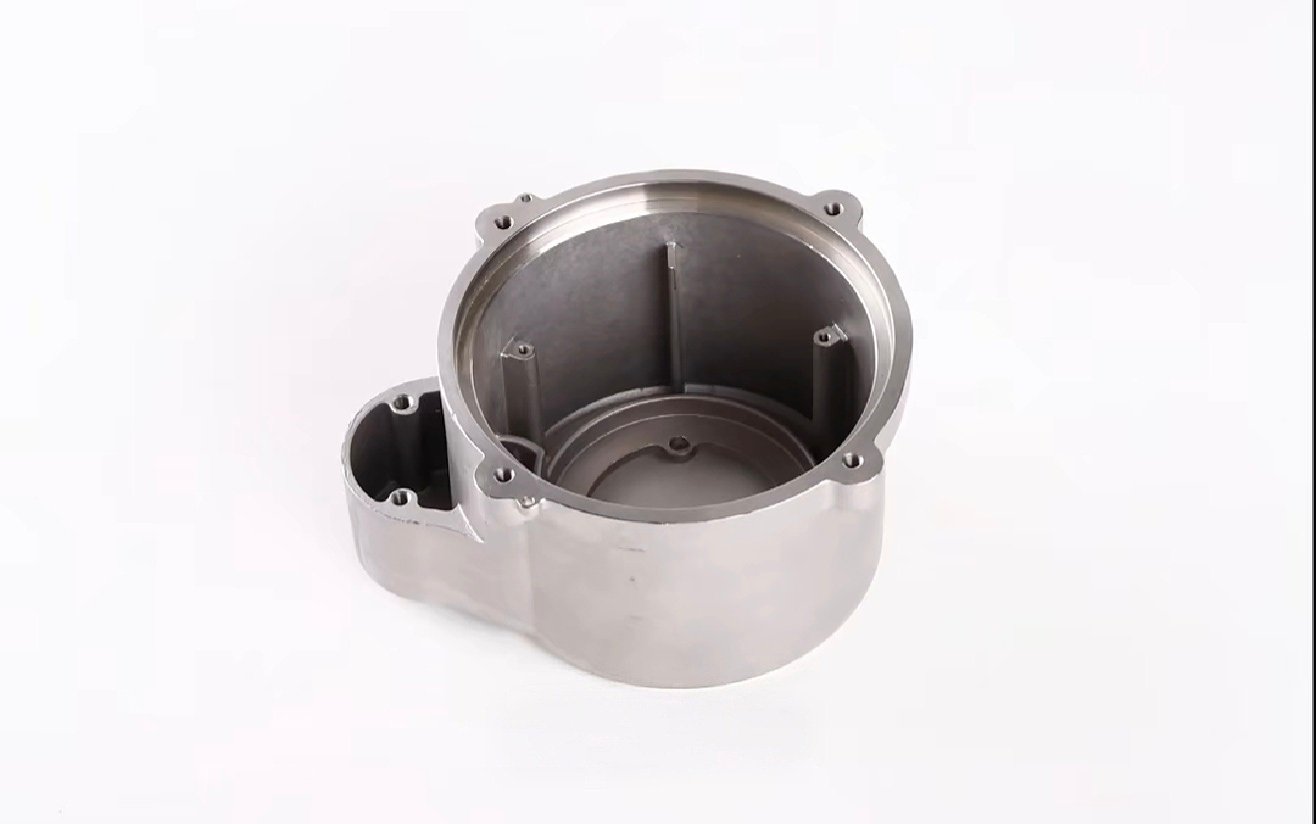

Machinery & Instrument Housings
Robust stainless steel protective enclosures engineered to shield sensitive electronics, optical instruments, and heavy gearboxes in demanding operational settings. We also specialize in custom food-machinery-components for sanitary applications.
- Explosion-proof enclosures, terminal boxes, and precision instrument housings
- Structural mounting brackets, flowmeter sensor bodies, and actuator casings
- Thin-wall silica sol casting capability down to 3 mm uniform wall thickness
As-Cast Ra 3.2 to 6.3 µm with CNC-Machined Sealing Faces

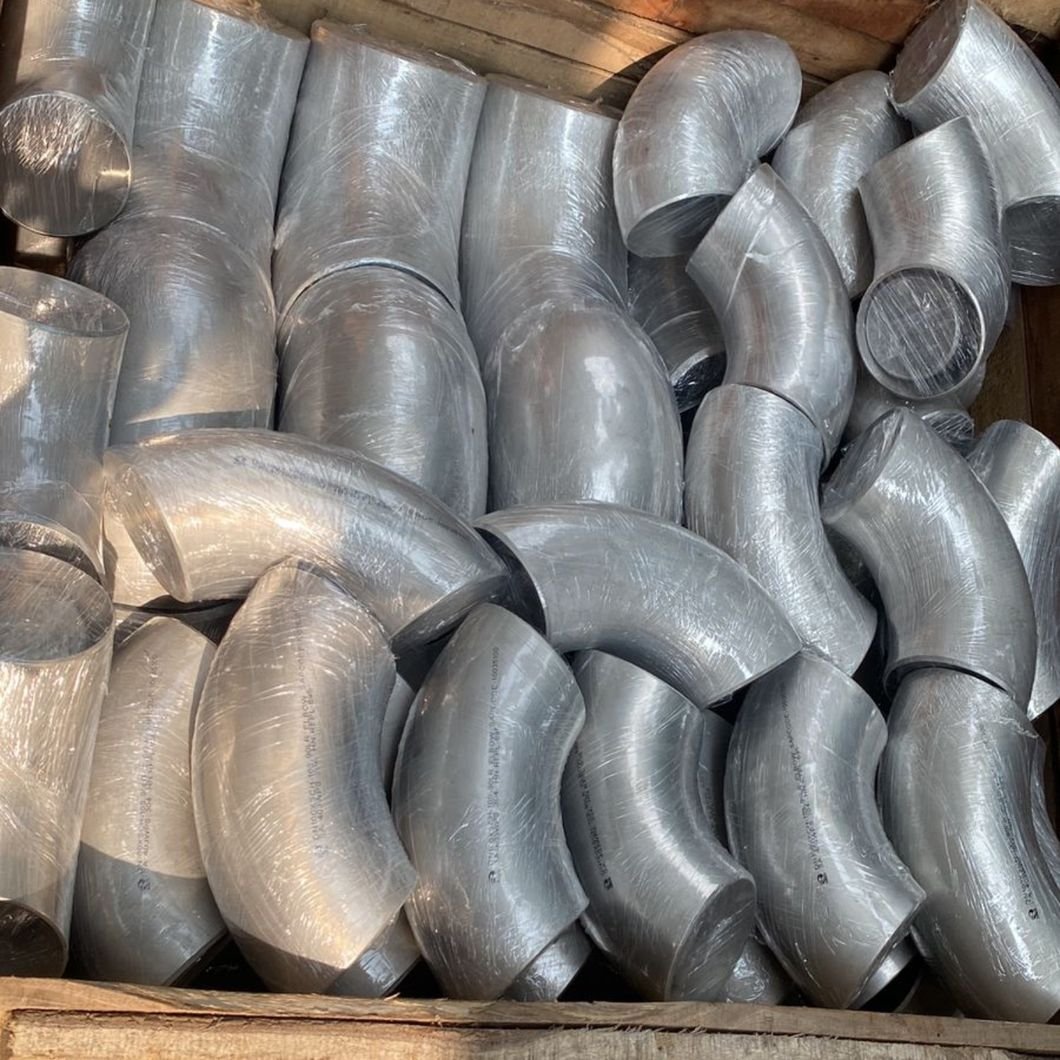

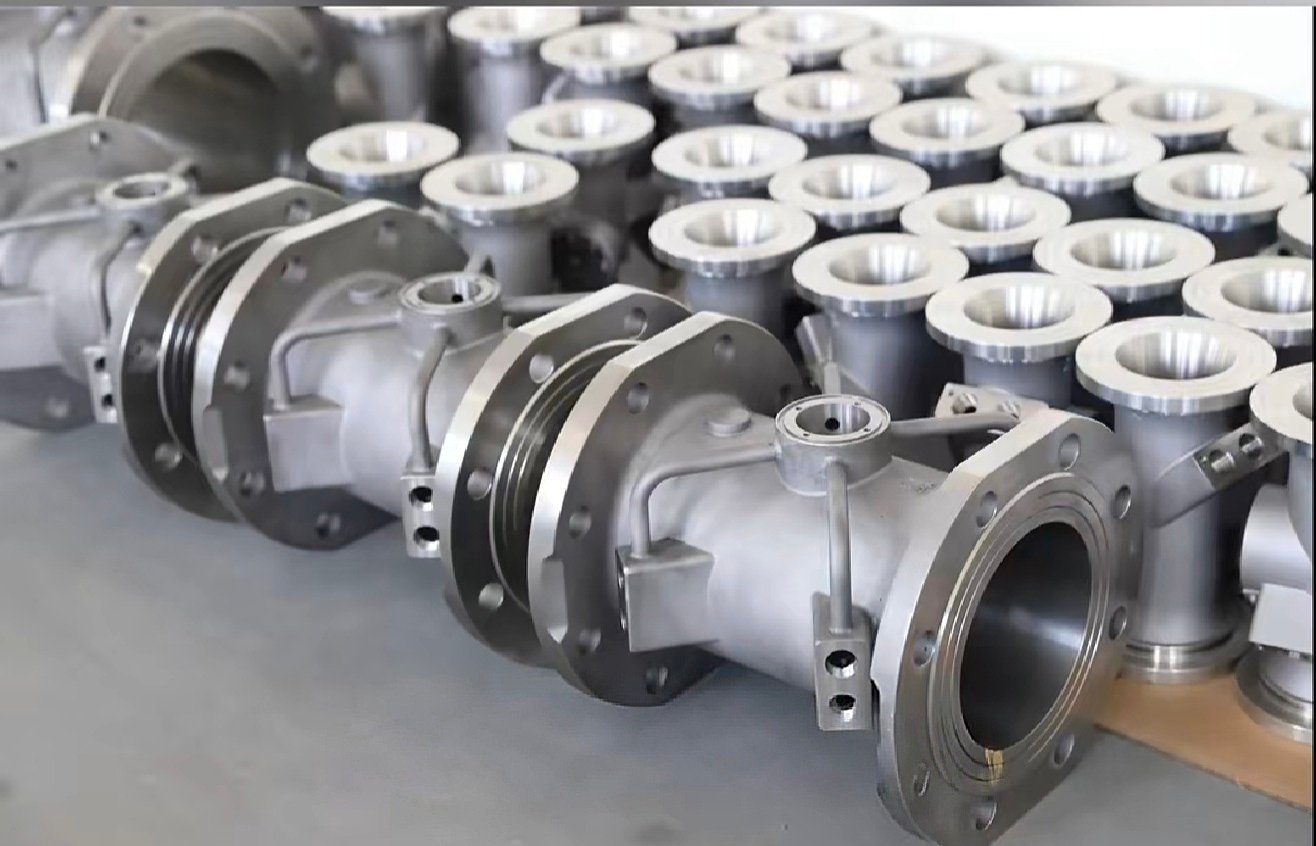

Pipe Fittings, Flanges & Strainers
Heavy-duty stainless steel pipe fittings and flanges manufactured with clean internal flow passages and exact thread engagement to eliminate leak paths.
- Specialty stainless steel pipe fittings, flanges, Y-strainers, and filter housings, including precision valve-body-fittings
- Custom cross tees, sanitary adaptors, and high-pressure pipe connectors
- In-house CNC machining for NPT, BSPP, metric threads, and flange sealing faces
100% PMI Spectrometer Verified Heat Lots with MTRs
Custom OEM Capability & Tooling Development
If your component geometry is not listed above, we support complete OEM mold design, casting, and precision machining directly from your CAD files. VastCasting excels at complex internal passages and pressure-containing housings using silica sol investment tooling. Our single-site facility handles tooling development, wax pattern building, induction pouring, solution annealing, and CNC finishing with seamless single-factory accountability.
STEP / DWG
Native CAD Format Support
±0.01 mm
Precision CNC Tolerances
Ra 1.6 µm
Machined Surface Finish
24 Hours
Turnaround DFM & Quote
Precision Investment Castings
Silica sol process ensures smooth surface finishes and precise internal cavities for complex custom geometries.
Material Options & Technical Specifications
Austenitic Stainless Steel
ASTM A351 CF8, CF8M, CF3M (304, 316, 316L) for general corrosion resistance and sanitary fluid handling.
Duplex & Super Duplex
ASTM A995 and A890 Grades 2205 (CD3MN) and 2507 (CE3MN) for severe chloride pitting and acidic environments.
Tolerance Capabilities
As-cast dimensions conform to ISO 8062 CT4 to CT6. In-house CNC machining holds critical dimensions to ±0.01 mm.
Quality Assurance
100% PMI material verification, CMM dimensional auditing, liquid penetrant testing (PT), and leak testing.
Need Drawing Evaluation?
Submit your STEP or DWG CAD files to receive a detailed Design for Manufacturability evaluation and transparent quote within 24 hours.
Turnkey Investment Casting to Precision CNC Machining
Splitting raw investment casting and secondary machining across separate suppliers introduces severe supply chain risks, shipping friction, and uncompensated scrap costs caused by late-stage defect discoveries. VastCasting eliminates vendor finger-pointing by managing the complete production lifecycle within a single ISO-certified facility. As an integrated turnkey casting manufacturer, we take total ownership from climate-controlled wax pattern injection and silica sol ceramic shelling to solution annealing, multi-axis CNC finishing, and 100% pressure-tightness testing.

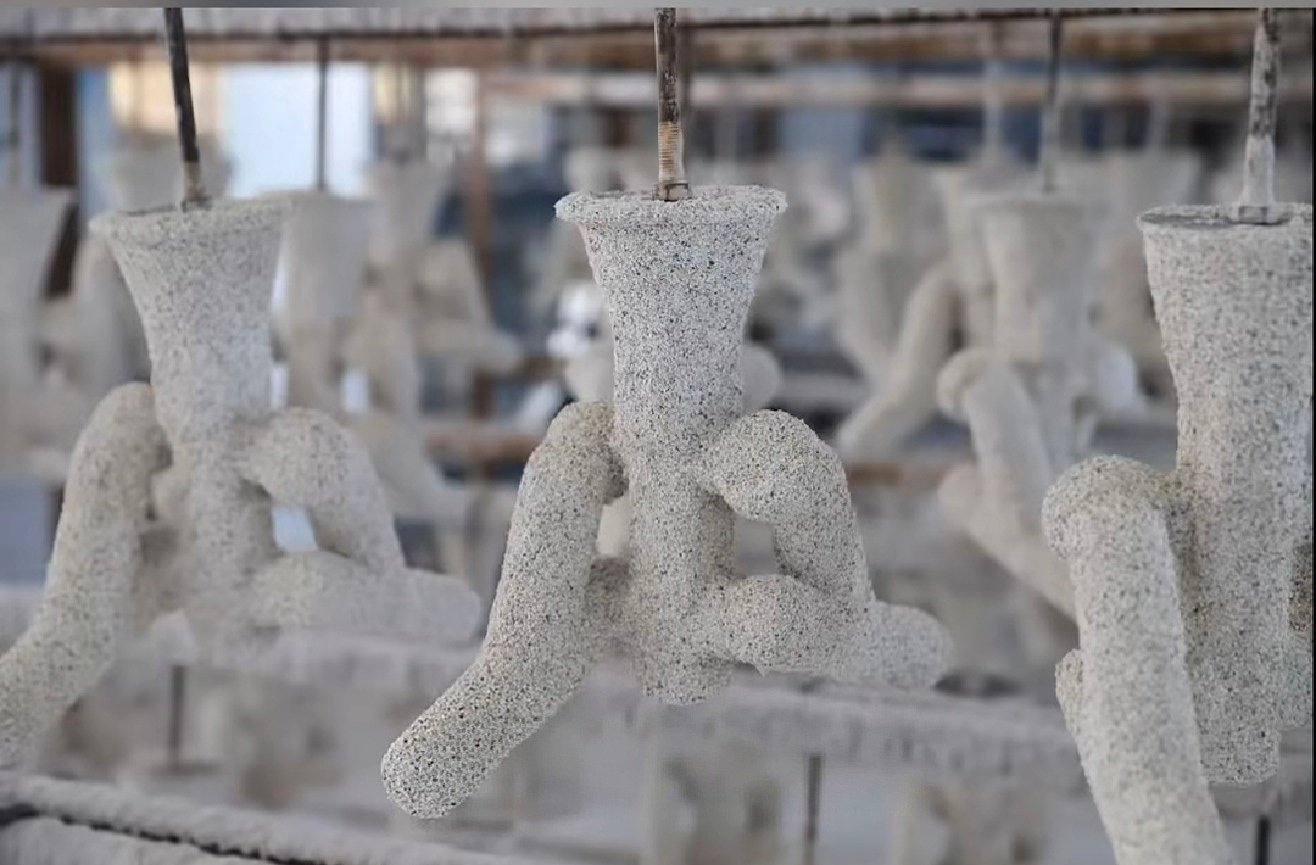

Step 1: Wax Pattern & Silica Sol Shelling
Temperature-controlled silica sol slurry processing ensures superior surface smoothness (Ra 3.2–6.3 μm) and tight dimensional repeatability (ISO 8062 CT4–CT6) for complex 304, 316L, and duplex stainless steel geometries, including precision valve-body-fittings.
- Precision aluminum wax injection tooling
- Multi-layer silica sol ceramic shell dipping
- Automated steam dewaxing in high-pressure autoclave

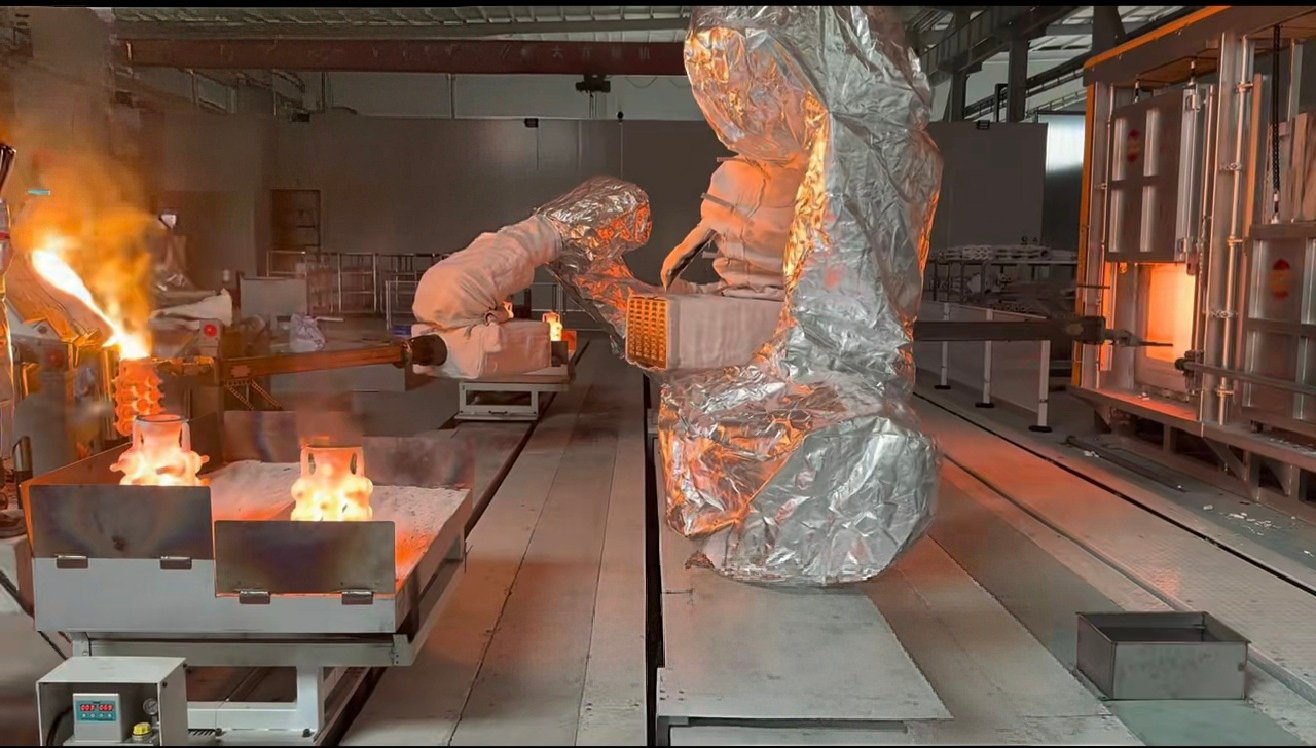

Step 2: Precision Casting & Solution Heat Treatment
Medium-frequency induction melting followed by solution heat treatment restores optimal austenitic and duplex microstructure, maximizing intergranular corrosion resistance and mechanical strength.
- 100% PMI direct-reading spectrometer heat verification
- High-temperature solution annealing furnace cycles
- Rapid water quenching for peak corrosion defense
Step 3: In-House Precision CNC Machining
Transferring raw blanks directly to dedicated multi-axis CNC turning and milling centers eliminates inter-factory transport while executing high-precision sealing faces, threads, and tight bores.
- Multi-axis CNC turning and vertical machining centers
- Precision sealing face machining & NPT/BSP threads
- Critical machining tolerances held down to ±0.01 mm
Step 4: Integrated Quality & NDT Inspection
Comprehensive quality controls—including air-under-water pressure testing, CMM dimensional verification, and NDT casting inspection—guarantee every component arrives 100% assembly-ready for specialized food-machinery-components and heavy equipment.
- 100% air-under-water and hydrostatic leak testing
- CMM 3D coordinate reporting for primary datums
- Full MTR compliance with chemical & mechanical batch data
Single-Site Execution Protects Overseas OEM Schedules
When raw foundries and secondary machining facilities operate independently, subsurface casting defects discovered during final precision cuts trigger costly liability disputes. Foundries often blame improper CNC fixture clamping, while machine shops point to subsurface porosity. VastCasting eliminates inter-vendor friction by integrating investment casting to CNC machining under unified engineering management in Dongying, China. Whether manufacturing industrial hardware or robust petrochemical-equipment-parts, we accept undivided responsibility for both raw shell soundness and finished surface tolerances.
Zero Inter-Factory Freight
Eliminates secondary transit costs, logistics lead times, and transit damage risks.
Closed-Loop DFM Feedback
Real-time CMM machining data feeds directly into pattern tooling for continuous tolerance refinement.
Single-Site Facility Comparison vs. Multi-Vendor Sourcing
Comparing conventional multi-vendor outsourcing with the VastCasting integrated turnkey framework demonstrates tangible lead-time reductions and total cost-of-ownership savings for industrial procurement teams.
| Operational Metric | Multi-Vendor Sourcing Model | VastCasting Turnkey Solution |
|---|---|---|
| Quality & Defect Accountability | Divided between separate foundry and machine shop, creating prolonged liability disputes over subsurface defects. | Single-source accountability covering chemical composition, internal soundess, finished dimensions, and leak tightness. |
| Production Lead Time & Transit | Extended turnaround due to packing, shipping raw castings to external facilities, and managing multiple purchase orders. | Direct transfer from heat treatment into dedicated in-house CNC fixtures, accelerating total delivery cycles by up to 30%. |
| Scrap & Replacement Financial Risk | Procurement teams frequently absorb wasted machining costs when internal casting defects appear during finishing cuts. | Zero customer scrap liability; 100% inspected, pressure-tested parts shipped fully finished and ready for final assembly. |
| Engineering & DFM Modifications | Slow engineering revisions requiring separate approvals and tooling updates between two uncoordinated suppliers. | Unified engineering team updates pattern shrinkage allowances and CNC tool paths concurrently within a single workflow. |

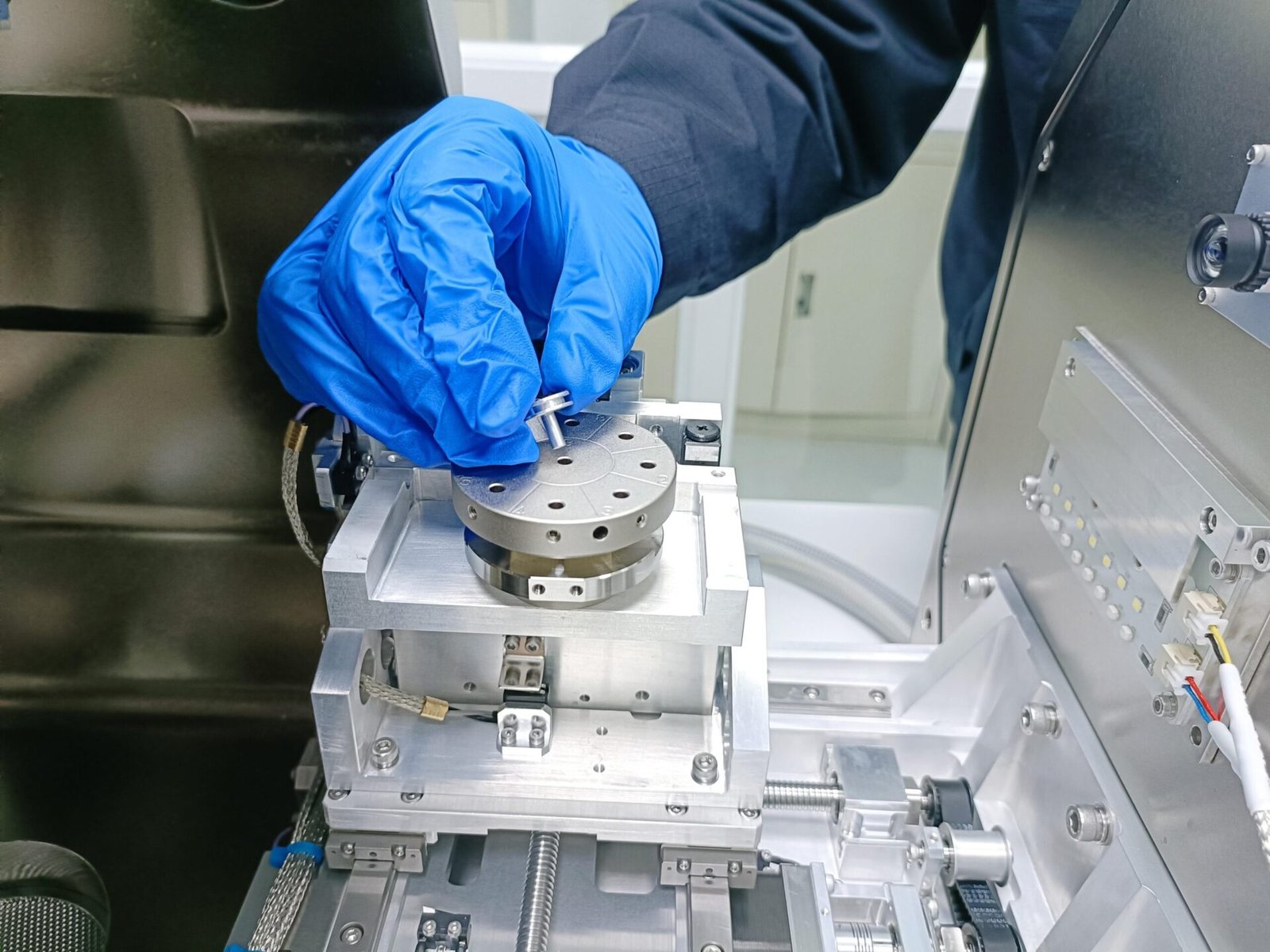

Rigorous Quality Assurance & Testing Standards
Ensure zero-defect reliability for mission-critical industrial components through certified PMI material verification, NDT casting inspection, and integrated pressure testing.
PMI Material Verification
Direct-reading optical emission spectrometry verifying exact chemical composition and heat-lot compliance prior to pouring.
NDT Casting Inspection
Comprehensive Liquid Penetrant (PT), Radiographic (RT), and Ultrasonic (UT) testing capabilities to detect internal voids and sub-surface flaws.
Air Tightness & Leak Testing
100% air-under-water pressure testing and hydrostatic verification for valve body fittings, pump housings, and pressure-retaining enclosures.
CMM & Surface Metrology
High-precision Coordinate Measuring Machine dimensional validation and surface roughness (Ra) verification for critical CNC machined features.
Quality Certification
Full Material Test Reports included with every shipment.
Complete Certification and Inspection Integrity
VastCasting ships all stainless steel castings with complete Material Test Reports and NDT inspection certificates. By maintaining rigorous quality control from raw melt spectrometry to post-CNC dimensional verification, we guarantee complete compliance for demanding petrochemical equipment parts and sanitary food machinery components across global applications.
Download Sample Quality Report
Review sample material test certificates (MTR), NDT casting inspection logs, and CMM dimensional documentation.
Procurement and Technical FAQ
Procuring custom stainless steel castings requires absolute clarity on dimensional tolerances, metallurgical standards, post-casting machining limits, and tooling investments prior to drawing signoff. VastCasting eliminates purchasing risks by offering transparent technical guidance and unified single-factory manufacturing accountability from raw melt to finished CNC component.
Single-Factory Technical Responsibility
VastCasting integrates silica sol investment casting with precision in-house CNC machining to eliminate dimensional disputes and multi-vendor quality friction.
01 Casting Tolerances and Surface Finishes
Casting Tolerances and Surface Finishes
Silica sol investment casting delivers exceptional dimensional accuracy and smooth surface aesthetics compared to traditional sand or water-glass casting processes. VastCasting guarantees raw investment casting tolerances and secondary machined surface micro-finishes aligned with international manufacturing standards.
As-Cast Parameters
- Dimensional Standard: Conforms strictly to ISO 8062 CT4 to CT6 standard tolerance grades.
- Surface Roughness: Ra 6.3 to 12.5 micrometers (250 to 500 microinches) as-cast finish.
- Linear Shrinkage Control: Tight wax pattern temperature control prevents geometric warping.
Precision CNC Parameters
- Machining Accuracy: Fine turning, milling, and boring tolerances within plus or minus 0.01 mm.
- Sealing Surface Finish: Critical valve faces and sealing grooves achieve Ra 0.8 to 1.6 micrometers.
- Thread Connections: NPT, BSPP, and UNC precision thread chasing to exact gauge depth.
Engineering Tip: Call out critical datum locations on your engineering drawings so VastCasting CNC programmers can establish single-setup alignment fixtures directly matching your target design intent.
02 Duplex Steel Ferrite Content and Corrosion Resistance
Duplex Steel Ferrite Content and Corrosion Resistance
Duplex and super duplex stainless steel castings such as ASTM A995 Grade 4A (2205 / CD3MN) and Grade 5A (2507 / CE3MN) rely on balanced dual-phase microstructures to deliver superior yield strength and resistance to chloride stress corrosion cracking. Uncontrolled thermal cycles during casting can cause brittle sigma phase formation and loss of corrosion performance.
Phase Balance & Heat Treatment
VastCasting enforces strict solution annealing at precise elevated temperatures followed by rapid water quenching. This thermal treatment fully dissolves detrimental intermetallic precipitates and establishes a balanced phase ratio.
- Target Ratio: 40 percent to 60 percent ferrite phase matrix
- Verification: Metallographic examination and Feritscope testing
Corrosion Resistance & PREN Ratings
Direct-reading optical emission spectrometry PMI material verification ensures exact alloying ratios of chromium, molybdenum, and nitrogen to achieve guaranteed Pitting Resistance Equivalent Number ratings.
- Duplex 2205: Guaranteed PREN equal to or greater than 34
- Super Duplex 2507: Guaranteed PREN equal to or greater than 42
| Casting Grade | UNS / Alloy Equivalent | PREN Rating | Primary Industrial Application |
|---|---|---|---|
| ASTM A351 CF8M / CF3M | 316 / 316L Stainless Steel | 23 to 25 | Sanitary food machinery components, commercial valves, and fluid piping |
| ASTM A995 CD3MN (Grade 4A) | UNS S31803 / 2205 Duplex | 34 or higher | Desalination high-pressure pumps, petrochemical equipment parts, and reverse osmosis hardware |
| ASTM A995 CE3MN (Grade 5A) | UNS S32750 / 2507 Super Duplex | 42 or higher | Offshore oil platforms, subsea manifolds, and hot concentrated acid handling equipment |
03 Low-Volume OEM Orders and Prototype Tooling
Low-Volume OEM Orders and Prototype Tooling
Commitment to expensive multi-cavity production tooling creates unnecessary risk during early product design phases. VastCasting supports global OEM engineering teams with flexible tooling options tailored for rapid prototype validation, small-batch pilot runs, and full volume manufacturing.
Rapid Prototype Tooling
Utilizes single-cavity modular aluminum tooling or 3D-printed wax models to create physical stainless steel investment castings for immediate fit and hydro-testing evaluation.
- Turnaround Time: 10 to 15 business days for First Article Inspection (FAI) samples
- Primary Application: Functional prototyping and pre-production validation
Hardened Steel Production Tooling
Precision CNC-machined steel tooling featuring automatic core pulls and multi-cavity layouts designed for high-volume automated wax injection.
- Expected Tooling Life: Up to 100,000 injection cycles
- Primary Application: High-volume commercial OEM manufacturing runs
04 Casting Quote & Machining Inclusions
Casting Quote & Machining Inclusions
VastCasting provides adaptable quotation structures matching your exact supply chain strategy. Whether your facility maintains internal machining capacity or requires completely finished assemblies ready for installation, our engineering team tailors quotation proposals accordingly.
Raw Investment Cast Blanks
As-cast investment components supplied in solution-annealed and sandblasted condition with gates ground flush. Ideal for customers performing in-house machining.
Semi-Machined Blanks
Castings supplied with rough-turned bores, faced datums, or target locations machined to eliminate excess material before final customer finishing.
Turnkey CNC Finished Parts
Complete single-source delivery covering casting, CNC turning, multi-axis milling, surface grinding, pressure testing, and passivated surface treatments such as precision valve body fittings.
Included Technical Documentation: Every quotation includes options for EN 10204 3.1 Material Test Reports, PMI chemical spectrum logs, CMM dimensional auditing sheets, and pressure tightness certificates upon request.
05 Design for Manufacturability (DFM) and Fast Quoting
Design for Manufacturability (DFM) and Fast Quoting
Optimizing component geometry prior to mold cutting is the single most effective step to reduce unit cost, eliminate internal shrink porosity, and improve dimensional consistency. VastCasting performs complete technical CAD evaluations for all submitted engineering drawings.
Geometry Optimization Checklist
- Wall Thickness Transitions: Blending thick-to-thin section junctions to avoid thermal stress cracks.
- Draft Angles and Fillets: Strategic 0.5°–1° tapers facilitate clean wax pattern ejection.
- Internal Cavity Cores: Designing self-supporting ceramic passages for complex fluid channels.
24-Hour Drawing Evaluation
Send your STEP, IGES, or DWG files directly to our engineering team. VastCasting delivers a comprehensive DFM assessment report and preliminary quotation within 24 hours of receipt.
Ready to Request Your Custom Stainless Steel Casting Quote?
VastCasting is a specialized precision investment foundry and CNC machine shop located in Dongying, Shandong, China. We supply global OEMs with turnkey 304, 316L, and duplex stainless steel components engineered to exact ASTM and ISO specifications with single-factory accountability.
Ready to Cast Your Custom Stainless Steel Components?
Upload your 2D/3D CAD drawings to get an investment casting quote, expert DFM feedback, and competitive factory pricing within 24 hours. Located in Dongying, Shandong, VastCasting is a leading China stainless steel foundry delivering end-to-end investment casting, specialized cast valve body fittings, and in-house CNC machining for global OEMs.
