Custom Investment-Cast Stainless Steel & Duplex Valve Body Fittings
Eliminate multi-vendor friction with integrated lost-wax investment casting and 5-axis CNC machining under one roof. VastCasting delivers high-volume pressure reducing valve (PRV) bodies and sanitary air-release housings engineered for severe-service fluid environments, specializing in high-performance stainless steel castings.
Single-Source Manufacturing Advantage
Precision Lost-Wax Casting
Dense, porosity-free grain structures engineered for high-pressure valve performance.

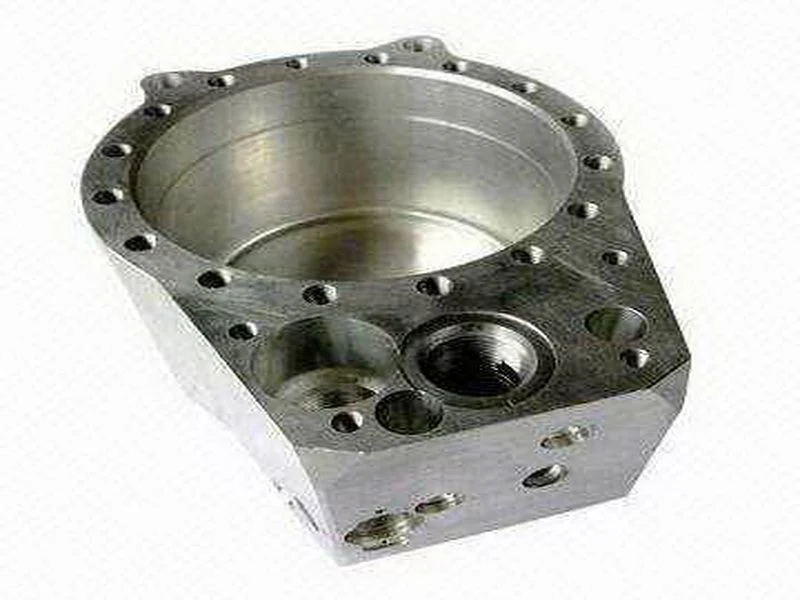

In-House 5-Axis CNC Machining
Direct machining of seats, flanges, and threads ensuring exact tolerances and alignment.
Zero Multi-Vendor Friction
Single point of accountability from raw melt analysis to certified finished housing.
Valve Body Fittings
Browse live product listings in this category. Request a quote with your drawings for OEM casting and CNC machining.
Try removing one or more filters.
High-Volume Precision Jobs: Pressure Reducing & Process Air-Release Valve Bodies
Engineered for critical industrial fluid systems, VastCasting delivers scalable manufacturing for high-volume investment-cast valve bodies. By combining silica sol lost-wax precision casting and tight-tolerance CNC machining under one roof, VastCasting eliminates multi-vendor friction, guarantees repeatable dimensional accuracy, and ensures uncompromised metallurgical integrity across every production run.

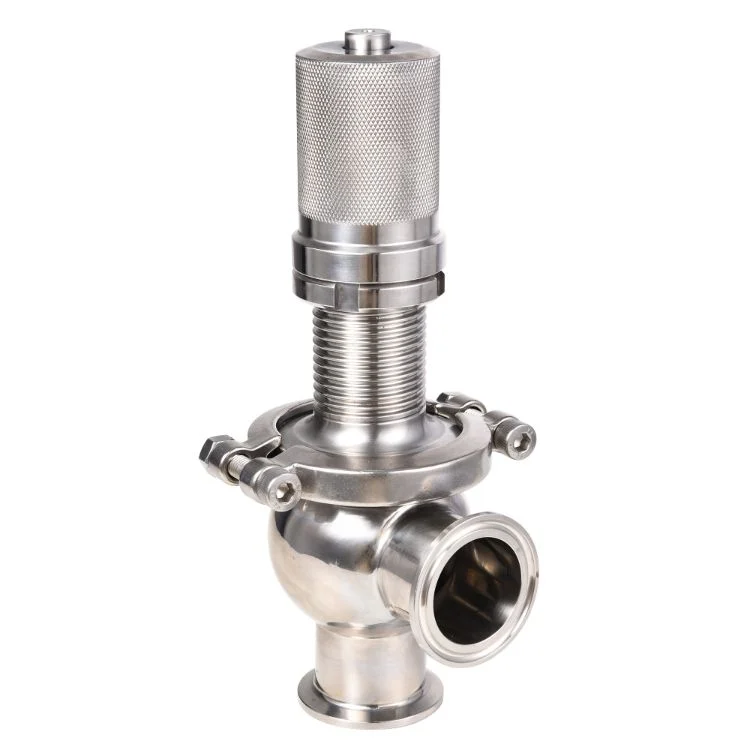

Stainless & Duplex Steel Pressure Reducing Valve Bodies
Pressure reducing valve body casting requires exceptional structural stability to resist continuous hydraulic shock, high fluid velocity, and localized pressure differentials. VastCasting manufactures custom investment-cast pressure reducing valve bodies utilizing computer-simulated mold filling and optimized runner designs. Our engineering team prioritizes uniform wall thickness to eliminate shrinkage porosity, stress concentrations, and internal wall thinning.
Precision wax pattern tooling ensures strict wall symmetry (±0.3 mm), eliminating stress concentration points under high operating pressures.
Flow-optimized internal chambers minimize turbulence and pressure spikes, shielding CNC machined valve seats from erosive cavitation wear.
- ✓ Material Options: Investment-cast in high-grade stainless steel castings including ASTM A351 CF8, CF8M, CF3M, Duplex 2205, and Super Duplex 2507 for heavy-duty corrosion resistance in petrochemical equipment parts.
- ✓ Pressure Rating Safety: Hydrostatic shell tested to withstand high pressure demands up to ASME Class 600 / PN100 specifications.
- ✓ In-House Machining: Precision 5-axis CNC machining of internal seating faces, stem bores, and flange serrations guarantees zero-leakage assembly.

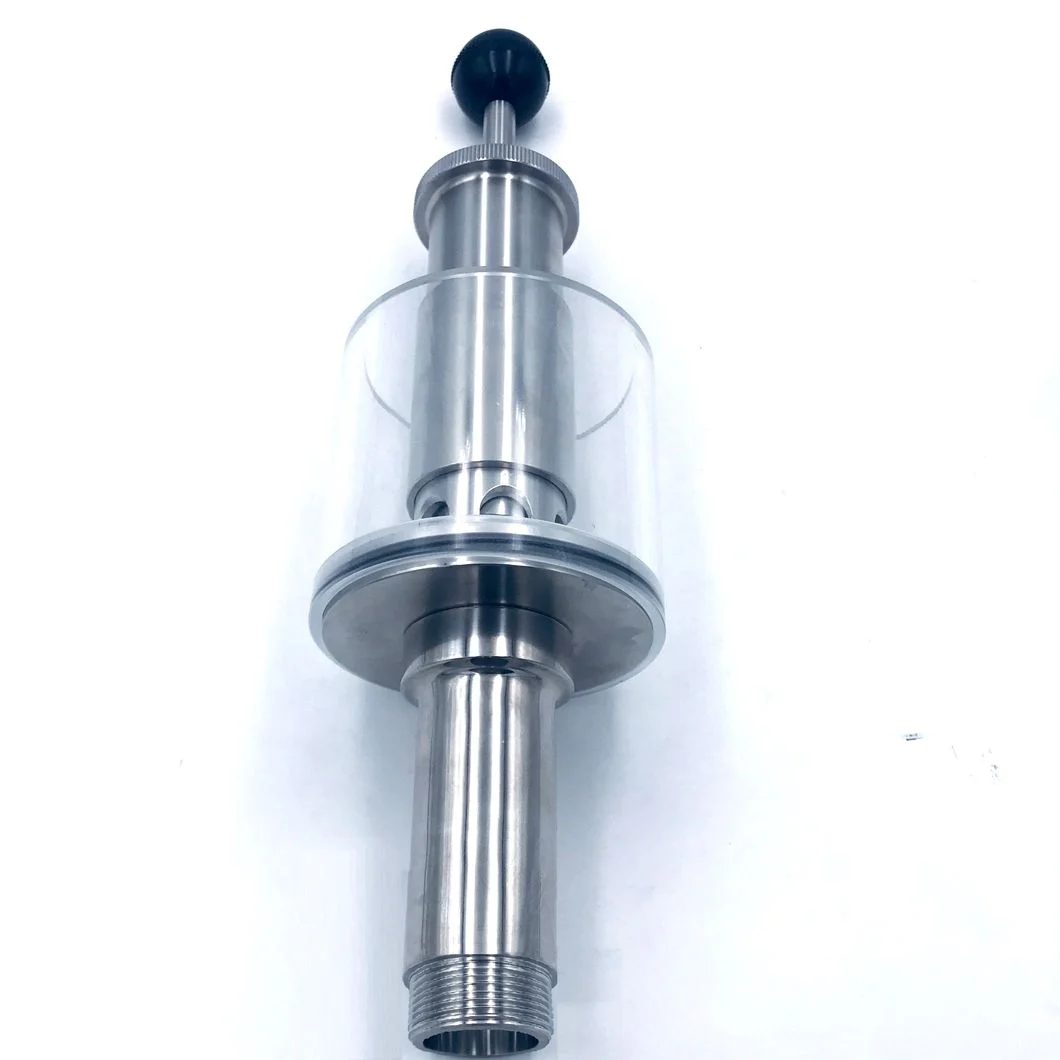

Process & Sanitary Air-Release Valve Bodies
An air-release valve body demands flawless internal surface purity to support continuous venting while preventing media entrapment or bacterial buildup. VastCasting manufactures high-volume lost-wax air-release housings tailored for municipal water treatment, biopharmaceutical processing, sanitary food machinery components, and chemical processing pipelines.
As-cast internal cavities achieve Ra 3.2 μm via silica sol investment casting, with post-machining polish options reaching Ra ≤ 0.4 μm.
Internal flow contours are engineered without fluid stagnation pockets, facilitating full CIP/SIP cleanability in sanitary systems.
- ✓ Gas-Tight Cast Integrity: Dense CF8M / 316L stainless steel casting structure eliminates micro-porosity for bubble-tight sealing.
- ✓ Versatile End Connections: Precision CNC turning for tri-clamp, NPT/BSP threads, socket weld, or ANSI flanged configurations.
- ✓ Hygienic Standards: Processed in alignment with 3-A Sanitary Standards and ASME BPE guidelines for liquid processing equipment.
Technical Specification Matrix: Valve Body Engineering Standards
Comparison of core manufacturing specifications for high-volume investment-cast valve bodies produced by VastCasting.
| Engineering Parameter | Pressure Reducing Valve Bodies | Process & Sanitary Air-Release Bodies |
|---|---|---|
| Material Grades | ASTM A351 CF8M, CF3M, Duplex 2205, Super Duplex 2507 | ASTM A351 CF8, CF8M, 316L Stainless Steel |
| Core Structural Focus | Uniform wall thickness & anti-cavitation internal channels | Ultra-smooth cavity surface & zero-dead-leg geometry |
| Casting Method | Precision Silica Sol Lost-Wax Investment Casting | Precision Silica Sol Lost-Wax Investment Casting |
| Surface Finish Options | As-cast Ra 3.2 μm – Ra 6.3 μm | As-cast Ra 3.2 μm (Polished down to Ra ≤ 0.4 μm) |
| In-House CNC Machining | 5-Axis turning/milling for seats, stem bores & flange faces | CNC threads, tri-clamp grooves & sealing seat alignment |
| Quality Inspection & NDT | 100% Spectrometer PMI, Radiographic (RT), Hydrostatic Shell | PMI verification, Dye Penetrant (PT), Pneumatic leak testing |
Single-Factory Integration: High Volume Stability by VastCasting
Managing separate foundries and machine shops increases lead times, causes tolerance disputes, and raises scrap rates. VastCasting integrates high-volume lost-wax investment casting with in-house tight-tolerance CNC machining under one roof. Our unified manufacturing process ensures consistent metallurgical properties, precise dimensional control, and repeatable quality for global valve OEMs.
Submit your 3D CAD files (STEP/IGES) for a rapid manufacturing feasibility analysis and volume quote within 24 hours.
OEM Valve Body and Internal Components Customization Range
As an established valve body foundry and precision machining partner, VastCasting delivers turnkey lost-wax investment casting and five-axis CNC finishing across all primary industrial valve geometries. By consolidating pattern creation, shell molding, solution heat treatment, and final seat-bore machining within a single facility in China, VastCasting eliminates multi-vendor handoffs, enforces rigorous wall-thickness uniformity, and supplies 100 percent traceable fluid-handling castings for global valve manufacturers and process engineers specializing in high-performance stainless steel castings.
Eight Core Valve Body Categories
Precision lost-wax investment castings engineered for high-pressure, cryogenic, corrosive, and high-purity fluid systems.

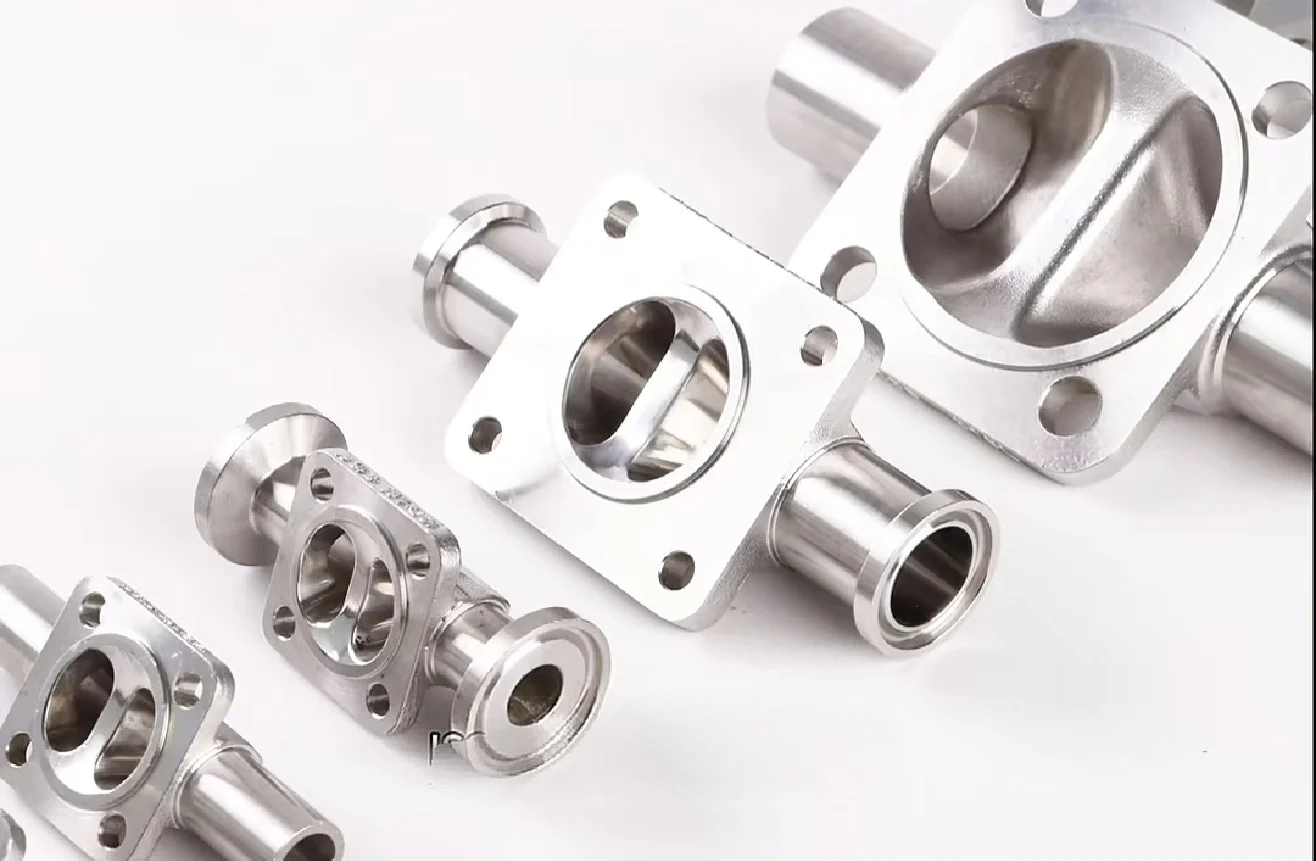

Ball Valve Bodies
Precision valve body casting solutions for 1-piece, 2-piece, and 3-piece floating or trunnion-mounted ball valve designs.
- Materials: ASTM A351 CF8M, CF3M, Duplex 2205
- Machining: CNC-bored seat pockets & stem seal faces
- Rating: Class 150 to Class 1500 / PN16 to PN100

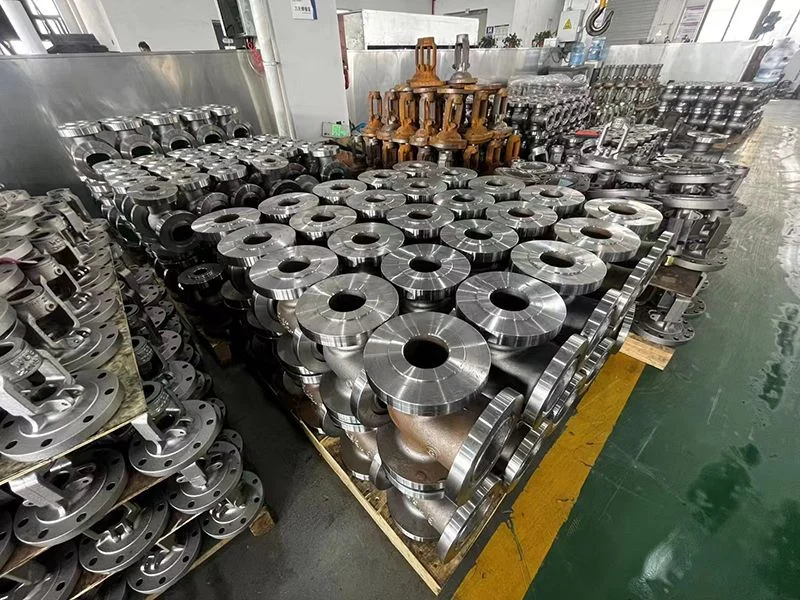

Gate Valve Bodies
Robust investment-cast wedge gate valve bodies built for minimal pressure drop and bi-directional bubble-tight shutoff.
- Materials: ASTM A351 CF8, CF8M, WCB, Alloy 20
- Machining: Parallel seat guide channels & flanged faces
- Features: Flexible wedge guides & blowout-proof stem bores

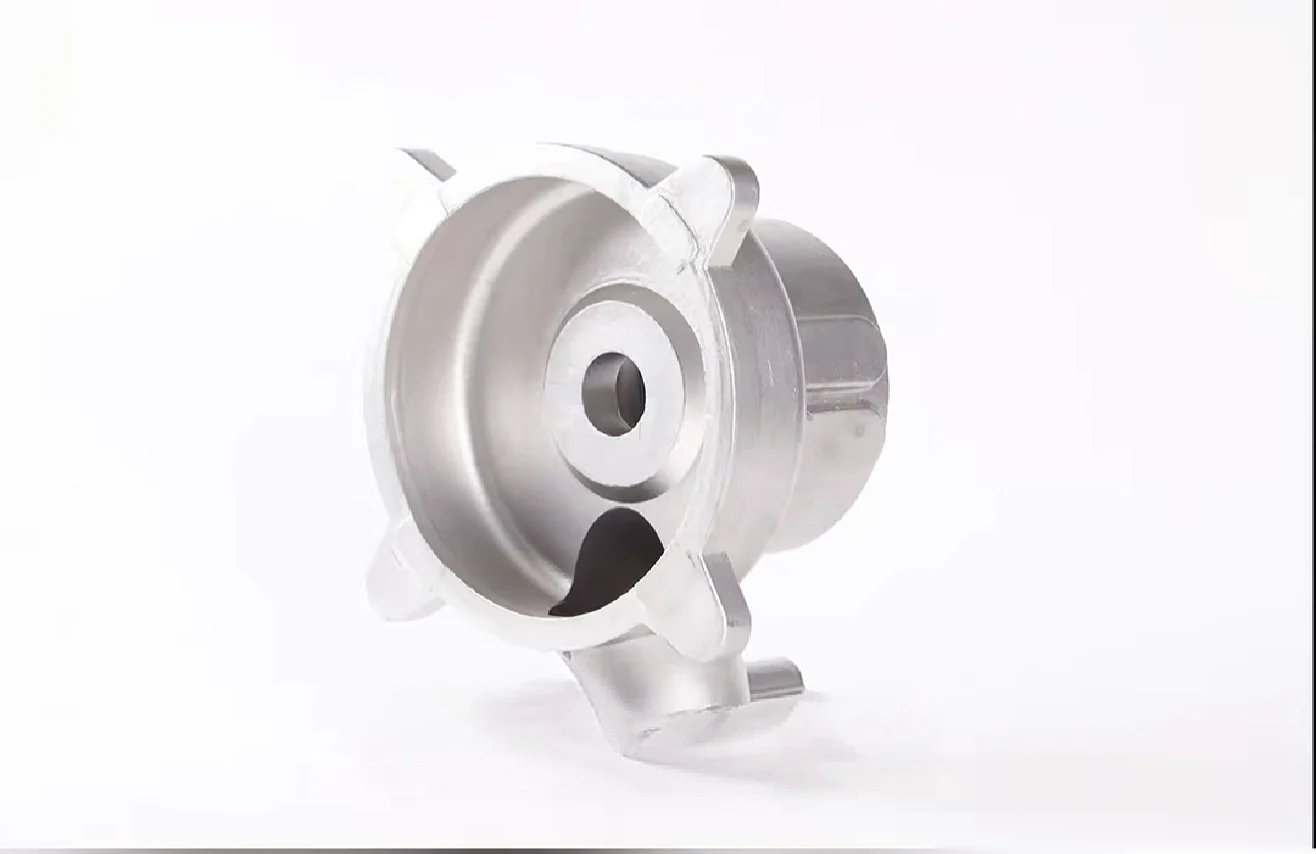

Globe Valve Bodies
Throttling-optimized internal flow pathways engineered for linear fluid regulation and high thermal shock resistance.
- Materials: 316 Stainless Steel, Monel, Hastelloy C276
- Machining: Concentric seat ring threads & guide surfaces
- Passage: S-shaped flow cavity with uniform wall thickness
Check Valve Bodies
Compact swing, dual-plate, and piston check valve housings engineered to eliminate backflow in critical pipeline networks.
- Materials: CF8M, Super Duplex 2507, CN7M
- Machining: Lapped sealing seats & inline hinge pin bores
- Designs: Wafer, lug, double-flanged & socket weld ends

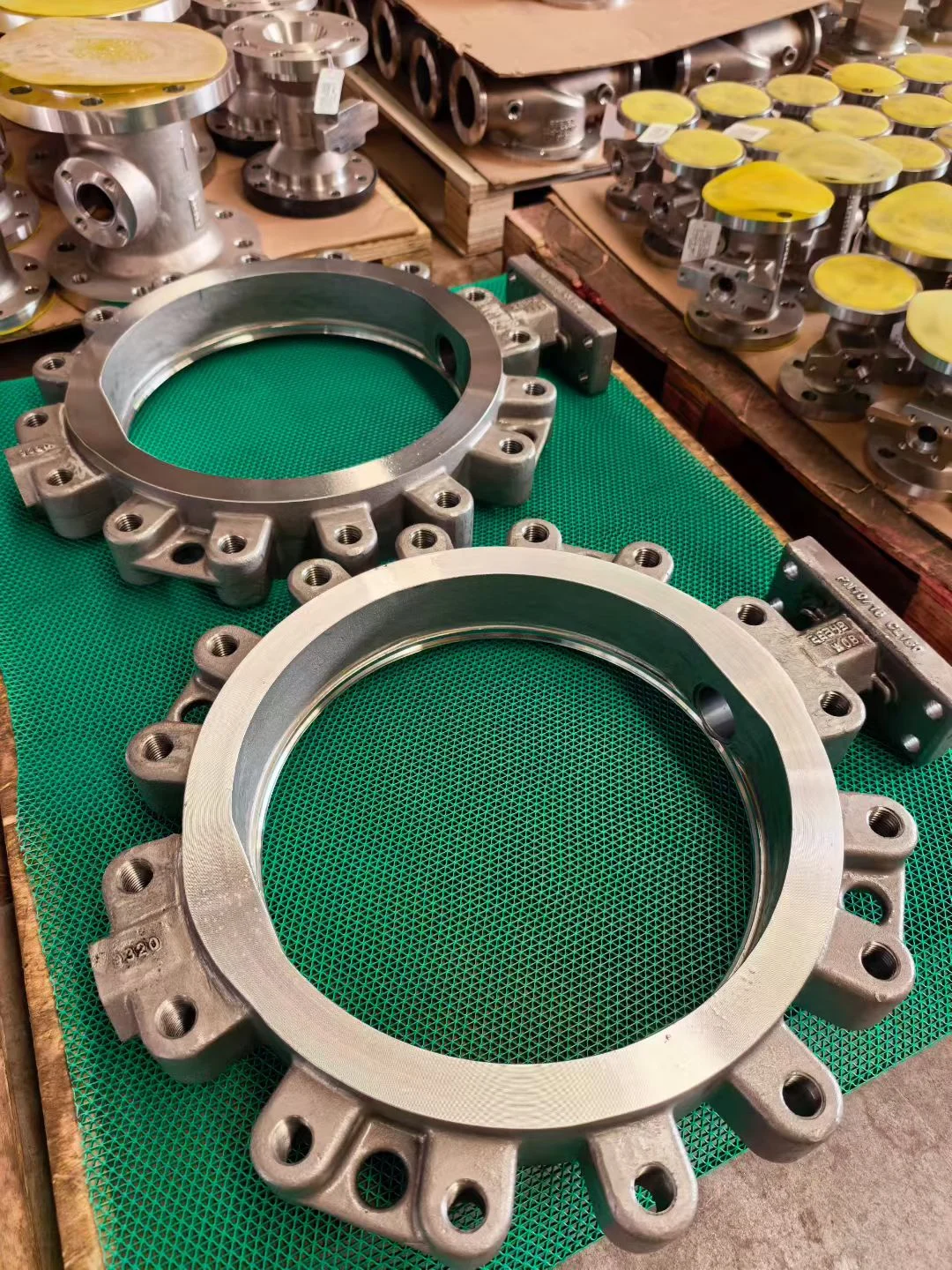

Butterfly Valve Bodies
High-performance double and triple eccentric offset butterfly valve body structures built for zero-leakage isolation.
- Materials: Duplex steel valve body casting, CF8M
- Machining: 5-axis CNC-machined offset seat angles
- Types: Wafer, lugged, and double-flanged body styles

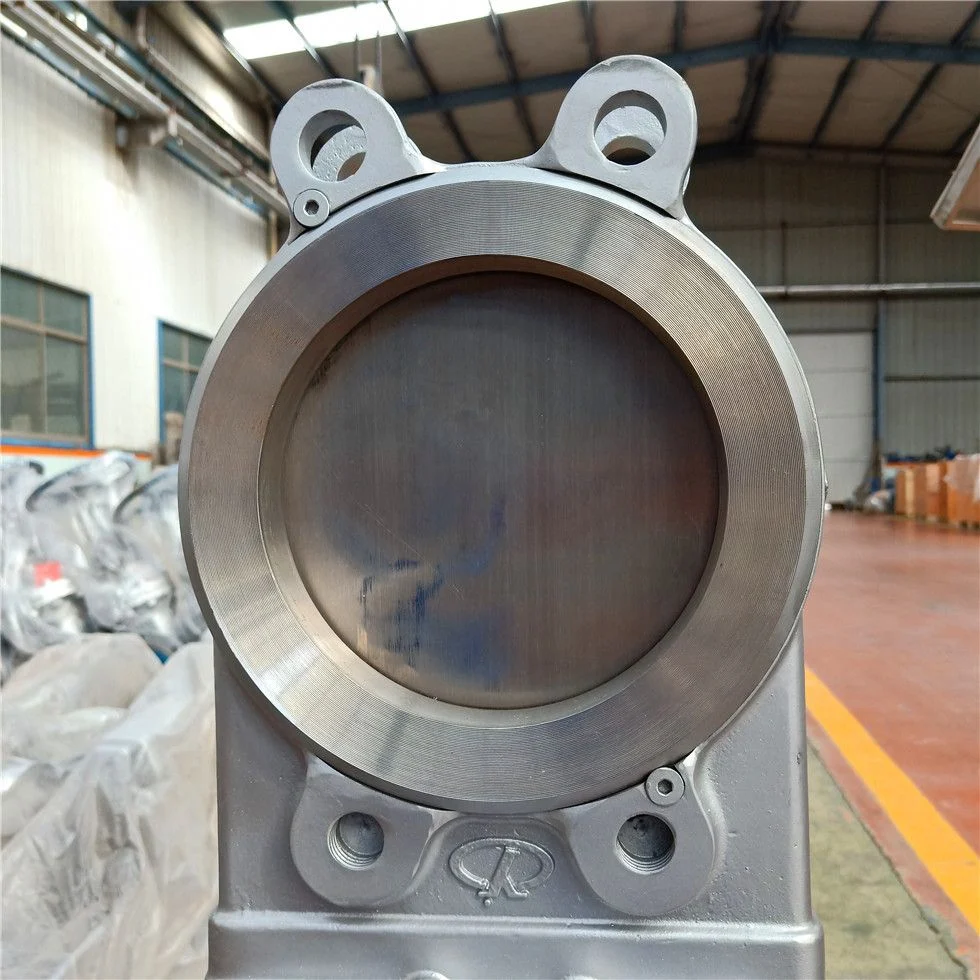

Knife Gate Valve Bodies
Slurry- and pulp-duty narrow-profile knife gate bodies cast to withstand abrasive wear and prevent solids accumulation.
- Materials: 316 Stainless Steel, Duplex 2205
- Machining: Precision gate guide channels & packing chambers
- Target: Mining, pulp & paper, and wastewater treatment

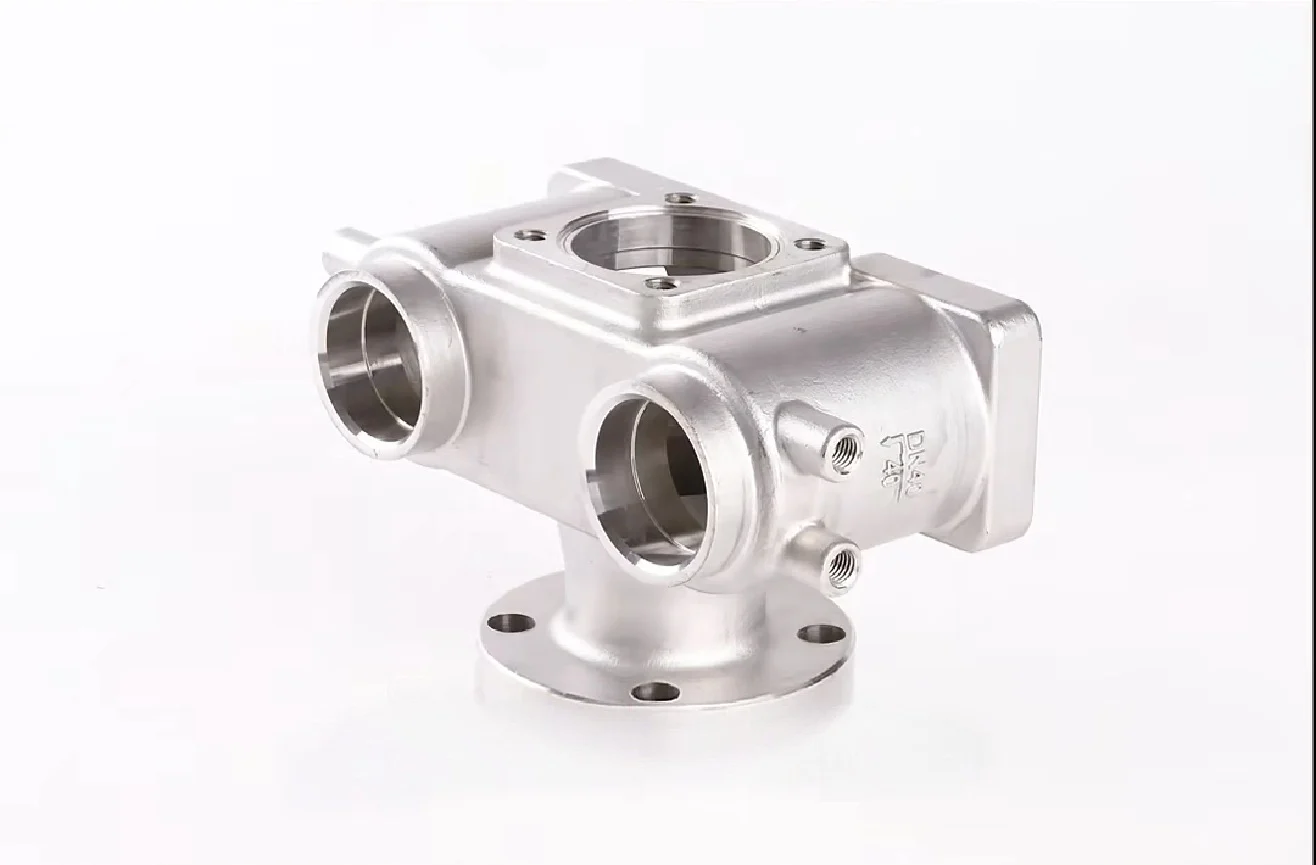

Control Valve Bodies
Custom-engineered single-seat and cage-guided control valve bodies for high-accuracy process throttling.
- Materials: ASTM A351 CF3M, CF8M, Inconel 625
- Machining: Precise cavity symmetry & stem bore concentricity
- Feature: Hydrodynamically contoured flow paths to curb cavitation

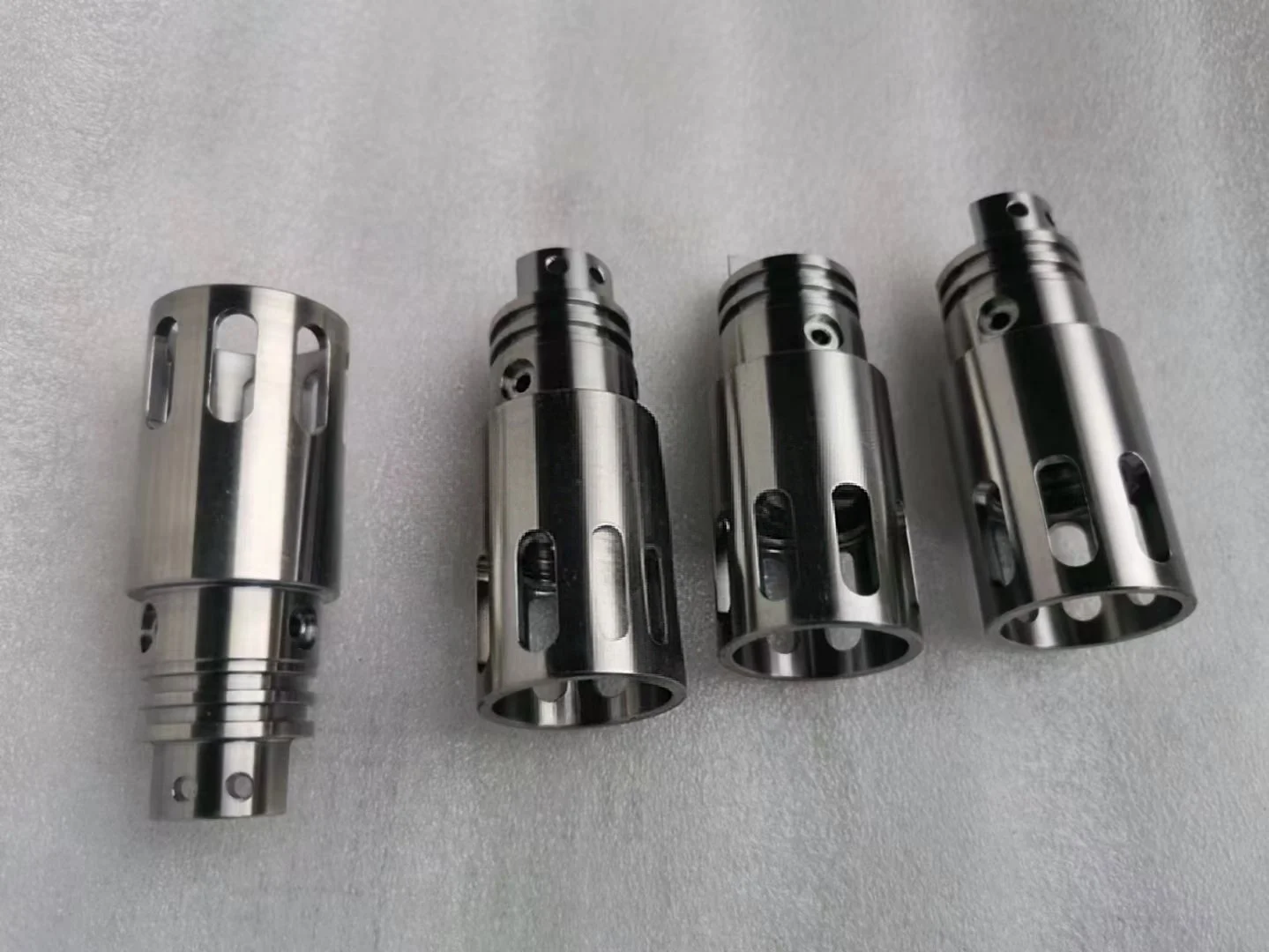

Pressure Relief & Safety Bodies
High-integrity pressure safety valve body castings designed for immediate response during rapid overpressure discharge.
- Materials: CF8M, Duplex 2205, Hastelloy C276
- Machining: Hydro-tested shell geometry & micro-lapped seats
- Testing: 100% radiographic inspection in critical stress zones
Essential Internals & Specialty Valve Customizations
Beyond primary valve body casting, VastCasting manufactures matching valve bonnets, discs, internal wedges, and hygienic enclosures. Every custom valve casting project benefits from chemical PMI verification, CMM dimensional inspection, and a perfect assembly fit between the valve body and internal trim.
Sanitary Valve Bodies & Bio-Pharm Housings
Engineered for pharmaceutical, food, and beverage processing, our sanitary valve bodies feature zero-dead-leg geometry and polished internal surfaces down to Ra 0.4 µm. Fully compatible with CIP/SIP sterilization and electropolishing.
Duplex Steel Valve Body Casting Solutions
For severe marine, offshore oil and gas, and desalination applications, our duplex steel valve body casting capabilities cover Duplex 2205 (UNS S31803) and Super Duplex 2507 (UNS S32750), offering outstanding pitting and crevice corrosion resistance.
Precision Valve Bonnets & Extensions
Investment-cast bolted bonnets, pressure-seal bonnets, and extended cryogenic bonnets. Precision machined with tight-tolerance stem guide bushings and stuffing box surfaces to curb fugitive emissions.
Internal Discs, Wedges, Plugs & Balls
Precision lost-wax investment casting for critical internal valve trim components. We supply fully machined solid wedges, flexible wedges, polished valve balls, discs, and guide cages designed for bubble-tight shutoff.
Technical Capability & Material Matrix
Consolidated casting standards and CNC machining limits across all VastCasting OEM valve body component lines.
| Valve Category | Casting Standards | Primary Alloys | CNC Machining Limits | Quality & NDT Scope |
|---|---|---|---|---|
| Ball & Plug Valves | ASTM A351, ASME B16.34 | CF8M, CF3M, Duplex 2205 | ±0.01 mm seat bore tolerance | 100% Hydrostatic shell & seat testing |
| Gate & Globe Valves | API 600, API 602, ISO 10434 | CF8, CF8M, WCB, Alloy 20 | Precision parallel seat angle grinding | PMI alloy verification, RT/PT inspection |
| Check & Butterfly Valves | API 594, API 609, EN 593 | Duplex 2205, Super Duplex 2507 | 5-Axis offset disc profile machining | CMM 3D dimensional inspection reports |
| Control & Safety Valves | ASME Sec VIII, ANSI B16.34 | 316L, Hastelloy C276, Inconel | Anti-cavitation contour milling | Ultrasonic wall-thickness verification |
| Sanitary Valve Bodies | 3-A Sanitary, ASME BPE | CF3M (316L Stainless) | Ra ≤ 0.4 μm internal cavity polishing | Zero-dead-leg bores & endoscopic check |
Lost-Wax Investment Cast Piping Components & Valve Connectors
VastCasting delivers single-source precision lost-wax investment casting and custom CNC machining. By manufacturing stainless steel castings including flanges, Y-strainers, and specialized valve connectors under the same roof as your valve bodies, we eliminate assembly fitment errors and streamline your fluid line procurement.

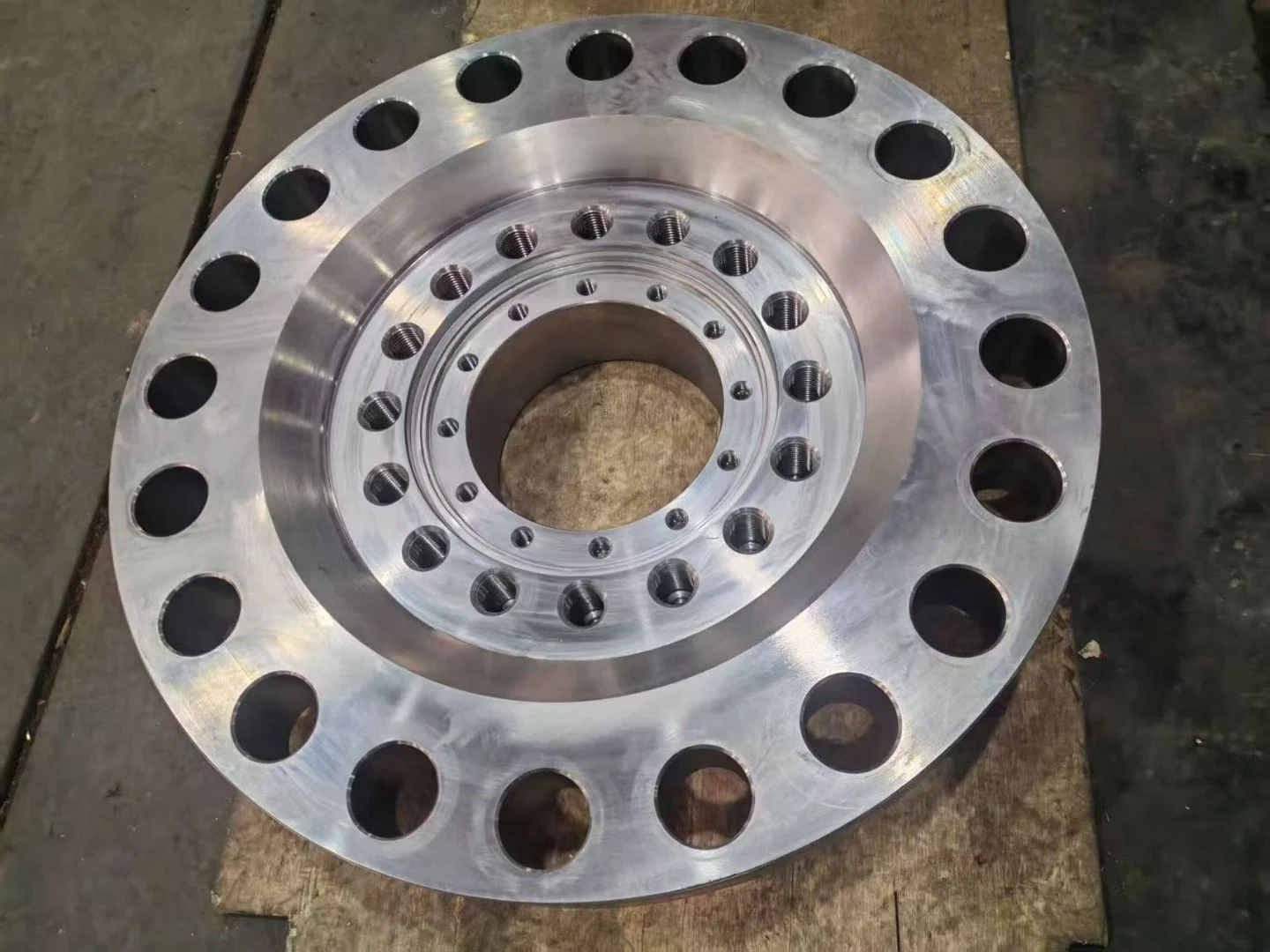

Stainless Flanges and Pipe Fittings
Engineered for high-pressure industrial fluid networks. Precision investment-cast stainless flanges and pipe fittings feature tight-tolerance CNC face machining to ensure reliable, leak-free joint seating.
- Concentric bolt-hole alignment & micro-finished faces
- Full ANSI B16.5, DIN, and ISO compliance
- Custom wall thickness & rating options (Class 150–600)

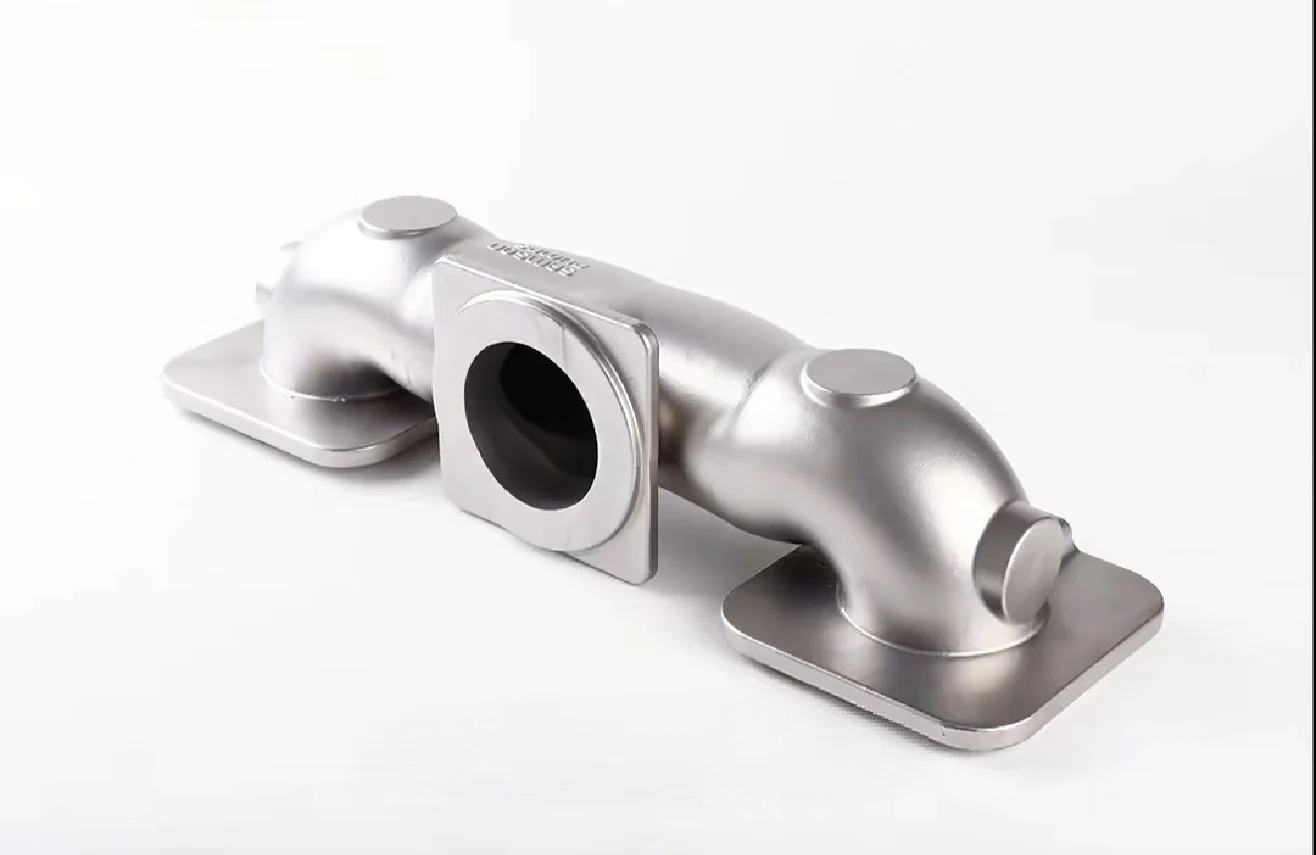

High-Efficiency Stainless Steel Y-Strainers
Protect downstream pumps, control valves, and instruments from debris. Ideal for petrochemical equipment parts, investment-cast Y-strainer bodies feature hydrodynamically smooth internal chambers for minimal fluid pressure drop.
- Optimized internal flow profiles to reduce turbulence
- Cast in 304, 316L, CF8M, and Duplex stainless steel
- Precision-threaded or flanged blow-off connections

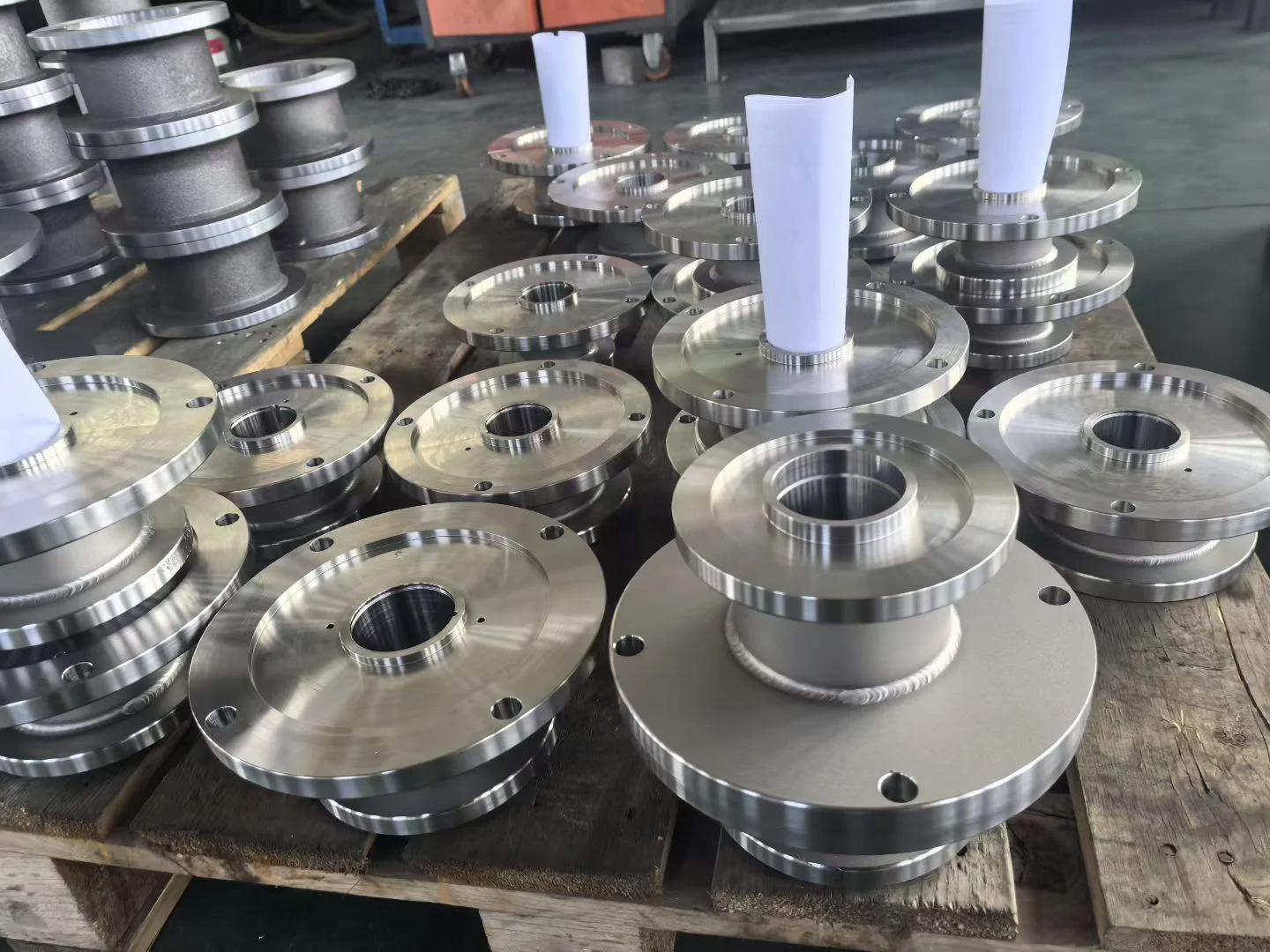

Specialized Valve Connectors & Custom Spools
Tailored piping spools, manifold blocks, and custom valve connectors engineered for seamless line integration in food processing and industrial systems, complementing our food machinery components. Precision-cast and 5-axis CNC machined to your exact project drawings.
- Matching tolerances designed alongside valve bodies
- Custom face-to-face dimensions & end preparations
- 100% NDT & hydrostatic pressure testing verified

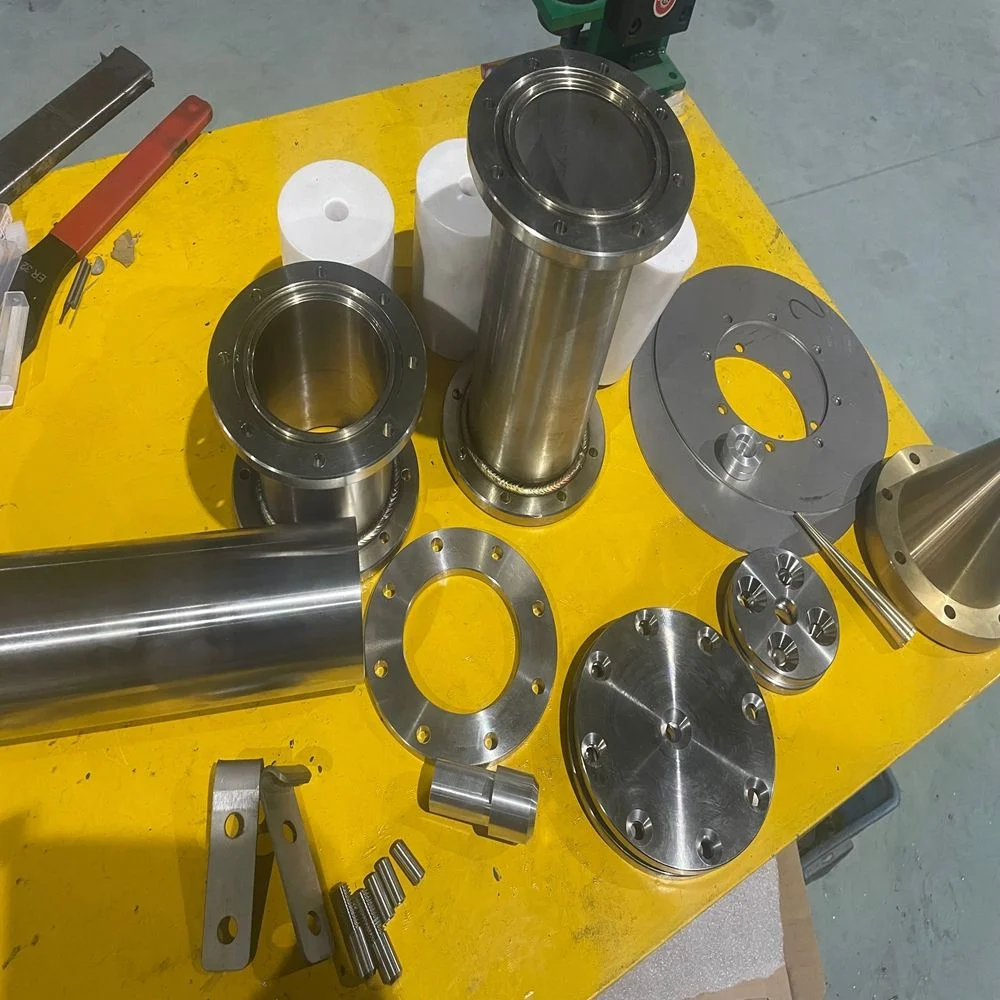

Single-Factory Custom Casting & Machining Solutions by VastCasting
Eliminate multi-vendor friction and split-liability headaches. VastCasting manages your matching piping components from initial lost-wax pattern design through high-precision CNC machining and hydrostatic testing—ensuring flawless assembly fitment and faster lead times.
Zero Assembly Misalignment
Co-machined mating dimensions guarantee perfect flange and connector fitment.
In-House CNC Machining
Precision 5-axis turning, milling, serration, and thread cutting under one roof.
Technical Specifications: Advanced Materials & Precision CNC Machining
VastCasting operates an in-house optical emission spectrometer, multi-axis CNC machining centers, and comprehensive non-destructive testing (NDT) facilities. We ensure every austenitic or duplex stainless steel valve body produced meets rigorous international fluid-engineering standards. From raw alloy chemical verification to final 3D CMM dimensional inspection, every production lot is fully documented and traceable.
Austenitic & Duplex Stainless Steel Casting Grades
VastCasting verifies every melt heat against ASTM A351, EN 10213, and client-specific metallurgical guidelines. Our in-house optical emission spectrometer confirms chemical composition prior to pouring, eliminating grade mix-ups and ensuring predictable performance for both standard 316 stainless steel casting jobs and advanced duplex alloys.
- CF8 (304 Equivalent) — General-purpose corrosion resistance suitable for water distribution, commercial HVAC, and food-contact valve bodies.
- CF8M Casting (316 Stainless Steel Casting) — Molybdenum-alloyed grade offering enhanced pitting and crevice corrosion resistance; the primary choice for chemical and industrial process valve bodies.
- CF3M (316L Equivalent) — Ultra-low-carbon variation engineered for welded assemblies, pharmaceutical applications, and sanitary valve bodies requiring intergranular corrosion resistance.
- Duplex 2205 (UNS S31803 / S32205) — PREN ≥ 35; provides double the yield strength of 316L with outstanding resistance to stress-corrosion cracking in severe petrochemical equipment parts and offshore PRV valve bodies.
- Super Duplex 2507 (UNS S32750) — PREN ≥ 42; formulated for hyper-aggressive seawater, high-chloride media, and high-pressure desalination valve castings where standard duplex is insufficient.
All grades are poured using precision silica-sol investment casting (lost-wax process), forming complex internal flow paths, zero-dead-leg cavities, and integral flanged ends that sand casting cannot reliably achieve.
| ASTM Grade | UNS / EN | Typical Application | Duty |
|---|---|---|---|
| CF8 | S30400 / 1.4308 | Water utility, food-grade valve bodies | Food-Grade |
| CF8M | S31600 / 1.4408 | Chemical process, industrial PRV bodies | Industrial |
| CF3M | S31603 / 1.4409 | Sanitary, pharmaceutical valve bodies | Food-Grade |
| Duplex 2205 | S31803 / 1.4462 | Offshore oil & gas, chemical PRV bodies | Petrochemical |
| Super Duplex 2507 | S32750 / 1.4410 | Seawater desalination, severe-duty service | Severe Duty |
All grades cast per ASTM A351 / EN 10213. 100% PMI verification on every production lot.
Get a Rapid Quote for Your Valve Body Project Within 24 Hours
Submit 3D CAD files or physical samples for DFM feasibility review and an itemized quote within 24 hours. VastCasting is your trusted OEM turnkey stainless-steel-castings and machining partner based in China.
DFM Feasibility Analysis
Our engineering team analyzes gating design, wall thickness, shrinkage allowances, and CNC machining access.
Itemized Cost Breakdown
Receive transparent cost breakdowns covering raw material alloys, wax tooling, precision machining, and NDT testing.
