Precision Investment Casting & CNC Machining Alloy Hub
From raw investment-cast blanks to tight-tolerance CNC finished components under one roof—VastCasting delivers certified specialty alloys like stainless steel castings while eliminating cross-vendor disputes and material defect liabilities.
VastCasting is a turnkey China investment casting manufacturer providing fully integrated casting and precision machining solutions for global industrial OEMs.
Single-Source Quality Guarantee
In-house casting and CNC machining guarantee 100% material traceability and zero supplier handoff friction.
Engineered Metallurgy and Microstructure Control for Demanding Environments
VastCasting completes the full manufacturing lifecycle—from raw investment casting blanks to downstream multi-axis CNC machining—under one unified roof. By managing alloy chemistry, melt parameters, grain refinement, and heat treatment in-house, our metallurgical engineers prevent internal gas porosity, intergranular corrosion, and machining distortion across high-volume production runs for fluid control, automotive, and energy applications.
Austenitic Stainless Steel Alloys
Engineered for superior corrosion resistance, aggressive fluid handling, and strict sanitary compliance. Encompasses commercial 304, 316, and 316L chemistries alongside standard foundry casting equivalents. Precision solution annealing ensures zero chromium carbide precipitation at grain boundaries.
- ✓ 304 stainless steel castings options for sanitary valve and pump housings
- ✓ High-molybdenum 316 and 316L for elevated acid and chloride resistance
- ✓ Low-carbon foundry equivalents CF8M and CF3M optimized for CNC machining
Duplex & Super Duplex Alloys
Combines a balanced 50/50 ferrite-austenite dual-phase microstructure to deliver twice the yield strength of 300-series stainless steels. Purpose-built for high-pressure subsea, desalination, and chemical processing equipment exposed to severe chloride attack.
- ✓ High-strength duplex stainless steel casting in grades 2205 and 2507
- ✓ ASTM A995 4A and 5A foundry standards for offshore pressure boundaries
- ✓ Superior pitting resistance equivalent numbers (PREN >34 to >42)
High-Performance Superalloys
Formulated for extreme operating temperatures, thermal fatigue resistance, and creep strength. Utilizes advanced nickel and cobalt base chemistries such as the Inconel and Hastelloy families to withstand severe thermal zones and hot corrosive gas flows.
- ✓ Extreme thermal superalloy casting in Inconel 625 and 718
- ✓ Hastelloy C276 (CW6M) for harsh chemical and hot exhaust vapors
- ✓ Controlled vacuum induction melting (VIM) for high-stress turbine components
Precision Structural Aluminum Alloys
Designed for lightweight structural performance, superior heat dissipation, and tight-tolerance CNC chip removal. Employs refined silicon-aluminum foundry alloys to cast complex thin-walled automotive components and industrial housings.
- ✓ Lightweight aluminum investment casting with A356-T6 heat treatment
- ✓ High strength-to-weight ratio tailored for automotive aftermarket parts
- ✓ Near-net-shape casting blanks engineered for fast, precision CNC milling

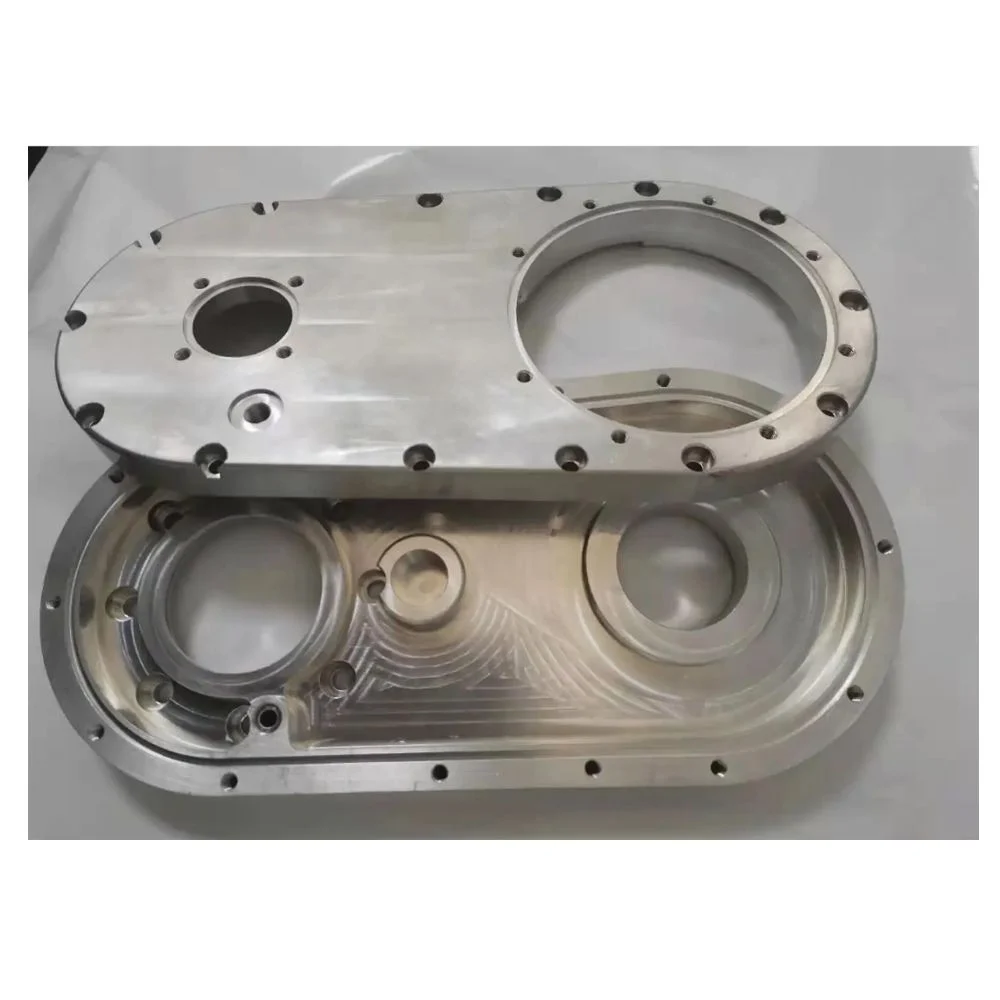

Single-Source Manufacturing: Investment Casting to Finished CNC Parts
By eliminating secondary subcontracting, VastCasting assumes full accountability for material properties and finished part dimensions. Every alloy batch undergoes optical emission spectrometry (OES) melt analysis, tailored solution heat treatment, and full non-destructive testing (NDT) to comply with stringent ASTM, DIN, and JIS specifications.
| Material Classification | Representative Grades | Foundry Equivalents | Core Performance Trait |
|---|---|---|---|
| Austenitic Stainless Steel | 304 / 316 / 316L | CF8 / CF8M / CF3M | General acid resistance, high-purity fluid handling, sanitary compliance |
| Duplex Stainless Steel | 2205 / 2507 | ASTM A995 4A / 5A | Double yield strength, high pitting resistance (PREN >34 to >42) |
| Nickel & Cobalt Superalloys | Inconel 625 / Hastelloy C276 | CW6M / CX2MW | Elevated-temperature creep strength, severe thermal oxidation resistance |
| Precision Aluminum Alloys | A356 / A357 / A380 | ANSI A03560 | Lightweight structural integrity, efficient heat dissipation, fast CNC milling |
Global Material Standards and Chemical Composition Matrix
Navigating international metal casting specifications requires exact chemical and mechanical alignment. Our engineering team accurately translates international specifications including ASTM, DIN, and JIS, ensuring every heat poured at VastCasting offers full chemical traceability and certified metallurgical compliance. Discover our specialized stainless steel castings manufactured to meet rigorous global standards.
| ASTM / AISI Standard | ACI Cast Equivalent | GB Chinese Standard | DIN / EN Standard | Key Chemical Composition Limits (%) | Target Applications |
|---|---|---|---|---|---|
| ASTM A351 CF8M / AISI 316 | CF8M | 06Cr17Ni12Mo2 | 1.4408 (GX5CrNiMo19-11-2) | Cr: 18.0–21.0 | Ni: 9.0–12.0 | Mo: 2.0–3.0 | C: ≤0.08 | Stainless steel valve bodies, chemical process pumps, marine fluid systems |
| ASTM A351 CF8 / AISI 304 | CF8 | 06Cr19Ni10 | 1.4308 (GX5CrNi19-10) | Cr: 18.0–21.0 | Ni: 8.0–11.0 | Si: ≤2.0 | C: ≤0.08 | Sanitary valve housings, food processing equipment, architectural fittings |
| ASTM A351 CF3M / AISI 316L | CF3M | 022Cr17Ni12Mo2 | 1.4409 (GX2CrNiMo19-11-2) | Cr: 17.0–20.0 | Ni: 9.0–13.0 | Mo: 2.0–3.0 | C: ≤0.03 | 316L investment casting components, pharmaceutical vessels, welded chemical piping |
| ASTM A217 C12A / 9Cr-1Mo-V | C12A | 10Cr9Mo1VNbN | 1.4903 (X10CrMoVNb9-1) | Cr: 8.0–9.5 | Mo: 0.85–1.05 | V: 0.18–0.25 | C: 0.08–0.12 | High-pressure steam turbine components, power generation valve bodies |
Full Heat Traceability & Spectrographic Certification
Every melt log processed at VastCasting undergoes optical emission spectrometry before pouring. We deliver complete Material Test Reports (MTR) according to EN 10204 3.1 standards, ensuring your specified mechanical and chemical tolerances align seamlessly across global regulatory frameworks.
Cr: 18.0–21.0 | Ni: 8.0–11.0 | Si: ≤2.0 | C: ≤0.083 Sector-Specific Alloy Selection and Part Integration
Selecting the correct metallurgical specification is critical for achieving dependable mechanical performance in high-stress operating environments. VastCasting bridges the gap between raw foundry chemistry and finished precision engineering by pairing custom casting alloys with demanding industrial applications. By managing investment casting blanks and tight-tolerance 5-axis CNC machining under a single roof, we eliminate third-party vendor friction and produce mission-critical components built to handle severe pressure boundaries, thermal cycling, and corrosive media. Discover our comprehensive range of high-performance products engineered for extreme industrial environments.
Fluid Control and Valve Engineering Solutions
Severe-service fluid infrastructure requires uncompromising casting density and corrosion resistance to withstand high-pressure differentials and aggressive chemical flow. Utilizing high-grade 316 stainless steel casting methodologies along with super duplex alloys ensures long-term resistance against chloride pitting, crevice corrosion, and erosion wear in marine, desalination, and chemical process plants.
By casting raw blanks to near-net shape and executing downstream CNC seating, threading, and face-flange machining in the same facility, VastCasting eliminates dimensional stack-up errors. This unified production model guarantees leak-tight pressure boundaries and consistent sealing tolerances without extra hand-fitting.
Key Material Integrations
- · Pressure Relief Valves: Poured in austenitic CF8M and CF3M stainless steel to withstand aggressive fluid cavitation, elevated line pressures, and localized corrosion.
- · Exhaust Valve Bodies: Manufactured using specialized duplex steel valve body fittings casting to provide double the yield strength of standard austenitic alloys and superior fatigue resistance.
- · Fluid Control Assemblies: Precision-machined valve seats, internal ports, and mounting flanges delivered with zero internal porosity for high-integrity seal surfaces.
High-Temperature Energy and Turbine Components
Turbomachinery and power generation systems subject hot-section hardware to continuous high temperatures, rapid thermal shock, and oxidizing atmospheres. Specifying a specialized nickel alloy casting enables thermal section components to retain high yield strength, stress-rupture life, and structural integrity well beyond the limits of standard stainless steels.
VastCasting utilizes vacuum induction melting (VIM), precise ceramic shell moulding, and strictly controlled heat treating to produce high-density superalloy castings. Our single-source workflow provides complete metallurgical traceability, fully backed by certified Mill Test Reports (MTRs) and non-destructive testing (NDT).
Key Material Integrations
- · Hot Section Turbine Blades: Investment cast from vacuum-melted nickel superalloys to deliver maximum creep burst resistance and dimensional stability under severe centrifugal loads.
- · Precision Guide Vanes: Formed with complex, thin-walled cooling channels to optimize gas flow efficiency and thermal dissipation in heavy gas turbines.
- · Heat Exchanger Manifolds: Engineered for extreme temperature resistance and corrosion immunity in industrial power generation heat transfer loops.
Automotive Structural and Lightweight Machined Assemblies
High-performance automotive powertrains and commercial vehicle assemblies demand low weight, high thermal conductivity, and structural rigidity. Integrating silicon-aluminum casting alloys with high-speed aluminum alloys CNC milling enables vehicle manufacturers to reduce un-sprung weight while maintaining strict mechanical strength requirements.
As an experienced investment casting manufacturer, VastCasting produces complex, thin-walled aluminum castings with internal fluid channels that are cost-prohibitive to machine entirely from solid billet stock. This approach reduces raw material waste, shortens cycle times, and lowers unit production costs.
Key Material Integrations
- · Gearbox Housings: Cast in heat-treated A356 aluminum to deliver excellent strength-to-weight ratios, structural rigidity, and gear housing vibration dampening.
- · Intake Manifolds: Featuring smooth, cast internal passageways tailored to precise airflow dynamics to maximize volumetric engine efficiency.
- · Aftermarket Automotive Upgrades: Custom lightweight components finished on multi-axis CNC machining centers for drop-in OEM fitment.

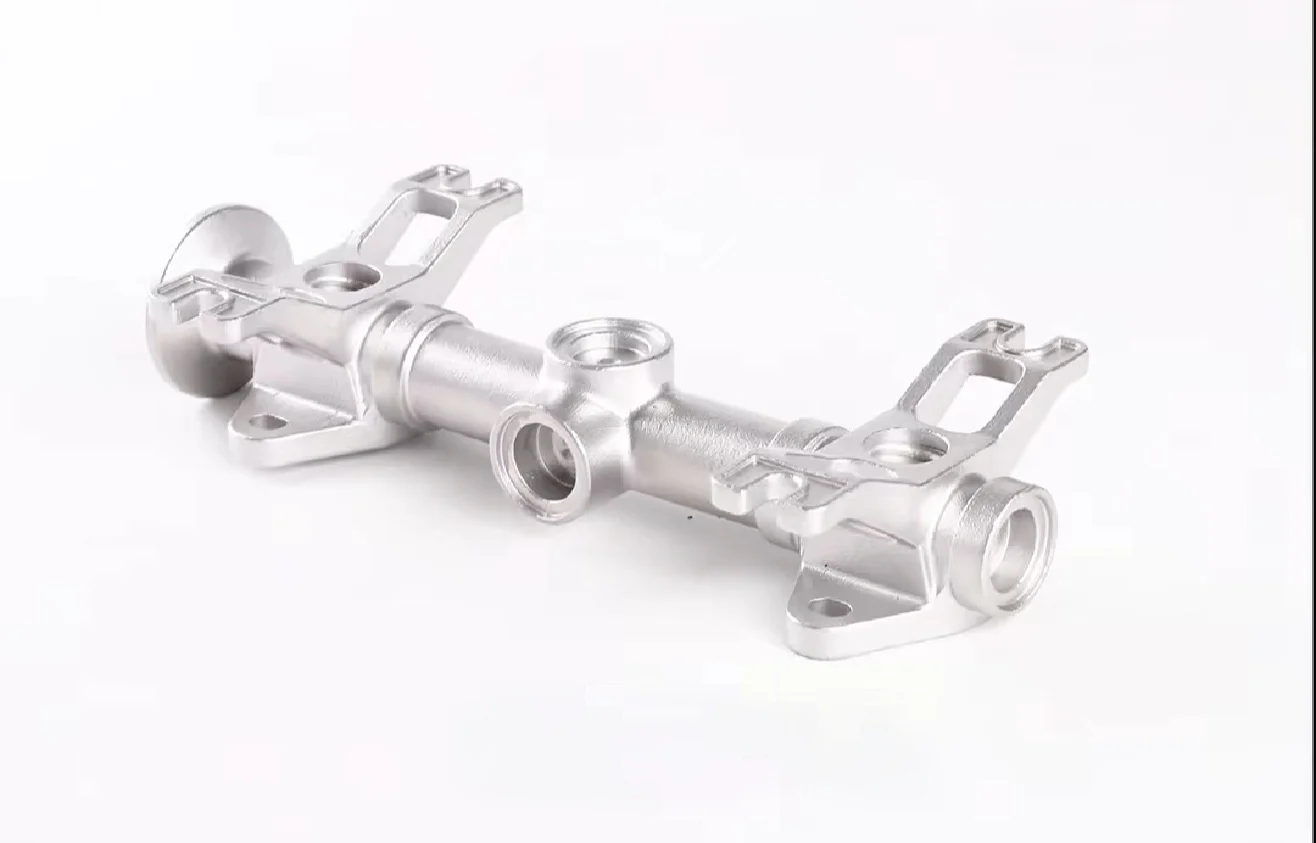

Austenitic & Duplex Stainless Steel Valve Body & Industrial Casting
Grades: 304, 316, 316L, 2205, 2507, CF8M, CD4MCu
Engineered for high-pressure fluid isolation and severe chemical service. Complete with pressure testing certification and zero-porosity guarantees.

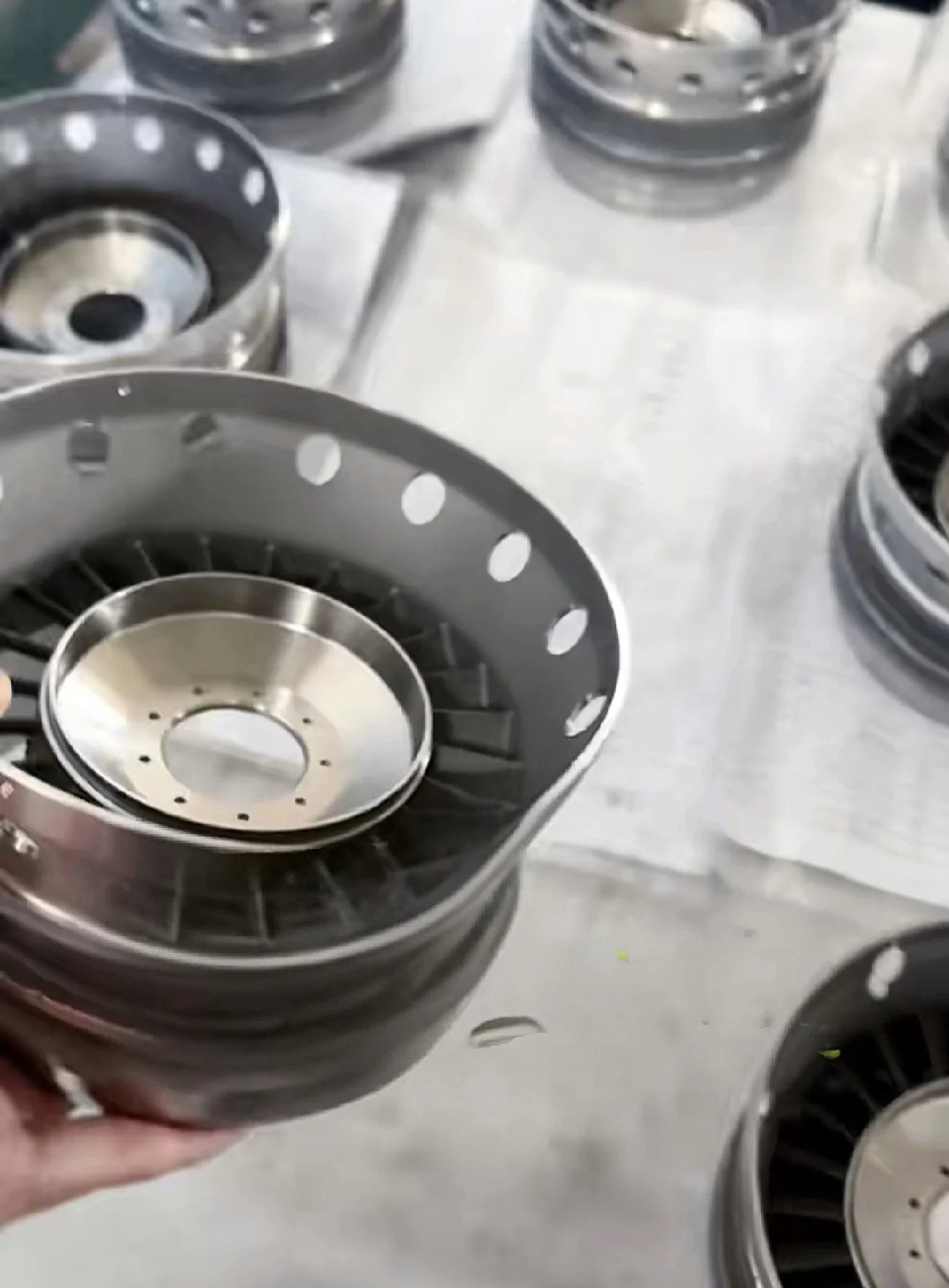

Superalloys & Nickel Base Superalloy Hot Section Components & Turbine Blades
Grades: Inconel 718, Inconel 625, Hastelloy C276, Cobalt Alloys
Vacuum investment cast for extreme thermal stability, anti-oxidation, and zero creep deformation in energy and turbomachinery systems.

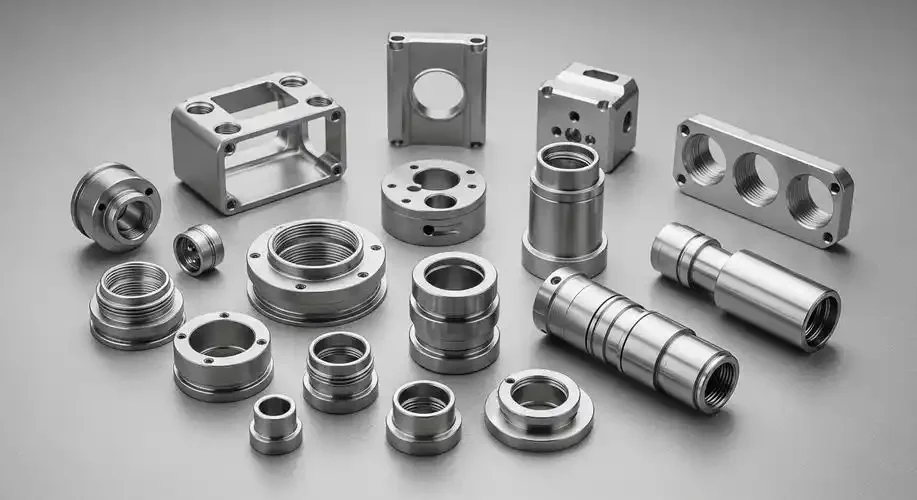

Aluminum & Precision CNC Aluminum CNC Machining & Automotive Components
Grades: A356, A380, 6061-T6, AlSi10Mg
Combining near-net investment casting with 5-axis CNC machining for lightweight structural perfection and rapid heat dissipation.
Turnkey Precision Casting and CNC Machining Execution
VastCasting delivers turnkey customized investment casting and CNC finished solutions for valve OEMs, energy sector hot section integrators, and automotive clients worldwide. Every heat poured is backed by full chemical and mechanical testing traceability.

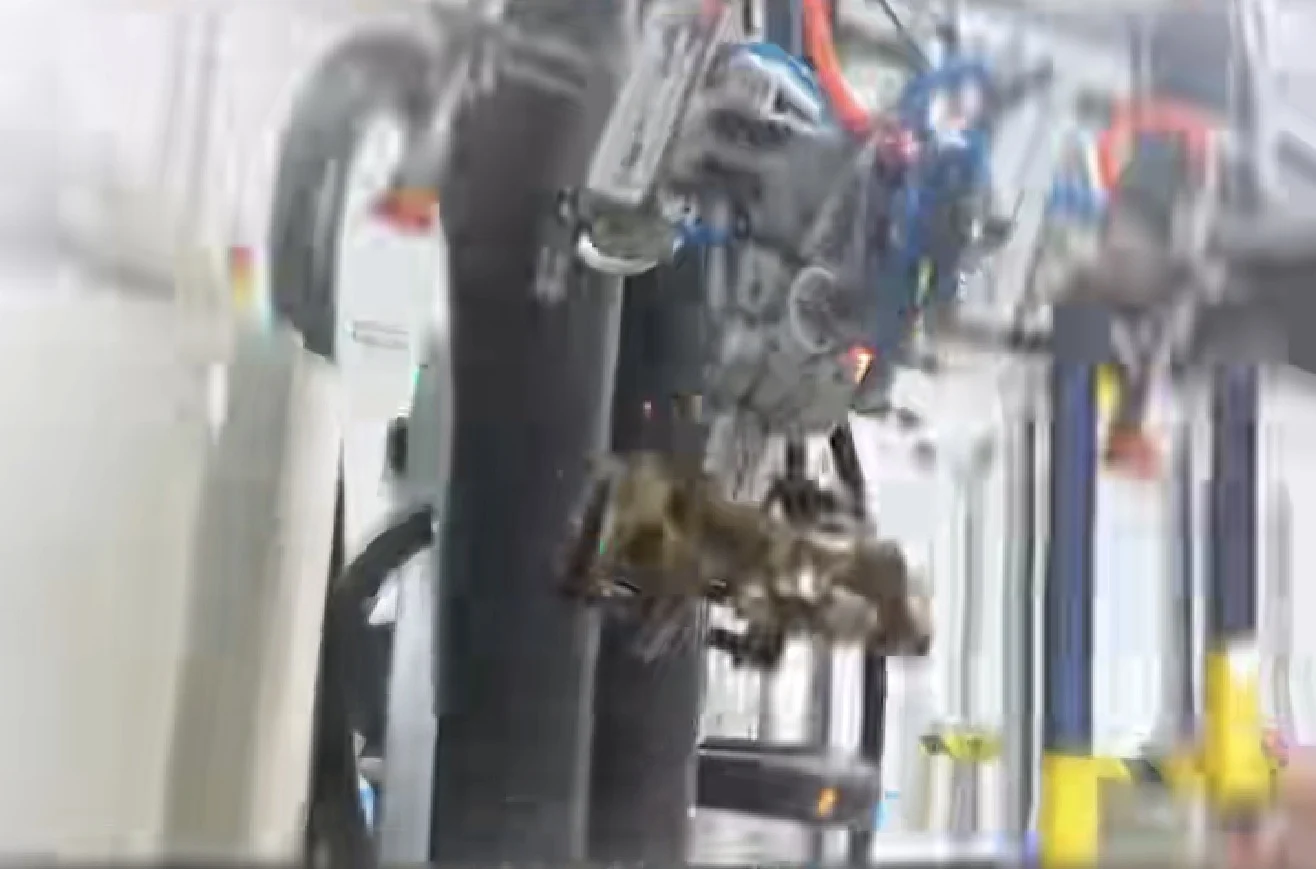

Closed-Loop Metallurgical & Quality Assurance
Eliminate buyer risk regarding material substitution, internal micro-porosity, and post-machining distortion. By integrating investment casting, precision CNC machining, and full-spectrum inspection within a single facility, VastCasting guarantees exact mechanical properties directly at the melt source—eliminating multi-vendor disputes.

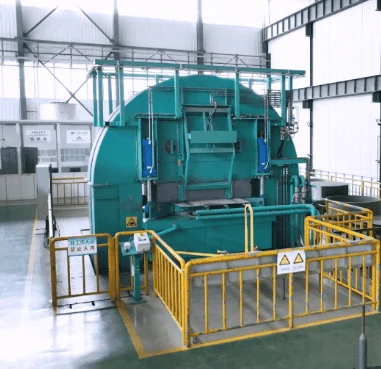

Spectrometric Analysis
In-house optical emission spectrometry verifies chemical composition for every heat prior to pouring. Each order is delivered with full Material Test Reports (MTRs) to guarantee exact alloy ratios for 316L investment casting components and custom grades.
- Per-heat chemical spectrum validation
- Complete MTR & heat-number traceability
Heat Treatment & Microstructure Control
In-house solution annealing, aging, and stress-relieving cycles optimize phase balance and grain structure. This process delivers maximum corrosion resistance and yield strength for super duplex investment casting parts and high temperature alloy components, highlighting structural stability in demanding applications through our advanced superalloy-high-temp-castings process.
- Solution annealing & precipitation aging
- Microstructure & phase balance analysis
NDT & Defect Inspection
Comprehensive Non-Destructive Testing (NDT)—including Radiographic (RT), Magnetic Particle (MT), and Liquid Penetrant (PT)—verifies internal soundness and surface integrity, ensuring zero defects in critical pressure-boundary parts including heavy-duty valve-body-fittings.
- Certified RT, MT, and PT inspection
- 100% volumetric & surface integrity

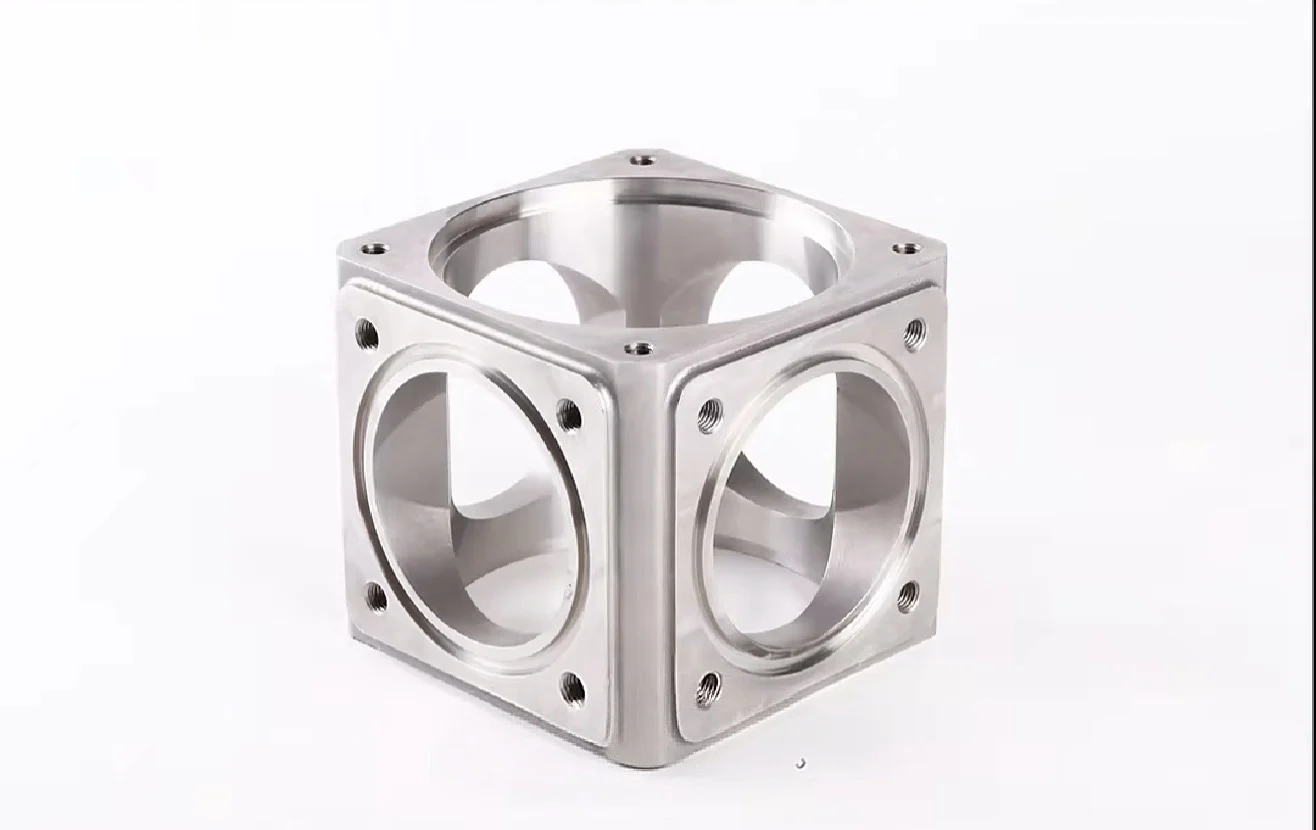

End-to-End Metallurgical Integrity at VastCasting
Combining investment casting, multi-axis CNC machining, and advanced NDT inside one factory gives VastCasting total control over every alloy's physical and mechanical properties. Eliminate inter-supplier quality shifts and receive flawless, high temperature alloy and specialized stainless-steel-castings components ready for immediate assembly.
Frequently Asked Questions: Alloy Selection and Processing
Navigating material trade-offs, manufacturing cost drivers, and metallurgical boundaries requires deep foundry and machining expertise. VastCasting utilizes an in-house engineering center and casting simulation software to assist customers with alloy selection and structural optimization during early R&D, ensuring optimal performance for investment casting parts and precision castings across global industrial applications.
Selecting Between 316L and Duplex 2205 Stainless Steel for Seawater Valves
Selecting the appropriate stainless steel alloy for marine valve components and fluid control equipment requires balancing pitting corrosion resistance against mechanical yield strength and total life cycle expenditure.
- Pitting Resistance Equivalent Number (PREN): Standard 316L offers a PREN value between 23 and 25, whereas Duplex 2205 achieves a PREN between 34 and 35. This elevated rating provides superior protection against crevice attack and localized pitting in high-chloride, marine, and seawater environments.
- Mechanical Yield Strength: Duplex 2205 exhibits double the yield strength (approximately 450 MPa) compared to austenitic 316L stainless steel castings (approximately 205 MPa). Engineering teams can design thinner pressure boundary walls without compromising bursting pressure limits, significantly reducing overall component weight.
- Long-Term Cost Benefits: Although initial raw material cost per pound is higher for 2205, the wall thickness reduction and extended service life without premature failure yield lower lifetime costs in aggressive operating conditions.
VastCasting manufactures high-integrity stainless steel castings fully certified through spectrographic chemical testing and non-destructive testing for demanding marine and chemical processing systems.
Investment Casting and CNC Versus Direct Billet Machining
Determining whether to use near-net investment casting followed by precision CNC finishing versus subtractive machining directly from aluminum billet or extrusion stock depends primarily on geometric complexity and production volume.
- Material Utilization Efficiency: Direct CNC machining from solid billet can result in 60 percent to 80 percent material waste for complex geometries such as gearbox housings or fluid manifolds. Investment casting creates near-net shape blanks, drastically lowering alloy scrap and material purchasing costs.
- Cycle Time and Tooling Reduction: Near-net cast blanks require minimal finish passes on critical tolerance zones and mounting faces. This cuts CNC spindle hours, reduces cutting tool wear, and eliminates multi-axis roughing cycles.
- Economic Thresholds for Medium to High Volume: For production runs exceeding 100 to 500 units, the initial pattern tooling cost for casting is rapidly amortized through lower unit material consumption and shorter machining cycle times.
Combining in-house precision casting and high-speed machining capabilities allows VastCasting to deliver turnkey aluminum CNC parts and complex investment casting parts with minimized lead times and reliable quality control.
Custom Alloy Pouring and Chemical Composition Capabilities
VastCasting pours proprietary and non-standard chemical compositions tailored to specific temperature, corrosion, and wear requirements across energy, aerospace, and heavy industrial applications.
- Induction Melting Precision: Utilizing medium-frequency induction melting furnaces, our metallurgical team compounds custom master alloys with tight boundary control over primary elements and trace impurity limits.
- Advanced Casting Simulation: ProCAST simulation software analyzes fluid flow, thermal solidification gradients, and stress fields prior to mold pouring. This virtual prototyping eliminates internal porosity and shrinkage defect risks in custom formulations.
- Pre-Pour Spectrographic Verification: Every heat poured undergoes pre-tap optical emission spectrographic chemical analysis. Comprehensive Material Test Reports accompany every batch to guarantee technical compliance.
This integrated approach ensures high consistency across precision castings, giving engineering buyers full confidence in custom alloy mechanical integrity and chemical traceability.
Engineering Support and Prototyping Assistance
Partner with VastCasting from initial alloy selection through final machining optimization. Our metallurgical engineers assist with Design for Manufacturability (DFM) reviews to prevent casting defects and streamline downstream production.
Have Material Specifications and Engineering Drawings Ready? Request Your Investment Casting Quote Within 24 Hours
Streamline your sourcing with single-source turnkey casting and machining. Contact the VastCasting manufacturing facilities in Dongying, Shandong and Kashgar, Xinjiang today to initiate your custom alloy procurement. Our metallurgical and tooling engineers evaluate your CAD models, material specifications, and precision tolerances—including specialized applications such as stainless steel castings—to deliver a complete manufacturing assessment.
Direct Factory Engineering Contact
Reach our technical experts for immediate drawing evaluation and process consultation.
