Precision Casting Case Studies & Turnkey Casting and Machining Projects
Examine real-world investment casting and multi-axis CNC machining projects executed by VastCasting. Discover how single-source manufacturing—from molten pour to final precision tolerance—eliminates supply chain risk and delivers verified B2B quality for high-performance applications such as superalloy-high-temp-castings.
Integrated Production Floor
Consolidating lost-wax investment casting and precision CNC machining under one roof.
Eliminating multi-vendor handoffs from raw blank to finished component.
Single-point accountability for chemical, dimensional, and NDT compliance.
Engineered for stainless valve bodies, superalloy blades, and aluminum parts.
Precision Investment Casting Case Studies
Explore VastCasting's comprehensive project library showcasing single-source investment casting and high-precision CNC machining solutions. Each case study details our engineering approach to solving complex metallurgical, geometric, and quality challenges across critical global industries.

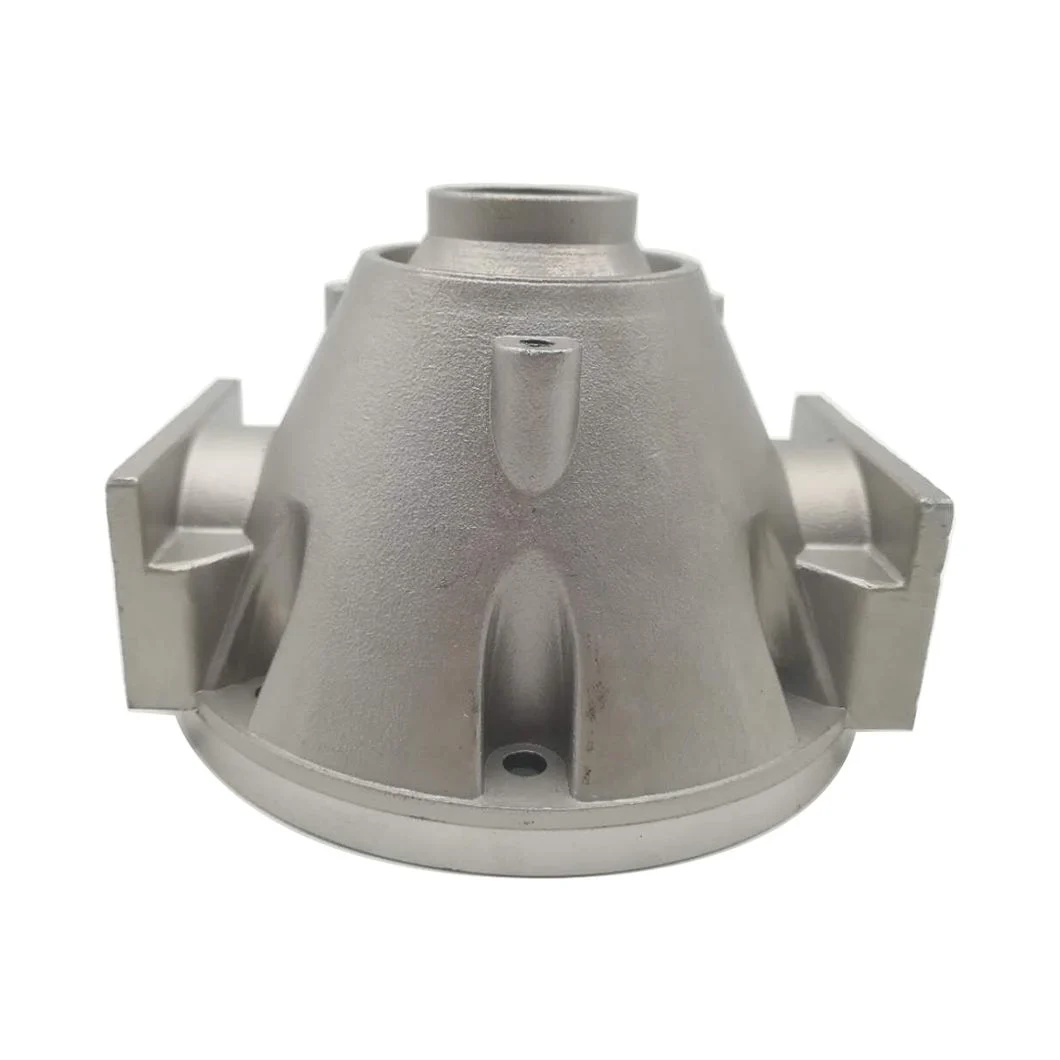

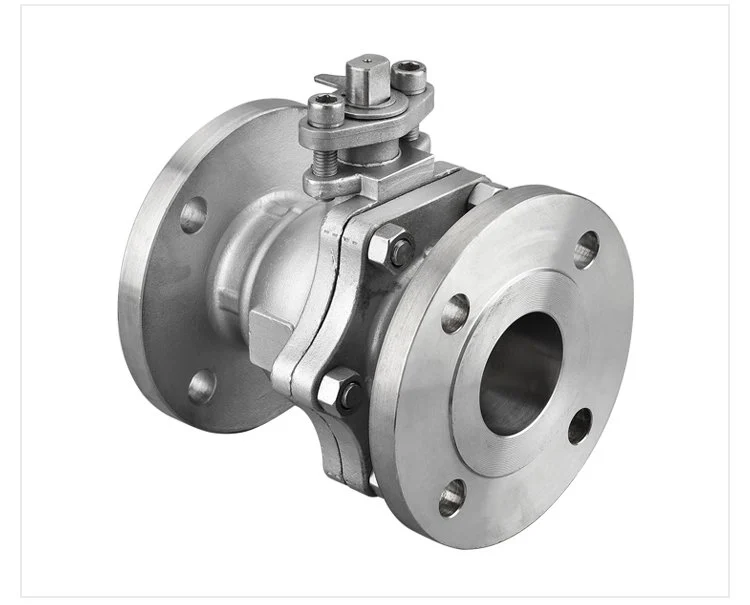

Fluid Control Duplex Valve Body Case Study
Manufactured for severe-service fluid control environments requiring zero pressure boundary leakage. VastCasting resolved internal micro-porosity through solidification mold flow modeling, 100% Positive Material Identification (PMI), and single-setup CNC flange machining for high-reliability valve-body-fittings.
- Challenge: Intergranular corrosion and micro-porosity failing 150 bar hydrostatic testing.
- Solution: Optimized gating system with solution annealing and 5-axis CNC flange turning.
- Quality Verification: EN 10204 3.1 chemical/mechanical certification and 100% CMM dimensional testing.

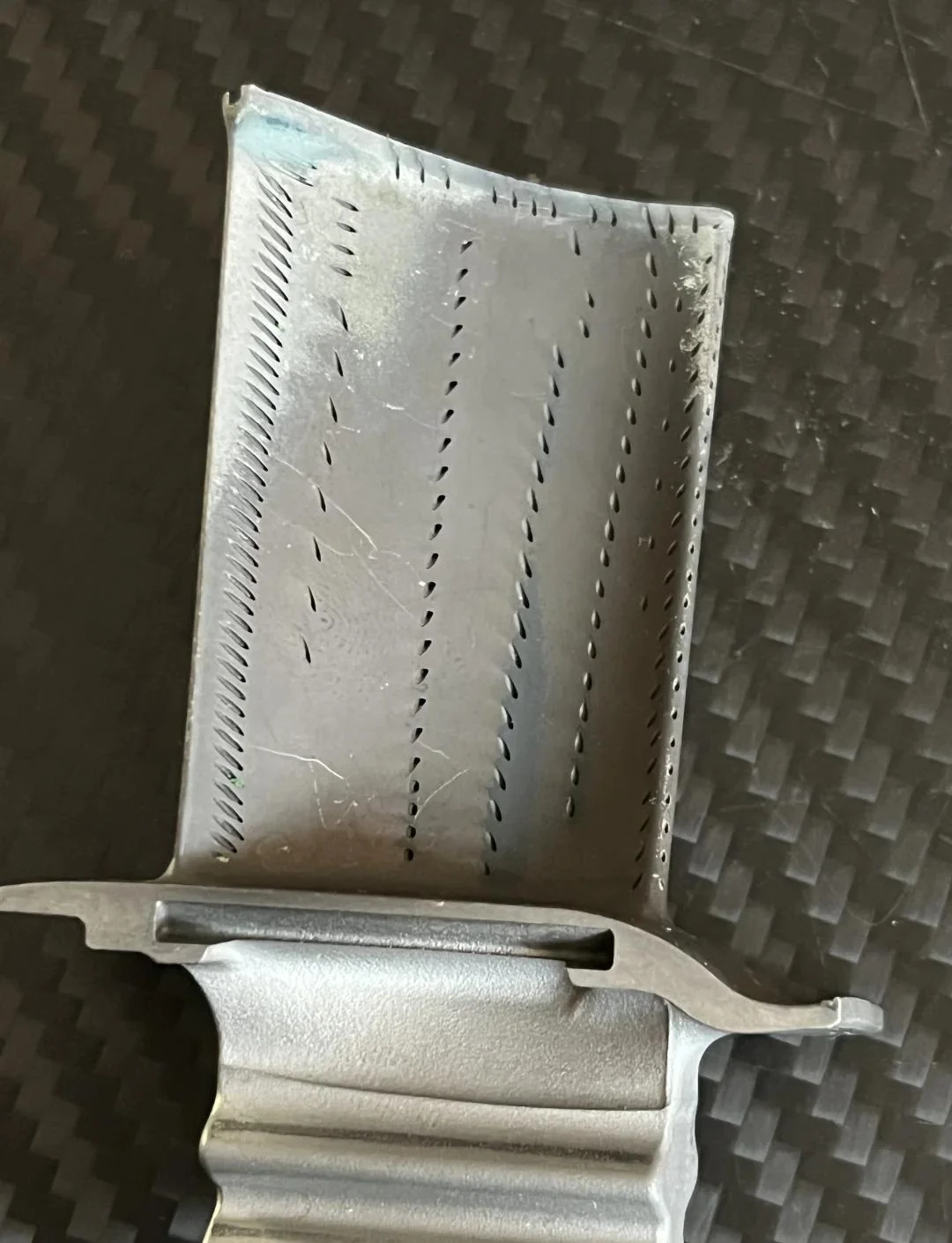

Energy & Power Superalloy Turbine Blade Case Study
Engineered for high-stress gas turbine hot-end applications. VastCasting eliminated shrinkage voids in thin trailing-edge airfoils by utilizing vacuum induction melting, precision ceramic shell preheating, and 100% non-destructive testing (NDT).
- Challenge: Thermal contraction cracking and internal shrinkage voids in complex cooling passages.
- Solution: Vacuum precision investment casting with automated temperature contour monitoring.
- Quality Verification: ASTM E192 Class 1 X-ray radiography and fluorescent penetrant testing (FPT).

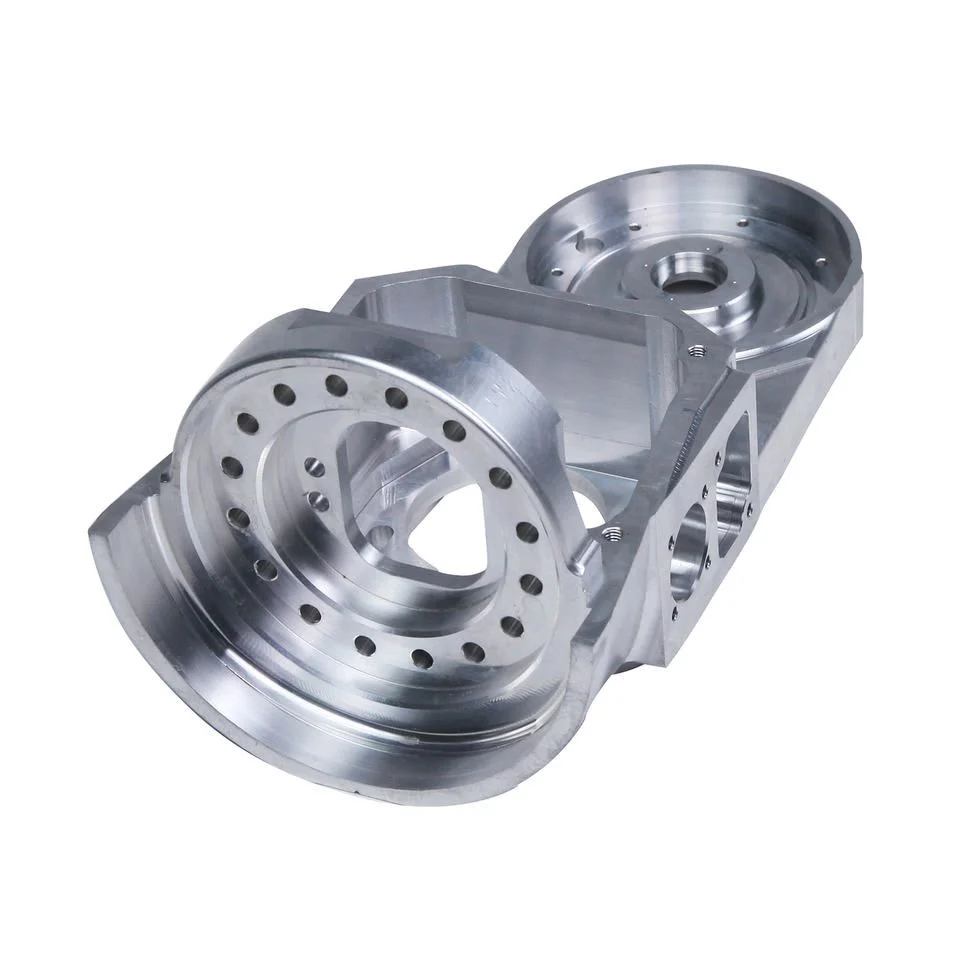

Automotive Structural Aluminum Gearbox Housing Project
Developed for high-performance automotive driveline assemblies requiring lightweight strength and rigid tolerance control. We integrated low-pressure precision casting with custom multi-axis CNC machining fixtures to prevent thin-wall deflection.
- Challenge: Thin-wall clamping distortion during high-speed CNC milling of tight bearing bores.
- Solution: Custom pneumatic clamping fixtures and optimized multi-axis gearbox housing CNC routines.
- Quality Verification: Touch-probe CMM inspection confirming true position tolerance within ±0.010 mm.
Integrated Casting Plus Machining Process Capabilities
When executing turnkey casting and machining projects, B2B procurement teams and mechanical design engineers often face severe supply chain risk when splitting foundry casting and CNC finish-machining between separate vendors. VastCasting eliminates subcontractor miscommunication, dual-facility transit delays, and quality disputes by performing wax pattern assembly, shell production, vacuum induction melting, thermal processing, and multi-axis CNC finishing under a single roof.
Our engineering team brings decades of cross-industry expertise across severe-service valve casting case study applications, high-temperature superalloy blades, and structural automotive housings. Every project in our taxonomy index undergoes upfront Design for Manufacturability (DFM) analysis to optimize gating layout, control solidification shrinkage, and establish exact machining stock allowances before tooling fabrication begins.
| Technical Benchmark | Duplex Valve Body Project | Superalloy Turbine Blade Project | Aluminum Gearbox Housing Project |
|---|---|---|---|
| Primary Alloy Grade | ASTM A890 4A / 2205 Duplex | Inconel 713C / Nickel Superalloy | A356.0-T6 / AlSi7Mg Aluminum |
| Primary Casting Method | Silica Sol Investment Casting | Vacuum Induction Investment Casting | Low-Pressure Precision Casting |
| Machining Strategy | Horizontal CNC Turning & Flange Facing | 5-Axis CNC Profile Grinding & Milling | High-Speed 4-Axis CNC Machining Center |
| Inspection & Quality Assurance | 100% PMI, 150 bar Hydrostatic Testing, CMM | Class 1 X-Ray Radiography, Dye Penetrant (PT) | Pressure Leakage Testing, Touch-Probe CMM |
| Core Engineering Outcome | Solved leak defect rate under high pressure | Eliminated internal shrinkage voids in airfoils | Controlled thin-wall clamping deformation |
Turnkey Investment Casting Plus Machining Process
Manufacturing high-integrity metal components for demanding industrial applications requires total control over alloy solidification dynamics and post-cast precision tolerances. At VastCasting, our single-facility operational model brings cast blanks and CNC finishing under one roof through our high-performance stainless steel castings expertise. By synchronizing investment casting, specialized heat treatment, multi-axis precision machining, and non-destructive testing within a unified production environment, we eliminate inter-vendor disputes, compress lead times, and guarantee zero-defect delivery across complex turnkey projects.
Route 1: Corrosion-Resistant Valve Castings & CNC Sealing
High-pressure fluid management components like valve body fittings and pressure-reducing housings often suffer from subsurface micro-porosity and sealing face weeping under pressure testing. VastCasting resolves these critical failure points through controlled ceramic shell preparation, tight alloy chemistry management, and synchronized CNC machining protocols on seating surfaces.
Engineering Process Sequence
- 1 Alloy & Shell Engineering: Medium-frequency induction melting of Duplex 2205 or CF8M stainless steel with strict ferrite balance control to optimize corrosion resistance.
- 2 Solution Annealing: High-temperature heat treatment at 1040°C followed by controlled water quenching to dissolve carbides and restore maximum corrosion resistance.
- 3 CNC Sealing Finish: Dedicated multi-axis CNC turning and milling of valve seats and flange faces to achieve strict geometric tolerances and high surface finish quality.
- 4 Pressure & PMI Validation: Hydrostatic shell testing up to 300 bar paired with 100% Positive Material Identification (PMI) spectral verification.
Key Outcome: 100% pass rate under 30 MPa hydrostatic testing and total elimination of subsurface porosity on critical sealing flange faces.
CMM Sealing Face Inspection on Duplex Valve Blanks

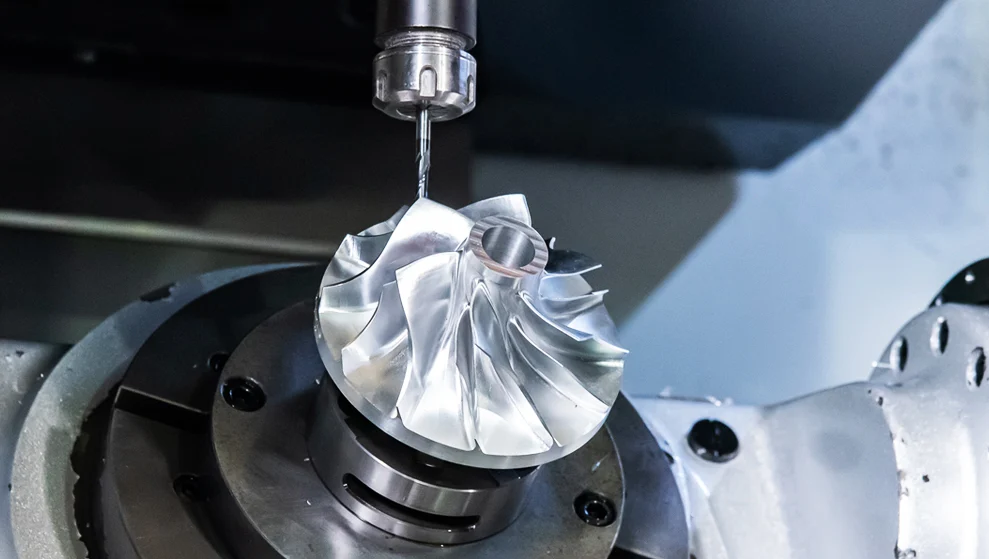

5 Axis Profile Milling of Superalloy Hot End Components
Route 2: Energy Hot-End Components & Superalloy Milling
Components operating in extreme thermal and oxidative environments—such as power generation turbine blades and hot-end diffusers—demand defect-free crystalline structures through specialized superalloy high temp castings. Internal shrinkage porosity can trigger sudden thermal fatigue failure. VastCasting combines advanced mold flow simulation with vacuum investment casting to guarantee dense internal integrity.
Engineering Process Sequence
- 1 Mold Flow Simulation: Computerized solidification analysis to optimize gating systems, manage thermal gradients, and eliminate shrink pockets.
- 2 Vacuum Investment Casting: Vacuum melting and pouring of Inconel and cobalt-base superalloys to prevent gas inclusions and alloy oxidation.
- 3 5-Axis Contour Grinding: High-precision 5-axis CNC profile machining and contour grinding of complex root dovetails and aerodynamic foil profiles.
- 4 NDT X-Ray Testing: Liquid Penetrant Testing (PT) and industrial X-ray flaw detection to strictly verify ASTM structural quality standards.
Key Outcome: Total elimination of internal shrinkage cavities and verified compliance with aerospace and energy sector NDT structural defect limits.
Route 3: Lightweight Aluminum Gearbox Housing CNC Machining
Thin-walled aluminum housings and performance automotive enclosures require high structural rigidity, lightweight design, and tight bearing bore coaxiality. Machining thin-wall castings traditionally risks clamping distortion and wall vibration. VastCasting utilizes custom hydraulic fixtures, engineered tool paths, and T6 heat treatment to overcome these challenges.
Engineering Process Sequence
- 1 Thin-Wall Aluminum Casting: High-purity A356 aluminum alloy investment casting engineered for uniform wall thickness down to 2.5 mm.
- 2 T6 Solution & Aging: Solution heat treatment and artificial aging to achieve optimal tensile strength, yield rigidity, and long-term dimensional stability.
- 3 Hydraulic CNC Fixturing: Multi-station custom fixtures with distributed hydraulic clamping points to prevent part flexing during multi-axis milling.
- 4 Coordinate Metrology: CMM verification of critical bearing bore coaxiality, concentricity, and true position within tight engineering limits.
Key Outcome: 30 percent weight reduction compared to sand castings while maintaining precise bearing bore alignment under dynamic operating loads.
Multi-Axis Machining of Aluminum Automotive Gearbox Housings
Single-Facility Model vs. Dual-Vendor Supply Chain
Outsourcing foundry cast blanks to one supplier and CNC finishing to another introduces split technical liability, delayed root-cause analysis when porosity appears during machining, and extra freight overhead. VastCasting eliminates these risks by executing the entire casting plus machining process under one roof.
| Manufacturing Parameter | Traditional Dual-Vendor Setup | VastCasting Single-Facility Model |
|---|---|---|
| Quality Accountability | Disputed liability and finger-pointing when machining exposes internal casting porosity | Single-source warranty from alloy melt through final finish dimensioning |
| Dimensional Datum Alignment | Frequent datum misalignment between casting tooling layout and CNC machine fixturing | Synchronized CAD/CAM datum schemes established during joint front-end DFM review |
| Production Lead Time | Extended buffer lead times required for inter-facility shipping and duplicate incoming QC | Seamless transit from on-site heat treatment straight into dedicated CNC machining cells |
| Traceability & NDT Certification | Fragmented mill test reports, split quality documentation, and third-party inspection delays | Unified EN 10204 3.1 material certificates integrating raw chemistry, CMM, and NDT reports |

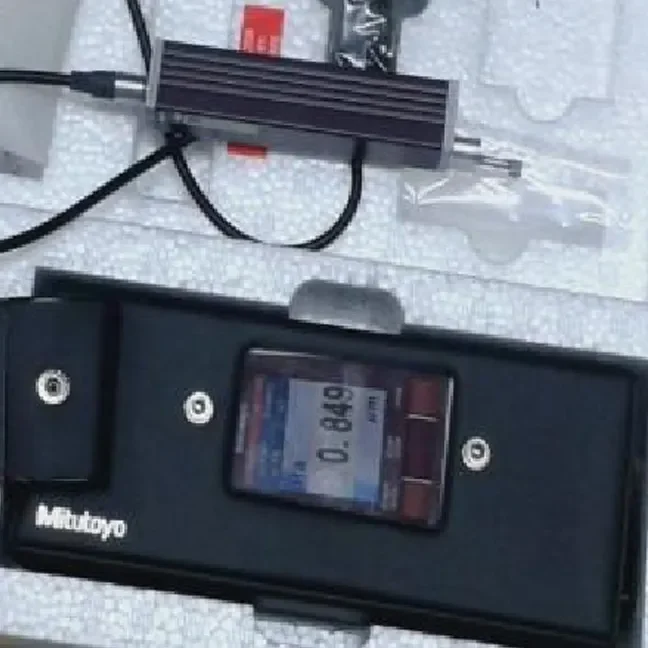

Foundry Quality Control & Investment Casting NDT Inspection
VastCasting enforces strict ISO 9001 and IATF 16949 quality management systems across every pouring and CNC machining cycle. Our integrated inspection protocols deliver full dimensional precision, subsurface integrity, and heat-lot traceability from raw ingot to finished component. We apply these stringent controls across all our stainless steel castings, including critical valve body fittings and mission-critical components.
Sustained through automated thermal melt monitoring, real-time chemistry control, and optimized mold gating.
Achieved on critical machined surfaces via high-precision multi-axis CMM optical coordinate inspection.
Positive Material Identification performed on every master heat to guarantee strict alloy compliance.
Standardized inspection certificates detailing verified chemical analysis, tensile testing, and NDT results.
In-House Quality Infrastructure & Advanced Testing
Eliminate multi-vendor quality disputes and inspection bottlenecks. VastCasting houses single-source foundry casting and precision CNC machining under one roof, fully backed by an accredited in-house testing laboratory and metrology suite, suitable for complex components like superalloy high temp castings.
CMM Metrology
Automated Coordinate Measuring Machines verifying complex geometry and GD&T features.
Industrial X-Ray & NDT
Investment casting NDT inspection detecting subsurface porosity, micro-shrinkage, and internal flaws.
Spectrographic Analysis
Direct-reading optical emission spectrometers validating alloy chemistry prior to pouring.
Traceable Certificates
Complete batch certification including EN 10204 3.1 mill reports and dimensional layouts.
Engineering Leadership and Direct Workshop Oversight
Technical excellence in investment casting and complex CNC machining requires hands-on engineering governance at every phase. VastCasting bridges advanced metallurgical science with high-precision machine shop execution. Every project is supervised by a dedicated casting project manager to resolve manufacturing risks, optimize gating designs, and prevent costly delays long before production begins. Explore our specialized stainless steel castings to see how our engineering leadership ensures defect-free components.
Senior Casting Project Manager
20 Years Metallurgical & CNC Engineering Expertise
VastCasting Technical Division
DFM Optimization and Gating Insights
Converting intricate 3D CAD models into defect-free investment castings demands proactive design intervention. Our engineering reviews identify structural bottlenecks, mold fill constraints, and machining allowances before tool construction starts.
- Gating System & Riser Optimization: Refining runner geometry and ceramic core placement eliminates internal shrinkage porosity across thick-to-thin section transitions.
- Thermal Distortion & Solidification Control: Fine-tuning draft angles and wall thickness uniformity prevents hot tearing and warping during liquid metal cooling.
- Datum Alignment & Machining Stack-Up: Standardizing casting datum points directly with 5-axis CNC fixtures guarantees tight tolerance execution without secondary setups.
"Our single-facility integration guarantees that metallurgical casting constraints and tight-tolerance CNC machining requirements are resolved under one roof, removing all cross-vendor friction."
Verified Factory Floor Reality Gallery
Explore transparent, firsthand insights into active production environments across our investment casting foundry and CNC machining facility. View real-time operations, clean room setups, and advanced metrology equipment.

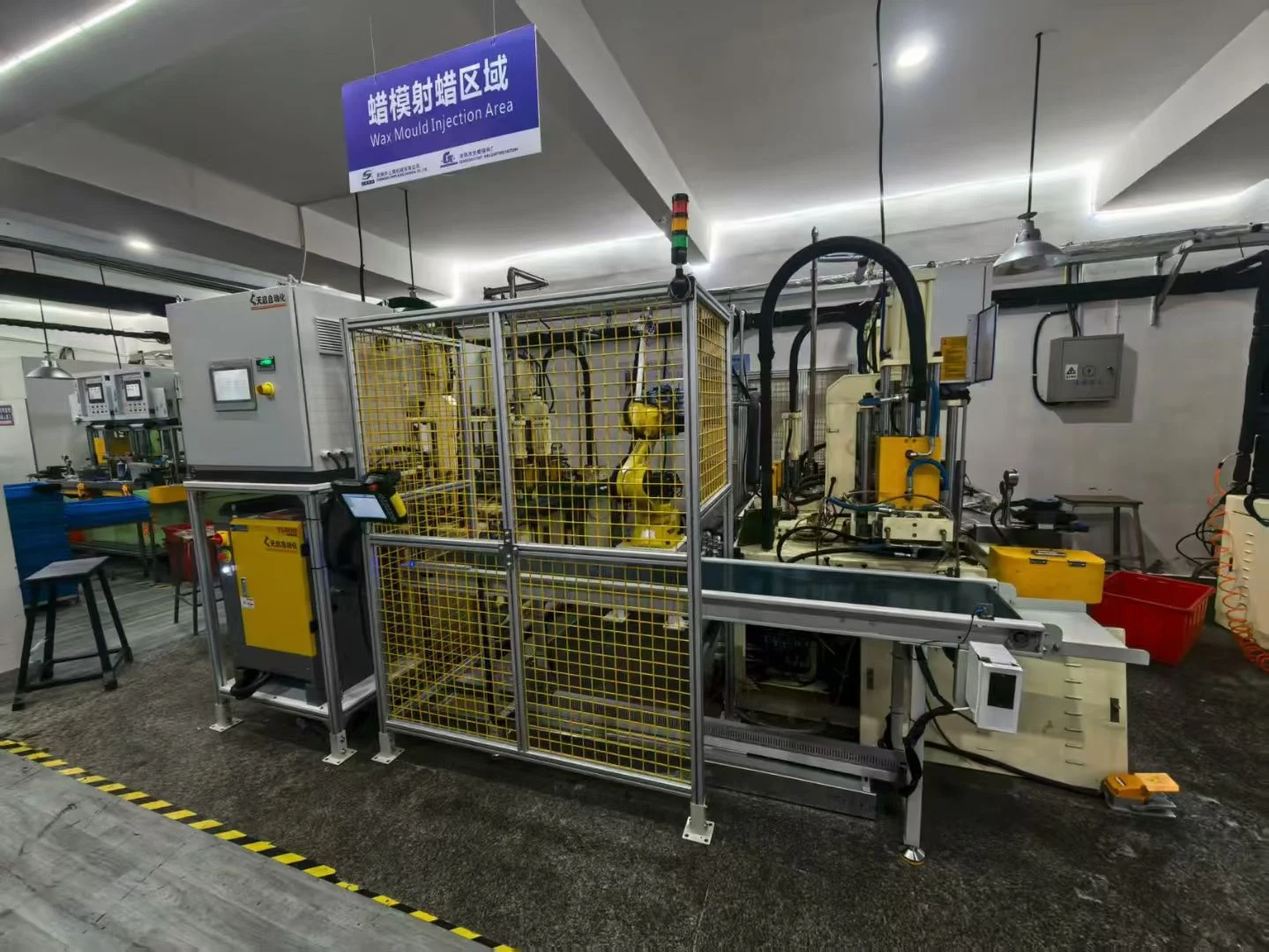

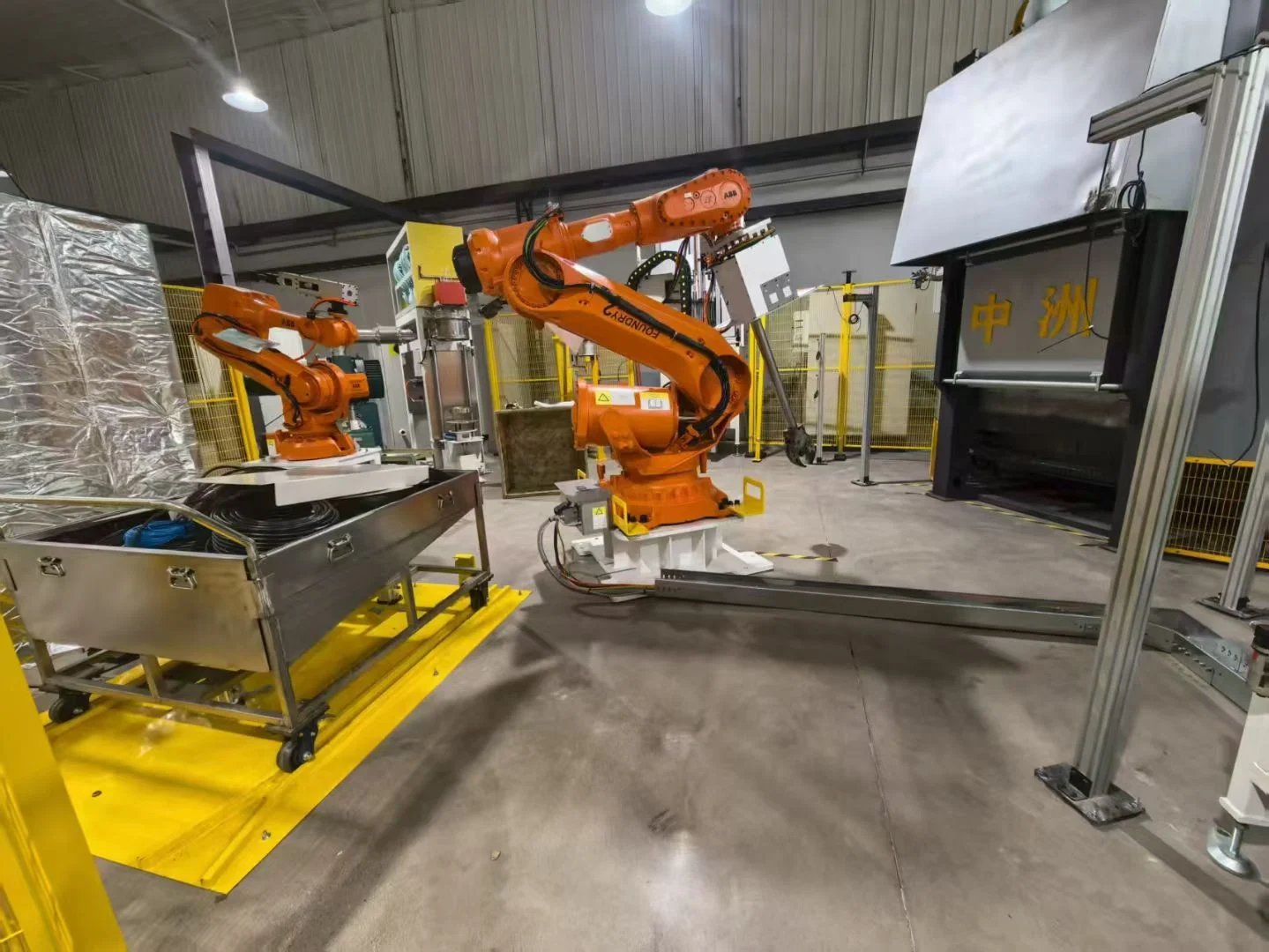

Pattern Assembly Wax Pattern Assembly Clean Room
Climate-controlled environment maintaining precise dimensional stability during pattern injection and ceramic shell buildup.

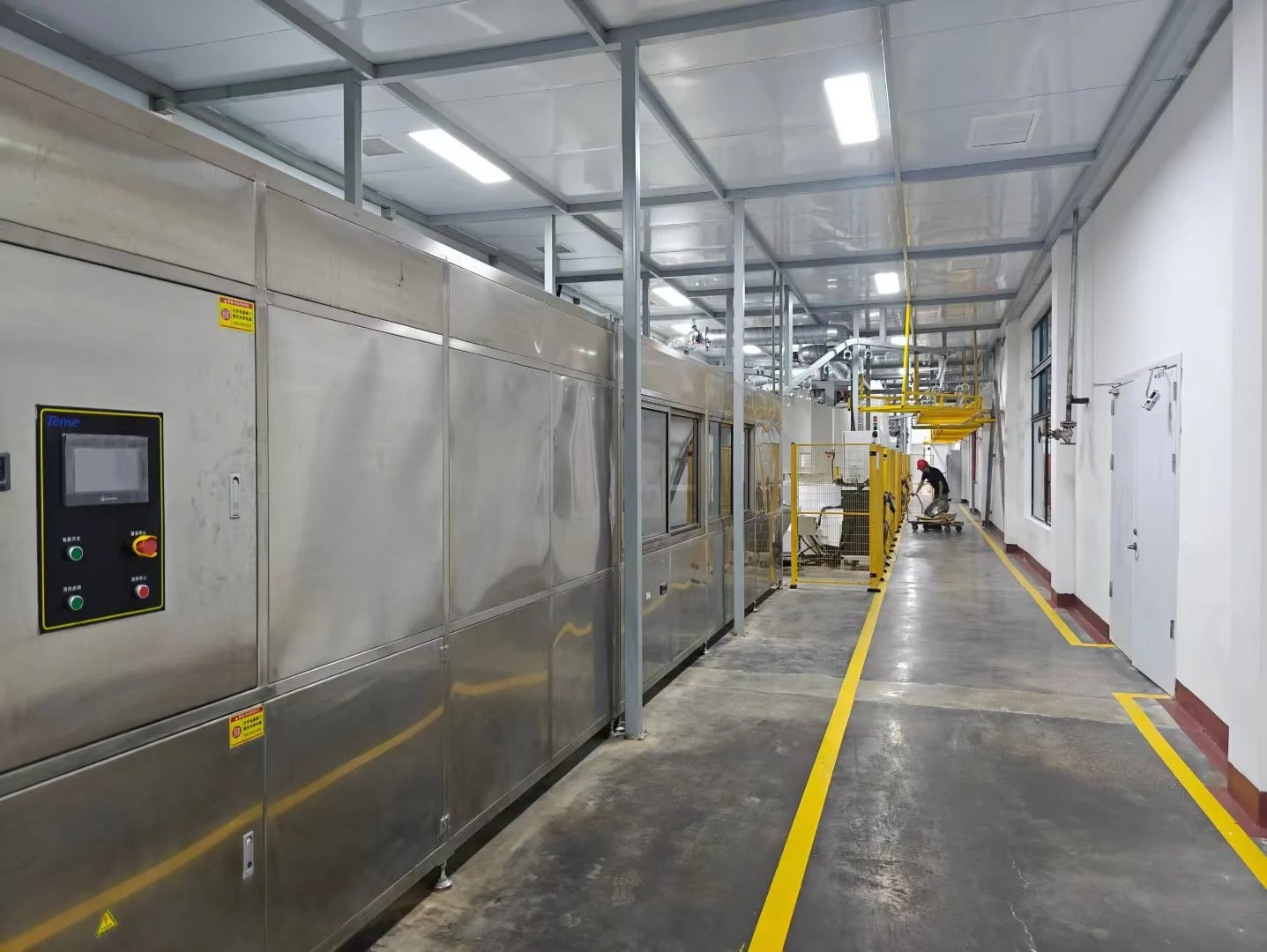

Vacuum Pouring Vacuum Induction Melting Furnace
Atmospheric melt protection and thermal control during the production of superalloy high temp castings and duplex stainless steel components.

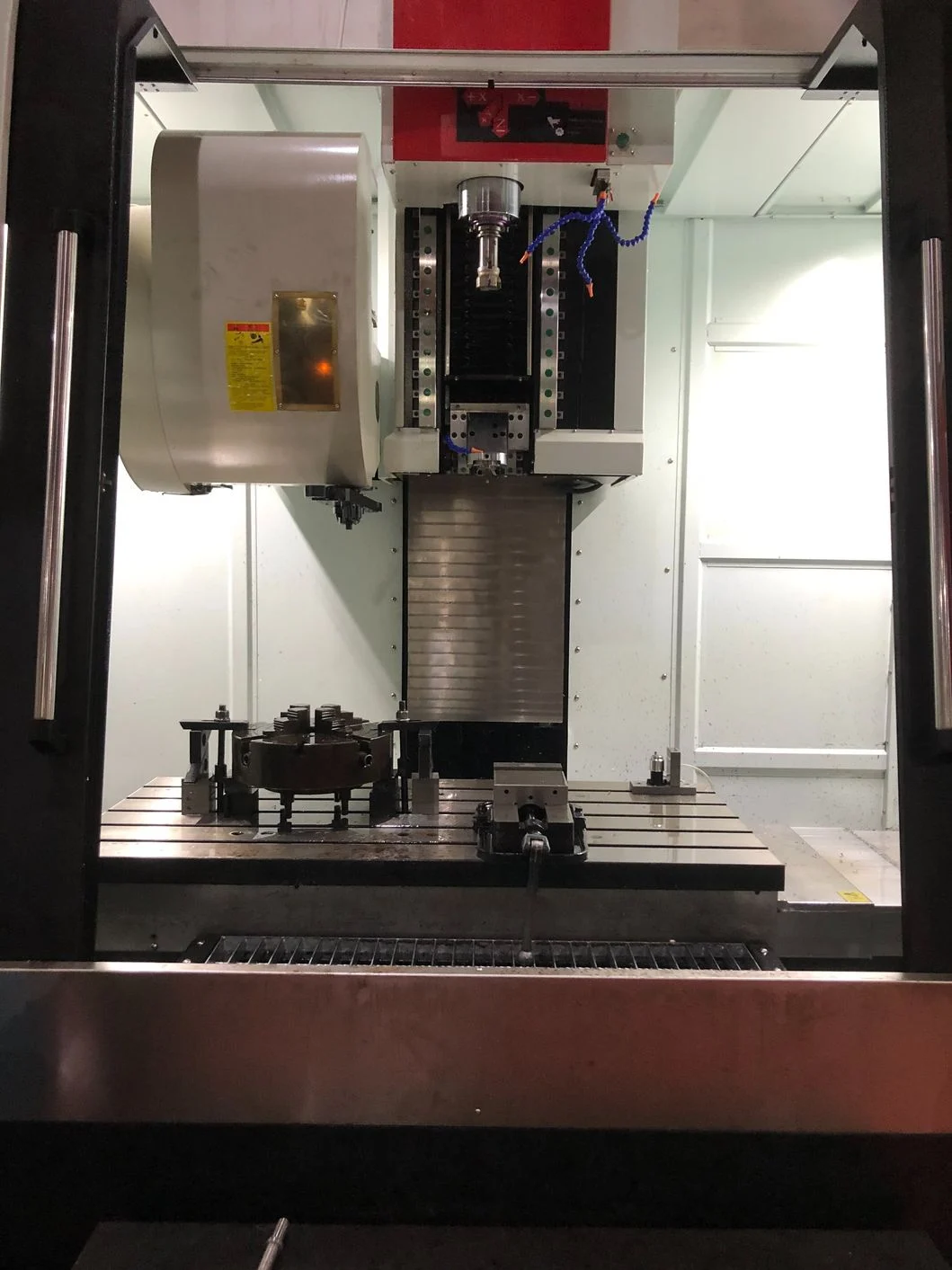

CNC Machining Automated 5-Axis CNC Centers
High-speed finish machining for complex valve body fittings, turbine blading, and automotive housings.
Quality Inspection CMM & Metrology Verification
Sub-micron Coordinate Measuring Machine testing guaranteeing full compliance with client dimensional drawings.
Intellectual Property Protection and OEM NDA Commitments
Protecting your proprietary CAD models and commercial trade secrets is central to our operational integrity. VastCasting enforces strict Non-Disclosure Agreements prior to engineering reviews and rigorously masks all customer OEM brand logos in public project documentation.
- Encrypted CAD file transfers & storage
- Bilateral NDA execution prior to DFM
- Strict OEM trademark masking in media
Request a Casting Quote for Your Custom Investment Casting Project
Accelerate your production schedule with turnkey foundry expertise, specializing in high-precision stainless-steel-castings and components. Upload your 2D drawings or 3D CAD models for an immediate Design for Manufacturability (DFM) review and competitive factory-direct quote from VastCasting.
