Industrial Gas Turbine & Power Generation Hot-Section Castings
Vacuum investment casting and in-house 5-axis CNC machining engineered for high-temperature, critical power generation components such as superalloy-high-temp-castings.
Single-Plant Turnkey Advantage
Integrated precision casting, heat treatment, 5-axis CNC machining, and NDT testing by VastCasting.
Single-Source Precision Investment Casting & CNC Machining Eliminates Supply Chain Risk
Sourcing hot-section energy components through split suppliers—an off-site investment foundry and a separate machine shop—remains the leading cause of dimensional non-conformances, schedule slippage, and unallocated scrap costs. As a specialized superalloy casting manufacturer, VastCasting eliminates these operational bottlenecks by integrating vacuum investment casting, 5-axis CNC profile machining, and complete CMM dimensional inspection under a single roof with one accountable engineering team. Beyond nickel alloys, we also manufacture corrosion-resistant stainless steel castings for critical fluid handling and industrial applications.
Split-Sourcing Pain Points & Supply Chain Risks
- Fragmented Production: Raw casting blanks and downstream CNC finishing are divided between independent vendors lacking aligned quality frameworks.
- Dimensional Finger-Pointing: When a finished component fails final CMM inspection, foundries blame machining deflection while machine shops blame casting variations.
- Datum Shift & Fixturing Shift: Re-clamping cast blanks across different facilities introduces secondary datum shift errors that compound across tight airfoil profiles.
- Elevated Scrap Rates: Inconsistent handoff tolerances between raw castings and CNC setups drive first-article non-conformances on high-value superalloy alloys.
- Extended Project Lead Times: Inter-facility freight, redundant incoming inspections, and inter-vendor technical disputes routinely add weeks to planned turnarounds.
VastCasting Integrated Solution
- Single-Plant Closed Loop: Vacuum investment casting blanks, 5-axis CNC profile machining, and CMM verifications are executed under one roof.
- Unified Tooling Datums: Casting wax molds, ceramic core tooling, and CNC machining fixtures share a synchronized datum reference frame.
- Single Point of Accountability: One engineering team owns the entire process—from ProCAST mold flow simulation to final inspection reports.
- Closed-Loop Quality Control: In-process CMM data from machining directly informs foundry operations to adjust dimensional tolerances in real time.
- Compressed Lead Times: Eliminating inter-vendor transport and dispute cycles routinely reduces total manufacturing turnaround by 30–40%.
| Operational Metric | Split-Source Procurement | VastCasting Integrated Model |
|---|---|---|
| Accountability | Fragmented / Multi-Vendor | 100% Single Owner |
| Datum Consistency | Variable (Datum Shift Risk) | Fully Synchronized |
| Vendor Dispute Exposure | High Risk | Completely Eliminated |
| Production Lead Time | Extended (Multi-Stage Transit) | 30–40% Faster Delivery |
| Scrap Rate Control | Elevated Stack-Up Losses | Closed-Loop Precision Control |
Why Single-Facility Control Matters for Hot-Section Components
Hot-section components—stator vanes, rotor blades, combustion liners, and nozzle rings—operate at continuously elevated temperatures exceeding 900°C under severe centrifugal and thermal fatigue loading. Their dimensional tolerances are exceptionally tight. A turbine stator vane featuring internal cooling channels may carry wall-thickness tolerances of ±0.15 mm across complex aerodynamic contours. When casting and machining are split between independent facilities, every handoff introduces compounding geometric uncertainties.
In a traditional split-source procurement model, an investment foundry ships raw casting blanks to an off-site CNC shop that was not involved in the original casting die or ceramic core design. The machine shop establishes its machining datums on raw cast surfaces that already contain natural foundry tolerance variations. Every subsequent 5-axis milling pass inherits those initial reference shifts. By the time the component reaches final CMM inspection, cumulative tolerance stack-up often pushes key aerodynamic profiles out of spec.
As an experienced superalloy casting manufacturer with integrated CNC capabilities, VastCasting resolves these tolerance stack-up risks entirely. Tooling designers and CNC programmers engineer casting dies, ceramic core setters, and multi-axis machining fixtures simultaneously using a shared datum frame—ensuring every machining pass accurately references the original geometric origin of the cast blank.
Closed-Loop Process Integration for Complex Internal Coolant Passages
Manufacturing complexity multiplies for hot-section parts featuring intricate internal cooling channels. For an industrial gas turbine vane, maintaining uniform wall thickness between the external aerodynamic surface and internal cooling passages is critical to prevent thermal hotspots and structural failure. When these steps are handled by separate vendors, machine shops have no mechanism to dynamically adapt toolpaths to minor ceramic core positions inherent to investment casting.
VastCasting bridges this operational disconnect through a closed-loop engineering workflow. Following raw casting and initial NDT inspection, actual core positioning and wall thickness distributions are verified using 3D optical scanning and CMM inspection. This inspection data feeds directly to our 5-axis CNC programming team prior to machining, enabling adaptive toolpath adjustments that maintain precise, uniform wall thicknesses across the entire component.
This level of technical integration demonstrates the true capability of single-source precision investment casting. Beyond gas turbines, our specialized production lines cover severe-duty process hardware, including petrochemical equipment parts. It is far more than a logistical convenience—it is a critical engineering requirement for delivering complex nickel-base superalloy components to precise OEM specifications.
Metallurgical Integrity Preserved from Vacuum Melt to Finished Part
Process control at VastCasting begins with Vacuum Induction Melting (VIM) of high-temperature nickel-base alloys for our superalloy high-temp castings, including Inconel 718, Inconel 713C, Inconel 625, and Hastelloy X. VIM processing is essential for power generation components because it removes dissolved gas contaminants and prevents volatile oxidation, securing the chemical control necessary for optimal creep resistance and stress-rupture life.
Our vacuum investment casting process preserves metallurgical purity throughout pouring. Ceramic shell molds are preheated and poured under high vacuum to eliminate gas porosity and non-metallic inclusions. ProCAST solidification simulation is performed prior to production runs to model fluid dynamics, optimize gating systems, and prevent shrink defects, minimizing first-article development cycles on high-cost superalloy charges.
Once cast, investment blanks transition directly to our in-house 5-axis CNC machining bays. Eliminating transport between third-party shops prevents transit damage, secondary clamping errors, and re-inspection delays. The final component is backed by a fully traceable quality record—including melt heat chemistry, NDT radiographics, fluorescent penetrant inspection (FPI), and CMM dimensional reporting under ISO 9001 and AS9100 quality systems.

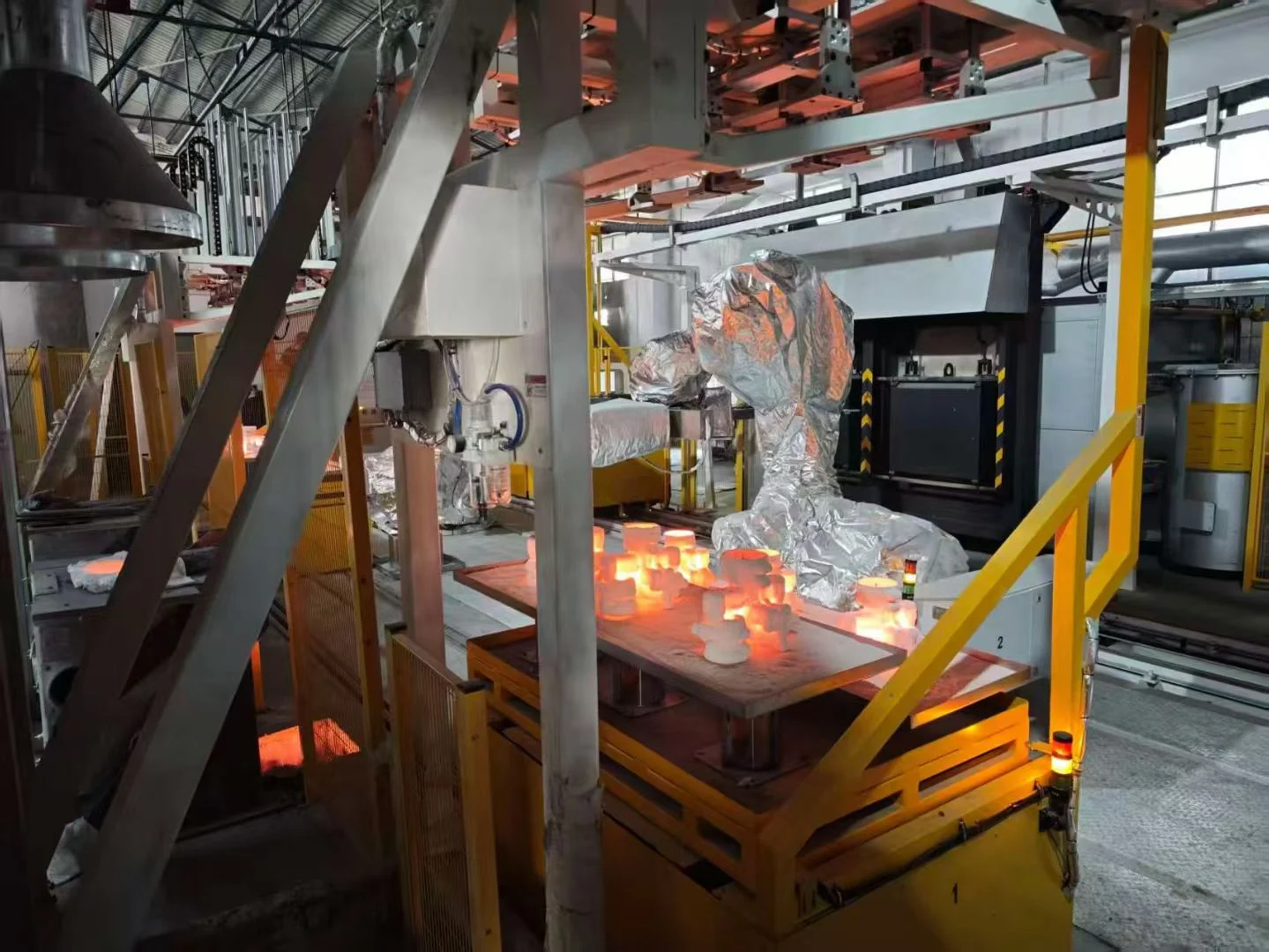

Single-Site Execution: Single Foundry, Single Machine Shop, Zero Disputes
VastCasting integrates superalloy investment casting and precision CNC machining within a single facility to eliminate inter-vendor friction, prevent dimensional disputes, and supply fully certified, ready-to-install power generation components to global energy OEMs.
Precision Castings for Industrial Gas Turbine Blades & Power Generation
VastCasting delivers single-source investment casting and CNC machining, specializing in precision stainless steel castings for turbine OEMs, energy hot-section builders, and heavy industrial valve manufacturers.

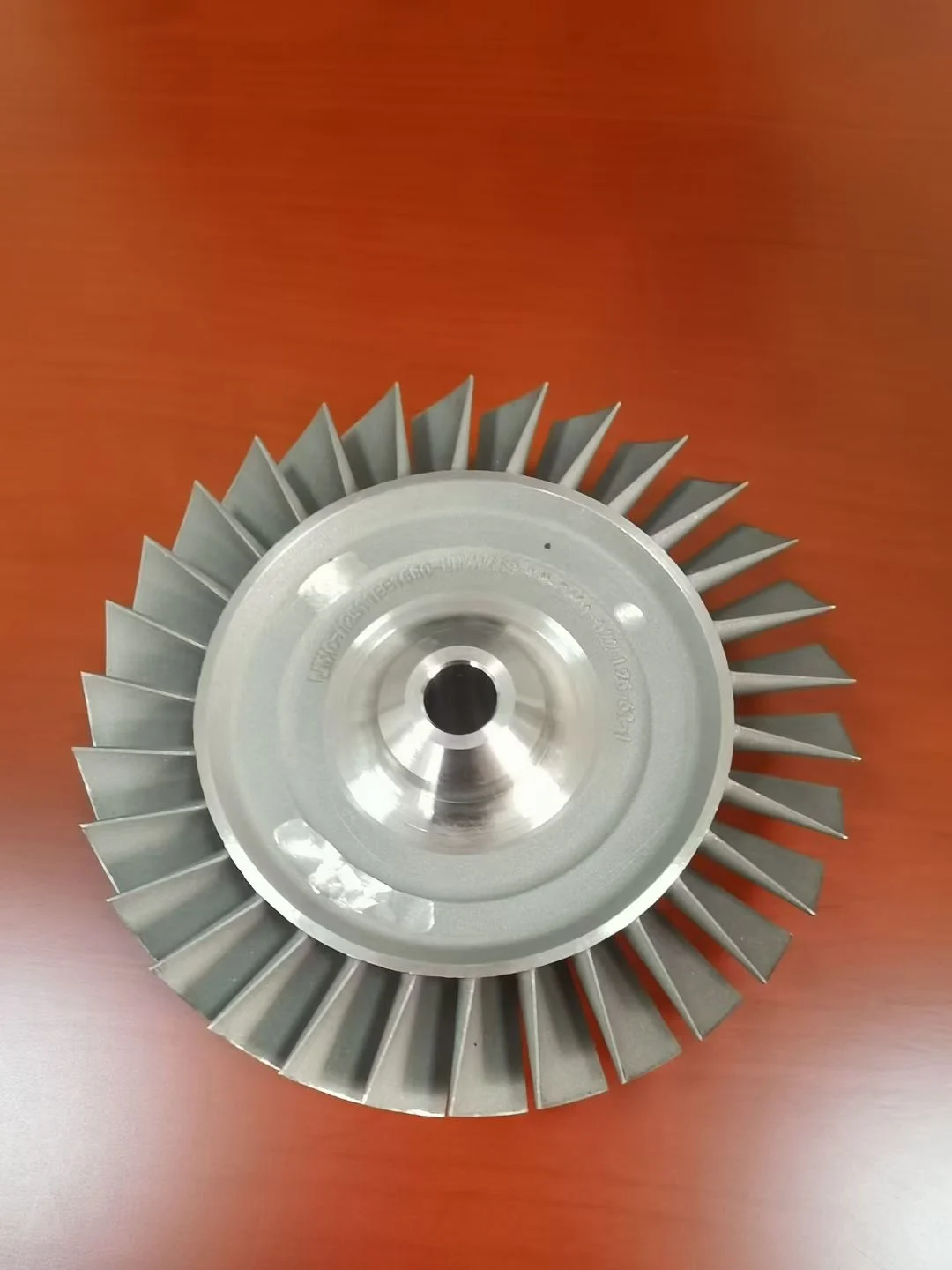

Industrial Gas Turbines
Engineered for severe thermal stress and continuous high-temperature duty, supporting seamless transition from raw casting to 5-axis finished aerofoils.
Featured Components
- Industrial gas turbine blades & rotor blades
- Stator vanes & guide vanes
- Nozzle rings & flow segments

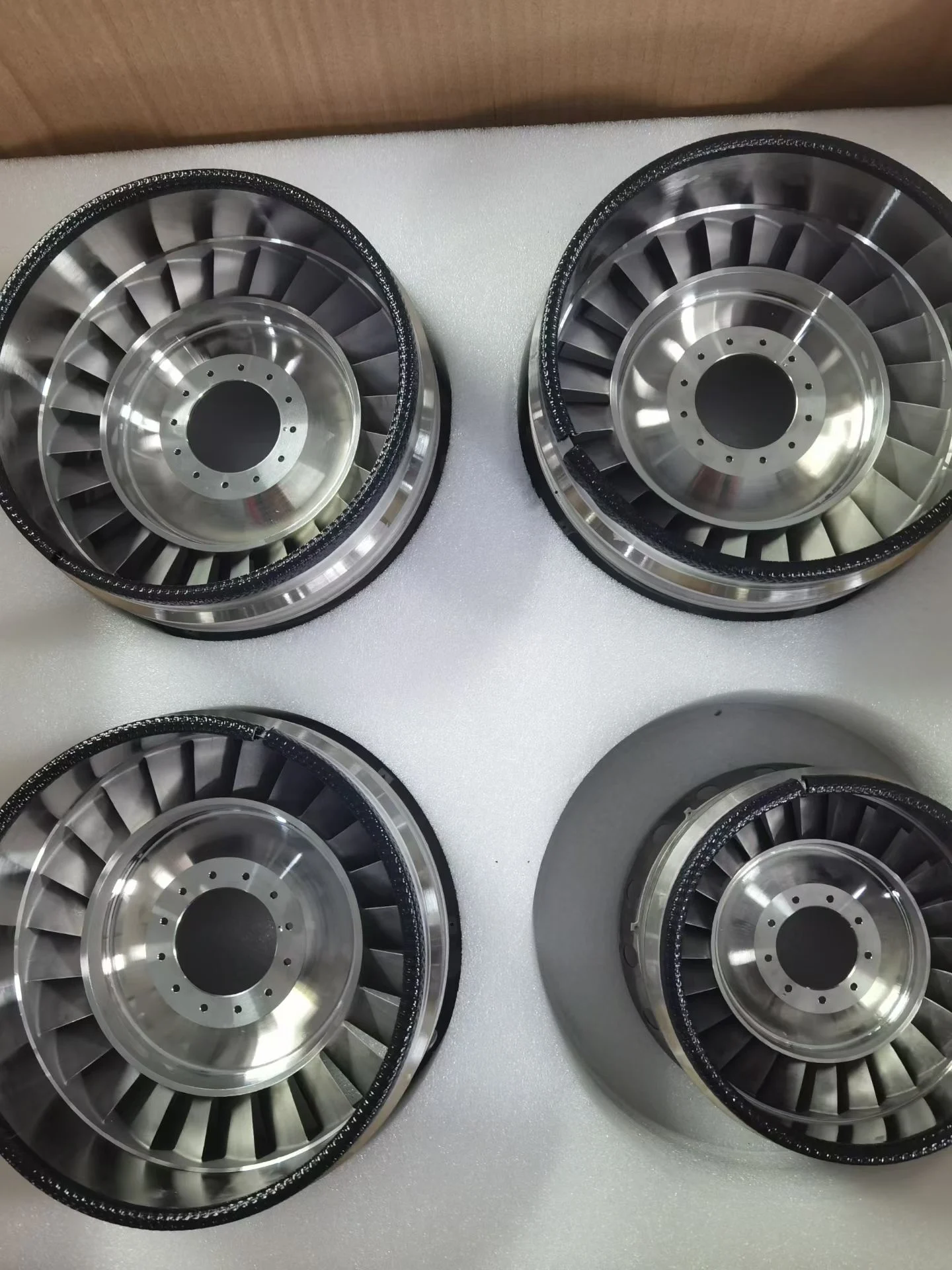

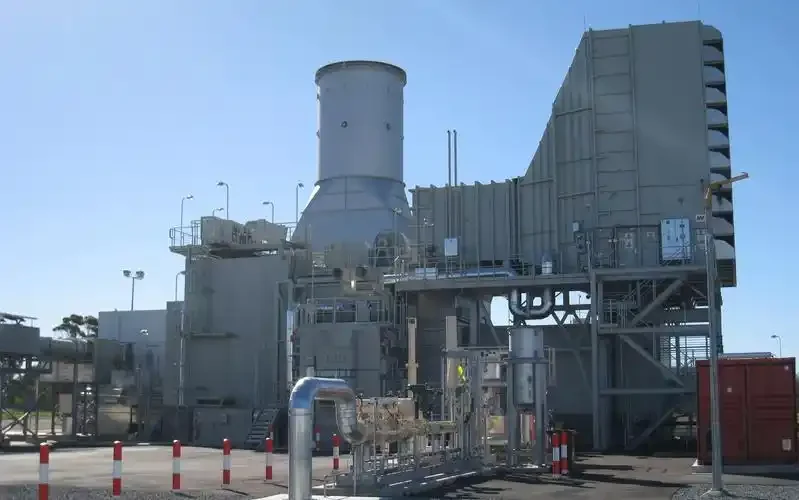

Steam & Heavy Power Generation
Built to withstand extreme steam pressures, cyclic thermal loads, and heavy-duty mechanical wear across thermal and combined-cycle plants.
Featured Components
- Power generation hot-section parts
- High-temperature high-pressure valve body fittings
- Combustor transition liners
- Structural supports & mount rings

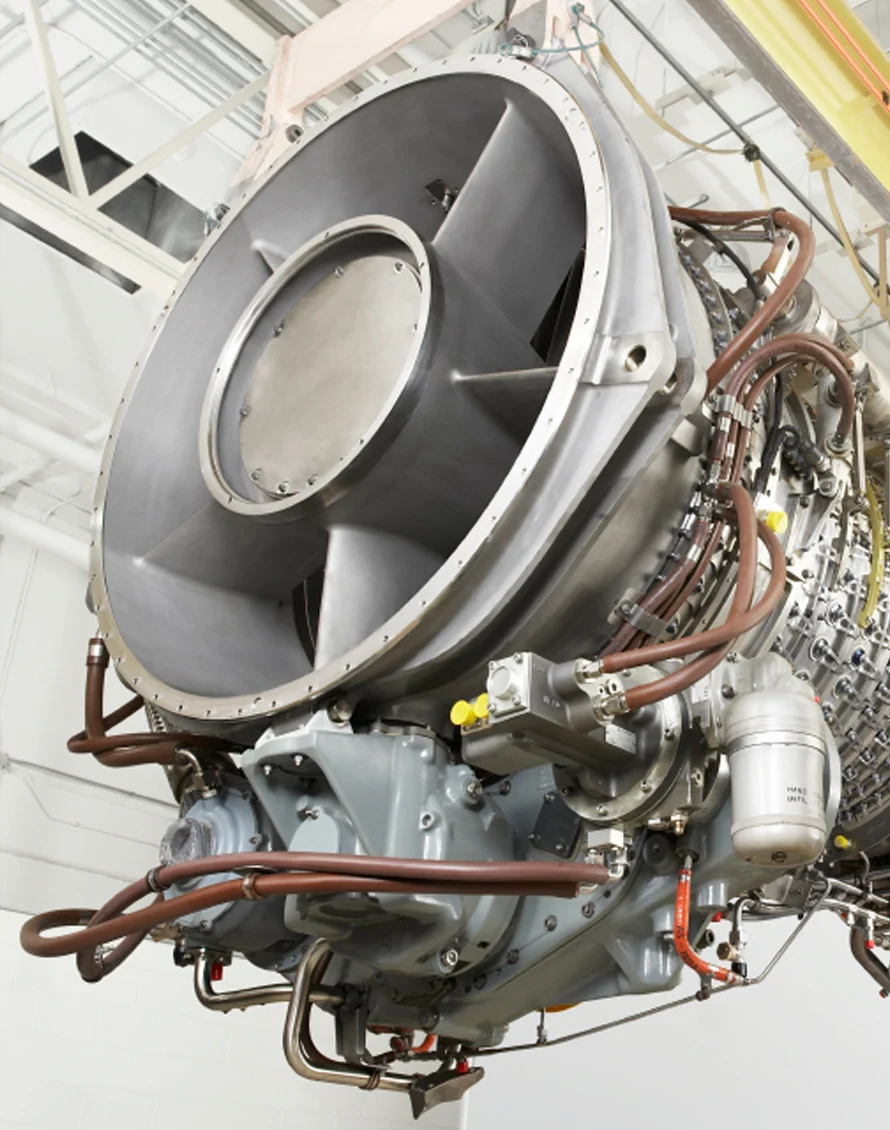

Aeroderivative & Industrial Systems
Precision-cast nickel-base superalloy high-temp castings designed for compact aeroderivative turbines and specialized industrial mechanical drives.
Featured Components
- Small derivative turbine assemblies
- High-pressure guide vanes
- High-temperature structural hardware
Mapped Products and Superalloy Material Matrix
VastCasting specializes in high-temperature superalloy investment casting and precision CNC machining — providing seamless single-source delivery for power generation and aerospace hot-section components. Explore our catalog of engineered products below, detailing our product-to-material mapping matrix for OEM procurement and technical teams.

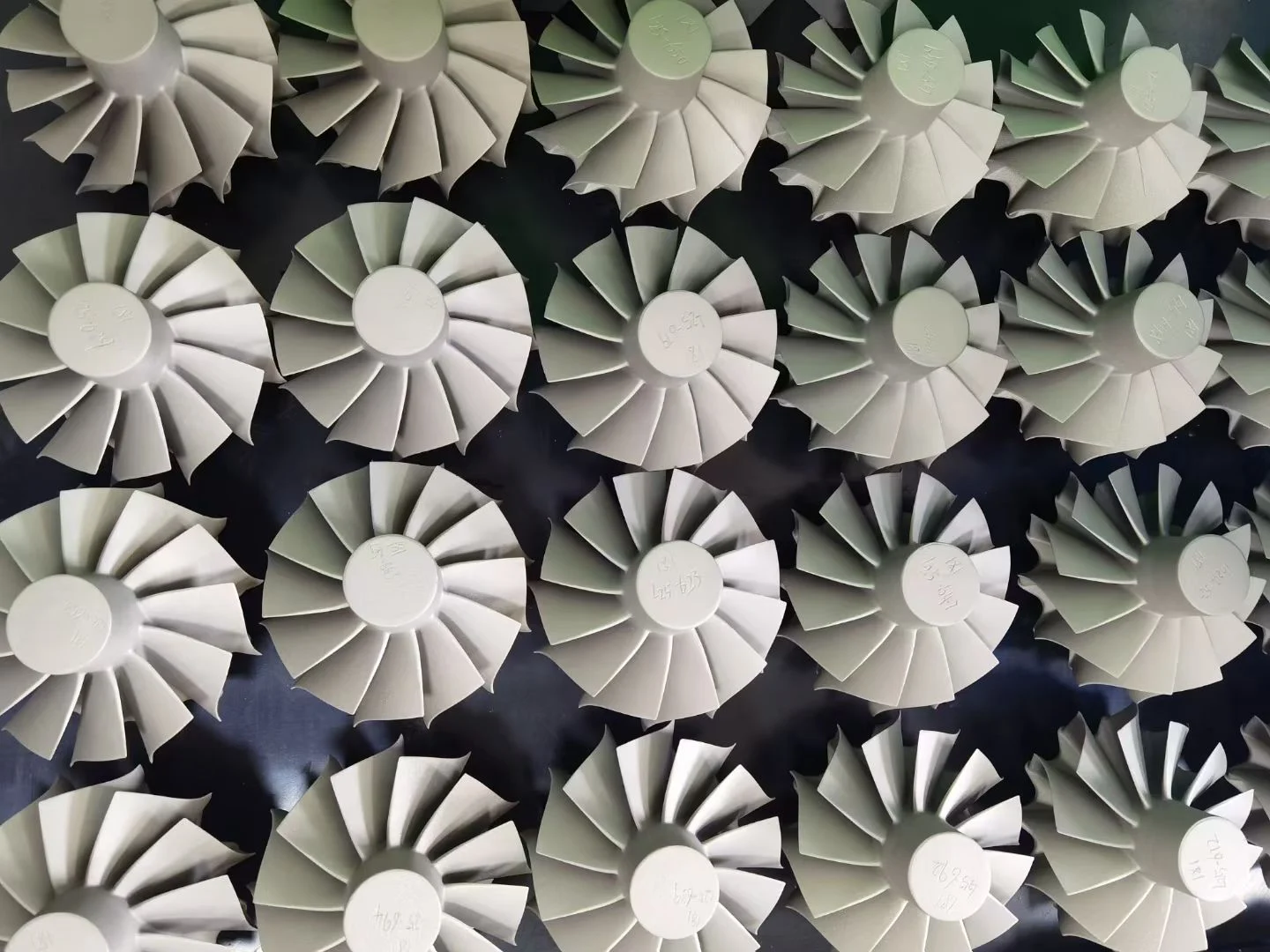

Turbine Blades & Vanes
Heavy-duty and industrial gas turbine rotating blades and stationary vanes engineered for severe thermal stress, high-cycle fatigue, and aerodynamic profile accuracy. Supplied as raw investment cast blanks or fully CNC-machined components ready for immediate assembly.
- Stage 1 and Stage 2 rotor blades with fir-tree roots
- Stator vanes with internal cooling channels
- Nozzle guide vanes, shroud segments, and seal rings
- Turnkey supply: vacuum investment casting to 5-axis finish machining

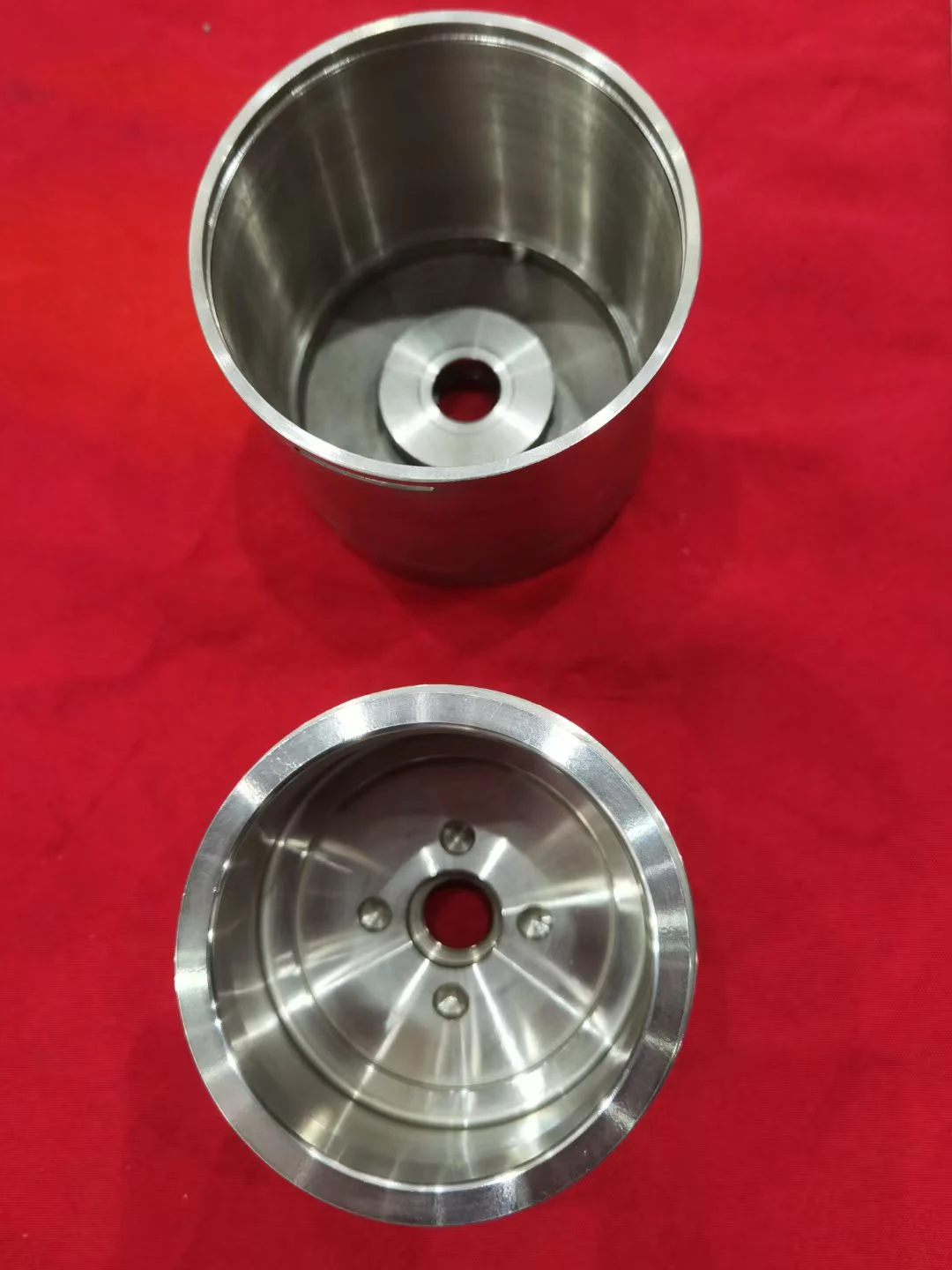

Aerospace & Energy Components
Complex, thin-walled structural castings and hot-section hardware built to withstand continuous high temperatures and aggressive oxidation environments. Supporting gas turbine combustors, energy manifolds, and aeroderivative power units.
- Combustor transition liners, flame tubes, and heat shields
- Thin-walled structural housings and ring frames
- High-temperature valve bodies, cages, and seat rings
- Finished sub-assemblies built strictly to OEM drawing packages
Single-Source Turnkey Manufacturing Across All Product Lines
Every component listed above is manufactured entirely inside VastCasting's single facility — from vacuum investment casting of raw blanks to 5-axis CNC profile machining, CMM dimensional verification, and non-destructive testing (NDT). Eliminating third-party machining shops eliminates datum conflicts, shortens lead times, and enforces a single point of accountability from engineering drawing to final delivery.
This closed-loop manufacturing model is essential for nickel base superalloy castings, where grain integrity, thin-wall accuracy, and complex airfoil profiles require continuous quality oversight across casting, machining, and inspection stages.
Engineering Capabilities & Definite Process Boundaries
VastCasting combines advanced mold simulation with fully integrated hot-section testing facilities to deliver defect-free superalloy high-temp castings. Maintaining strict technical transparency regarding our equiaxed casting limits ensures global energy and aerospace OEMs receive fully verified, production-ready turbine components without hidden supply chain risks.
Predictive ProCAST Mold Flow & Solidification Modeling
Prior to pouring nickel-base and cobalt-base superalloys, VastCasting performs comprehensive finite-element thermal and fluid modeling using ProCAST mold simulation software. This virtual validation stage eliminates trial-and-error tooling iterations for critical power generation components.
The software models non-isothermal ceramic shell filling, molten metal flow velocity, and transient thermal gradients. By identifying porosity risks, shrinkage cavities, cold shuts, and slag inclusion zones during the wax pattern and gating design phase, we guarantee internal soundness before physical casting begins.
For complex geometries—such as industrial gas turbine stator vanes with intricate internal cooling passages or thin-walled nozzle rings—mold simulation optimizes runner placement, thermal insulation, and riser feeding to preserve grain uniformity across Inconel 718, Inconel 713C, and Hastelloy X castings.
- Mold Filling Analysis: Verifies velocity profiles and gating hydrodynamics to eliminate turbulence-induced oxide inclusions.
- Solidification Modeling: Maps thermal dissipation and shrinkage formation to prevent micro-porosity and hot tearing.
- Virtual Tooling Optimization: Rapid iterative gating design reduces initial sampling scrap and speeds up prototype-to-production approval.
- Engineering Deliverables: Complete ProCAST simulation reports and porosity risk maps are provided for customer technical sign-off upon request.
High-Integrity Equiaxed Castings — Transparent Process Limits
VastCasting focuses specialized expertise on equiaxed (EQ) superalloy investment castings. In addition to high-temp superalloys, we also manufacture corrosion-resistant stainless steel castings for demanding industrial environments. Our automated vacuum induction melting (VIM) furnaces and high-temperature shell-building lines are engineered specifically for equiaxed microstructures operating in severe thermal and corrosive environments.
Clear Boundaries on Production Capabilities:
- Directionally Solidified (DS) Turbine Blades & Vanes: Mass-production DS component orders fall outside our current furnace equipment profile.
- Single Crystal (SX) Components: SX superalloy casting requires specialized Bridgman withdrawal systems that we intentionally do not operate.
We state our equiaxed casting limits openly to protect your project timelines and supply chain integrity. Rather than accepting orders outside our operational scope, VastCasting delivers industry-leading precision for equiaxed IN718, IN713C, IN625, Hastelloy X, Stellite 31, and FSX-414 hot-section components—backed by single-source casting and 5-axis CNC machining accountability.

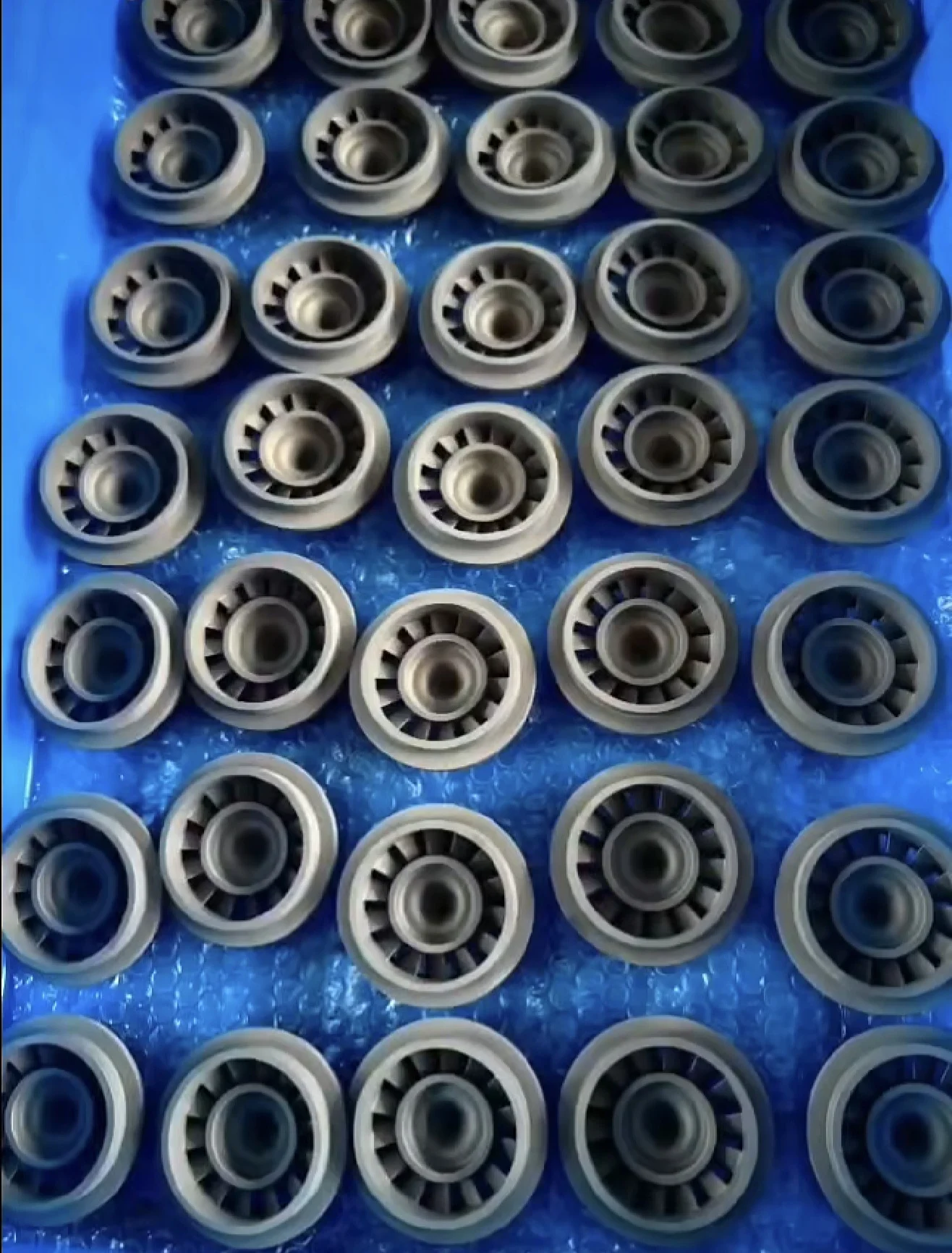

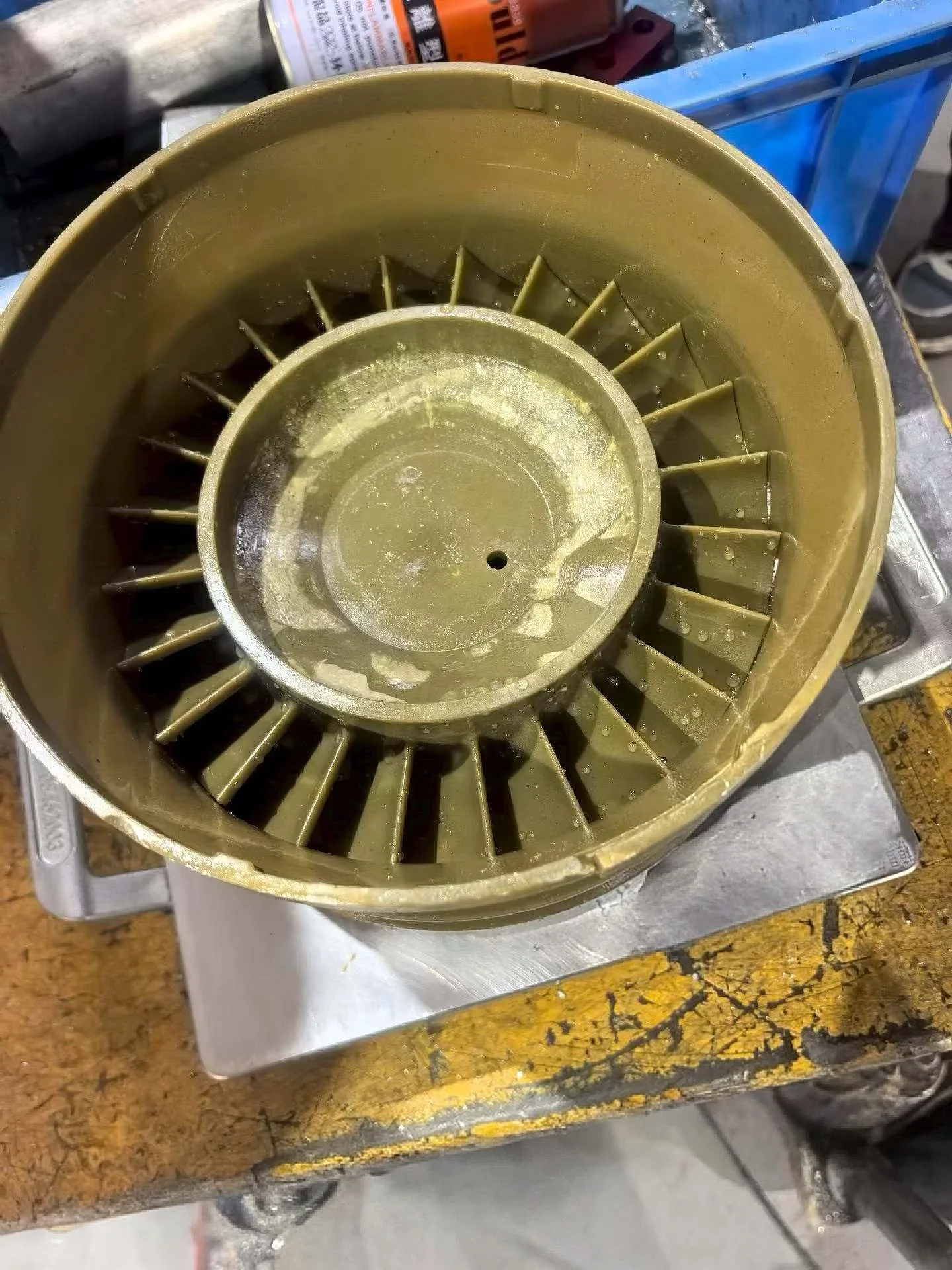

Hot-Section Testing Facilities & Comprehensive NDT Inspections
Every gas turbine blade, vane, and high-temperature valve body fittings component processed by VastCasting undergoes rigorous non-destructive and dimensional verification within our internal hot-section testing facilities. We eliminate third-party logistics delays and maintain single-source chain-of-custody control.
Because power generation hot-section components endure extreme thermal cycling and high-frequency fatigue, our in-house quality control protocol verifies structural, chemical, and dimensional integrity at every manufacturing step.
3D Optical Scanning & Profiling
High-definition point cloud laser scanning captures complex blade airfoils, trailing edges, and cooling port exits, comparing surface profiles directly against native CAD models.
5-Axis CMM Dimensional Verification
Precision coordinate measuring machines verify critical datum alignment, chordal dimensions, wall thickness tolerances, and complex GD&T parameters on fully machined castings.
X-Ray Radiographic Testing (RT)
In-house digital X-ray inspection detects deep internal shrinkage, gas porosity, and inclusions in raw investment cast blanks, compliant with ASTM E1030 and power sector standards.
Fluorescent Penetrant Testing (FPT)
High-sensitivity Level 3 fluorescent penetrant lines reveal minute surface discontinuities, thermal stress cracks, and micro-fissures on critical aerodynamic surfaces.
Optical Emission Spectrometry (OES)
Direct-reading OES alloy chemistry analysis verifies exact elemental concentrations (Ni, Cr, Co, Mo, Nb, Ti, Al) for every VIM heat melt, generating certified material test reports (CMTR).
Technical Capability & Testing Matrix
| Capability Area | Technology / Method | Scope & Compliance Standards |
|---|---|---|
| Pre-Casting Simulation | ProCAST FEA mold flow & solidification modeling | 100% of complex hot-section investment castings |
| Microstructure / Grain | Vacuum Induction Melting (VIM) Equiaxed (EQ) casting | Inconel 718, IN713C, IN625, Hastelloy X, Stellite 31, FSX-414 |
| Surface NDT | High-Sensitivity Fluorescent Penetrant Testing (FPT) | Raw castings and final machined surfaces |
| Internal Volumetric NDT | Digital X-Ray Radiographic Testing (RT) | 100% inspection of critical turbine blanks & hot-section parts |
| Dimensional Inspection | 5-Axis CMM + 3D Laser Optical Scanning | Profile accuracy to ±0.05 mm; full GD&T CMM inspection reports |
| Chemical & Material Testing | Direct-reading OES Spectrometry & Heat Verification | Heat-by-heat chemical analysis with full MTR documentation |
| Process Boundaries | Directionally Solidified (DS) & Single Crystal (SX) | Not offered — DS/SX mass production is outside current facility scope |
Turbine Blade Case Study: Turnkey Stator Vane Replacement
How VastCasting reverse-engineered, vacuum-cast, and 5-axis machined obsolete gas turbine stator vanes with zero original OEM tooling.
The Challenge: Obsolete OEM Tooling
An overseas power station operator faced forced downtime due to damaged Stage-2 stator vanes on an operational gas turbine. Original OEM drawings and tooling were completely unavailable.
High-temperature creep and oxidation resistance demanded precision-poured Inconel 713C nickel-base superalloy-high-temp-castings.
Restoring design-point fuel efficiency required matching complex compound curves without structural distortion.
The VastCasting Turnkey Solution
VastCasting executed the entire project in-house—combining 3D laser scanning, ProCAST solidification modeling, VIM vacuum investment casting, and 5-axis CNC profile machining. Our specialized capabilities also extend to precision stainless-steel-castings for harsh industrial environments.
Single-Source Accountability
By consolidating casting and machining under one roof, VastCasting eliminated split-sourcing disputes while perfecting hot section component manufacturing from start to finish.
Step-by-Step Technical Execution
The five-stage workflow behind our turbine blade case study delivery.

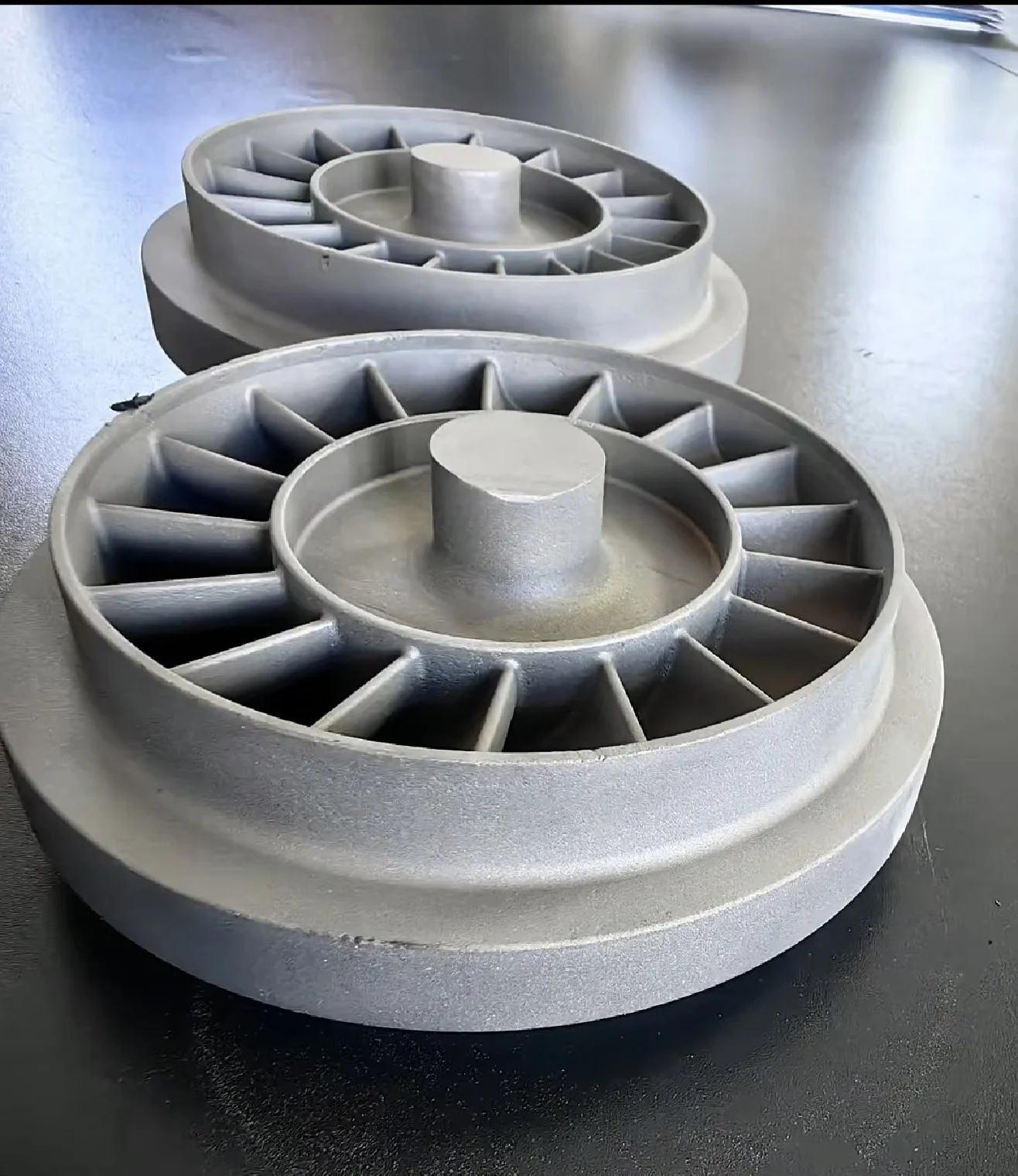

3D Laser Scanning
High-density point cloud scanning converts physical worn vanes into accurate 3D CAD geometry.
ProCAST Simulation
Thermal modeling optimizes gating systems to eliminate internal shrink porosity before wax injection.
VIM Vacuum Casting
Vacuum induction melting in Inconel 713C delivers clean equiaxed microstructures and gas-free integrity.
5-Axis CNC Machining
Multi-axis milling cuts precise aerofoil contours and root dovetail features in a single setup.
100% NDT Inspection
X-ray radiographics, fluorescent penetrant testing, and CMM reports certify turbine-ready performance.
Need Turnkey Hot Section Component Manufacturing?
Partner with VastCasting for single-source engineering, mold simulation, and high-precision casting for turbine components and critical petrochemical-equipment-parts.
Power Generation Investment Casting FAQ
Sourcing high-integrity gas turbine investment casting components requires clear insight into material integrity, process limits, and quality assurance. This gas turbine investment casting FAQ covers key technical considerations regarding our superalloy high temp castings capability, NDT certifications, turnaround times, and single-source manufacturing model.
Quick Procurement Overview
As a proven superalloy casting manufacturer with integrated 5-axis CNC machining, VastCasting delivers single-source precision investment casting solutions for demanding energy and power generation hot section components, alongside specialized petrochemical equipment parts.
- Primary Scope: Vacuum investment casting focused on equiaxed nickel- and cobalt-base superalloys.
- Quality Standards: Complete NDT inspection suite certified to ISO 9001 and AS9100 quality frameworks.
- RFQ Turnaround: Rapid engineering evaluation and commercial quotation within 24 hours.
Direct Engineering Support
Need custom tolerance analysis or superalloy grade consultation?
sales@vastcasting.comEssential Sourcing Questions and Engineering Answers
Comparative Sourcing Breakdown for Energy OEMs
Evaluating potential superalloy casting partners requires looking beyond initial blank pricing. The structural efficiency of single-plant execution directly impacts overall life-cycle costs and equipment uptime during power generation overhauls.
| Evaluation Parameter | Split-Sourcing Approach | VastCasting Integrated Model |
|---|---|---|
| Quality & Risk Accountability | Divided between independent foundry and secondary machine shop | Single responsible partner covering raw casting through final CMM clearance |
| Tooling & Datum Alignment | Frequent datum shifts requiring secondary re-clamping fixes | Unified geometric datum system preserved from wax pattern to 5-axis grinding |
| Production Lead Time | Protracted transit delays and scheduling queues between vendors | Streamlined cellular manufacturing flow inside one unified facility |
| NDT & Inspection Rigor | Inconsistent standards and fragmented quality documentation across shops | In-house certified X-ray, FPI, and CMM inspection with full heat traceability |
Ready to Streamline Your Gas Turbine Hot-Section Supply Chain?
Send blade drawing files, hot-section component models, material specifications, and NDT requirements today. As an integrated superalloy high-temp castings manufacturer, our engineering team will evaluate your files and provide a complete quote within 24 hours.
Headquartered in Dongying, Shandong, with a production base in Kashgar, Xinjiang, China, VastCasting delivers end-to-end vacuum investment stainless steel castings and 5-axis CNC machining services for power generation and energy OEM clients worldwide.
