Industrial Turnkey Precision Casting & CNC Machining Services
Eliminate vendor friction between foundries and machine shops. VastCasting delivers silica sol investment casting, mold-flow simulation, 5-axis CNC machining, and in-house NDT inspection under one roof.
Raw Cast Blank Silica sol investment casting with mold flow optimization.
Finished CNC Part Secondary 5-axis CNC machining with verified CMM report.
Requirement Analysis
In-depth evaluation of 2D/3D CAD models, alloy chemical specifications, mechanical property requirements, and critical tolerance thresholds.
Tooling & Mold Flow Simulation
ProCAST solidification simulation, gating system optimization, aluminum wax injection tooling creation, and thermal shrinkage modeling.
Melting & Precision Casting
Silica sol lost-wax investment casting yielding CT4–CT6 ISO tolerances for near-net-shape blanks ready for precision finishing.
Initial Casting Quality Gate
Direct-reading optical emission spectrometer melt analysis, visual surface gating checks, and preliminary dimensional validation prior to machining.
CNC Precision Machining
In-house multi-axis CNC milling and turning centers finish critical seating faces, tight thread profiles, bore concentricities, and mounting datums directly from raw cast blanks.
Surface Finishing
Electropolishing, chemical passivation, stainless steel shot blasting, anodizing, or specialty protective coatings tailored to engineering requirements.
CMM Inspection & Delivery
Comprehensive 3D CMM dimensional inspection reports, hydrostatic leak testing, NDT certification, and export-grade protective packaging.
Comparing Manufacturing Routes: Cast & Machine vs Direct Profile Machining
Selecting the ideal manufacturing route requires balancing upfront tooling investments against unit piece economics and speed to market. Explore our full range of custom engineering products to find the best match for your manufacturing demands. The matrix below compares key technical and economic parameters for our investment casting workflow versus our direct profile machining process.
| Production Parameter | Route A: Cast & Machine (Investment + CNC) | Route B: Profile Machining (Direct CNC) |
|---|---|---|
| Ideal Production Volume | Medium to High (100 to 50,000+ pcs/year) | Low to Medium (1 to 500 pcs/year or prototypes) |
| Initial Tooling Investment | Requires precision wax injection tooling | Zero mold tooling cost; standard modular fixtures |
| Raw Material Utilization | Near-net-shape; minimal material waste and chip volume | Subtractive process; higher scrap rate from solid stock |
| Internal Geometry Capability | Complex internal passageways, undercuts, and thin walls | Constrained by cutting tool accessibility and reach |
| Production Lead Time | 3–5 weeks (tooling construction & sample approval) | 3–7 business days (immediate CAM toolpath execution) |
| Unit Cost Efficiency | Lowest cost per piece at production scale | Optimal per-piece economics for low volumes |
Optimizing the Casting and Machining Route
For critical fluid handling components, valve body fittings, pump impellers, and structural aerospace parts, choosing the right casting and machining route ensures optimal structural integrity and minimal cost. VastCasting evaluates your 2D and 3D CAD models during early DFM stages to streamline production.
- Near-Net-Shape Precision: Silica sol lost-wax investment casting yields CT4–CT6 tolerances, casting complex internal flow channels that are impossible to machine from solid billets.
- Integrated Datum Alignment: Tooling engineers design precision datum points directly into raw casting geometries to facilitate seamless 5-axis CNC multi-fixture indexing.
- Expanded Alloy Selection: Cast complex alloys including 304/316L stainless steel castings, duplex steel, and nickel-base superalloys without the excessive tool wear associated with billet milling.
Direct Profile Machining Process for Rapid Delivery
When speed is critical—such as prototype evaluation, urgent replacement parts, or structural brackets manufactured from extruded aluminum profiles—our direct profile machining process provides an agile manufacturing pathway without upfront toolmaking.
- Accelerated Lead Times: Transition directly from 3D CAD file upload to 5-axis CNC toolpaths within hours for rapid prototype and short-run production.
- Superior Wrought Properties: Machining directly from certified extruded bar stock or forged billets guarantees uniform metallurgical grain structure and high tensile strength.
- Seamless Bridge Manufacturing: Launch initial product runs via direct profile machining while investment casting tooling is fabricated for full-scale mass production.
Dual-Track Flexibility Under One Roof
VastCasting combines investment casting and precision CNC machining under a single operational roof to eliminate multi-vendor handoffs, lower total tooling expenditure, and protect your delivery schedules. Partner with a trusted single-source manufacturer.
Three Foundational Manufacturing Pillars Supporting Turnkey Delivery
VastCasting integrates raw material casting, high-precision CNC machining, and advanced mold simulation engineering under a single roof. By combining precision casting and CNC machining capabilities, VastCasting eliminates inter-vendor miscommunication, reduces total lead times, and guarantees unified quality standards from initial melt to final dimensional inspection. Explore our full range of products to see how we deliver turnkey value.
Upstream Raw Blank Fabrication: Investment Casting Process
Our investment casting foundry utilizes advanced silica sol and water glass lost-wax processes to manufacture complex near-net shape blanks. By maintaining strict furnace atmosphere control and temperature regulation during pouring, VastCasting produces void-free castings with exceptionally smooth surface finishes and tight dimensional repeatability.
Core Technical Capabilities
- Dimensional Tolerance: CT4 to CT6 precision rating under ISO 8062
- Surface Finish: Ra 1.6 to Ra 3.2 micrometers raw casting surface quality
- Material Scope: 304, 316, 316L, Duplex Stainless, and Inconel superalloys
- Weight Capacity: 0.05 kg to 120 kg single unit casting range
Integrated Product Lines
Downstream Standalone & Secondary CNC Precision Machining

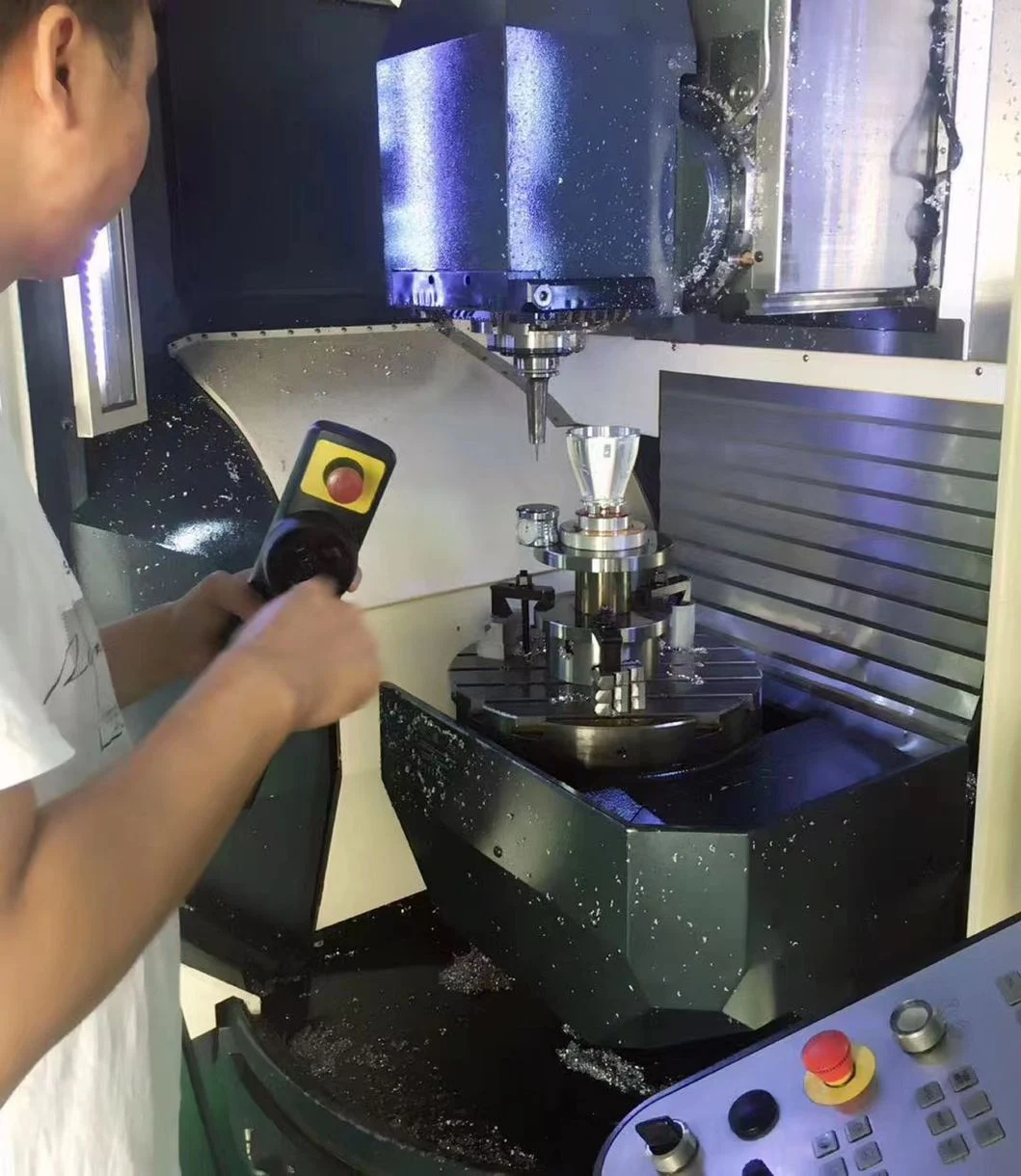

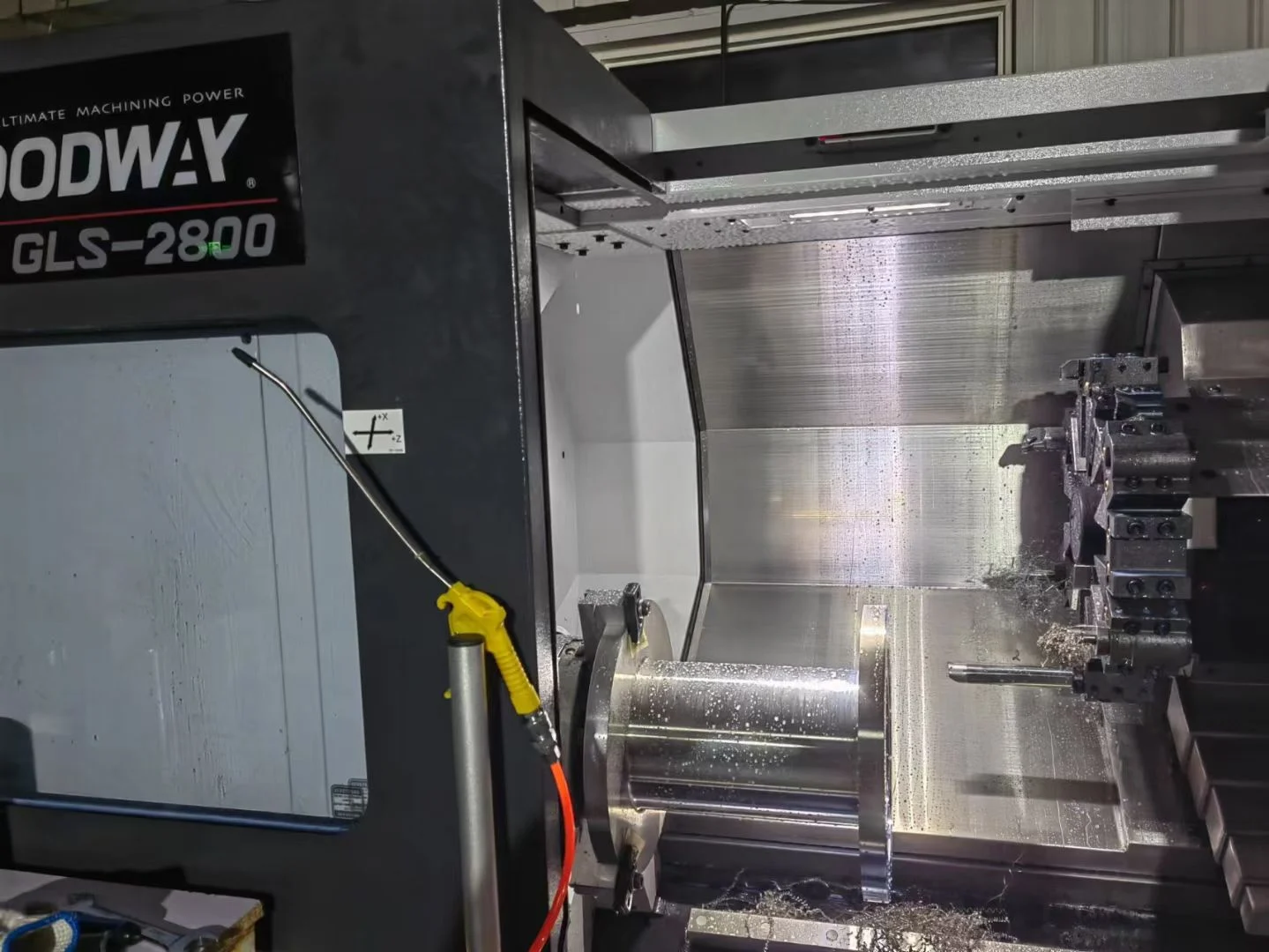

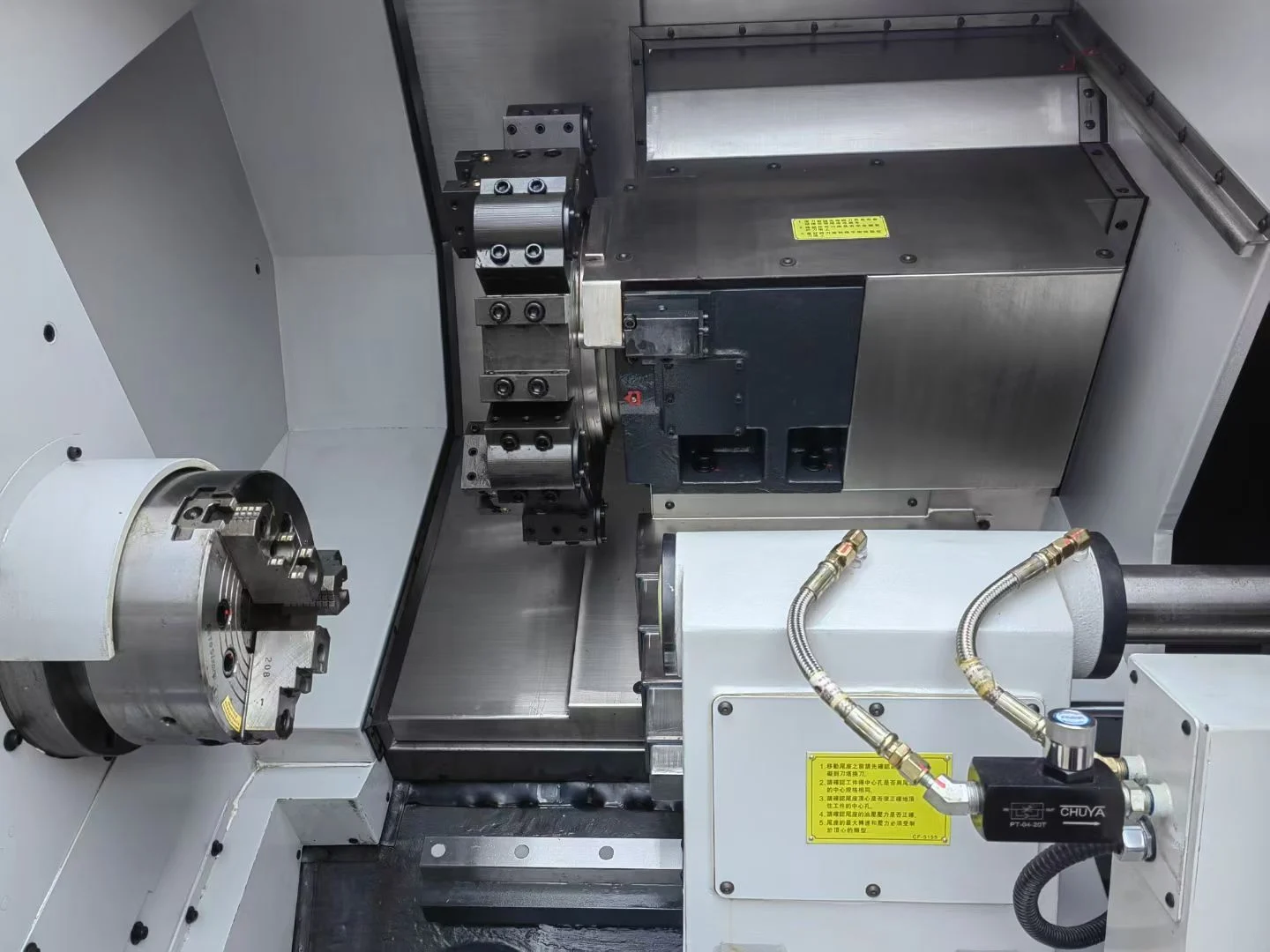

VastCasting operates an in-house machine shop equipped with high-speed 4-axis and 5-axis CNC machining centers, vertical turning lathes, and precision multi-axis turning centers. We execute complex secondary machining on cast blanks as well as direct profile machining from extruded aluminum and solid steel billet stock.
Core Technical Capabilities
- Machining Precision: Fine tolerance standards down to ISO 2768-m/f
- Multi-Axis Equipment: Simultaneous 5-axis milling, 4-axis VMCs, live-tool lathes
- Secondary Features: Micro-thread cutting, critical valve seat turning, seal grooves
- Finishing Options: Anodizing, passivation, electropolishing, and bead blasting
Integrated Product Lines
Engineering Front End: Mold Design & Solidification Simulation
Before pouring liquid metal, VastCasting engineering teams run full casting simulation models using Magma and ProCAST software. We optimize gating networks, runner layout, and riser placement to eliminate shrinkage porosity and thermal stress prior to investment casting tooling fabrication.
Core Technical Capabilities
- Simulation Tools: ProCAST thermal analysis and Magma flow modeling
- Datum Alignment: CNC clamping datums integrated during mold design
- Prototyping: 3D printed wax patterns for rapid physical validation
- Tooling Life: Hardened tool steel molds engineered for high volume
Front End Optimization
Seamless Alignment Between Casting Metallurgy and Precision Machining
Traditional OEM manufacturing supply chains often split procurement between raw casting foundries and downstream machining facilities. This fragmented structure creates significant operational risks, including disputes over machining stock allowances, uncoordinated datum points, unassigned liability for sub-surface porosity defects, and compounded lead-time delays.
At VastCasting, our integrated single-facility model eliminates these communication friction points entirely. VastCasting engineers integrate CNC clamping datums directly during the initial mold design phase to ensure seamless casting to machining alignment. By establishing unified quality metrics from initial wax pattern injection through 5-axis CNC finish machining, we deliver fully finished drop-in ready components with total single-source accountability.
| Capability Focus | Primary Alloys Supported | Precision Tolerance Class | Target OEM Applications |
|---|---|---|---|

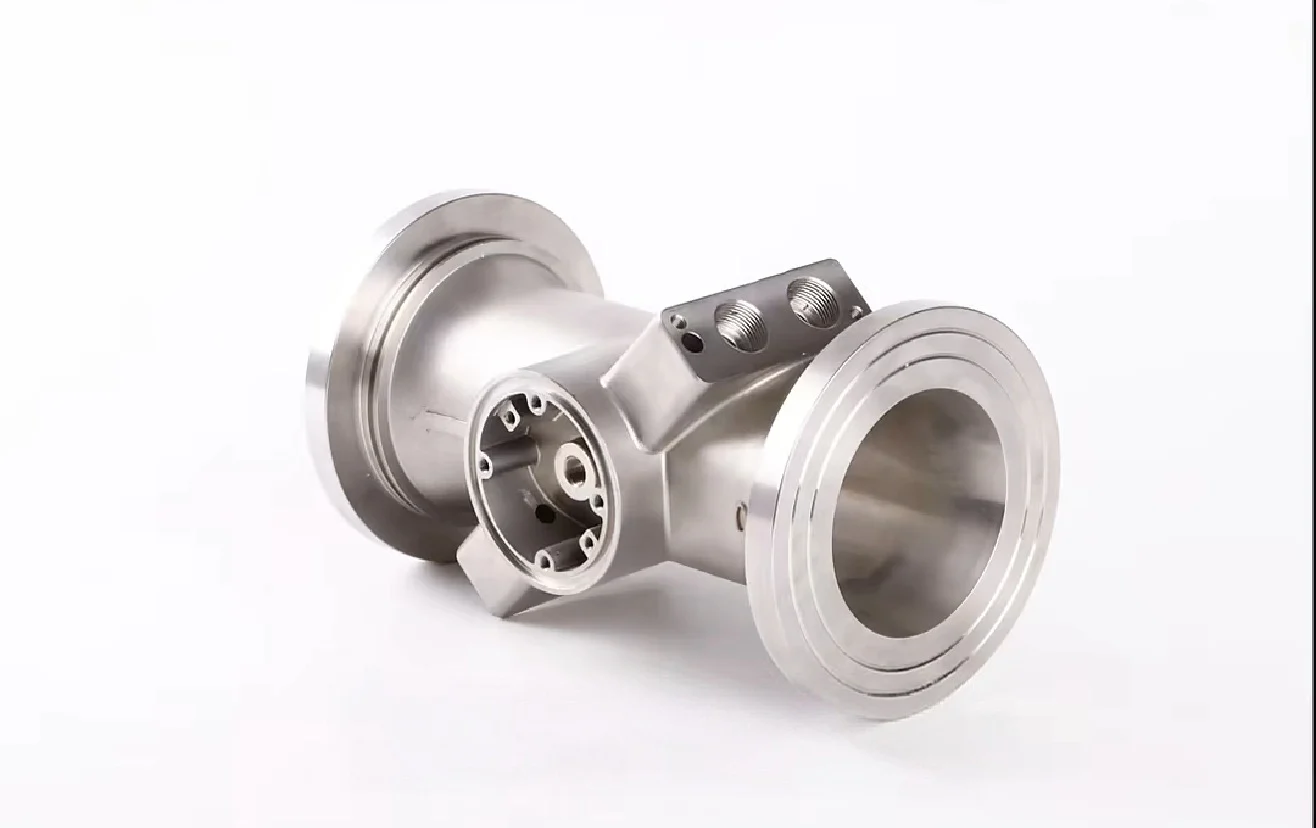

| Silica Sol Investment Casting | 304, 316, 316L, Duplex 2205, Inconel 718 | CT4 to CT6 under ISO 8062 | Pressure valve body fittings, fluid control housing, turbine vanes |
| 5-Axis CNC Precision Machining | Cast stainless steel, billet aluminum, carbon steel | Fine precision tolerance under ISO 2768 | Gearbox housings, exhaust manifolds, valve seats, flange faces |
| Mold Design and Casting Simulation | Full metallurgical range simulation compatibility | Virtual defect-free verification | Complex internal flow passages, thin-wall hot section components |
Single-Source Accountability Drives Quality and Speed
Whether your project requires raw investment casting, rapid direct CNC machining from aluminum bar stock, or a fully integrated cast-and-machine workflow, VastCasting delivers flexible manufacturing paths tailored to your batch volume and geometric complexity.
- Reduced total procurement lead times by up to 35 percent
- 100 percent in-house chemical spectrometry and dimensional inspection
- Eliminated vendor defect disputes between foundry and machine shop
Complete In-House Quality Control: From Melt Spectrometry to CMM Casting Inspection
VastCasting operates an advanced NDT foundry and testing laboratory to eliminate porosity, subsurface defects, and leak risks for high-pressure valve body fittings and superalloy high-temp castings. Our unified investment casting quality control framework guarantees full material traceability and immediate inspection report turnaround without third-party delays.
Pre & Post-Pour Spectrometry
100% chemical composition verification for 304, 316L, Duplex stainless steel castings, and superalloy melts before and after pouring.
CMM Casting Inspection
Micron-accurate CMM casting inspection verifying critical valve seats, thread pitches, flatness, and post-machining hole patterns.
Pressure & NDT Testing
Full-capability NDT foundry suite including pneumatic leak checks, hydrostatic pressure testing, X-ray radiography, and ultrasonic testing (UT).
Single-Site QA Documentation
Material certifications, dimensional logs, and NDT reports generated directly in-house for complete single-vendor accountability.
Investment Casting Quality Control
Performing all metallurgical, dimensional, and NDT inspections in-house eliminates third-party logistics delays and vendor blame-shifting.
Equipped with high-precision CMM 3D measuring systems, optical spectrometers, and hydrostatic test rigs for zero-defect component validation.
Ready to Launch Your Turnkey Precision Manufacturing Project?
Eliminate communication gaps between separate foundries and machine shops. Upload your 2D and 3D CAD files (STEP, DWG) for a thorough engineering feasibility assessment and a precise turnkey casting quote within 24 hours. As a leading precision casting manufacturer in China, VastCasting delivers seamless, single-source OEM production built to your exact specifications, including specialized valve body fittings and custom food machinery components.
Flexible Production Routes
Support for both fully integrated investment casting + CNC machining and high-precision direct CNC-only routes.
Universal CAD Compatibility
Rapid DFM and cost evaluation for STEP, IGES, DWG, DXF, and 2D engineering drawings.
