Precision CNC Machining for Investment Castings & Extrusions
Eliminate supplier disputes between foundries and machine shops. VastCasting integrates investment stainless steel castings, profile cutting, 5-axis CNC machining, and surface finishing under one roof for flawless, single-source manufacturing.

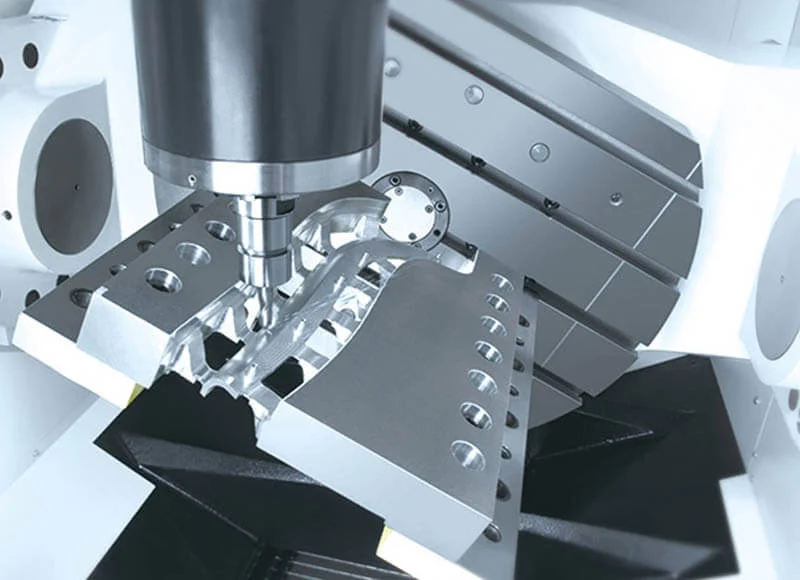

5-Axis CNC Center in Action
Live demonstration of high-precision valve machining
Dual Production Routes for Precision Components
VastCasting optimizes production velocity and unit cost through two distinct manufacturing pathways—combining in-house investment casting with high-precision CNC machining or machining directly from mill-certified stock.
Precision Wax Injection & Assembly
Inject high-density wax into engineered aluminum tooling and construct rigid tree assemblies.
Ceramic Shelling & Autoclave Dewaxing
Build multi-layer refractory ceramic shells over patterns prior to high-pressure steam dewaxing.
Induction Melting & Alloy Pouring
Pour molten alloy into preheated molds under strict atmospheric control to cast high-performance components, including superalloy high temp castings.
In-House CNC Machining & CMM Audit
Execute multi-axis CNC milling and turning on critical mating faces, threads, and bores before full CMM inspection.
Near-Net-Shape Efficiency for Complex Investment Castings
Combining lost-wax investment casting with in-house CNC machining drastically minimizes material waste and cycle times on intricate metal components, particularly for custom stainless steel castings.
By casting near-net shapes directly in our foundry, we optimize machining allowances, preventing internal porosity exposure on critical sealing surfaces.
Single-Source Casting & CNC Integration
Our CNC machining centers process raw castings in-house, finishing critical valve body fittings, precision flanges, and thread connections without intermediate vendor shipping risk.
Certified Bar & Profile Selection
Source mill-certified solid bar stock, stainless billets, or extruded aluminum profiles to exact specifications.
High-Speed Heavy CNC Roughing
Utilize high-torque CNC mills to rapidly hog out raw material and establish core component geometry.
5-Axis Precision CNC Finishing
Perform multi-axis milling and precision turning to achieve tolerances down to ±0.005 mm and fine surface finishes.
100% CMM QC & Surface Preparation
Conduct coordinate measuring machine verification, ultrasonic deburring, and preparation for downstream coatings.

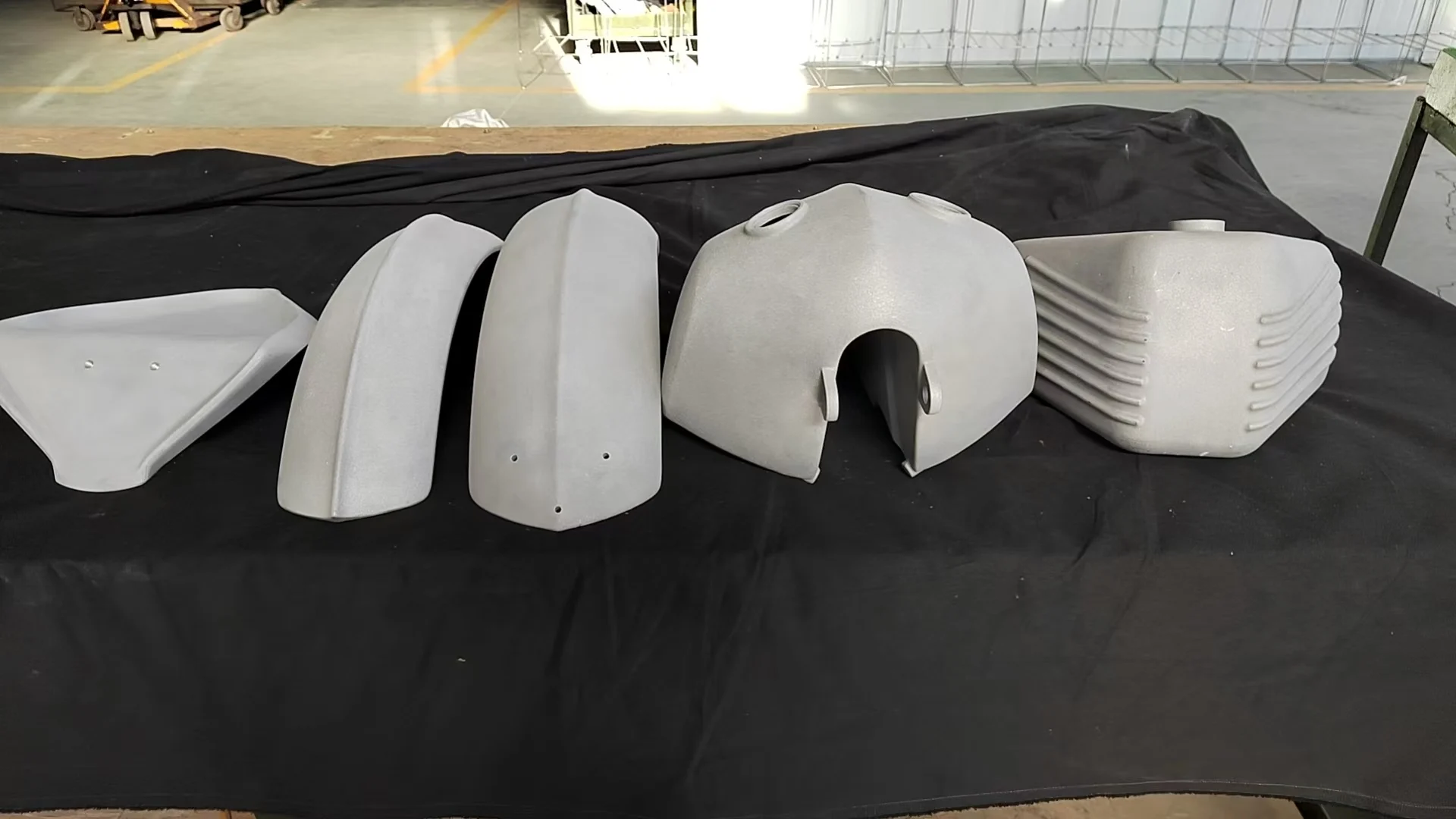

Zero-Tooling Speed & Direct Aluminum Profile Machining
Direct profile machining carves components directly from certified solid bars, stainless steel stock, or engineered aluminum extrusions.
This pathway eliminates NRE tooling costs and extended lead times, offering an ideal solution for fast-turn production, prototypes, or structural aluminum parts.
Seamless Machining to Surface Treatment Transition
Subtracting material directly from dense profile stock eliminates porosity risks while preparing uniform surfaces for anodizing, powder coating, or plating.
Core Machining Capabilities and Advanced Equipment Matrix
VastCasting operates a state-of-the-art machine shop seamlessly integrated with our investment casting foundry and profile extrusion lines. By uniting advanced multi-axis CNC technology with rigorous in-house quality inspection, we transform raw investment castings and extruded profiles into fully finished, high-precision OEM components. Our single-source production model eliminates multi-vendor handoffs, drastically reduces lead times, and prevents costly quality disputes between separate foundries and machine shops.
Whether your application requires simultaneous 5-axis CNC machining for complex superalloy turbine blades and vanes, multi-spindle Swiss turning for high-volume fluid control hardware, or heavy-duty horizontal milling for stainless steel valve body and fittings, VastCasting guarantees strict engineering machining tolerances down to ±0.005mm and superior surface finishes reaching Ra 0.4.

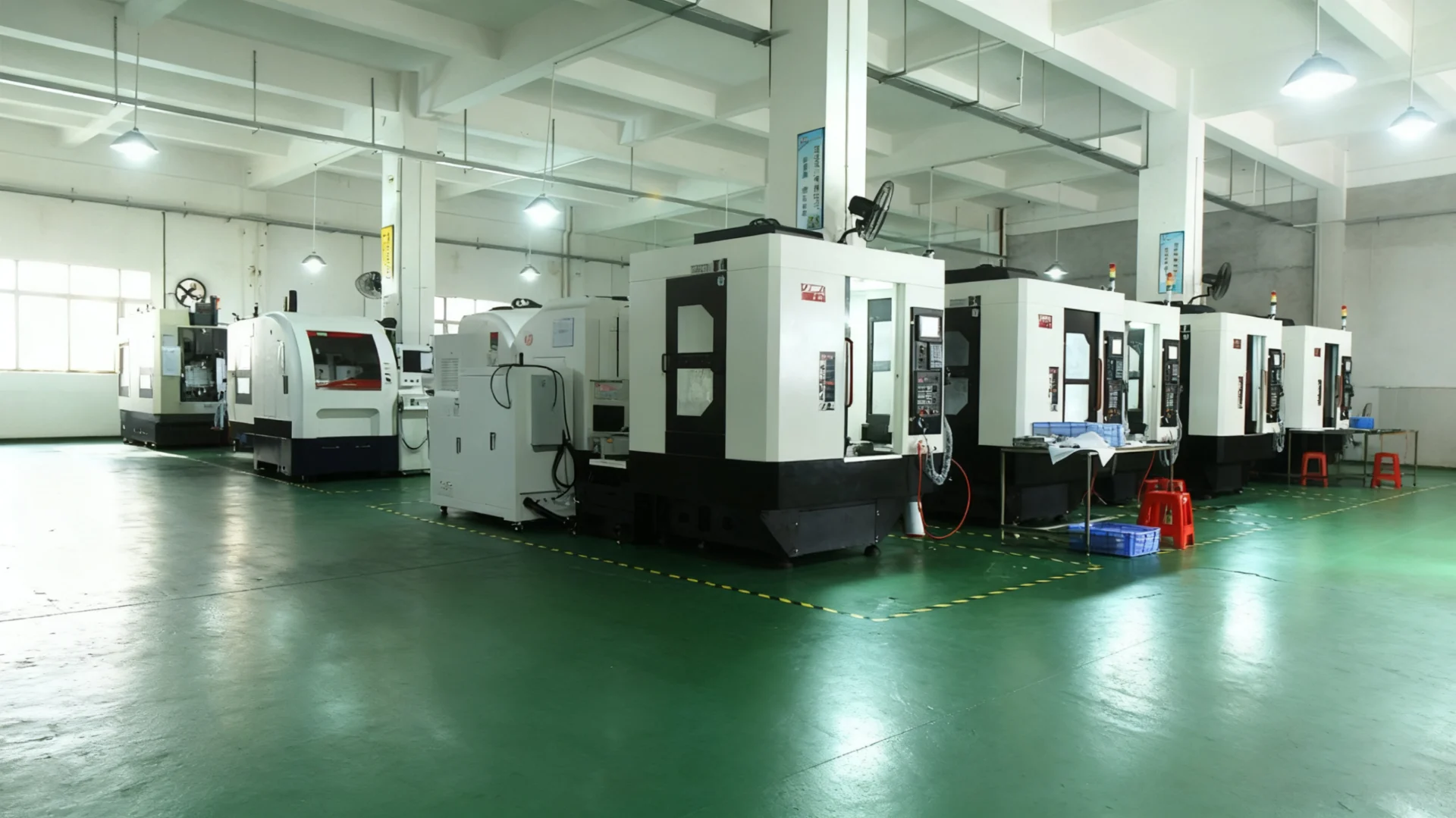

3, 4 & 5-Axis CNC Machining Centers
Our machining floor houses high-speed vertical (VMC) and horizontal machining centers (HMC) alongside simultaneous 5-axis CNC equipment. These multi-axis systems handle intricate contoured profiles, deep internal cavities, and compound angles in a single machine setup.
- Simultaneous 5-axis CNC milling for complex sculptured surfaces
- High-rigidity HMC units optimized for heavy stainless steel castings
- Multi-pallet automatic loading setups for continuous high-volume production
Precision Swiss Lathes & CNC Turning
Equipped with multi-axis Swiss-type automatic lathes and live-tooling turning centers, VastCasting manufactures rotational components demanding extreme concentricity, tight thread pitch, and critical cylindrical bores.
- Precision Swiss turning for long, slender, small-diameter shafts and pins
- Live tooling capabilities for integrated milling, drilling, and cross-tapping
- Automatic bar feeder integration delivering optimized cycle times
Quality Control & Metrology Equipment
Quality assurance is embedded directly into every machining operation. Our climate-controlled quality laboratory utilizes advanced measurement technology to verify precise physical dimensions, material integrity, and surface roughness.
- ZEISS CMM inspection systems for automated 3D dimensional verification
- Optical emission spectrometers and surface roughness profile testers
- Hydrostatic and pneumatic pressure testing rigs for valve bodies and housings
Precision Machining of Complex Component Features
High-performance components across fluid control, automotive, and power generation industries require intricate geometric execution beyond standard flat milling. We process heavy-duty hardware for severe services, including petrochemical equipment parts. VastCasting excels at complex machining features that demand absolute alignment, reliable sealing surfaces, and ultra-smooth surface finishes.
Precision Valve Seats & Bores
Mirror-finish sealing faces and stepped internal bores designed to resist fluid leakage under high operating pressures.
Companion Flanges & Threads
Precision bolt-circle patterns, facing ring grooves, and NPT/UNC thread milling with zero burr formation.
Turbine & Impeller Surfaces
Simultaneous 5-axis surface machining for optimal aerodynamic profiles and dynamic balance on turbine blades and vanes.
Thin-Wall & Structural Extrusions
Low-vibration milling for aluminum profiles and delicate investment casting shells without structural distortion.
CNC Equipment Specifications & Machining Tolerances
Below is a comprehensive breakdown of VastCasting’s primary CNC equipment platforms, achievable machining tolerances, surface roughness capabilities, and integrated inspection tools.
| Equipment / Process Category | Machine Specifications & Capabilities | Machining Tolerances | Surface Finish (Ra) | Inspection Equipment |
|---|---|---|---|---|
| 5-Axis CNC Milling Centers | High-speed spindles (up to 20,000 RPM), 1,200mm max bed length, simultaneous 5-axis contouring | ±0.005 mm | Ra 0.4 – Ra 0.8 | ZEISS CMM, 3D Laser Scanner |
| Horizontal Machining Centers (HMC) | Dual-pallet changers, high-torque spindles tailored for heavy casting alloys and steel forgings | ±0.010 mm | Ra 0.8 – Ra 1.6 | Bore Gauges, Height Masters, CMM |
| Vertical Machining Centers (VMC) | 3-axis & 4-axis rotary setups for aluminum extrusions, flanges, and machined valve bodies | ±0.008 mm | Ra 0.8 – Ra 1.6 | Optical Profilometer, Digital Micrometers |
| Swiss-Type CNC Lathes & Turning | Multi-axis live tooling, sub-spindles, continuous bar feeder integration for complex turned parts | ±0.005 mm | Ra 0.4 – Ra 0.8 | Thread Gauges, Air Gauges, CMM |
| In-House Metrology & Quality Lab | Temperature and humidity-controlled lab environment for full dimensional and metallurgical validation | Verification to 0.001 mm | Ra Profilometer Audit | Spectrometer, Hydrostatic Test Bench |
Eliminate Vendor Disputes with Single-Source Casting & Machining
By unifying investment casting, profile extrusion, multi-axis CNC machining, and CMM inspection under one roof at VastCasting, subsurface porosity discovered during machining is scrapped and recast immediately in-house—saving you valuable lead time, freight expenses, and finger-pointing between separate suppliers.
Precision Machined Products and Downstream Industry Solutions
VastCasting bridges advanced alloy investment casting with ultra-precise CNC finishing. We manufacture mission-critical products for demanding global OEMs, delivering defect-free parts directly from raw melt blanks or profile stock through 5-axis machining and final CMM verification.

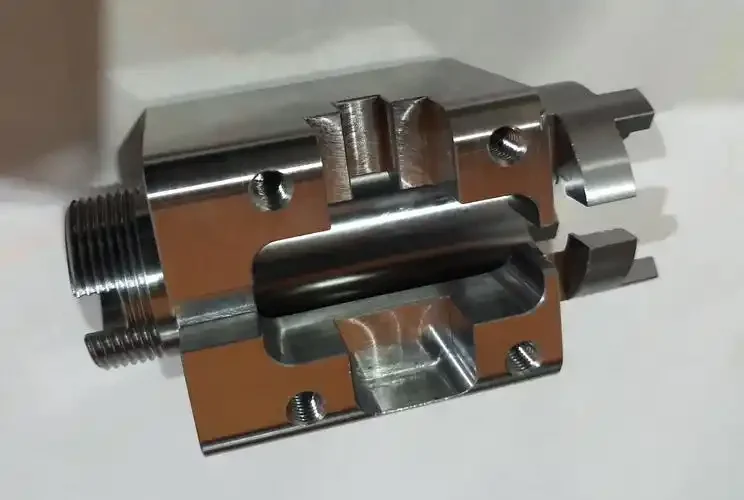

Machined Valve Bodies & Fluid Components
Engineered for extreme pressure containment and corrosive environments, combining lost-wax investment casting with high-precision internal thread tapping, face sealing, and bore honing. Our custom valve-body-fittings provide superior reliability across severe service applications.
- Pressure Reducing Valve Bodies: Leak-proof internal chambers with micron-level seating surfaces.
- Air Release Valves: Corrosion-resistant cast housings built for municipal and industrial water systems.
- Flange & Valve Assemblies: High-integrity multi-axis machined flanged connections.

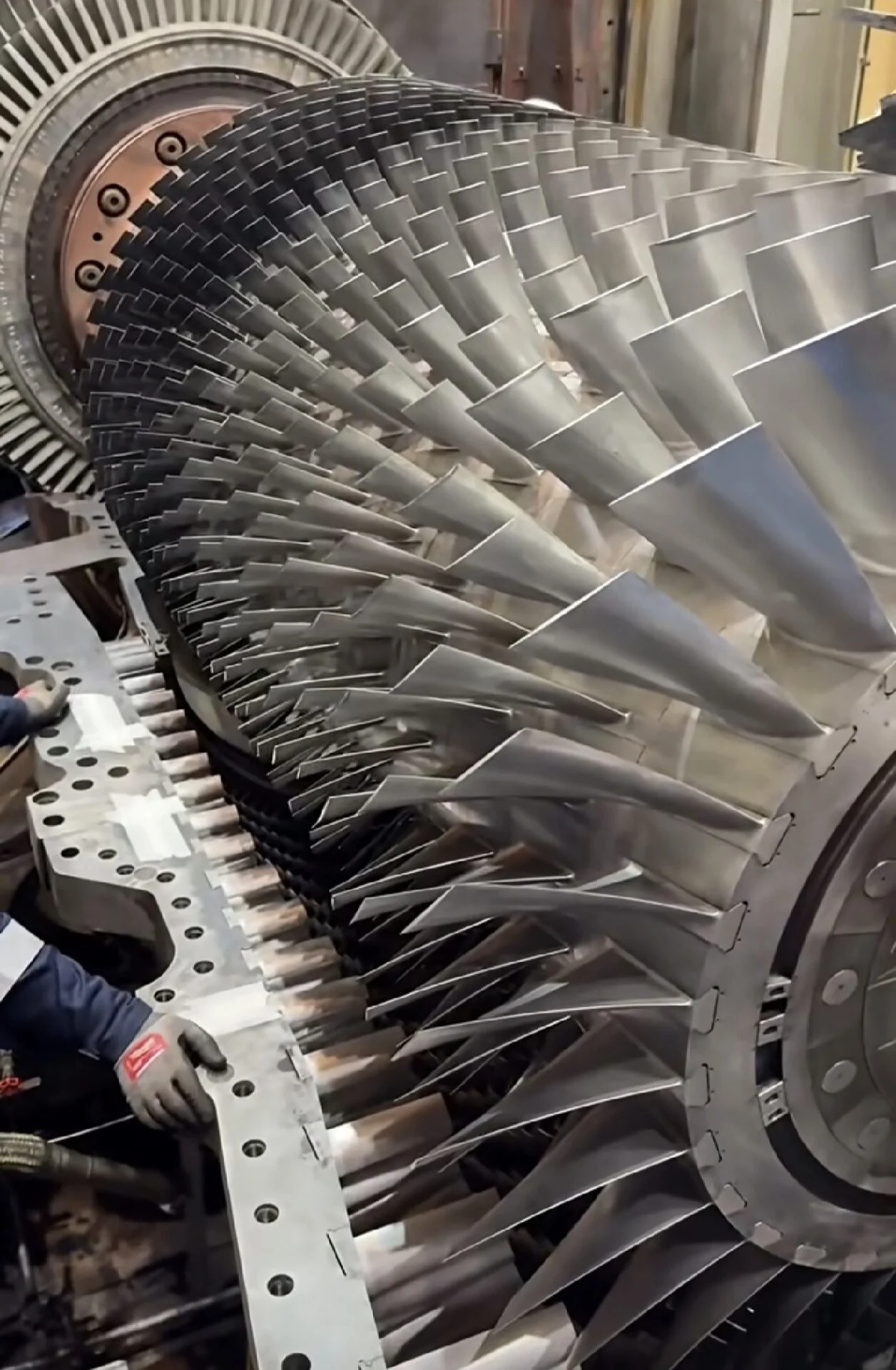

High-Temp Alloys & Precision Automotive Parts
Delivering high structural integrity and tight tolerances for thermal exposure applications, turbochargers, and heavy-duty drivetrain systems through specialized stainless-steel-castings.
- Turbine Blades & Vanes: 5-axis contoured impeller surfaces operating under high thermal stress.
- Gearbox Housings: Complex internal geometry machined for high-performance automotive platforms.
- Exhaust Components: Heat-resistant stainless manifolds and high-flow exhaust elbows.

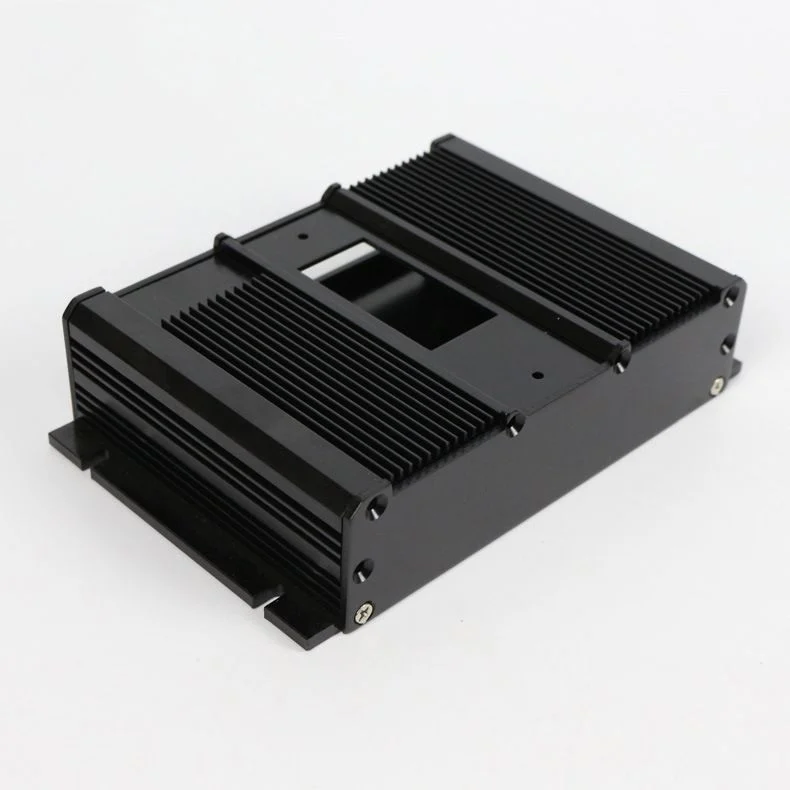

Machined Aluminum Components & Profiles
Rapid direct profile stock machining for heat-dissipating electronics, chassis framing, and lightweight structural industrial assemblies.
- Machined Aluminum Components: Custom extruded enclosures milled and anodized in unified production lines.
- Precision Structural Framing: High-rigidity mounting brackets, chassis rails, and robot arms.
- Heat Dissipation Modules: High-surface-area aluminum heat sinks with multi-axis pin milling.
Manufacturing Route & Application Specification Matrix
The table below illustrates how VastCasting matches optimized raw material pathways—investment casting or profile bar stock—to target performance metrics and finishing standards across downstream sectors.
| Product Category | Primary Alloys | Key CNC Operations | Critical Tolerances | Target Downstream Use |
|---|---|---|---|---|
| Fluid Control & Machined Valve Bodies | 304, 316, 316L, CF8M, Duplex | 5-axis bore machining, NPT/BSP threading, face sealing | ±0.005 mm | Chemical, oil & gas, municipal water, steam control |
| Turbine Blades & High-Temp Parts | Inconel 718/625, Hastelloy, Cobalt Alloys | High-speed 5-axis surface profiling, root dovetail milling | ±0.008 mm | Power generation, aerospace turbines, turbochargers |
| Precision Automotive Parts | A356, AlSi10Mg, Ductile Iron, Alloy Steel | Precision boring, multi-point tapping, sensor mounting faces | ±0.010 mm | Gearboxes, performance exhaust, engine mounts |
| Machined Aluminum Components & Framing | 6061-T6, 6063-T5, 7075-T6 | Profile slotting, high-speed gantry milling, pocketing | ±0.015 mm | Automation frames, EV battery housings, heat sinks |
Integrated Precision: Single-Source Quality Guarantee
Eliminate supplier disputes and dimensional misalignments between independent foundries and machine shops. VastCasting handles raw casting, precision CNC machining, and final surface treatment under one roof—supported by 100% CMM inspection and full material traceability.
Single-Source Surface Treatment for Castings & Profile Machining
Eliminate third-party processing bottlenecks, transit risks, and multi-vendor quality disputes. VastCasting integrates comprehensive chemical, mechanical, and electrochemical surface treatments directly downstream of our precision CNC machining operations. By consolidating our primary investment casting process, multi-axis milling, and technical surface finishing under one roof, we protect tight tolerances down to ±0.005mm, guarantee superior corrosion resistance, and accelerate total production delivery times.
Chemical Passivation & Acid Pickling
Essential for stainless steel investment castings and machined fluid control components, chemical acid pickling thoroughly removes embedded free iron, scale, and surface contaminants left by cutting tools. Subsequent nitric or citric acid passivation regenerates the protective chromium oxide layer, drastically extending corrosion resistance without altering critical tight-tolerance dimensions or threads.
304, 316, 316L, Duplex Stainless Steels (2205/2507), and Precipitation Hardening Alloys (17-4PH). Fully compliant with ASTM A967 and AMS 2700 standards.
Mechanical Polishing & Electropolishing
Our multi-stage polishing capabilities range from automated bead blasting and mirror mechanical buffing to electro-chemical polishing. Electropolishing micro-shaves surface peaks to achieve ultra-smooth surface roughness down to Ra 0.4 to Ra 0.2 μm while effectively deburring intricate internal flow cavities, valve seats, and turbine blades vanes.
Sanitary valve bodies, pharmaceutical pump housings, turbine vanes, high-temperature automotive exhaust components, and decorative structural hardware.
Anodizing (Type II & Type III Hardcoat)
Engineered for aluminum profile-machined parts and structural extrusions, in-house anodizing converts the aluminum substrate into a durable dielectric layer. Type II anodizing provides vibrant color options and mild protection, while Type III Hardcoat anodizing produces extreme surface hardness equivalent up to 60 HRC for severe wear environments.
6061-T6, 6063, 7075 extruded aluminum, and A356/A380 cast aluminum alloys. Clear, black, hardcoat, and custom dyed finishes with optional PTFE sealing.
Protective Powder Coating & Plating
When severe environmental exposure demands robust physical barrier protection, VastCasting applies electrostatically cured powder coatings or functional metal plating. Automated pre-treatment chemistry guarantees coating adhesion and salt-spray corrosion resistance exceeding 1,000 hours.
- ✓ Powder Coating: Durable epoxy, polyester, and hybrid formulations across standard RAL colors.
- ✓ Specialized Plating: Electroless Nickel Plating (ENP), Zinc-Nickel, and Chromate Conversion (Alodine).
Visual Quality Comparison
Compare raw post-machining metal surfaces with fully treated, passivated, and polished finished components produced inside VastCasting's facility.

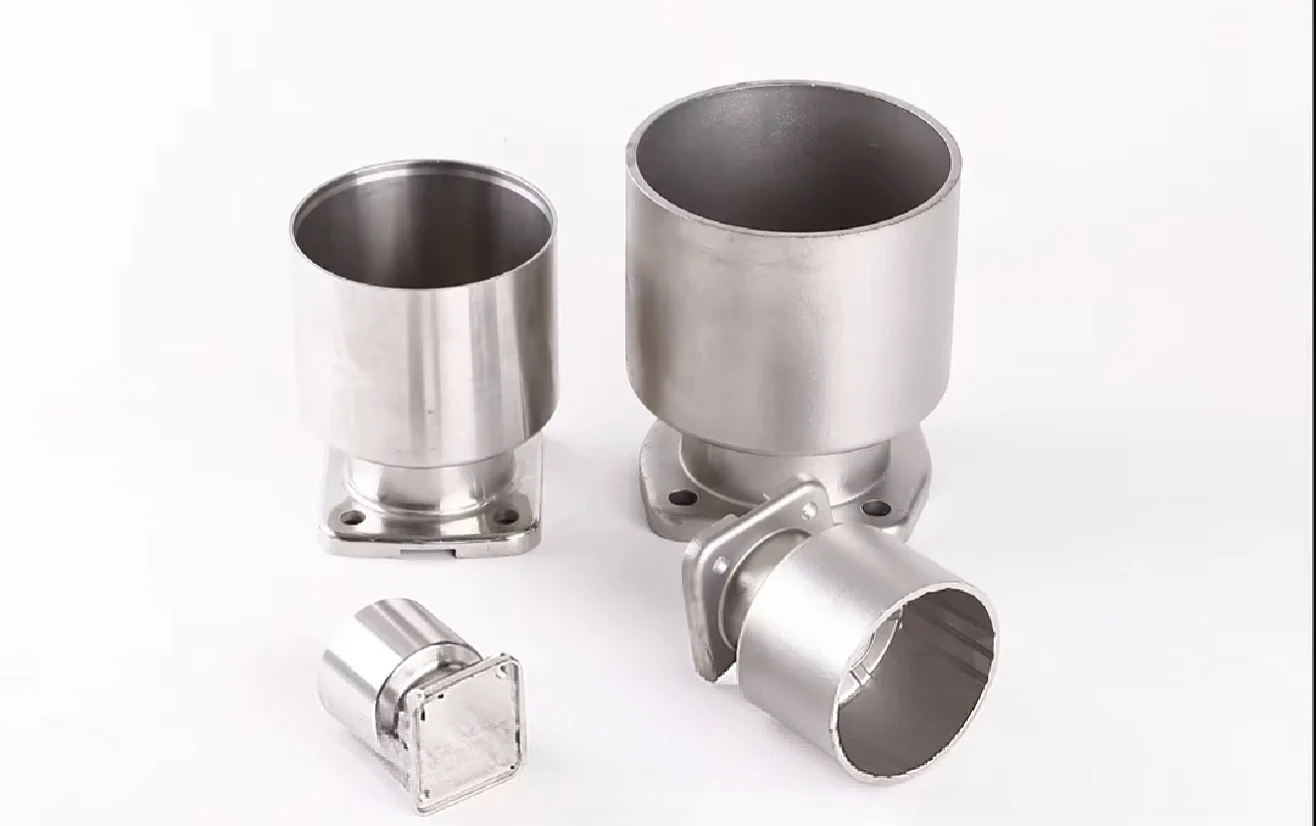

Precision stainless steel valve body demonstrating total burr elimination, uniform surface luster, and restored passive oxide layer post-treatment.
Extruded aluminum profile component following multi-axis CNC milling and hardcoat anodizing for maximum wear resistance.
Why In-House Finishing Wins
- 1 Single-Source Accountability Zero finger-pointing between the foundry, machine shop, and coating plater if technical dimensions or salt-spray tests fall short.
- 2 Precision Tolerance Control Our CNC programmers factor exact chemical plating thickness gains and acid removal rates directly into initial machining offsets.
- 3 30-40% Faster Turnaround Eliminating intermediate packaging, cross-dock transit, and third-party vendor queue times drastically reduces lead times.
- 4 Internal Defect Resolution Any raw casting porosity revealed during final polishing is contained and resolved internally prior to shipping.
Single-Source Foundry and Machining Advantages
Splitting investment casting manufacturing and precision CNC machining between separate suppliers introduces hidden operational expenses, extended lead times, and severe accountability risks. When a fully machined component fails pressure testing or dimensional inspection due to subsurface porosity or datum shift, fragmented supply chains almost always devolve into inter-vendor finger-pointing.
VastCasting eliminates vendor disputes through a fully integrated single-source manufacturing model. By combining precision lost-wax investment casting, profile processing, multi-axis CNC milling and turning, and specialized surface finishing under one roof, we guarantee end-to-end quality control. This unified setup optimizes machining stock allowances, drastically reduces porosity risks, accelerates delivery schedules, and delivers fully compliant finished components straight to your assembly line.
Integrated Manufacturing vs. Split Vendor Model
See how VastCasting's turnkey casting and machining capabilities safeguard your production schedule and bottom line compared to traditional multi-vendor supply chains.
| Key Operational Metric | VastCasting Integrated Model Recommended | Split Vendor Supply Chain |
|---|---|---|
| Supply Chain Accountability | 100% Single-Source Responsibility VastCasting assumes total ownership of raw alloy chemistry, casting integrity, CNC machining tolerances, and surface treatments. Zero customer bandwidth lost mediating supplier conflicts. | Fragmented Blame & Vendor Disputes Foundries blame machine shops for incorrect datum alignment or excessive clamping pressure; CNC shops blame foundries for inclusions, gas porosity, or casting shrink. |
| Subsurface Porosity Risk | Immediate In-House Scrap & Re-Cast If internal shrink porosity is exposed during rough milling, the part is scrapped immediately, gating designs are updated in real time, and replacement castings are poured without customer charge. | Post-Process Discovery & Financial Loss Porosity is often uncovered only after expensive 5-axis machining. Foundries frequently reject non-conformance claims, forcing OEMs to absorb unrecoverable machining costs. |
| Cost & Stock Allowance | Near-Net Shapes & Lower Machining Costs Castings are engineered with tight 1.0mm–1.5mm stock allowances tailored to internal CNC tooling pathways. Reduces raw alloy consumption, shortens cycle times, and cuts tool wear. | Excess Stock & Extended Cycle Times Stand-alone foundries add 3.0mm–5.0mm of extra material to guarantee clean-up, forcing machine shops to run additional roughing passes, inflating unit costs and cycle times. |
| Production Lead Time | Unified Production Scheduling Wax pattern production, pouring, heat treatment, multi-axis machining, and finishing operate under a synchronized master schedule, cutting turnaround times by 30–40%. | Compounding Shipping & Queue Delays Components must be packaged, shipped, unpacked, and re-queued between separate facilities. Any quality hold or transit delay completely resets production timelines. |
| Quality Control & Fixturing | Coordinated Datums & CMM Inspection Investment casting molds and CNC machining fixtures share precise datum targets. compliance is verified using ZEISS CMM inspection under unified ISO 9001 quality management. | Datum Conflicts & Measurement Variance Foundry target points often conflict with machine shop clamping plans, leading to off-center features, expensive custom secondary fixtures, or gauge repeatability issues. |
Why Integrated Foundry & Machining Delivers Superior Value
Examine the technical engineering advantages and commercial efficiencies that make VastCasting's single-source model the preferred choice for mission-critical OEM components.
Total Accountability & Zero Vendor Disputes
Managing separate foundry and CNC suppliers frequently leads to protracted liability disputes whenever a part fails inspection. Foundries routinely claim that parts were distorted by aggressive machining parameter setups, while machine shops blame the foundry for casting shrink or uneven hard spots.
With VastCasting, you deal with one engineering team and one purchase order. We take complete responsibility for raw material composition, dimensional accuracy, structural soundness, and surface finish, resolving technical issues internally before components ever ship.
- Single PO covers raw investment casting, CNC machining, and surface finishing
- Dedicated DFM engineering support from initial pattern tooling to final packaging
In-House Porosity Risk Management & Fast Recasting
Subsurface porosity, gas pockets, and shrink micro-voids are inherent risks in metal casting that often remain invisible until deep CNC drilling or high-speed milling breaks the surface. In split supply chains, discovering porosity after hours of machining wastes valuable machine time and sparks debit-memo disputes.
At VastCasting, rough machining and multi-axis finish milling take place within our own facilities. If subsurface porosity is exposed, CNC operators instantly pause the batch, process engineering adjusts the gating or pouring temperature, and replacement blanks are poured without delay.
- Zero customer loss from hidden internal casting defects
- Closed-loop feedback loop between CNC machinists and foundry metallurgists
Optimized Allowances & Reduced Overall Unit Costs
Independent foundries typically apply heavy machining stock allowances (3.0mm to 5.0mm) to safeguard against surface irregularities and casting distortion. However, this extra material adds weight to expensive stainless steel or superalloy-high-temp-castings melts and requires time-consuming roughing passes.
VastCasting's tooling designers engineer investment casting molds specifically around our 3-, 4-, and 5-axis CNC fixtures. Holding near-net shapes lets us reduce machining stock allowances to just 1.0mm–1.5mm, significantly lowering alloy weight, tool wear, and machine cycle time.
- Up to 20% reduction in raw metal melt weight
- Shorter machining cycle times with extended cutting tool longevity
Unified Quality Control & In-House Surface Treatment
Quality tracking breaks down when components travel between an offsite foundry, a machine shop, and a third-party finishing vendor. Every additional transit leg introduces risks of handling damage, extra freight overhead, and fragmented quality documentation.
VastCasting manages initial casting inspection, precision CNC machining, ZEISS CMM verification, and chemical surface treatments—including stainless steel passivation, pickling, electropolishing, and anodizing—under a unified ISO 9001 quality framework.
- Full material traceability with certified mill and CMM inspection reports
- Elimination of inter-facility transit delays and extra handling expenses
Streamline Your Supply Chain with Turnkey Precision
Eliminate lead time delays, cut administrative procurement overhead, and ensure guaranteed part precision. Partner with VastCasting for single-source lost-wax casting, profile machining, 5-axis CNC finishing, and integrated surface processing.
Technical FAQs & Rapid Quotation Request
Find direct answers to common CNC machining and casting questions, explore our engineered materials, or upload your CAD drawings for a comprehensive Design for Manufacturability (DFM) analysis and fast quote.
Frequently Asked Questions
Which CAD file formats do you support?
How do you handle internal porosity found during machining?
What is your Minimum Order Quantity (MOQ)?
What is the quote and DFM turnaround time?
Single-Source Quality Assurance
Every investment casting and machined component undergoes strict dimensional verification on ZEISS CMMs prior to dispatch.
Speak Directly with Engineering
Need immediate technical clarification or custom tolerance reviews?
Request an Instant RFQ
Upload CAD drawings for immediate engineering analysis
