Precision Investment Casting and CNC Machining for Fluid Control Valves
Turnkey investment casting blank and single-facility CNC machining solutions for global valve OEMs, food machinery, and petrochemical systems. Supporting 304, 316L, and duplex stainless steel with zero split-vendor liability.
VastCasting is a leading Chinese integrated valve casting manufacturer providing investment casting fluid control solutions and high-precision machining for global OEMs.
Single-Source OEM Engineering
Complete investment casting fluid control capabilities under one roof.
100% In-House CNC Machining
Eliminates quality handoff risk and dimensional disputes between separate foundry and machining vendors.
Class 150 to 2500 Pressure Rating Coverage
Full pressure class compliance verified by an experienced valve casting manufacturer team.
Full In-House NDT Inspection
Radiographic, liquid penetrant, and hydrostatic pressure testing for dense, zero-defect valve bodies.
Custom Valve Bodies and Fluid Handling Components
Engineering high-density, corrosion-resistant valve bodies and fluid conveyance components designed to withstand strict pressure requirements and aggressive media. As a premier custom valve body supplier, VastCasting delivers turnkey fluid control components spanning high-pressure water and gas regulation to ultra-pure sanitary processing systems within our full range of industrial products.
Leveraging unified casting and machining operations, VastCasting handles every stage of manufacturing under one roof—from silica sol investment casting blanks to precision 5-axis CNC machining. Our engineering expertise covers high-volume investment casting applications across austenitic stainless steel castings, duplex grades, and specialized alloys engineered for zero-leakage fluid control valves.

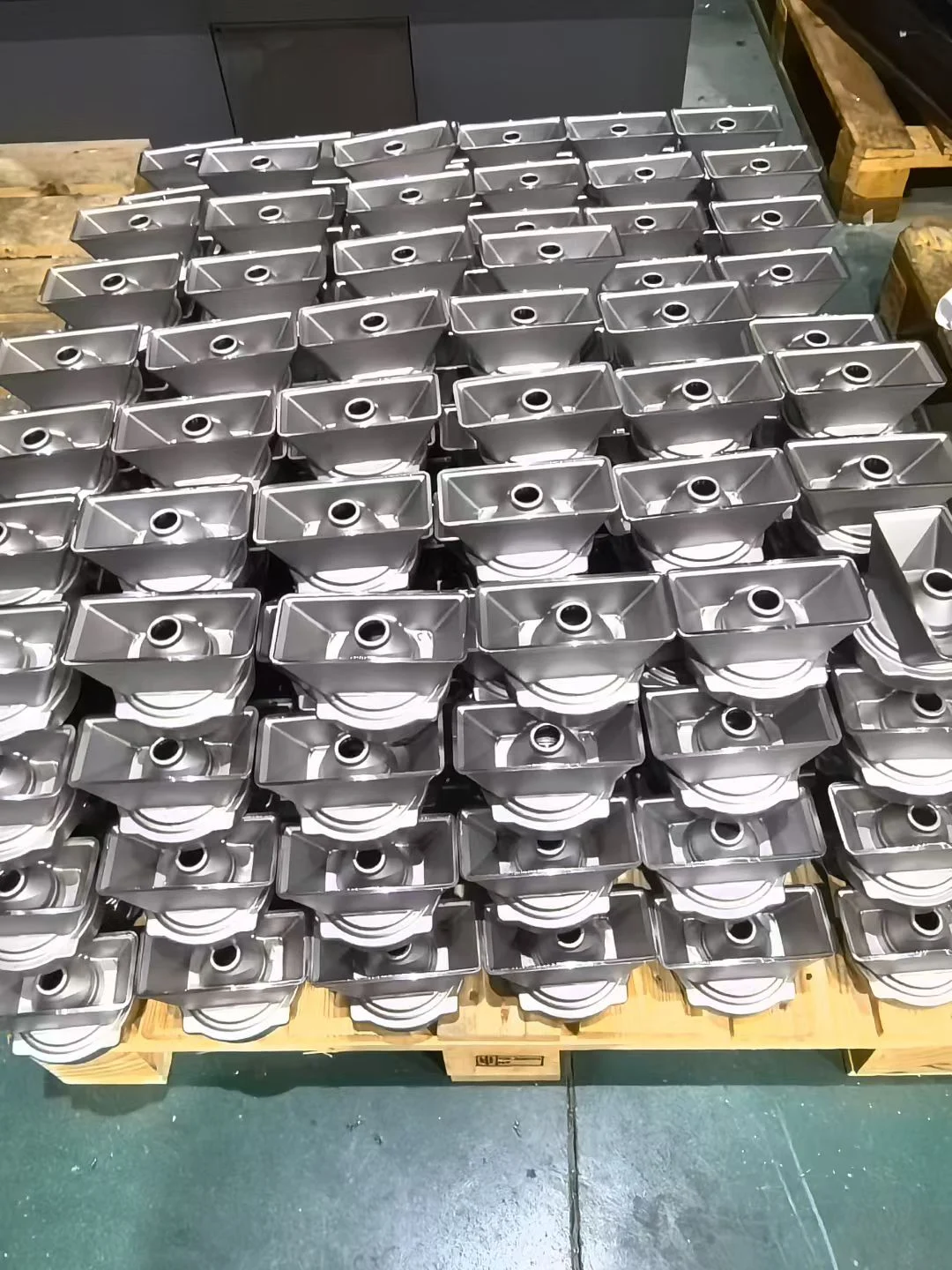

Class 150 - 2500 Pressure Reducing Valve (PRV) Bodies
Precision investment casting engineered specifically for high-pressure water, steam, and gas regulation systems. Designed to eliminate subsurface porosity and withstand severe pressure surges under continuous flow adjustment.
- Materials: ASTM A351 CF8M, CF3M, Duplex 2205
- Key Advantage: Solidification simulation to prevent shrink defects

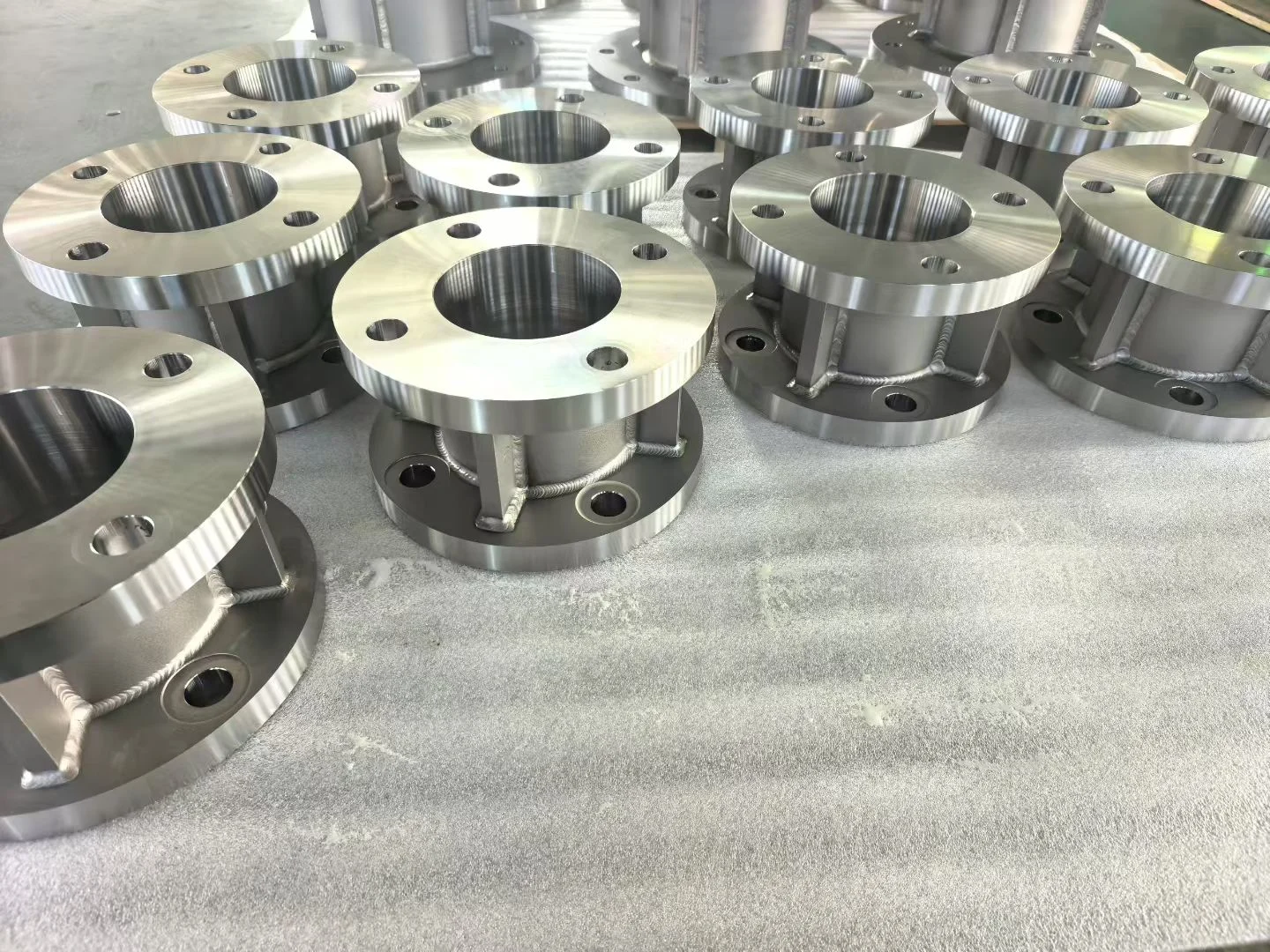

High Density Castings Air Vent & Safety Valve Bodies
Non-porous, high-density castings built to absorb continuous pressure surges and high thermal cycles. Manufactured with precise wall thicknesses to guarantee structural integrity during rapid venting operations.
- Testing: 100% Hydrostatic and Pneumatic Proof Testing
- Applications: Pipeline air release, thermal boiler safety relief

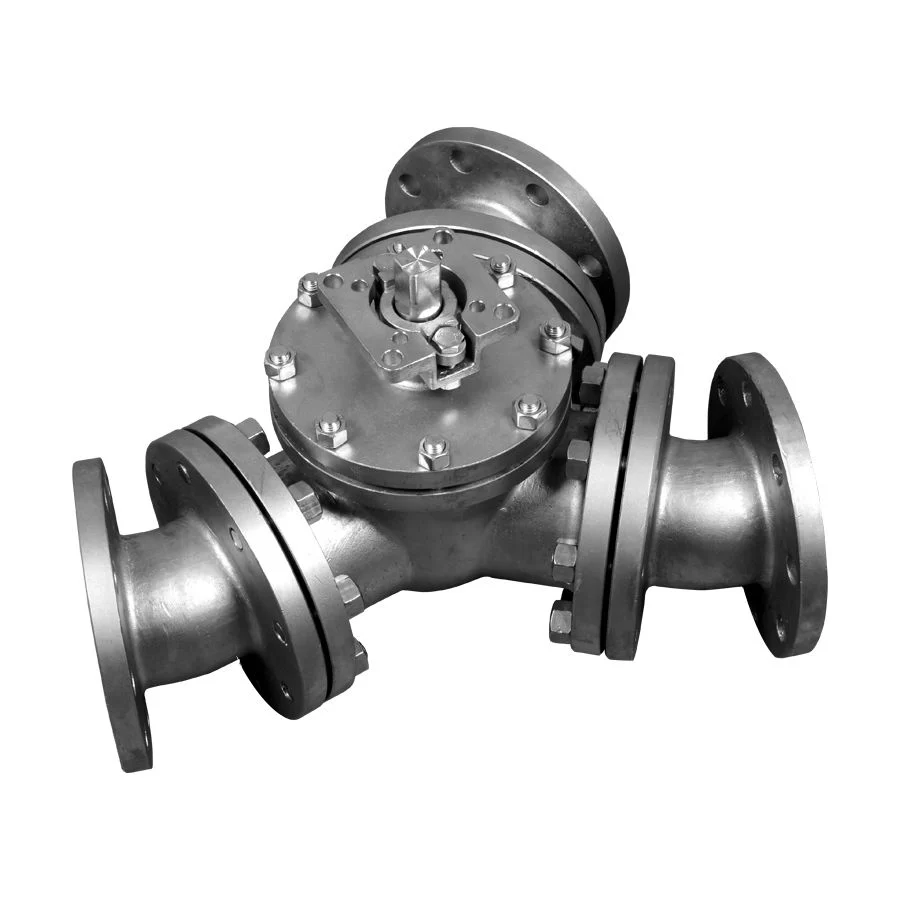

Bubble-Tight Shutoff Ball & Butterfly Valve Housings
Duplex and stainless steel constructions featuring precision machined seal grooves and flange faces. Engineered for tight geometric tolerances that ensure zero-leakage, bubble-tight shutoff in critical pipelines.
- Machining: Single-setup 5-axis CNC seal groove profiling
- Standards: ASME B16.34, API 608 / API 609 compliant

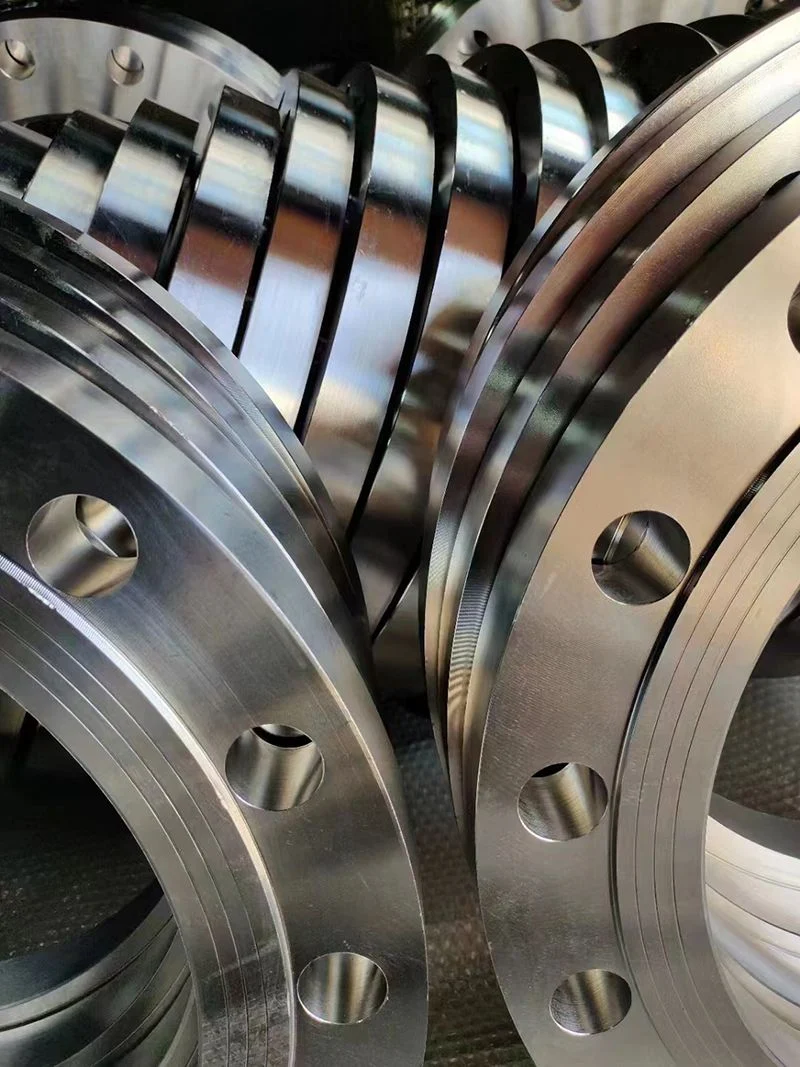

Corrosion Resistant Valve Fittings & Custom Flanges
Custom corrosion-resistant connecting components, threaded adapters, and specialized valve body fittings. Designed to seamlessly integrate fluid control valves into high-pressure industrial piping systems.
- Threads: NPT, BSPP, UNC precision CNC thread cutting
- Customization: Tailored bore dimensions and hub configurations

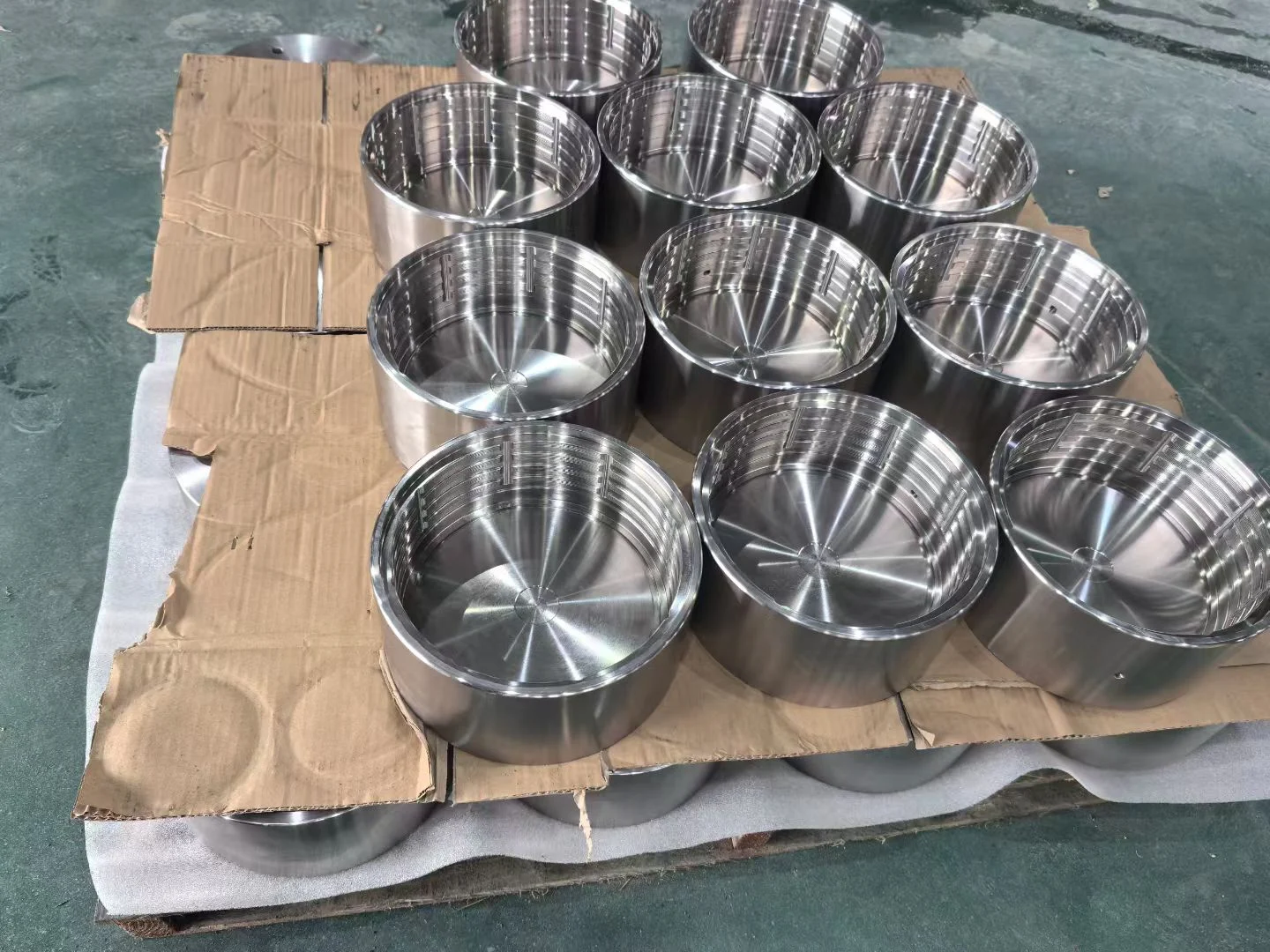

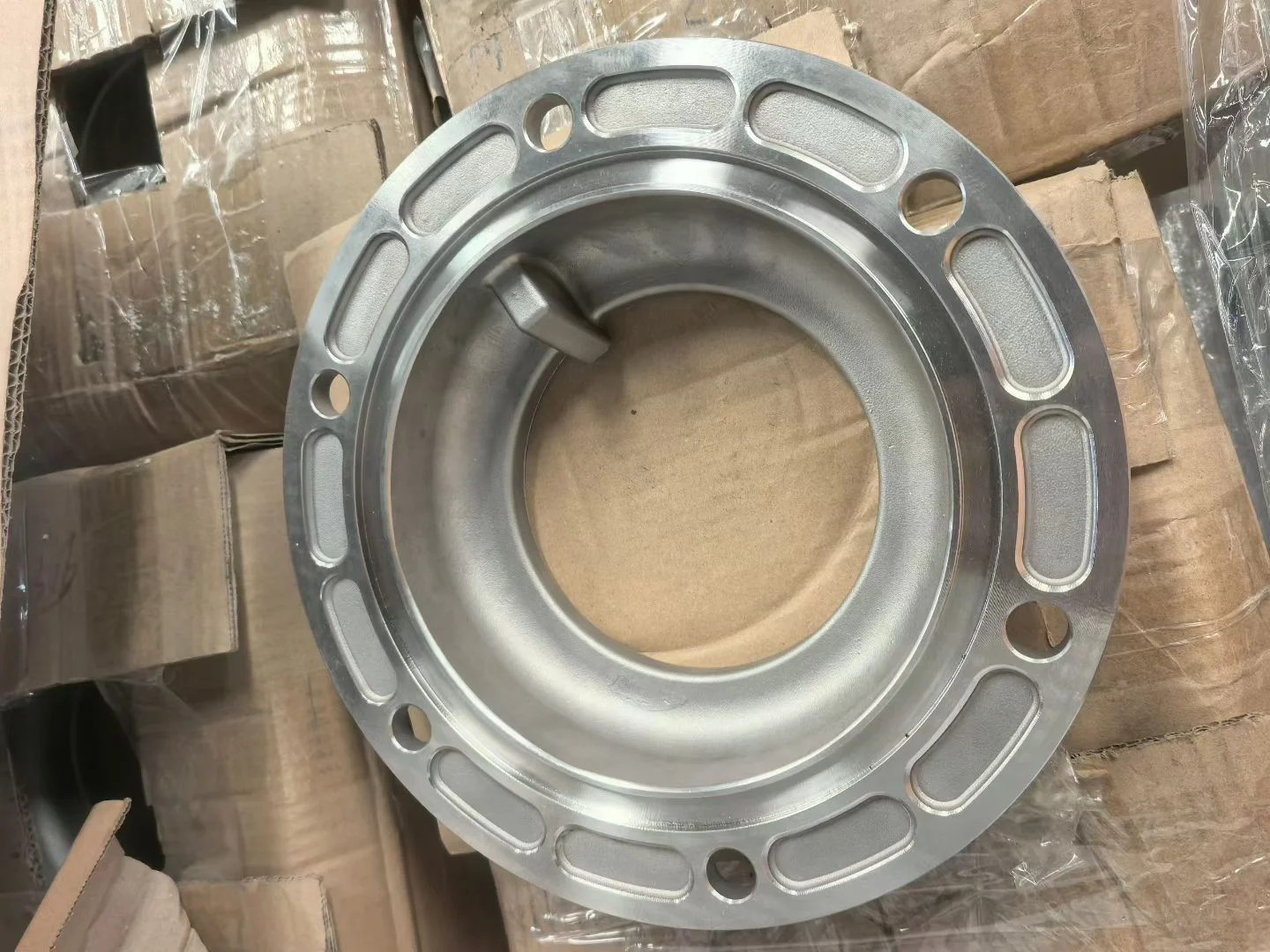

Ra ≤ 0.8 µm Mirror Finish Sanitary Valve Bodies & Pump Casings
Ultra-clean fluid conveyance components featuring mirror-polished interior surfaces achieving Ra ≤ 0.8 micrometers. Fully compliant with FDA sanitary standards for food, beverage, and pharmaceutical processing.
- Finishing: Silica sol casting with secondary electropolishing
- Hygiene Standard: FDA and 3-A Sanitary compliant

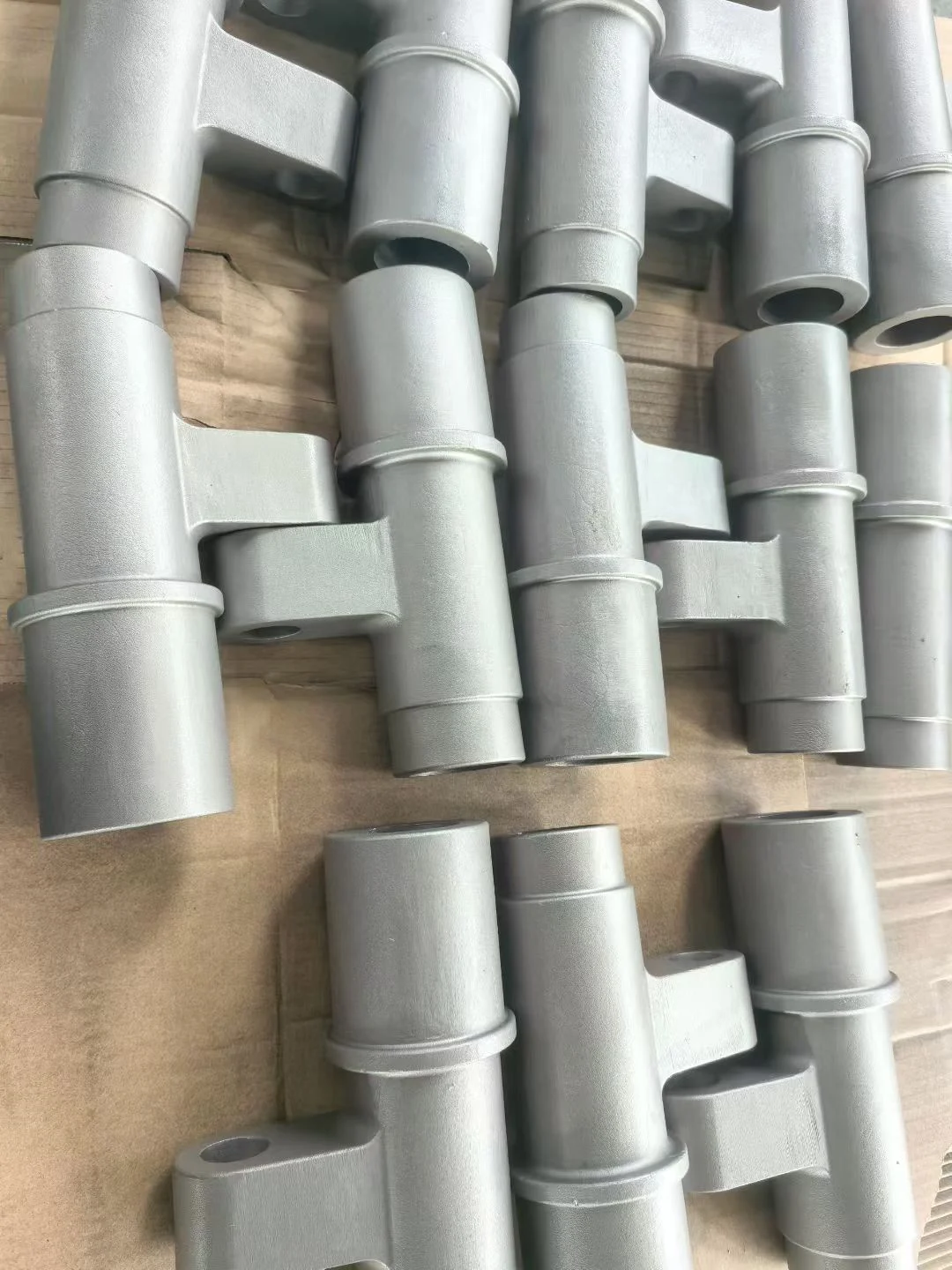

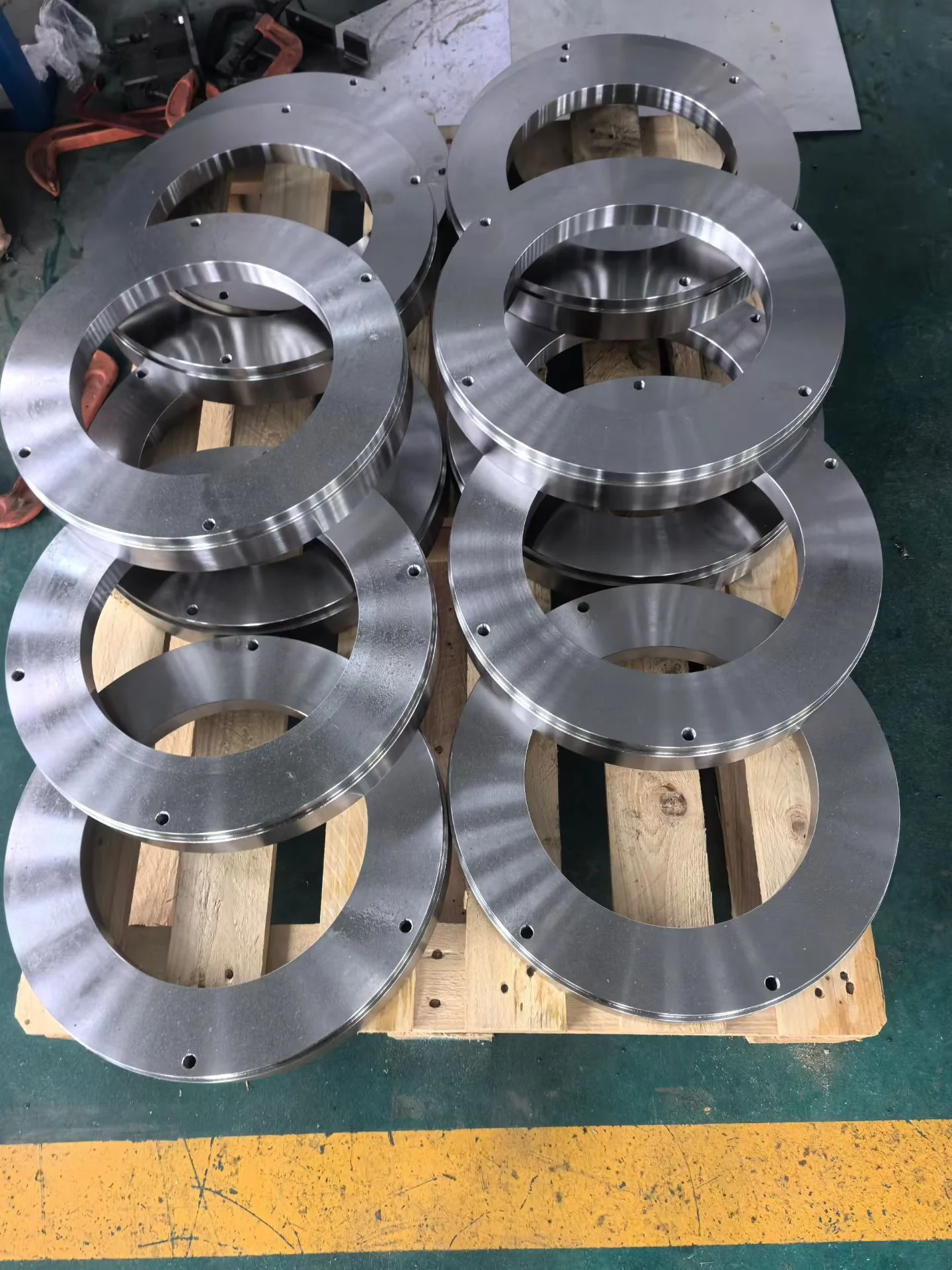

Severe Environments Petrochemical Stainless Castings
Heavy-duty pump casings, open or closed impellers, and primary pressure-retaining valve components engineered for aggressive chemical media, high temperatures, and volatile offshore environments.
- Alloys: Super Duplex 2507, Hastelloy, 316L
- NDT Verification: 100% PT, RT, UT, and hydrostatic shell tests
Sub-Category Capabilities & Specification Matrix
Comprehensive manufacturing scope for fluid control valve OEMs and pump systems. VastCasting delivers custom investment casting applications with single-facility accountability.
| Component Type | Supported Material Grades | Pressure Rating Class | Surface Finish & Tolerance | Target Industry |
|---|---|---|---|---|
| PRV Valve Bodies | 304L, 316L, Duplex 2205 | Class 150 – Class 900 | ±0.01 mm CNC, Ra 1.6 µm | Water & Gas Regulation |
| Safety & Air Vent Bodies | 316, 316L, ASTM A351 CF8M | PN16 – PN100 | CMM verified sealing faces | Power & Process Piping |
| Ball & Butterfly Housings | 2205, 2507, 1.4462, 316L | Class 150 – Class 2500 | Precision seal groove profiling | Petrochemical & Refining |
| Sanitary Valve & Pump Castings | 316L, Low Carbon Stainless | Class 150 / Sanitary Spec | Ra ≤ 0.8 µm Mirror Polish | Food, Beverage & Pharma |
| Petrochemical Heavy Components | Super Duplex 2507, Hastelloy | Up to Class 2500 (PN420) | 5-Axis CNC, 100% NDT Scope | Offshore Oil & Chemical Handling |
Austenitic and Duplex Stainless Steel Valves: PRV Engineering Case Study
Selecting the optimal alloy matrix and precision casting process is paramount for high-pressure, corrosion-resistant valve components. VastCasting combines advanced metallurgical science with single-facility investment casting and precision CNC machining to deliver zero-defect valve bodies engineered to withstand extreme pressure cycles and aggressive fluid media. We specialize in producing custom valve-body-fittings designed for critical applications.
Material Support Matrix for High-Pressure Valve Castings
Austenitic Stainless Steel Valves
Engineered for general industrial fluid control, sanitary systems, and chemical processing. Our austenitic stainless-steel-castings offer exceptional corrosion resistance, superior surface finishes, and excellent cryogenic impact toughness.
- Corrosion Resistance: Superior protection against organic acids, food-grade media, and harsh industrial chemical solutions.
- Cryogenic Toughness: Maintains high ductility, mechanical integrity, and impact resistance at sub-zero operating temperatures.
- Precision Machinability: Ideal for achieving ultra-fine sealing surfaces, tight-tolerance threads, and smooth internal flow channels.
Duplex & Super Duplex Valve Castings
Tailored for demanding offshore oil & gas and petrochemical environments. Our duplex valve casting solutions deliver double the yield strength of standard austenitic alloys alongside elite resistance to localized pitting and stress corrosion cracking, making them essential petrochemical-equipment-parts.
- Double Yield Strength: High tensile performance allows thinner wall designs while maintaining elevated pressure class ratings.
- Pitting Resistance: Outstanding PREN values provide maximum protection against chloride pitting and crevice attack.
- SCC Protection: Virtually eliminates stress corrosion cracking in sour gas (H2S), high-salinity seawater, and marine installations.

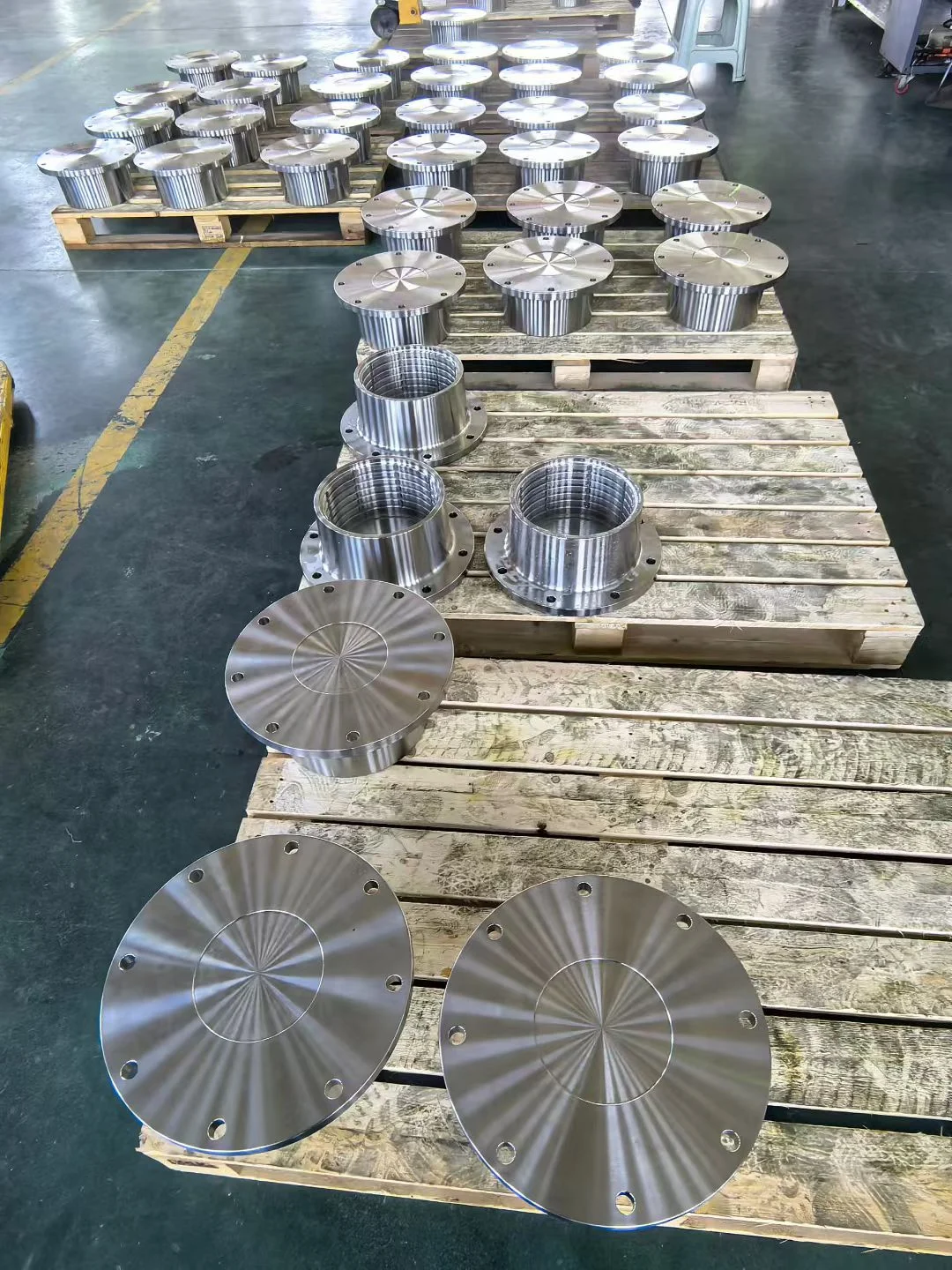

Duplex Stainless Steel Pressure Reducing Valve (PRV) Body
A leading European valve OEM required high-density 2205 duplex steel PRV valve bodies rated for Class 900 applications, demanding zero fluid seepage under intense pressure spikes and rigorous non-destructive testing standards.
Procurement Challenge
The client experienced persistent hydrostatic test failures caused by subsurface casting porosity from an outsourced foundry. Disconnected suppliers resulted in costly scrap liabilities, delayed lead times, and mutual finger-pointing between casting and machining vendors.
VastCasting Integrated Solution
VastCasting utilized Magma mold filling and solidification simulation software to re-engineer the gating and risering design, completely eliminating shrinkage porosity. We completed precision 5-axis CNC machining under the same roof and performed 100% in-house hydrostatic and NDT testing.
Precision Investment Casting for Hard-to-Machine Alloys
VastCasting specializes in hard-to-machine materials like 316L and 2205 duplex steel, ensuring every pressure-retaining casting easily passes strict proof pressure testing and rigorous NDT specifications.
Targeted Solutions for Critical Fluid Processing
Critical fluid control applications demand tailored metallurgical selection and precision casting to endure severe operational stresses. As an established valve body fittings OEM casting solution provider, VastCasting manufactures dense, corrosion-resistant valve bodies, pump housings, and flow conveyance components engineered to satisfy stringent fluid hygiene protocols and high-pressure petrochemical environments.
Food and Beverage Processing Systems
High-purity food and beverage processing lines require complete liquid isolation and defect-free internal surfaces. Subsurface gas holes or micro-porosity create bacterial traps that compromise product safety and violate international food hygiene regulations. Discover how our custom food machinery components ensure superior hygiene standards.
Operational Demands
- Ultra-Smooth Surface Finishes: Strict surface smoothness specs to prevent biofilm accumulation in fluid lines.
- Zero-Pinhole Defect Tolerance: 100% dense investment castings eliminating internal micro-cavities and fluid traps.
- Non-Toxic Alloy Purity: Certified 304 and 316L stainless steel compositions fully compliant with fluid hygiene protocols.
- CIP & SIP Washdown Resilience: High resistance to aggressive clean-in-place chemical washdowns and high-heat steam cycles.
Engineering Solution
Our silica sol investment casting process yields smooth internal flow channels. Combined with secondary CNC electropolishing and mirror polishing, we consistently achieve surface roughness limits of Ra ≤ 0.8 μm, fully meeting FDA, EHEDG, and global sanitary standards.
Petrochemical and Offshore Oil & Gas
Refinery operations, offshore platforms, and chemical conveyance systems subject critical petrochemical equipment parts to sour gas, extreme thermal cycles, and highly corrosive fluid media under high pressure.
Operational Demands
- Volatile Pressure Ratings: Structural resilience handling sudden pressure surges covering ASME Class 150 to Class 2500.
- Aggressive Corrosion Resistance: Total immunity to chloride pitting, sulfide stress cracking, and harsh acidic media.
- Thermal Fluctuation Resilience: Exceptional material stability ranging from cryogenic gas processes to high-temperature refining.
- Mandatory NDT Verification: Rigorous non-destructive examination guaranteeing zero internal porosity or integrity flaws.
Engineering Solution
We cast high-grade duplex (2205, 2507) and austenitic stainless steel formulations using precision melting techniques. Every heat lot undergoes optical emission spectrographic analysis, hydrostatic pressure proofing, and full PT / RT inspection reports to guarantee zero-leak shell performance.
Technical Comparison Matrix by Application
Comparing core engineering parameters for food machinery components versus severe-duty petrochemical valve parts.
| Engineering Parameter | Food & Beverage Systems | Petrochemical & Offshore Oil |
|---|---|---|
| Primary Alloy Selection | 304, 304L, 316, 316L Stainless Steel | Duplex 2205, Super Duplex 2507, 1.4462 |
| Pressure Class Range | ASME Class 150 – 300 / PN10 – PN40 | ASME Class 150 – 2500 / PN16 – PN420 |
| Surface Finish Standard | Ra ≤ 0.8 μm (Electropolished / Mirror) | Standard Industrial Machined Sealing Grooves |
| Inspection & Quality Control | FDA Hygiene Verification, Dye Penetrant (PT) | Hydrostatic Testing, PT, Radiographic (RT), UT |
| Core Valve Component Types | Sanitary Butterfly Valves, Diaphragm Bodies | Heavy Pump Casings, PRV Housings, Ball Valves |
Comprehensive Fluid Handling Engineering Expertise
From food grade sanitary valves to offshore petrochemical pump housings VastCasting addresses strict density and anti corrosion demands across complex industrial environments. Our unified casting foundry and CNC machining facility ensures complete technical compliance from raw melt to final pressure test.
One-Roof Manufacturing: Precision Cast and Machined Valve Bodies
Sourcing raw castings from one foundry and precision CNC machining from another creates liability gaps, extended lead times, and unallocated scrap costs. VastCasting eliminates split-vendor friction by housing investment casting and high-precision CNC machining under a single roof—delivering fully inspected, drop-in valve components with single-source accountability.
The Split-Vendor Procurement Risk
Subcontracting casting and machining across independent suppliers fragments quality ownership, adding hidden costs and schedule delays.
- ✕ Divided Defect Accountability
When subsurface porosity or inclusion defects appear during final CNC passes, machine shops reject raw blanks while foundries dispute liability—leaving valve OEMs stuck with unexpected scrap costs.
- ✕ Compounded Logistics and Delays
Managing dual transport legs between external foundries and machine shops inflates freight expenses, increases transit damage risks, and delays final assembly schedules by weeks.
- ✕ Tolerance Stack-Up & Datum Misalignment
Uncoordinated machining datums and secondary clamping setups across separate facilities create cumulative dimensional errors, compromising critical sealing surfaces and bore concentricity.
VastCasting In-House Turnkey Advantage
Our integrated facility controls every step—from metallurgically sound raw pours to finish-machined valve bodies—under one quality team.
- ✓ Single Point of Accountability
A single dedicated engineering and quality team oversees raw casting, 5-axis CNC machining, and final NDT testing. Zero vendor disputes and clear quality ownership.
- ✓ Optimized Machining Datums
Casting mold tooling is designed with CNC machining datum targets built directly into the blank. This eliminates secondary fixturing errors and reduces tolerance stack-up by up to 35%.
- ✓ Streamlined Turnkey Delivery
Eliminating inter-factory transport reduces production lead times by 20% to 30% while lowering total procurement overhead for complex cast and machined valve bodies.
Integrated Production Flow: Raw Pour to Finished Valve Component
Silica sol wax patterns, ceramic shell building, and Magma-simulated pours for defect-free blanks

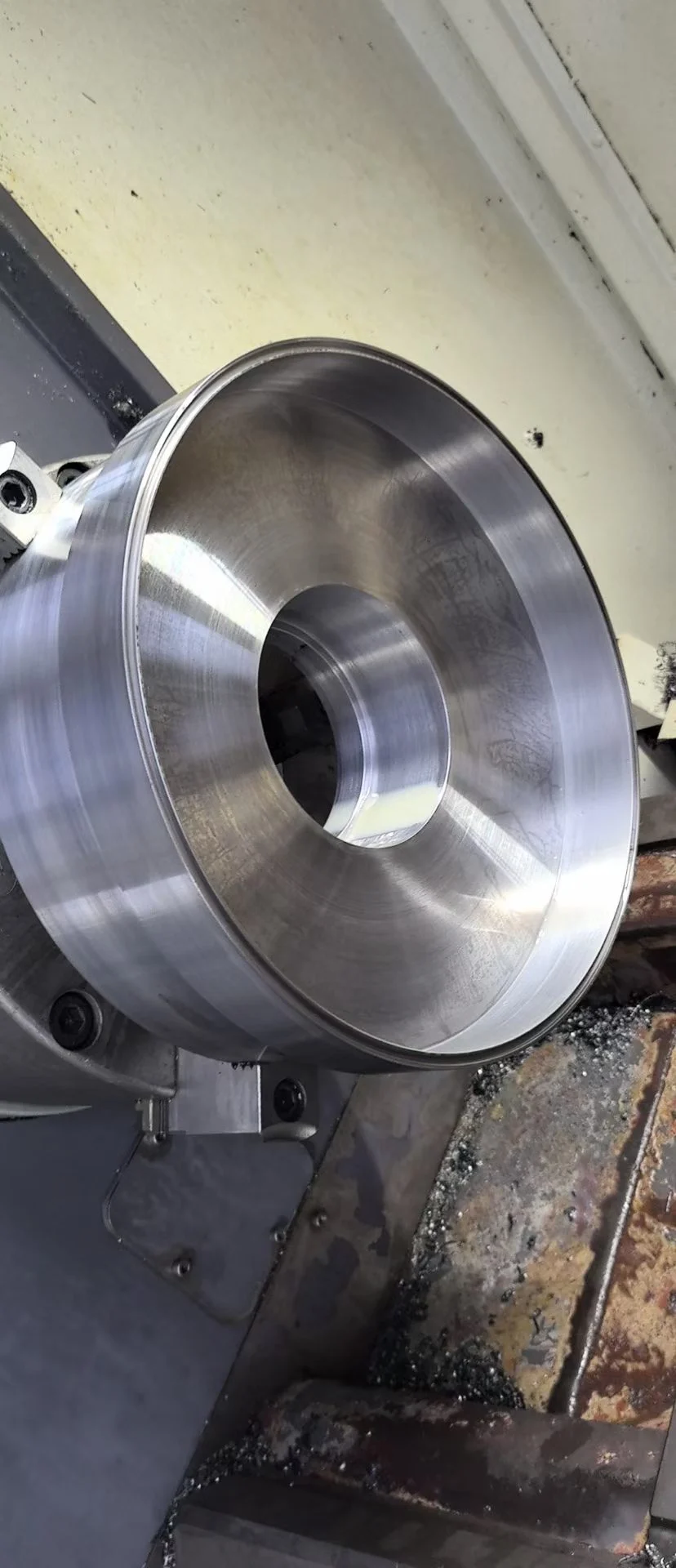

In-house multi-axis CNC turning and milling of sealing faces, flange bolt circles, and valve internal seats
In-house PT, RT, UT, and 100% hydrostatic shell pressure testing aligned with API and ASME B16.34 standards
Fully finished, dimensionally verified valve bodies delivered ready for assembly with complete material test reports (MTRs)
Why Precision CNC Valve Machining Belongs in the Same Facility as Investment Casting
When investment casting and CNC machining are split across separate vendors, vital engineering intent gets lost in handoffs. Foundries rarely understand how the machine shop will clamp and locate the blank, while machine shops lack visibility into the internal grain structure, solidification lines, or residual stress of as-cast components. These blind spots lead to premature tool wear, chatter, and late-stage rejections.
VastCasting bridges this gap through engineering integration. Our foundry metallurgists and CNC tooling engineers collaborate from initial mold design. Machining location targets are cast directly onto the raw blank, and wall thickness allowances are calculated to withstand high clamping forces without distortion. This unified approach ensures that every cast and machined valve body satisfies strict dimensional tolerances on the first pass.
This single-facility control is essential for pressure-retaining valve components operating from Class 150 up to Class 2500, where seat tightness, flange alignment, and bore concentricity directly impact hydrostatic shell test success.
Lead time reduction achieved by eliminating intermediate factory-to-factory transport
Decrease in cumulative machining tolerance stack-up via integrated datum engineering
In-house hydrostatic shell pressure testing on every finished valve housing before dispatch
The Business Case for Integrated Cast and Machined Valve Bodies
For global valve OEMs and fluid equipment manufacturers, the true cost of split-vendor sourcing is rarely reflected in initial piece-price quotes. It emerges later in unexpected scrap, delayed delivery schedules, and costly engineering hours spent mediating supplier disputes over subsurface casting defects. When a machine shop breaks into an internal porosity void during a final finishing pass, separate vendors inevitably point fingers, stalling your assembly lines.
VastCasting’s single-facility model eliminates this commercial and technical friction. Because the exact same facility pours the molten metal, performs stress relief, executes high-precision CNC machining, and conducts non-destructive testing, defect attribution is unambiguous. Every finished valve body arrives at your plant accompanied by complete traceability documentation—including material composition, CMM dimensional reports, and NDT certification.
Our single-roof capabilities excel in precision CNC valve machining for challenging materials like duplex 2205, super duplex 2507, and high-nickel alloys used in heavy-duty applications like petrochemical equipment parts. These materials exhibit significant work-hardening tendencies and require specialized feed rates, rigid clamping, and custom toolpath strategies tuned specifically to the casting's heat treatment condition. By pairing mold engineering directly with CNC programming, we eliminate trial-and-error scrap cycles entirely.
Serving valve OEMs across North America, Europe, and Asia-Pacific, VastCasting supplies complete pressure reducing valve bodies, ball valve housings, butterfly valve bodies, precision valve body fittings, and sanitary pump casings as ready-to-assemble drop-in components. Our team provides comprehensive Design for Manufacturability (DFM) reviews before tooling creation, optimizing geometry for both castability and machinability to accelerate your time-to-market.

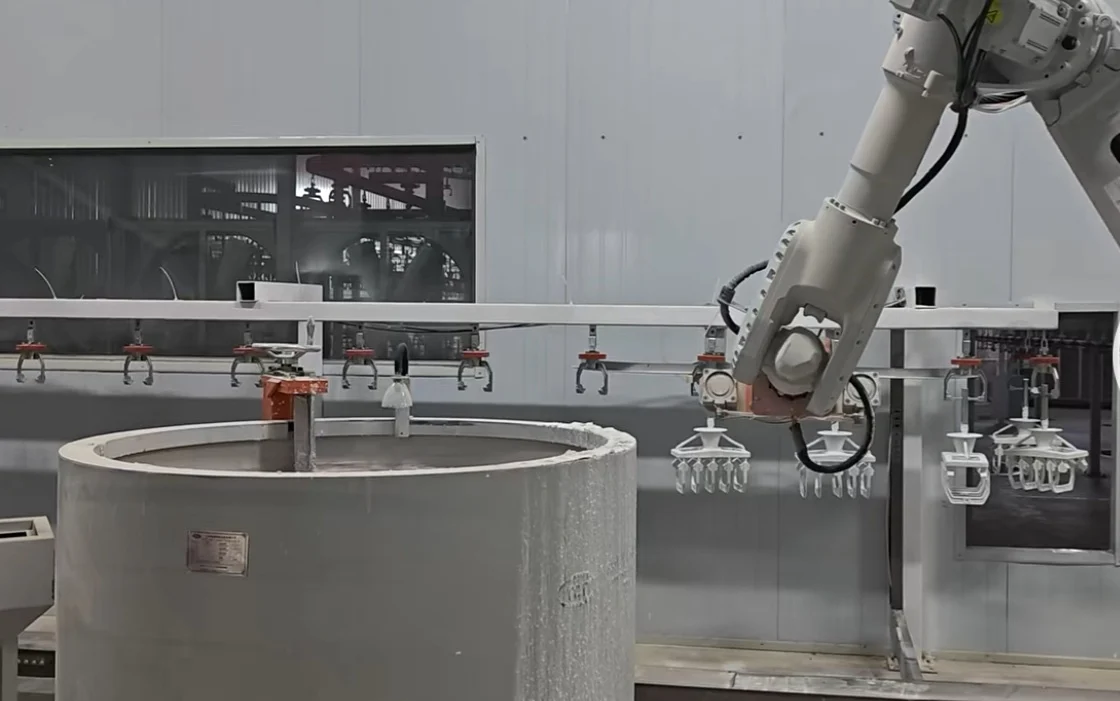

Strict Quality Control & Valve NDT Testing
VastCasting operates an in-house metallurgy and testing laboratory to guarantee structural integrity across every production run. We validate high-pressure class valve castings against international standards to ensure zero-defect performance in critical fluid applications.
Spectrographic Chemical Analysis
Optical emission spectrometers analyze every heat melt prior to pouring. We verify chemical composition in real time to guarantee 100% material compliance for 304, 316L, and duplex stainless alloy grades.
Comprehensive Valve NDT Testing
In-house certified specialists perform Liquid Penetrant (PT), Magnetic Particle (MT), Radiographic (RT), and Ultrasonic (UT) testing to verify zero subsurface porosity or structural defects in critical valve-body-fittings.
Pressure Shell & Dimensional CMM Inspection
We perform 100% hydrostatic and pneumatic shell pressure testing on critical valve housings, combined with Coordinate Measuring Machine (CMM) verification for exact sealing face geometry.
Every pressure class valve casting undergoes rigorous physical, chemical, and dimensional verification before shipment.
Spectrographic emission analysis on every melt heat before pouring guarantees full alloy purity.
In-house certified specialists execute PT, MT, RT, and UT to confirm internal structural integrity.
Hydrostatic pressure shell testing and high-precision CMM measurement ensure exact surface sealing.
Frequently Asked Questions by Valve OEMs
VastCasting brings over two decades of international valve OEM technical experience, providing rapid responses to complex engineering drawings and custom valve casting RFQs. By integrating precision investment casting, lost-wax shell creation, alloy pouring, and high-precision CNC machining under one roof, we eliminate vendor liability disputes and guarantee strict compliance with ASME, API, and ISO standards.
Technical RFQ Review & DFM Analysis
Our in-house engineering team executes MagmaSoft® solidification simulations, mold fill analysis, and tight-tolerance machining reviews within 24 hours of receiving your custom valve body drawings.
Q1 What pressure classes, size ranges, and alloys can VastCasting manufacture for custom valve bodies?
We manufacture custom valve body castings rated from ASME Class 150 up to Class 2500 (equivalent to PN16 through PN420 working pressure classes). Our combined investment casting and precision CNC machining capabilities cover everything from high-precision sanitary valve trims to heavy-duty pressure-retaining housings for oil and gas, specializing in precision valve-body-fittings.
- Unit Weight Range: 0.5 kg to 300 kg (1.1 lbs to 660 lbs) per casting.
- Dimension Envelope: Up to 1,000 mm maximum linear dimension.
- Material Grades: Austenitic stainless steels (304, 304L, 316, 316L), Duplex 2205 (1.4462), Super Duplex 2507, and nickel-based superalloys.
Q2 Why choose VastCasting over sourcing raw investment castings and CNC machining from separate vendors?
Sourcing raw valve blanks from a foundry and contracting a separate machine shop frequently results in vendor friction. When subsurface casting defects or shrinkage porosity are uncovered during final finishing passes, buyers encounter costly blame-shifting over scrap responsibility and severely delayed project schedules.
By combining investment casting pouring and precision CNC finishing inside a single, state-of-the-art facility, VastCasting completely eliminates split-vendor risks:
Q3 What documentation and technical specifications are required for a custom valve casting RFQ?
To receive a detailed, itemized commercial quote and DFM feedback within 24 hours, please submit your engineering files through our custom valve casting FAQ portal or email us directly with the following specifications:
Q4 Do you manufacture pump casings, impellers, and complementary fluid handling castings?
Yes. Beyond pressure-reducing, ball, and butterfly valve bodies, we routinely manufacture matching stainless steel pump casings, open and closed impellers, strainers, and specialized pipe fittings as part of our integrated fluid handling casting scope.
- Sanitary & Petrochemical Pump Housings
- Dynamically Balanced Precision Impellers
- High-Pressure Y-Type & Basket Strainers
- Custom Flanged Connections & Pipe Fittings
Ready to Quote Your Valve Bodies and Fluid Castings
Submit your technical specifications and engineering drawings. Our technical team will analyze your project and provide a competitive, itemized quotation for investment casting and CNC machining within 24 hours. Explore our valve-body-fittings to see our specialized manufacturing capabilities.
Partner with VastCasting for single-facility casting and CNC machining expertise. Whether you need an immediate valve drawing quote or a comprehensive review of your RFQ fluid handling castings, our engineering team eliminates split-vendor delays and ensures seamless quality control.
Fast-Track RFQ Checklist
CAD Drawings
2D or 3D files in STEP, IGS, or PDF formats with critical tolerances.
Material Grades
Austenitic 304/316L, Duplex 2205, or custom superalloy specifications.
Testing Criteria
Pressure ratings (Class 150–2500) and Hydrostatic, PT, or RT NDT requirements.
Start Your Custom RFQ
Send your project details directly to our engineering division for immediate review and DFM feedback.
ISO & Pressure Certified Operations
Full metallurgical traceability and non-destructive testing reports standard.
