Nickel & Cobalt Superalloy Investment Casting & CNC Machining Services
Precision Hot-Section Component
Vacuum-cast & 5-axis CNC machined nickel alloy turbine blade
Turnkey Precision Foundry
100% In-House Investment Casting & 5-Axis CNC
Vacuum Induction Melting
Controlled Vacuum Casting & Reactive Element Protection
Quality System Certified
Aerospace & Industrial Energy Grade Quality Control
Full Traceability
Spectrometer MTR & Complete NDT Report per Heat
High-Temperature Superalloy Grades & Metallurgical Specifications
Superalloys represent the apex of high-temperature metallurgy, explicitly engineered to sustain structural integrity, creep resistance, and phase stability under severe thermal stress exceeding 540°C (1000°F). Unlike conventional stainless steel castings, nickel-based and cobalt-based high temperature alloy grades maintain superior yield strength and surface oxidation resistance under continuous mechanical loads in severe operating environments. For critical turbomachinery, aerospace propulsion, power generation hot sections, and severe-service OEM fluid control systems, these advanced materials prevent catastrophic thermal fatigue, hot corrosion, and stress-rupture failures.
As a premier China precision foundry, VastCasting combines specialized vacuum investment casting with in-house CNC machining to produce advanced superalloy high-temp castings. Our engineering team maintains strict control over melt chemistry, vacuum degassing, and grain structure formation. Every heat undergoes rigorous laboratory testing—including direct-reading optical emission spectrometry (OES) and non-destructive examination (NDT)—to guarantee 100% heat traceability and full compliance with international ASTM, AMS, and ISO technical standards.
Nickel-Based Superalloy Investment Casting
Nickel-based superalloys derive exceptional high-temperature mechanical performance from a dense nickel-chromium matrix micro-alloyed with molybdenum, niobium, aluminum, and titanium. Precipitation hardening through coherent gamma prime ($gamma'$) phase formation ($text{Ni}_3(text{Al, Ti})$) delivers outstanding resistance to creep rupture, thermal shock, and stress oxidation during long-duration thermal cycles.
- Inconel 718: Delivers extraordinary yield, tensile, and creep-rupture strength at service temperatures up to 700°C (1300°F). Ideal for Inconel investment casting of complex aerospace structural components and high-stress turbomachinery parts requiring post-cast heat treatment and 5-axis CNC finishing.
- Inconel 625: Solid-solution strengthened nickel-chromium-molybdenum alloy providing exceptional oxidation resistance up to 980°C (1800°F) alongside complete immunity to chloride pitting, crevice corrosion, and severe thermal degradation.
- Hastelloy C276: Specifically tailored for aggressive chemical handling and hot acid services. This Hastelloy casting grade exhibits unmatched resistance to strong oxidizing agents, wet chlorine gas, hot mineral acids, and contaminated corrosive media.
Cobalt-Based Superalloy Foundry Capabilities
Our specialized cobalt superalloy foundry processes utilize a robust cobalt-chromium matrix reinforced by refractory elements like tungsten or molybdenum and fine carbide dispersions. Cobalt-based superalloys maintain superior hot hardness, sliding wear resistance, and galling immunity at temperatures exceeding 800°C (1472°F) in unlubricated or highly corrosive combustion gas environments.
- Cobalt Chrome Grade 21: Engineered for severe sliding friction, thermal fatigue, and hot gas corrosion. Widely specified for industrial gas turbine guide vanes, wear rings, and high-temperature seal rings.
- Cobalt Chrome Grade 31: Delivers exceptional stress-rupture strength and high-temperature creep resistance under heavy mechanical loads within dirty or sulfidizing combustion atmospheres.
Verified Material Quality
VastCasting enforces comprehensive lot-by-lot metallurgical controls. Every investment casting heat is verified via in-house spectrometer analysis and supplied with certified Material Test Reports (MTR).
- ✓ Direct-Reading OES Analysis
- ✓ Vacuum Induction Melting (VIM)
- ✓ Full X-Ray RT & PT NDT Testing
- ✓ 100% Heat Number Traceability
Castable Superalloy Selection Matrix
Compare cast equivalents, primary chemistry, and high-temperature corrosion characteristics across our primary alloy grades.
| Alloy Grade | Cast Equivalent | Primary Chemical Elements | High-Temp & Corrosion Characteristics | Typical Applications |
|---|---|---|---|---|
| Inconel 718 | AMS 5383 UNS N07718 | 52.5% Ni, 19% Cr, 5.1% Nb, 3% Mo, Bal Fe | High tensile, yield, and creep-rupture strength up to 700°C (1300°F). Outstanding weldability and thermal fatigue performance. | Aerospace turbine discs, rocket propulsion components, high-strength hot section fasteners. |
| Inconel 625 | ASTM A494 CW6MC UNS N06625 | 58% Ni, 21.5% Cr, 9% Mo, 3.6% Nb+Ta | Exceptional oxidation resistance up to 980°C (1800°F). Superior immunity to chloride pitting and crevice corrosion. | Turbine combustor liners, severe-service marine valve body fittings, chemical processing equipment. |
| Hastelloy C276 | ASTM A494 CW12MW UNS N10276 | 57% Ni, 16% Mo, 15.5% Cr, 3.7% W, 5.5% Fe | Unmatched resistance to strong oxidizers, wet chlorine, hot acid mixtures, and severely contaminated process streams. | Flue gas desulfurization (FGD), sour gas valve internals, chemical reactor components. |
| Cobalt Chrome Grade 21 | AMS 5385 UNS R30021 | 62% Co, 27% Cr, 5.5% Mo, 2.5% Ni | Superior thermal shock resistance, hot hardness, and galling resistance under sliding friction above 800°C (1472°F). | Industrial gas turbine stator vanes, heavy-duty wear rings, high-temperature fluid seals. |
| Cobalt Chrome Grade 31 | AMS 5382 UNS R30031 | 54% Co, 25.5% Cr, 10.5% Ni, 7.5% W | Maximum stress-rupture strength under continuous heavy loads. Excellent resistance to hot sulfidation and oxidation gases. | Aircraft engine nozzle guide vanes, power generation hot-section components, burner nozzles. |
Precision Components for High-Temperature Hot Sections
VastCasting delivers turnkey hot section investment casting and 5-axis CNC machining, producing high-complexity components built to withstand extreme thermal fatigue and oxidation.

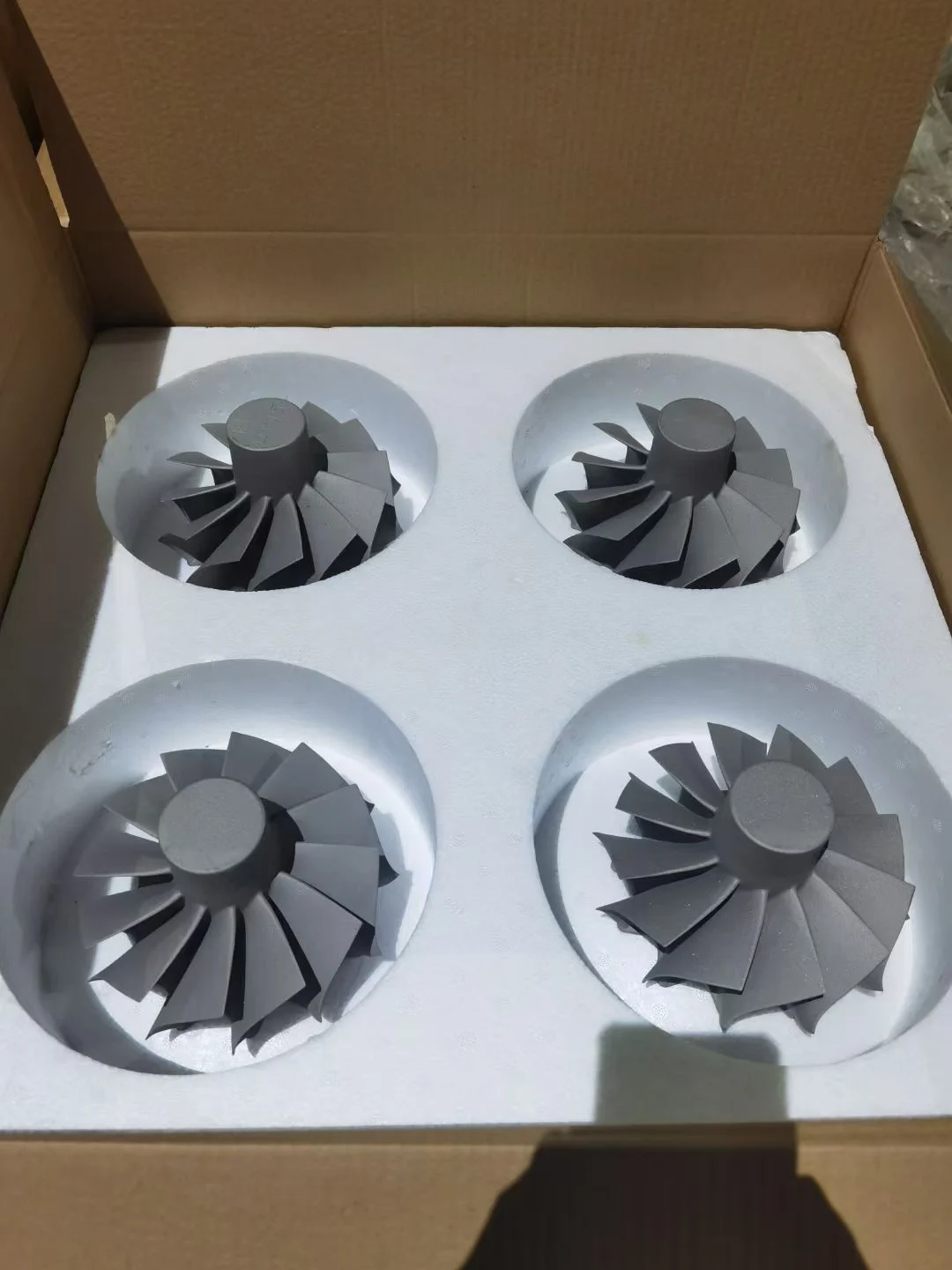

Turbine Blades & Vanes
High-precision rotor blades and stator vanes engineered for high-stress environments. Our turbine blade casting process delivers tight dimensional tolerances and superior creep resistance.

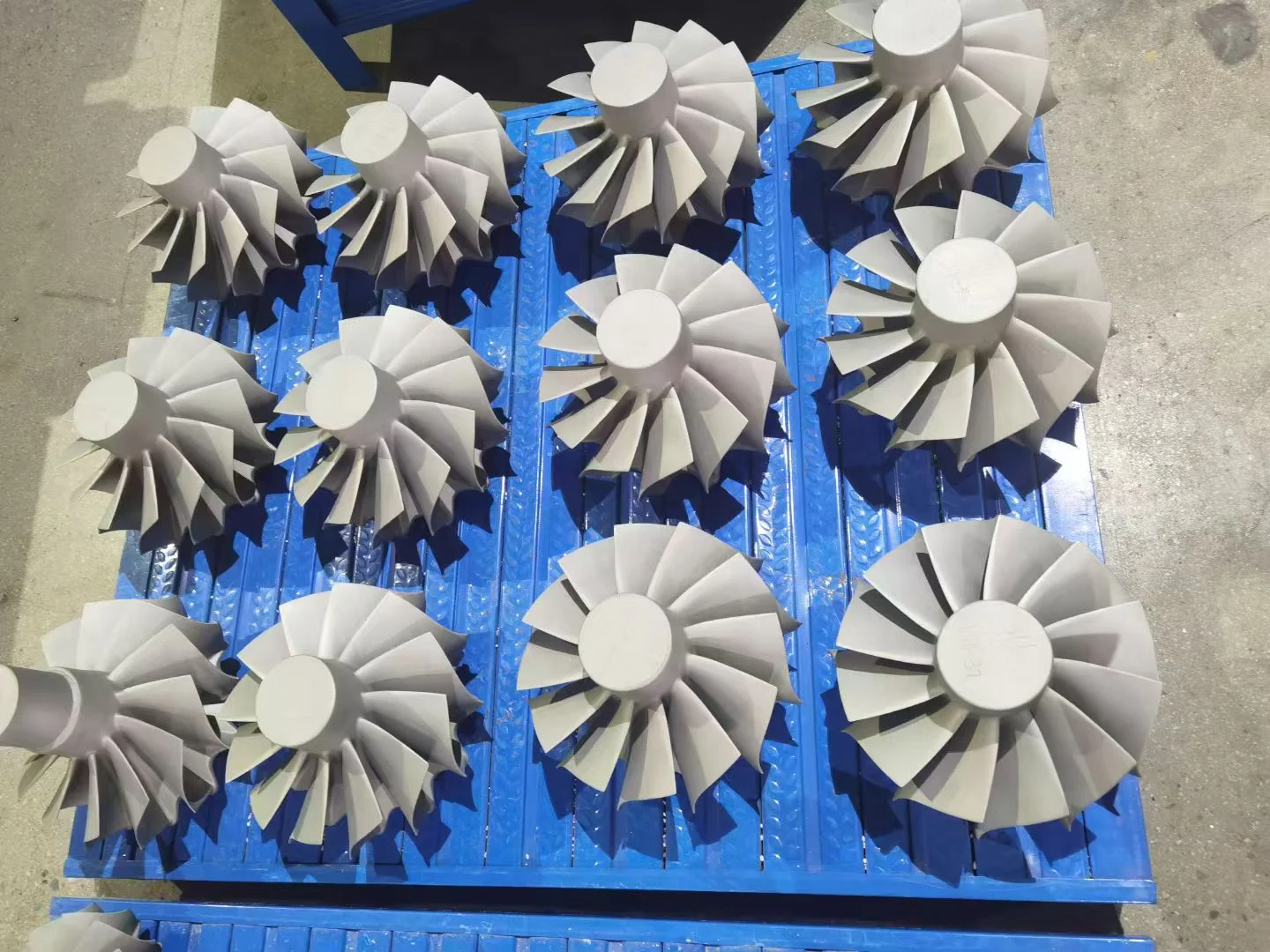

Aerospace & Energy Components
Combustor nozzles, flame tubes, and structural flow guides. Custom nickel and cobalt alloy solutions manufactured alongside our petrochemical-equipment-parts for mission-critical aerospace superalloy parts.

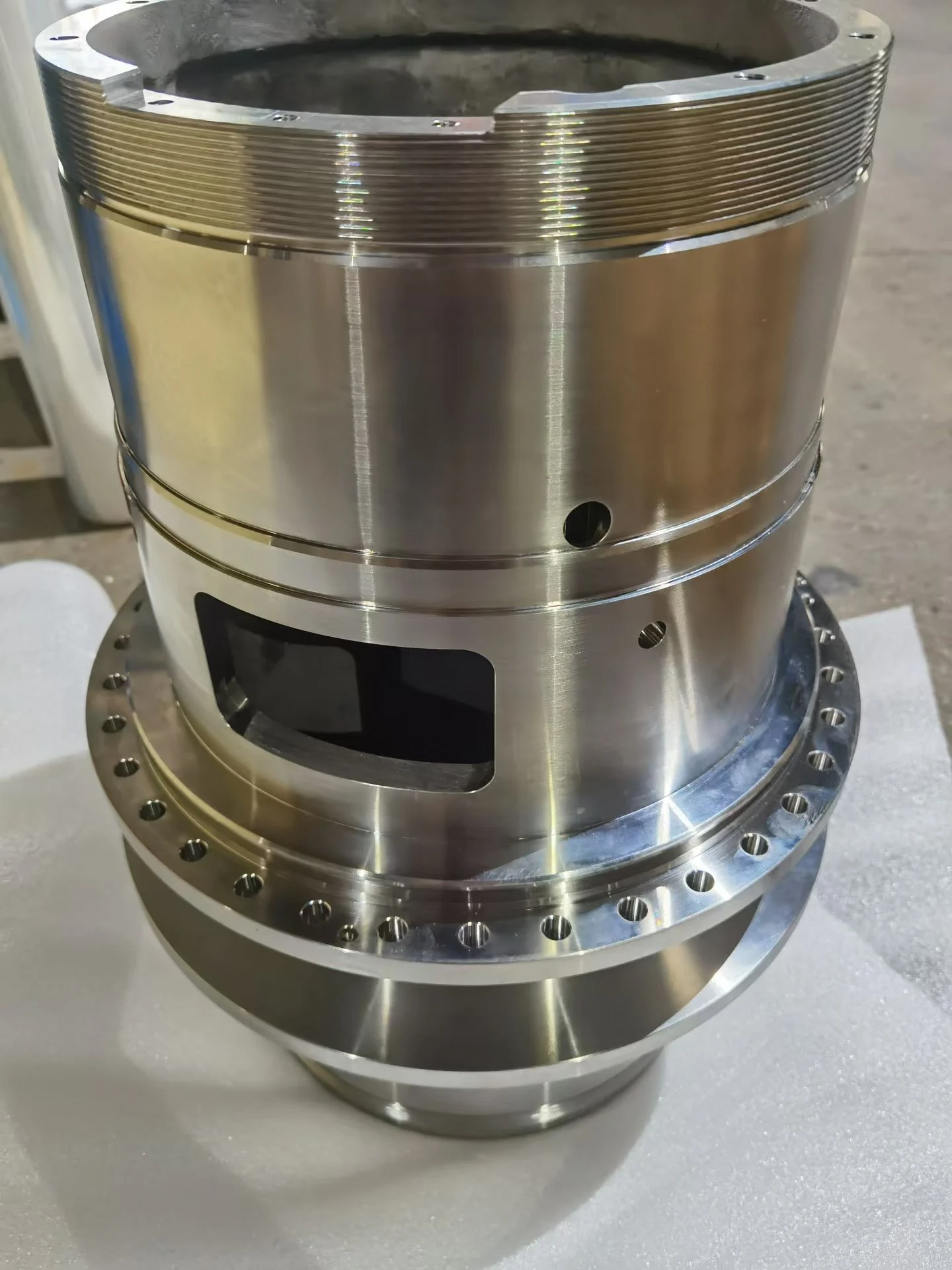

Power Generation & Valve Internals
Industrial gas turbine casting components and severe-service valve-body-fittings. Engineered to ensure reliable long-term durability under intense mechanical and thermal stresses.
Superalloy Product Hub
Explore our full portfolio of high-temperature alloy castings and finished components. Review detailed material specifications and custom OEM engineering capabilities.
Integrated Manufacturing: Vacuum Melting (VIM) to 5-Axis Machining
Reactive nickel and cobalt superalloys demand tightly controlled process environments at every stage. VastCasting operates a fully integrated single-facility workflow — from precision wax pattern assembly through vacuum induction melting, in-house 5-axis CNC machining, and certified NDT inspection — eliminating the vendor handoff risks and quality gaps that plague multi-source supply chains.
This end-to-end vacuum investment casting and superalloy machining model gives engineering buyers a single accountable source for finished, inspection-certified hot-section components. Every process parameter — vacuum levels, shell layer counts, machining tolerances, and NDT acceptance criteria — is documented and traceable to the originating heat number. Discover our specialized superalloy high temp castings designed to excel in extreme thermal environments.

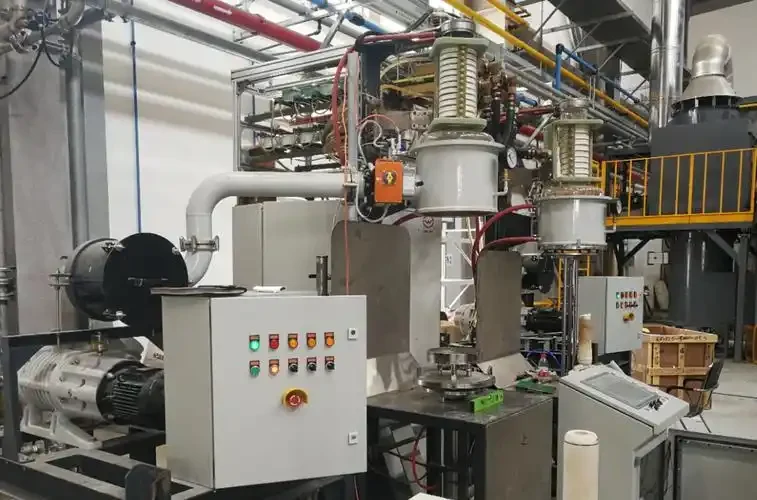

The VIM casting process is the defining quality control step for reactive superalloy production. Nickel and cobalt superalloys contain Titanium and Aluminum — elements that oxidize almost instantaneously in open-air melting, forming harmful oxide inclusions that degrade fatigue life and mechanical strength.
VastCasting's Vacuum Induction Melting furnaces maintain a controlled vacuum atmosphere throughout the entire melt, superheat, and pour cycle. This eliminates oxygen and nitrogen contact, prevents slag formation, and ensures that reactive alloying elements remain fully dissolved in the melt at their specified concentrations.
- Controlled vacuum atmosphere prevents oxidation of Titanium, Aluminum, and other reactive elements throughout the melt cycle.
- Zero slag formation eliminates non-metallic inclusions that cause subsurface defects in hot-section components.

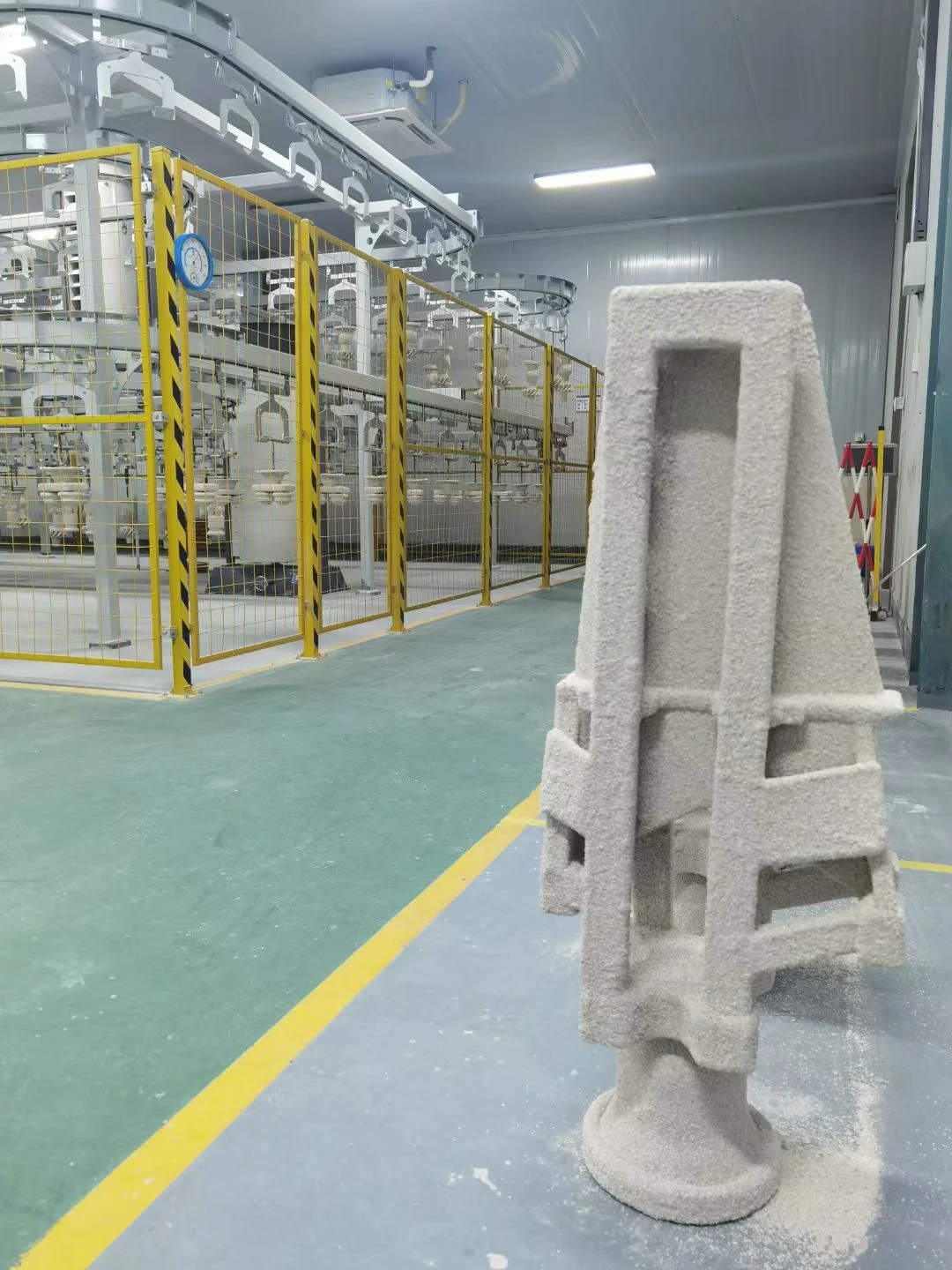

- Precise superheat control ensures optimal melt fluidity for complete ceramic shell fill without gas porosity.
- Per-heat spectrometer verification confirms melt chemistry against ASTM/AMS specifications before pouring.
Why VIM matters for precision superalloy components: Standard air-melt or induction furnaces cannot prevent reactive element loss. Only vacuum melting guarantees the chemistry consistency required for aerospace and energy hot-section certification.
VastCasting's single-facility model in Dongying, Shandong eliminates vendor disputes, quality handoff risks, and unnecessary transit costs — delivering fully traceable, inspection-certified superalloy components from one accountable source.
Industry Solutions for Extreme Thermal and Corrosive Environments
Modern industrial turbomachinery, chemical processing plants, and aerospace propulsion systems push structural materials past standard metallurgical limits. When operational specs mandate continuous exposure to scorching temperatures, aggressive chemical reagents, and severe thermal cycling, conventional standard stainless steel castings rapidly degrade. VastCasting engineers high-precision nickel and cobalt superalloy high-temp castings integrated with in-house CNC machining. Our components deliver verified dimensional accuracy, thermal creep resistance, and extended service life in the world’s most demanding environments.

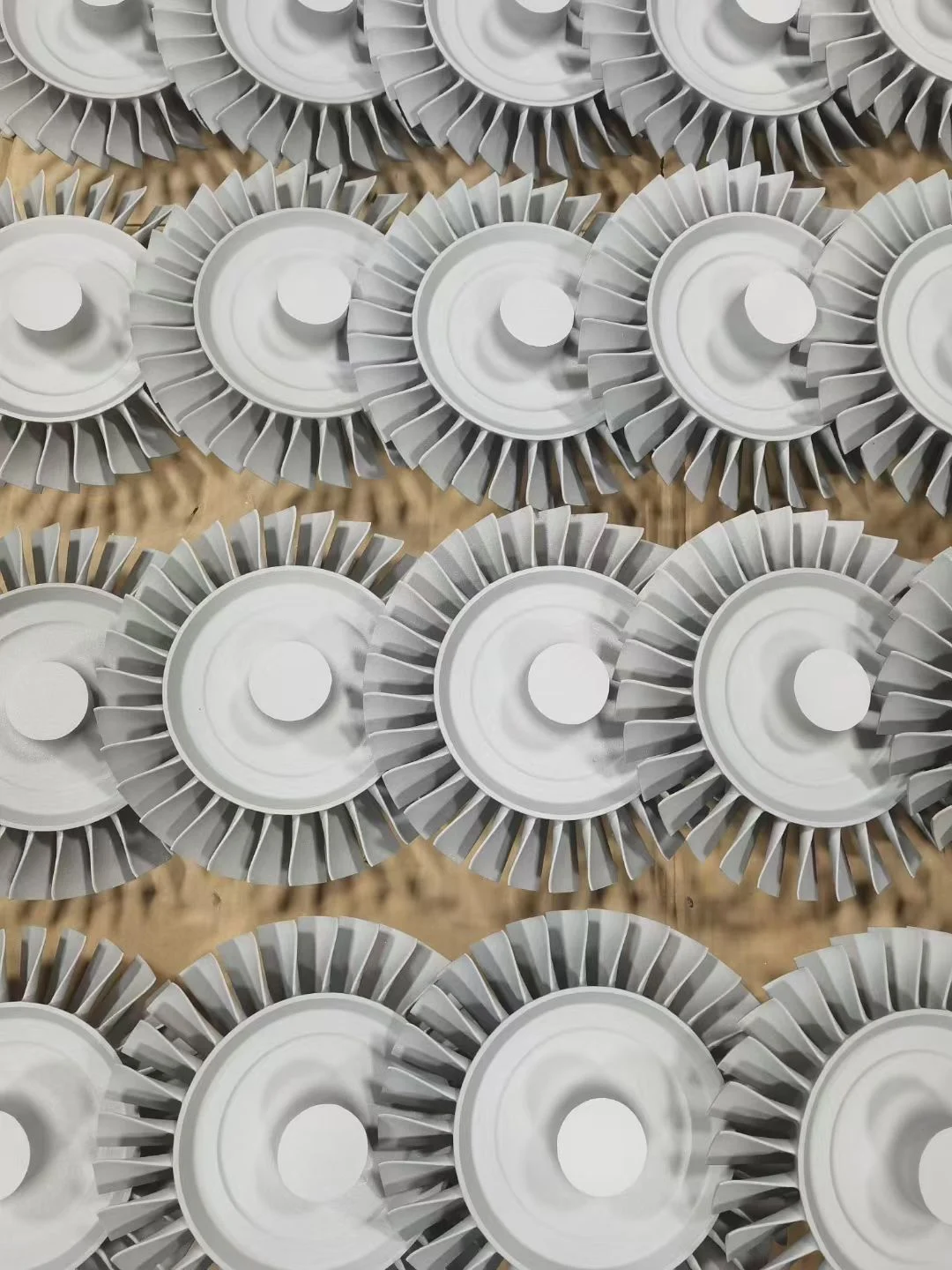

Aerospace Propulsion and Defense Systems
Aerospace engine hot sections require high metallurgical integrity capable of maintaining exceptional yield strength and structural stability while exposed to burning aviation fuels and extreme centrifugal stress. VastCasting manufactures critical aerospace superalloy casting components engineered for high thrust-to-weight propulsion architectures and rigorous defense applications.
Auxiliary power units (APUs), combustor flame tubes, fuel injection nozzles, stator guide vanes, and guided missile propulsion nozzle inserts.
Vacuum Induction Melting (VIM) suppresses oxide inclusions and gas porosity, delivering optimal low-cycle thermal fatigue life and thermal shock immunity under rapid throttle transitions.

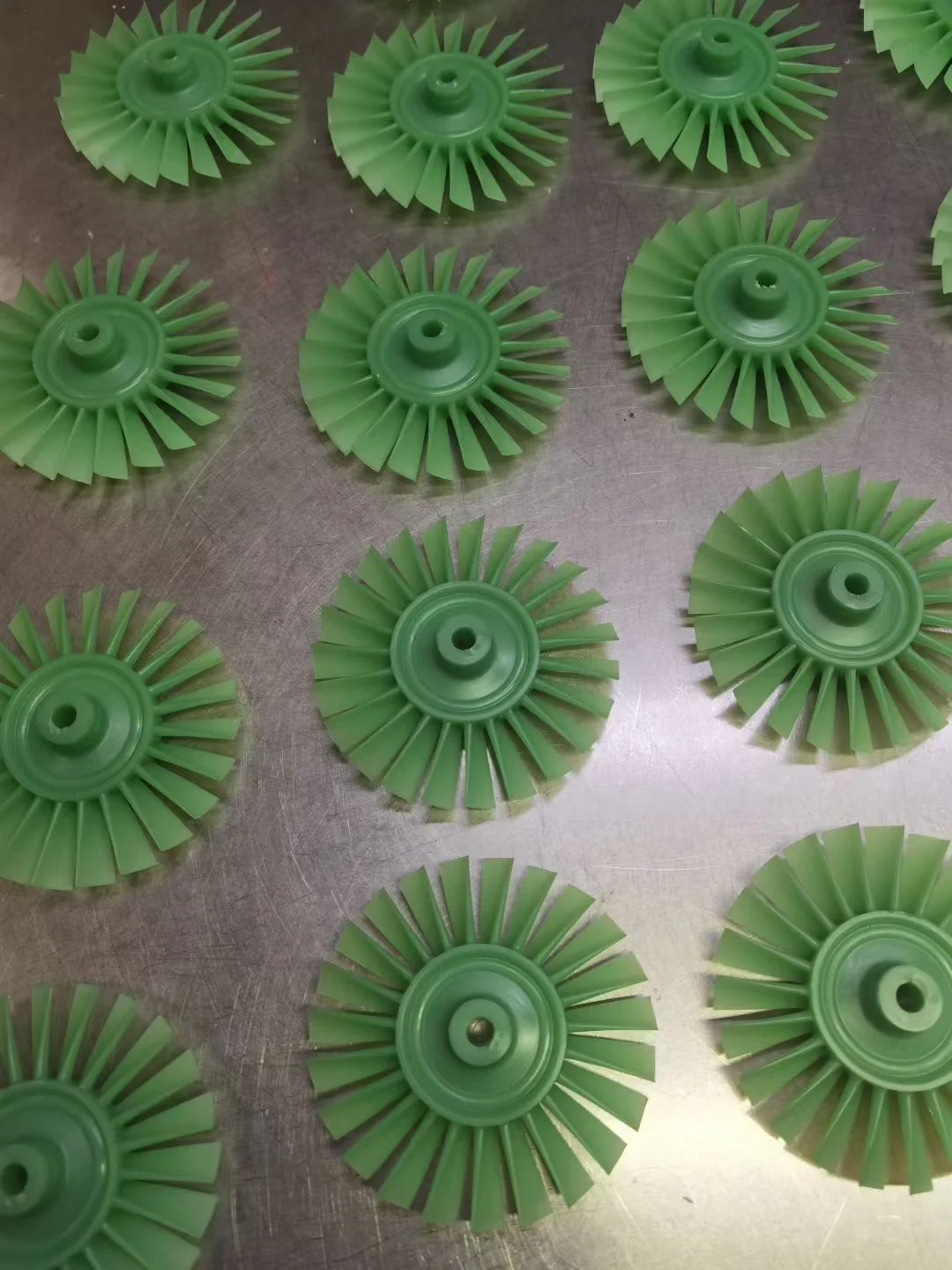

Industrial Gas Turbines and Power Generation
Land-based gas power turbines operate under continuous, heavy thermal loads for tens of thousands of uninterrupted base-load hours. VastCasting delivers specialized power generation casting solutions built to resist long-term thermal creep deformation and high-temperature oxidation in turbine hot sections.
First-stage and second-stage stator vanes, rotor blades, combustor transition pieces, and severe-service heat shields.
Precise addition of refractory elements ensures stable gamma-prime precipitate distribution, stopping dislocation movement and preventing structural sagging at operating temperatures exceeding 1000°C.

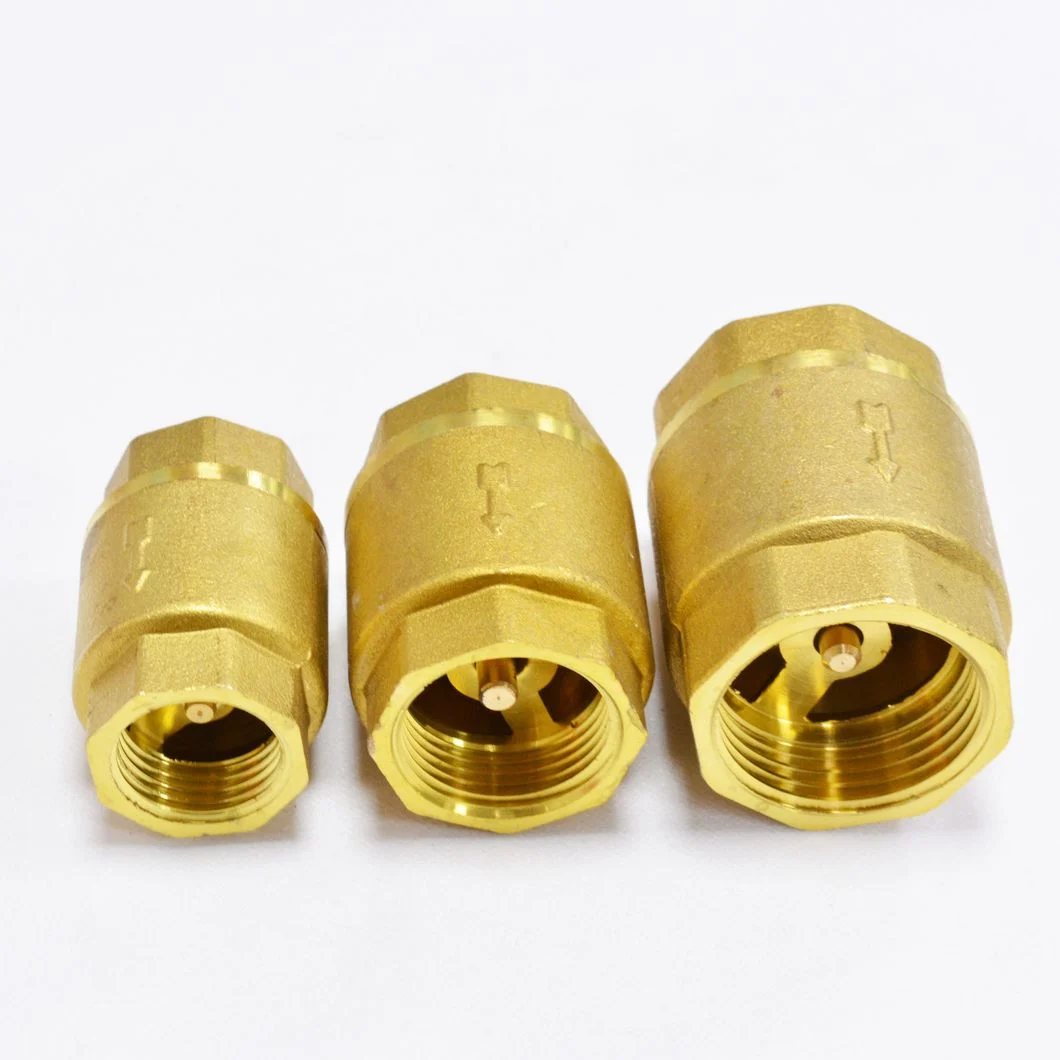

Offshore Oil, Gas, and Chemical Processing
Downhole subsea environments and aggressive chemical processing lines combine elevated operating heat with highly corrosive media. VastCasting manufactures high temp corrosion resistant casting components, including heavy-duty petrochemical equipment parts, engineered to survive severe acid exposure, sour gas (H2S), and concentrated chloride pitting attack.
Subsea choke valve bodies, sour gas pump impellers, severe chemical flow meters, and high-pressure wellhead valve trims.
While Duplex Stainless Steel grades offer robust chloride pitting resistance up to moderate thermal thresholds, nickel-based Hastelloy and Inconel alloys become essential when severe chemical aggressiveness coincides with extreme temperature loads.

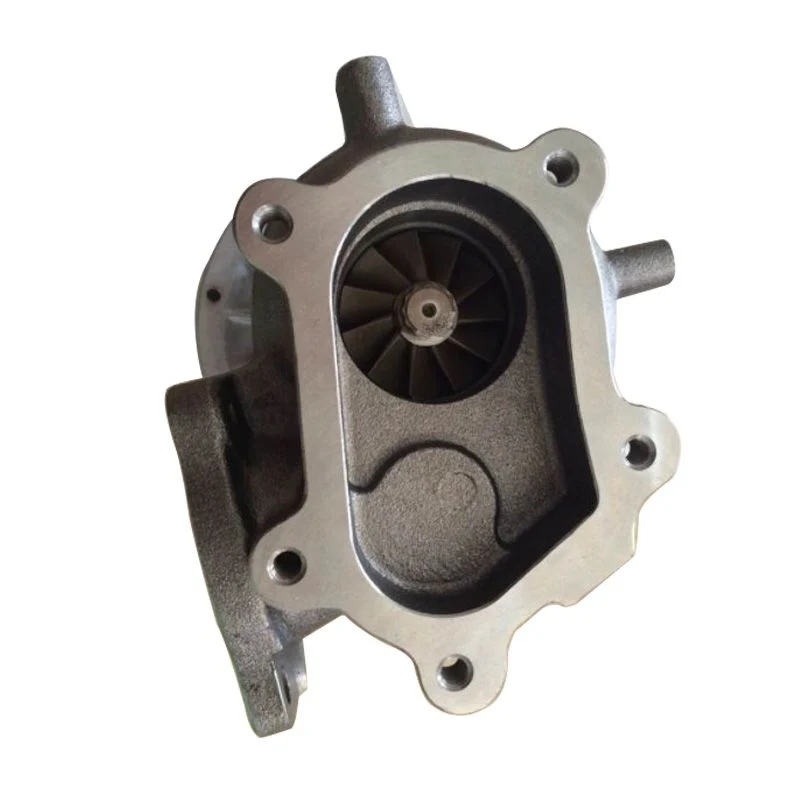

High-Performance Automotive and Aftermarket

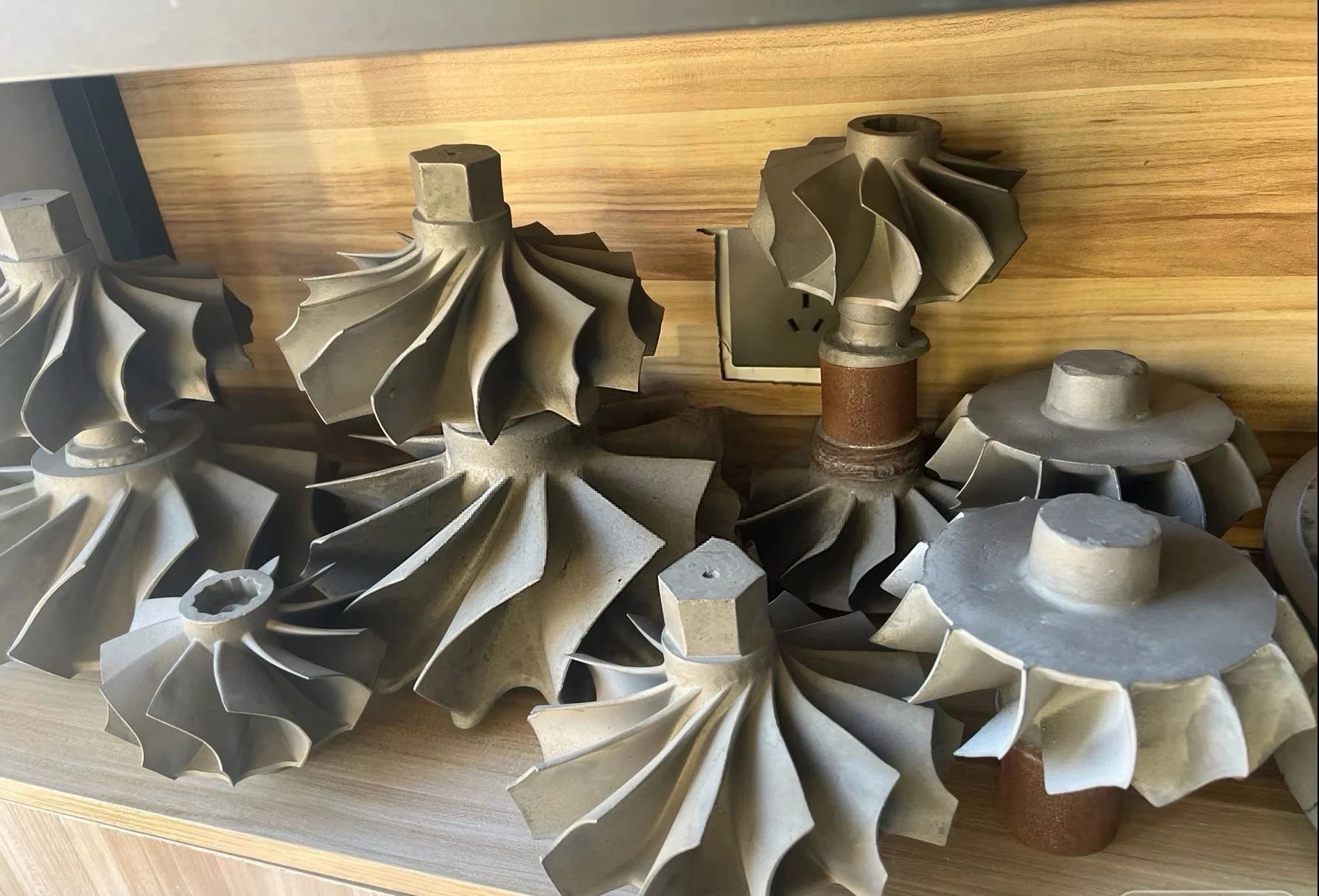

Extreme motorsport and high-output commercial turbochargers experience rapid, repeated heat spikes from direct exhaust gas streams. VastCasting produces precision-cast superalloy components engineered to prevent structural cracking, housing distortion, and valve seat erosion under severe thermal cycling.
Turbocharger turbine housings, internal wastegate flapper valves, exhaust manifold collector junctions, and high-rpm turbine wheels.
Cast alloy chemistry is optimized for extreme low-cycle thermal fatigue resistance and precise wall-thickness control, eliminating thin-wall hot spots that trigger catastrophic housing failure.
Operating Environment Matrix and Superalloy Mapping
Selecting the correct superalloy formulation depends on balancing continuous working temperature, atmospheric chemistry, mechanical stress, and target lifecycle expectations. VastCasting collaborates directly with OEM engineering teams to match casting parameters with real-world operating conditions.
| Operating Sector | Thermal Threshold | Primary Environment Threat | Recommended Superalloy Grade | Manufacturing Process Focus |
|---|---|---|---|---|
| Aerospace Propulsion | Up to 980°C (1800°F) | High-frequency centrifugal stress and thermal shock | Inconel 718 / Inconel 625 | Vacuum Induction Melting (VIM) and 5-Axis CNC Machining |
| Power Generation Turbines | Continuous above 1000°C (1832°F) | Long-term thermal creep and high-temperature oxidation | Cobalt Grade 21 / Inconel 738 | Grain structure control and CMM dimensional auditing |
| Offshore and Chemical Flow | Up to 650°C (1200°F) | Sour gas (H2S), acid exposure, and chloride pitting | Hastelloy C276 / Inconel 625 | Direct-reading OES chemistry and RT / PT non-destructive testing |
| Automotive Aftermarket | Thermal spikes up to 1050°C (1922°F) | Rapid thermal cycling, exhaust shock, and erosion | Inconel 713C / Cobalt Grade 31 | Thin-wall ceramic shell casting and tight-tolerance CNC milling |
100% raw material test reports (MTR) provided per heat number for every single production batch.
In-house Radiographic Testing (RT) and Fluorescent Penetrant Testing (PT) verify subsurface structural soundness.
Single-source workflow from wax injection and VIM investment casting to finished 5-axis CNC machined components.
Superalloy Casting Quality, NDT Inspection & Compliance Standards
VastCasting operates under accredited ISO 9001 and AS9100 superalloy high temp castings quality management systems. Matching strict ASTM and AMS investment casting specifications, our fully equipped NDT inspection foundry guarantees zero-defect integrity and complete lot-by-lot traceability for critical aerospace and energy components.
In-House Quality Assurance Suite & NDT Capabilities
Chemical Analysis
German-imported direct-reading optical emission spectrometers verify lot-by-lot chemical composition to ensure exact nickel and cobalt alloy grades.
NDT Inspection Foundry
In-house X-ray Radiographic Testing (RT) and Fluorescent Penetrant Testing (PT) inspect all surface and subsurface structures.
Dimensional Audit & CMM
Automated multi-axis Coordinate Measuring Machines (CMM) audit complex 3D airfoil geometries and tight CNC machining tolerances.
100% Full Traceability
Every order is supplied as an MTR certified stainless steel castings solution, backed by heat-matched chemistry certificates and physical test logs.
Manufactured in strict alignment with AMS, ASTM, and AS9100 superalloy casting mandates, satisfying rigorous procurement and engineering compliance checks. Learn more about our Quality & Lab Facilities.

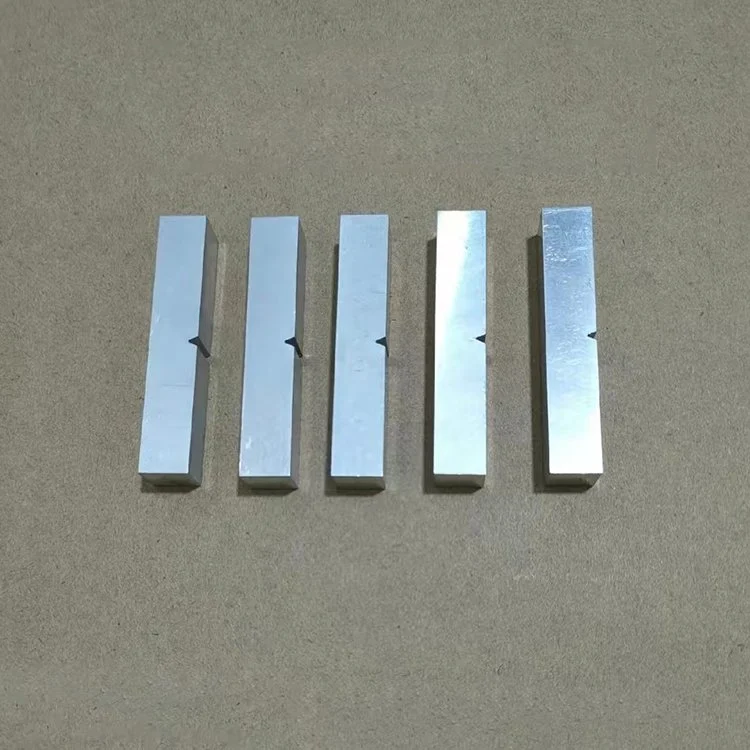

Advanced Testing Laboratory
VastCasting houses direct-reading optical emission spectrometers and multi-axis CMM units inside our main production facility.
Material Test Reports (MTR)
Every shipment includes complete Material Test Reports, heat treatment charts, and non-destructive testing logs for seamless engineering sign-off.
Our integrated testing protocols eliminate supply chain risk, providing valve body fittings OEMs and turbine engineers absolute confidence in high-temperature performance.
Frequently Asked Questions About Superalloy Casting and Machining
Technical guidance on vacuum melting process controls, material performance parameters, quality certifications, and turnkey manufacturing options at VastCasting.
Engineering Support and DFM Consulting
Engineered hot-section components require rigorous metallurgical oversight and precision machining strategies. Our engineering team conducts thorough DFM CAD model reviews, solidification modeling, and material selection analysis to optimize casting yield, surface integrity, and high-temperature mechanical properties.
Turnkey OEM Procurement
Custom Alloy Specifications and CAD Reviews
Our engineering team in Dongying City, Shandong Province, provides comprehensive DFM feedback, metallurgical analysis, and detailed quotes within 24 hours.
Why is Vacuum Induction Melting (VIM) necessary for casting nickel and cobalt superalloys?
Vacuum Induction Melting (VIM) is critical when processing high-performance nickel and cobalt superalloys, including Inconel 718, Inconel 625, Hastelloy C276, and Cobalt Chrome grades. Under standard air melting conditions, vital reactive alloying elements like Titanium (Ti), Aluminum (Al), Niobium (Nb), and Hafnium (Hf) rapidly oxidize upon contact with ambient oxygen and nitrogen.
This rapid oxidation forms harmful non-metallic oxide inclusions and gas micro-porosity, which severely compromise high-temperature creep strength, stress rupture life, and fatigue resistance in hot-section aerospace and power generation components. VastCasting utilizes advanced VIM equipment operating under ultra-clean vacuum atmospheres to completely isolate molten metal from atmospheric contamination.
- Prevents oxidation and depletion of critical titanium and aluminum strengthening phases.
- Eliminates sub-surface oxide slag entrapment, dross, and atmospheric gas porosity.
- Ensures exact stoichiometric alloy chemistry and homogenous grain structure across every production heat.
Does VastCasting offer fully finished components from raw casting to 5-axis CNC machining?
Yes. As a leading nickel alloy casting manufacturer and specialized superalloy foundry in China, VastCasting operates an integrated single-facility workflow in Dongying, Shandong. We control every production stage internally, from wax pattern injection and multi-layer ceramic shell building to VIM vacuum investment casting, vacuum heat treatment, and precision 5-axis CNC machining.
Consolidating vacuum investment casting and CNC finishing within a single facility eliminates inter-vendor transit risks, prevents quality liability disputes, accelerates overall project lead times, and significantly reduces total procurement costs for complex hot-section components.
How do I select between Nickel-Based Superalloys and Duplex Stainless Steels for corrosive environments?
Selecting between nickel-based superalloys and Duplex Stainless Steels depends on maximum operating temperatures, chemical exposure severity, and mechanical load profiles, especially when manufacturing critical petrochemical equipment parts:
Engineered for extreme thermal conditions exceeding 540°C (1000°F) up to 1000°C+. They deliver exceptional resistance to high-temperature oxidation, hot gas corrosion, and severe acid pitting in turbine hot sections and petrochemical furnaces.
Optimal for high-strength, high-chloride corrosion resistance at continuous operating temperatures below 300°C (572°F). Offers a cost-effective structural solution for marine, desalination, and chemical fluid management systems.
Can VastCasting provide 100% MTR and NDT inspection reports matching AMS and ASTM specifications?
Yes. Every production order at VastCasting adheres to ISO 9001 and AS9100 quality management systems. Every shipment is accompanied by comprehensive, fully certified Material Test Reports (MTR) tied directly to the specific melt heat number.
Our certified in-house testing laboratory performs exhaustive non-destructive testing (NDT) and chemical analysis prior to dispatch:
- Chemical Spectrometry: Direct-reading optical emission analysis on every heat to verify exact AMS/ASTM chemical composition.
- Non-Destructive Testing (NDT): X-ray Radiographic Testing (RT) for internal porosity assessment and Fluorescent Penetrant Inspection (PT) for surface integrity.
- 3D CMM Inspection: High-precision Coordinate Measuring Machine (CMM) dimensional verification for complex turbine airfoil geometries and tight CNC tolerances.
What are the typical superalloy casting lead times and minimum order quantities (MOQ)?
VastCasting tailors superalloy casting lead times and production volumes to support everything from rapid engineering prototypes and low-volume aerospace replacements to full-scale OEM manufacturing runs:
- Tooling & Prototype Lead Time: Precision wax injection tooling and initial sample prototype castings are typically delivered within 3 to 4 weeks.
- Production Delivery Cycles: Standard production runs combining VIM investment casting, heat treatment, and 5-axis CNC machining average 4 to 6 weeks following sample approval.
- Flexible MOQ Options: We accommodate low-volume specialized prototype runs as well as high-volume recurring OEM production orders with consistent batch-to-batch repeatability.
Ready to Cast & Machine Your High-Temperature Superalloy Components?
As a premier China superalloy casting manufacturer and custom nickel alloy parts supplier, VastCasting converts complex engineering designs into high-performance, thermal-resistant components. In addition to our specialization in superalloy high temp castings, we also offer high-precision stainless steel castings tailored for extreme operational environments, including heavy-duty petrochemical equipment parts. Submit your CAD models (.STEP, .IGS, .DWG) and material specifications to request a superalloy casting quote today. Our technical engineering team will deliver a comprehensive DFM analysis and competitive quote within 24 hours.
